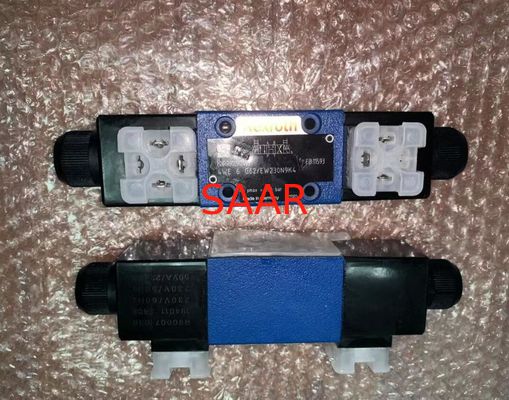

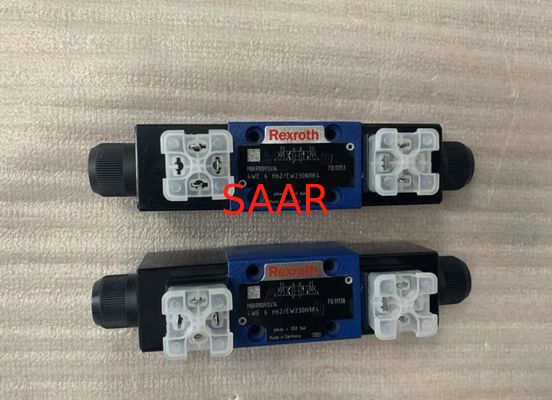

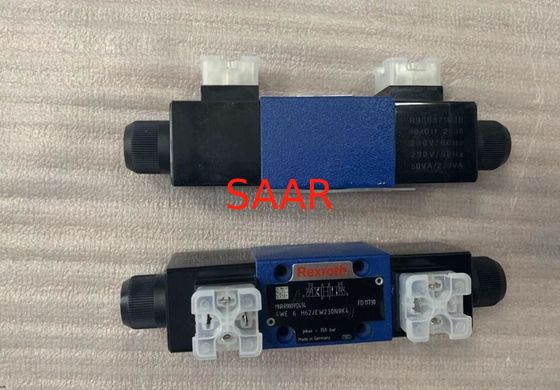

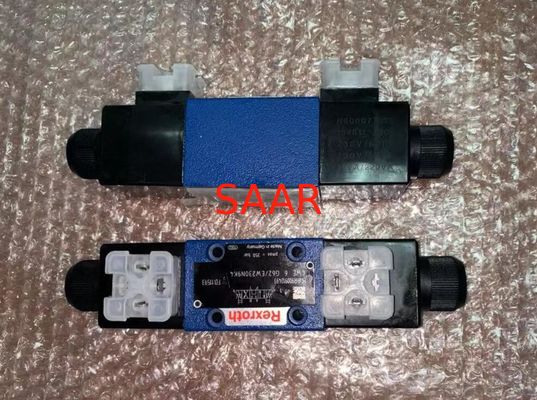

4WE6G 4WE6GA 4WE6H 4WE6HA 4WE6HB Hydraulic Directional Control Valve

4WE6G 4WE6GA 4WE6H 4WE6HA 4WE6HB Hydraulic Directional Control Valve

  • 4WE6G 4WE6GA 4WE6H 4WE6HA 4WE6HB Hydraulic Directional Control Valve
  • 4WE6G 4WE6GA 4WE6H 4WE6HA 4WE6HB Hydraulic Directional Control Valve
  • 4WE6G 4WE6GA 4WE6H 4WE6HA 4WE6HB Hydraulic Directional Control Valve
  • 4WE6G 4WE6GA 4WE6H 4WE6HA 4WE6HB Hydraulic Directional Control Valve
4WE6G 4WE6GA 4WE6H 4WE6HA 4WE6HB Hydraulic Directional Control Valve
Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: ISO9001
Model Number: Rexroth 4WE6G6X/EG110N9K4 4WE6G6X/EG24N9K4 4WE6G6X/EW110N9K4 4WE6GA6X/OFEG24N9K4 4WE6H6X/EG220N9K4 4WE6H6X/EW110N9K4 4WE6HA6X/EG24N9K4 4WE6HB6X/EG24N9K4
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: On request
Packaging Details: Standard paper box
Delivery Time: 7-10days
Payment Terms: T/T, Western Union
Supply Ability: 100PCS per month
Contact Now
Detailed Product Description
Model: 4WE6H62/EW230N9K4 Certification: ISO9001
Origin: Germany
High Light:

rexroth proportional valve

,

hydraulic pressure relief valve

4WE6G 4WE6GA 4WE6H 4WE6HA 4WE6HB Hydraulic Directional Control Valve 0Rexroth 4WE6 Series Solenoid Directional Valves



Directional spool valves, direct operated, with solenoid actuation
WE 6...E
Size 6
Component series 6X
Maximum operating pressure 350 bar
Maximum flow (DC) 80 l/min
Maximum flow (AC) 60 l/min



Features

4/3-, 4/2- or 3/2-way version
High-power solenoid
Porting pattern according to DIN 24340 form A
Porting pattern according to ISO 4401-03-02-0-05
Wet-pin DC or AC solenoids with detachable coil
Solenoid coil is rotatable by 90°
The coil can be changed without having to open the pressure-tight chamber
Electrical connection as individual or central connection
Optional auxiliary operating device
Spool position monitoring, optional



Type Code Ordering:

Type code

01 02 03 04 05   06 07 08 09 10 11   12 13 14 15 16
  WE 6   6X /   E         /         *




01 3 main ports 3
4 main ports 4
02 Directional valve WE
03 Size 6 6
04 Symbols e. g. C, E, EA, EB, etc.; for the possible version, see Symbols
05 Component series 60 … 69 (60 … 69: unchanged installation and connection dimensions) 6X
06 With spring return no code
Without spring return O
Without spring return with detent OF
07 High-power solenoid, wet-pin, with detachable coil E​
08 Direct voltage 24 V G24
Alternating voltage 230 V, 50/60 Hz W230
AC voltage 110 V or 120 V, 50/60 Hz W110
W + voltage
Direct voltage 205 V G205
DC solenoid with rectifier for AC voltage (not frequency-related; only available with plug-in connection with cover, see central connection dimensions) W110R
Nominal voltage 96 V at DC solenoid in case of operation with AC voltage mains (AC voltage mains 110 V - 50/60 Hz with an admissible voltage tolerance of +/- 10 %) G96
Nominal voltage 205 V at DC solenoid with operation with AC voltage mains (AC voltage mains 230 V – 50/60 Hz with an admissible voltage tolerance of +/- 10 %) G205

Connection to AC voltage mains via control with rectifier

1)

09 Without manual override no code
With concealed manual override (standard) N9 2)
With manual override N 2)
With lockable manual override "mushroom button" (small) N4 2)
With lockable manual override "mushroom button" (large) N5 2); 3)
With manual override "mushroom button" (large), not lockable N6 2)
With lockable manual override "nut" N7 2)
Electrical connection
10 Individual connection
Without mating connector, with connector DIN EN 175301-803 K4 4)
Without mating connector, with connector AMP Junior-Timer C44)
Without mating connector, with connector DT 04 - 2PA (Deutsch plug) K404); 7)
Without mating connector, 4-pole with connector M12 x 1 according to IEC 60947-5-2, integrated interference protection circuit and status LED K72L5)
Without mating connector, 4-pole with connector M12 x 1 according to IEC 60947-5-2, integrated interference protection circuit and status LED (no connection pin 1 to pin 2) K73L5)
Central connection
Cable entry at the cover, with indicator light DL
Central plug-in connection at the cover, with indicator light (without mating connector); connector according to DIN EN 175201-804 DK6L6)
With M12x1 plug-in connection, high-performance version: 4-pole DK24L 5)
With M12x1 plug-in connection, high-performance version: 4-pole, integrated interference protection circuit, operating display with LED DK35L 5)
Spool position monitoring
11 Without position switch no code
Inductive position switch type QM
Monitored spool position “a” QMAG24
Monitored spool position “b” QMBG24
Monitored rest position QM0G24
Inductive position switch type QR
Monitored rest position QR0G24S
Monitored spool position "a" and "b" QRABG24E
Inductive position switch type QL
Monitored spool position “a” QLAG24
Monitored spool position “b” QLBG24
Inductive proximity sensor type QS
Monitored spool position “a” QSAG24W
Monitored spool position “b” QSBG24W
Monitored spool position "0" QS0G24W
Monitored spool position "0" and "a" QS0AG24W
Monitored spool position "0" and "b" QS0BG24W
Monitored spool position "a" and "b" QSABG24W
For further details, see data sheet 24830
12 Without throttle insert no code
With throttle insert
Connection Throttle Ø in mm
0,8 mm 1,0 mm 1,2 mm
P = B08 = B10 = B12
A = H08 = H10 = H12
B = R08 = R10 = R12
A and B = N08 = N10 = N12
T = X08 = X10 = X12
Use with flows which exceed the performance limit of the valve (see Product description)
Clamping length
13 42 mm (standard) no code
22 mm Z
Seal material
14 NBR seals no code
FKM seals V
Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)
15 Without locating hole no code
With locating hole /60 8)
With locating hole and locking pin ISO 8752-3x8-St /62
16 Further details in the plain text *



SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth 4WE6E 4WE6EA 4WE6EB 6WE6F Series Solenoid Directional Valves on Sale, Short lead time, Best price!!!

R900913273 4WE6G6X/E
R900973472 4WE6G6X/EG110N2K4
R901117430 4WE6G6X/EG110N4K4
R900717867 4WE6G6X/EG110N5K4
R900921469 4WE6G6X/EG110N9K4
R900917613 4WE6G6X/EG110NK4
R900922013 4WE6G6X/EG125N9K4
R900770479 4WE6G6X/EG12K4
R901130392 4WE6G6X/EG12N4K4
R900248102 4WE6G6X/EG12N9C4
R900973819 4WE6G6X/EG12N9C4/T06
R900567497 4WE6G6X/EG12N9K4
R900929292 4WE6G6X/EG12N9K4/T06
R901050985 4WE6G6X/EG12N9K4SO9
R901052263 4WE6G6X/EG12NC4
R900248467 4WE6G6X/EG12NK4
R900742313 4WE6G6X/EG12NK4K
R900916152 4WE6G6X/EG205N9K4
R901122241 4WE6G6X/EG205N9K4/B10
R900933832 4WE6G6X/EG220N9K4
R900942185 4WE6G6X/EG24K4
R901122864 4WE6G6X/EG24K4/V
R900246215 4WE6G6X/EG24K4QR0G24S
R901003154 4WE6G6X/EG24K4QSAG24E
R900924169 4WE6G6X/EG24N4K4
R900924168 4WE6G6X/EG24N4K4/V
R901004154 4WE6G6X/EG24N9C4
R901075492 4WE6G6X/EG24N9C4/ZSO907
R900912307 4WE6G6X/EG24N9DL
R900701228 4WE6G6X/EG24N9K33L
R900561282 4WE6G6X/EG24N9K4
R900969834 4WE6G6X/EG24N9K4/A12
R900945896 4WE6G6X/EG24N9K4/B10
R901151086 4WE6G6X/EG24N9K4/B10V
R900977575 4WE6G6X/EG24N9K4/B12
R900940923 4WE6G6X/EG24N9K4/B15
R900915376 4WE6G6X/EG24N9K4/T06
R900552009 4WE6G6X/EG24N9K4/V
R900949796 4WE6G6X/EG24N9K4/VSO407
R901068571 4WE6G6X/EG24N9K4/Z
R901097046 4WE6G6X/EG24N9K4/ZV
R900756353 4WE6G6X/EG24N9K4K
R901039918 4WE6G6X/EG24N9K4QS0G24E
R901082343 4WE6G6X/EG24N9K4QSABG24E
R901077029 4WE6G6X/EG24N9K4SO407
R900559649 4WE6G6X/EG24N9K4SO9
R901038054 4WE6G6X/EG24N9XNZ4
R900565966 4WE6G6X/EG24N9Z5L1
R900920708 4WE6G6X/EG24NK4
R901066205 4WE6G6X/EG24NK4/V
R900742090 4WE6G6X/EG24NK4K
R901059215 4WE6G6X/EG24NK4QS0G24S
R901036742 4WE6G6X/EG24NXEZ2
R901050469 4WE6G6X/EG24NXEZ2/V
R900765528 4WE6G6X/EG26N2K4K
R901051359 4WE6G6X/EG28K4/MT
R900954756 4WE6G6X/EG48N9K4
R900930888 4WE6G6X/EG80N9K4
R900939747 4WE6G6X/EG96N9K4
R900934311 4WE6G6X/EW110N9DK25L
R900717544 4WE6G6X/EW110N9DL
R900558642 4WE6G6X/EW110N9K4
R901111346 4WE6G6X/EW127N9K4
R900763671 4WE6G6X/EW230K4
R900912493 4WE6G6X/EW230N9K4
R900924707 4WE6G6X/EW230N9K4/T06
R900977499 4WE6G6X/EW230N9K4/V
R901107647 4WE6G6X/EW230N9K4/Z
R901129420 4WE6G6X/EW230N9K4/ZV
R901085959 4WE6G6X/EW230NDKL
R900909420 4WE6G6X/EW230NK4
R901054158 4WE6G6X/EW230RNXEZ2
R900919133 4WE6G6X/EW24N9K4
R900953240 4WE6G6X/EW48N9K4
R900964641 4WE6GA6X/EG110N9K4
R900971984 4WE6GA6X/EG12N4K4
R900923844 4WE6GA6X/EG12N9K4
R900921106 4WE6GA6X/EG12NK4
R901050687 4WE6GA6X/EG12NK4K
R900902958 4WE6GA6X/EG205N9K4
R900935489 4WE6GA6X/EG220N9K4
R900970397 4WE6GA6X/EG24K4
R901123309 4WE6GA6X/EG24N4K4/V
R900700183 4WE6GA6X/EG24N5K4
R901081354 4WE6GA6X/EG24N9DAL/R12
R900746314 4WE6GA6X/EG24N9DK35L/V/60
R901000287 4WE6GA6X/EG24N9K33L
R901050360 4WE6GA6X/EG24N9K33LSO407
R900561284 4WE6GA6X/EG24N9K4
R900939049 4WE6GA6X/EG24N9K4/B08
R900933300 4WE6GA6X/EG24N9K4/B15
R900939610 4WE6GA6X/EG24N9K4/V
R900921892 4WE6GA6X/EG24N9K4/VSO407
R901112537 4WE6GA6X/EG24N9K4/ZV
R900953936 4WE6GA6X/EG24N9K4SO407
R901025708 4WE6GA6X/EG24N9XNZ4
R901108654 4WE6GA6X/EG24NC4
R900926958 4WE6GA6X/EG24NK4
R901050690 4WE6GA6X/EG24NK4K
R901030755 4WE6GA6X/EG24NXEZ2
R901097367 4WE6GA6X/EG80N9K4/V
R901055654 4WE6GA6X/EG96N9K4
R901030608 4WE6GA6X/EW110N9DAL/R12
R901033071 4WE6GA6X/EW110N9DL
R900905996 4WE6GA6X/EW110N9DL/V
R900909139 4WE6GA6X/EW110N9K4
R900939175 4WE6GA6X/EW110N9K4/V
R900927533 4WE6GA6X/EW110N9K4SO789
R901038724 4WE6GA6X/EW230N9DKL/B12
R901063540 4WE6GA6X/EW230N9DKL/V
R900924966 4WE6GA6X/EW230N9K4
R900942791 4WE6GA6X/EW230N9K4/V
R900973901 4WE6GA6X/EW24N9K4
R901112008 4WE6GA6X/OFEG12N9C4SO871
R901073024 4WE6GA6X/OFEG12N9K4
R900958333 4WE6GA6X/OFEG12N9K4/T06
R901084711 4WE6GA6X/OFEG12N9K4/T06V
R900975153 4WE6GA6X/OFEG24N9K4
R901018923 4WE6GA6X/OFEG24N9K4/T06
R900618757 4WE6GB6X/EG12N9K4
R901123780 4WE6GB6X/EG24K4/MT
R900971290 4WE6GB6X/EG24K4QM0G24
R900561285 4WE6GB6X/EG24N9K4
R900929635 4WE6GB6X/EG24N9K4/V
R901127943 4WE6GB6X/EG24N9K4/VSO407
R900778705 4WE6GB6X/EG24N9K4SO9
R900782184 4WE6GB6X/EG24NK4
R900906020 4WE6GB6X/EW110N9DL/V
R900906930 4WE6GB6X/EW110N9K4
R900976164 4WE6GB6X/EW110N9K4/V
R900926965 4WE6GB6X/EW230N9K4
R900913272 4WE6H6X/E
R900967027 4WE6H6X/EG110N4K4
R900912444 4WE6H6X/EG110N9K4
R900936615 4WE6H6X/EG125N9K4
R900762596 4WE6H6X/EG12N4K4
R900907003 4WE6H6X/EG12N9C4
R900903900 4WE6H6X/EG12N9K4
R901129509 4WE6H6X/EG12N9K4/V
R901115288 4WE6H6X/EG12NC4
R900929572 4WE6H6X/EG12NK4
R901050691 4WE6H6X/EG12NK4K
R900952439 4WE6H6X/EG180N9K4
R900746025 4WE6H6X/EG205K4
R900917112 4WE6H6X/EG205N9K4
R900782183 4WE6H6X/EG205N9K4/V
R901097057 4WE6H6X/EG205N9K4/ZV
R900957816 4WE6H6X/EG220N9K4
R900911362 4WE6H6X/EG220NK4
R900945005 4WE6H6X/EG24K4
R900712602 4WE6H6X/EG24K4QR0G24S
R900924601 4WE6H6X/EG24N4K4
R900954750 4WE6H6X/EG24N5K4
R900974804 4WE6H6X/EG24N6K4
R900778406 4WE6H6X/EG24N9C4
R900910276 4WE6H6X/EG24N9DAL
R900546823 4WE6H6X/EG24N9DL
R901029581 4WE6H6X/EG24N9K33L
R900561286 4WE6H6X/EG24N9K4
R900783093 4WE6H6X/EG24N9K4/B08
R900932661 4WE6H6X/EG24N9K4/B12
R900974845 4WE6H6X/EG24N9K4/B12V
R901133069 4WE6H6X/EG24N9K4/H10V
R900929366 4WE6H6X/EG24N9K4/V
R900761501 4WE6H6X/EG24N9K4/VSO407
R901097034 4WE6H6X/EG24N9K4/ZV
R900921467 4WE6H6X/EG24N9K4SO407
R900902831 4WE6H6X/EG24N9K4SO9
R901084540 4WE6H6X/EG24N9XNZ4
R900550701 4WE6H6X/EG24N9Z5L1
R901028603 4WE6H6X/EG24NC4
R900902112 4WE6H6X/EG24NDAL
R900944281 4WE6H6X/EG24NK4
R900722102 4WE6H6X/EG24NK4/V
R900722586 4WE6H6X/EG24NK4K
R901023607 4WE6H6X/EG24NXEZ2
R900249848 4WE6H6X/EG26N2K4/B12SO9
R901140695 4WE6H6X/EG26N2K4K
R900936119 4WE6H6X/EG48N9K4
R900955692 4WE6H6X/EG96N4K4
R900909439 4WE6H6X/EG96N9K4
R900928467 4WE6H6X/EG96N9K4/V
R900575062 4WE6H6X/EW110N9DL
R900906672 4WE6H6X/EW110N9K4
R900704185 4WE6H6X/EW110N9K4/V
R901083193 4WE6H6X/EW110RNXEZ2
R900919557 4WE6H6X/EW230N9DL
R900912494 4WE6H6X/EW230N9K4
R900758429 4WE6H6X/EW230N9K4/B10
R900977500 4WE6H6X/EW230N9K4/V
R901058922 4WE6H6X/EW230RNXEZ2
R900919555 4WE6H6X/EW24N9K4
R900950282 4WE6H6X/EW48N9K4
R900964490 4WE6HA6X/EG110N9K4
R900935001 4WE6HA6X/EG125N9K4
R900903992 4WE6HA6X/EG12N9K4
R900916097 4WE6HA6X/EG205N9K4
R900933833 4WE6HA6X/EG220N9K4
R900924865 4WE6HA6X/EG24K4
R900943154 4WE6HA6X/EG24N4K4
R901001223 4WE6HA6X/EG24N9K33L
R901001590 4WE6HA6X/EG24N9K33L/V
R900718347 4WE6HA6X/EG24N9K33LSO407=AN
R900549534 4WE6HA6X/EG24N9K4
R901015056 4WE6HA6X/EG24N9K4
R901116608 4WE6HA6X/EG24N9K4
R900929856 4WE6HA6X/EG24N9K4/B08
R900979375 4WE6HA6X/EG24N9K4/B18
R901031745 4WE6HA6X/EG24N9K4/T06V
R900554556 4WE6HA6X/EG24N9K4/V
R900754557 4WE6HA6X/EG24N9K4/VSO407
R901114318 4WE6HA6X/EG24N9K4/ZV
R900934469 4WE6HA6X/EG24N9K4SO407
R901138230 4WE6HA6X/EG24N9XNZ4
R901084940 4WE6HA6X/EG24NDLSO321
R900944653 4WE6HA6X/EG24NK4
R901078619 4WE6HA6X/EG24NXEZ2
R901009515 4WE6HA6X/EG24NXEZ2/B30
R901009184 4WE6HA6X/EG24NXEZ2/V
R900909654 4WE6HA6X/EG96N9K4
R900906460 4WE6HA6X/EW110N9K4
R901093504 4WE6HA6X/EW110N9K4/ZV
R900936342 4WE6HA6X/EW110NK4
R901129610 4WE6HA6X/EW127N9K4/V
R900912495 4WE6HA6X/EW230N9K4
R900936787 4WE6HA6X/EW230N9K4/V
R900969023 4WE6HA6X/EW230NK4
R900936528 4WE6HA6X/EW24N9K4
R900928362 4WE6HA6X/EW48N9K4
R901133322 4WE6HA7X/HG24N9K4
R901079736 4WE6HB6X/EG12N4K4
R900725030 4WE6HB6X/EG12N9K4
R900974468 4WE6HB6X/EG205N9K4
R900928658 4WE6HB6X/EG24K4QM0G24
R900716996 4WE6HB6X/EG24N4K4
R901029584 4WE6HB6X/EG24N9K33L
R900553670 4WE6HB6X/EG24N9K4
R900947031 4WE6HB6X/EG24N9K4/B08
R901063014 4WE6HB6X/EG24N9K4/B18
R900729410 4WE6HB6X/EG24N9K4/V
R900760117 4WE6HB6X/EG24N9K4=AN
R901005382 4WE6HB6X/EG24NDLSO321
R901122238 4WE6HB6X/EG24NXEZ2
R901048981 4WE6HB6X/EG48N4K4/V
R900712438 4WE6HB6X/EG96N9K4
R900909144 4WE6HB6X/EW110N9K4
R900909145 4WE6HB6X/EW230N9K4
R901113395 4WE6HB6X/EW230RNXEZ2
R901130551 4WE6HB6X/EW24N9K4

Contact Details
Saar HK Electronic Limited

Contact Person: jason

Tel: +8613918187448

Send your inquiry directly to us (0 / 3000)

Other Products
