Stable Running Rexroth Hydraulic Valves 4WRE6 4WRE10 Series ISO Certification

Stable Running Rexroth Hydraulic Valves 4WRE6 4WRE10 Series ISO Certification

    • Stable Running Rexroth Hydraulic Valves 4WRE6 4WRE10 Series ISO Certification
    • Stable Running Rexroth Hydraulic Valves 4WRE6 4WRE10 Series ISO Certification
    • Stable Running Rexroth Hydraulic Valves 4WRE6 4WRE10 Series ISO Certification
    • Stable Running Rexroth Hydraulic Valves 4WRE6 4WRE10 Series ISO Certification
  • Stable Running Rexroth Hydraulic Valves 4WRE6 4WRE10 Series ISO Certification

    Product Details:

    Place of Origin: Germany
    Brand Name: Rexroth
    Certification: ISO
    Model Number: Rexroth 4WRE6E 4WRE6EA 4WRE6Q 4WRE6V 4WRE6W 4WRE10E 4WRE10Q 4WRE10V 4WRE10W Proportional Directional Valve

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: On request
    Packaging Details: Standard paper box
    Delivery Time: 7-10days
    Payment Terms: T/T, Western Union
    Supply Ability: 100PCS per month
    Contact Now
    Detailed Product Description
    Maximum Operating Pressure: 315 Bar Maximum Flow: 180 L/min
    Weight: 2.2 Kg

    Stable Running Rexroth Hydraulic Valves 4WRE6 4WRE10 Series ISO Certification

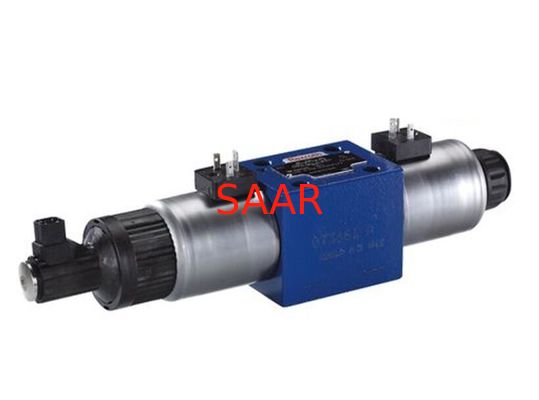

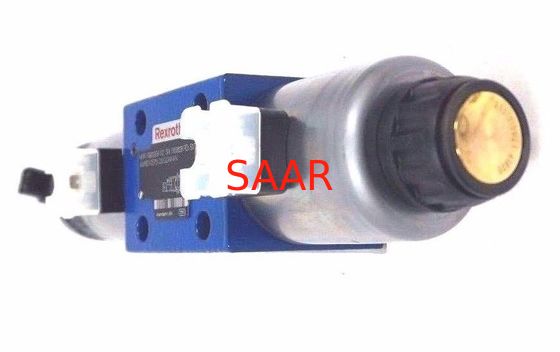

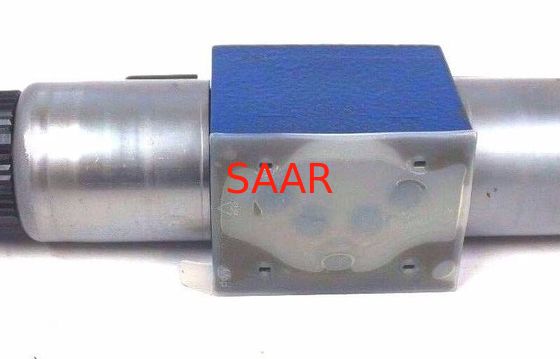

    Rexroth 4WREE Series Proportional Directional Valves

    Size 6, 10

    Component series 2X

    Maximum operating pressure 315 bar

    Maximum flow 180 l/min



    Features

    – Actuation is by proportional solenoids with central thread and removable coil
    – Electrical position feed-back
    – For subplates: porting pattern to DIN 24 340 form A, ISO 4401, CETOP-RP 121 H, NFPA T3.5.1M R1, and ANSI B93.7 D 03, D 05 Subplates to catalog sheets RA 45 052 and RA 45 054 (separate order), see pages 15 and 16
    – Spring centered control spool
    – Model 4WREE, integrated valve electronics with interface A1and F1
    – Control electronics for model 4WRE: electronic amplifier VT-VRPA2-1-1X in Eurocard format (separate order)



    Technical Data

    General

    Type 4WRE
    Size 6
    Installation position   any, preferably horizontal
    Ambient temperature range °C -20 … +70
    Storage temperature range °C -20 … +80
    Weight kg 2.2
    MTTFD values according to EN ISO 13849 1) y 150
    1) With control spool types E, E1, EA, W, W1, WA; in longitudinal control spool direction, there is sufficient positive overlap without shock/vibration load; observe the installation orientation with regard to the main direction of acceleration.

    Hydraulic

    Size 6
    Maximum operating pressure   bar 315
    Maximum operating pressure Port P bar 315
    Port T bar 210
    Port A bar 315
    Port B bar 315
    Maximum flow   l/min 80
    Nominal flow   l/min 4
    8
    16
    32
    Hydraulic fluid     see table below
    Hydraulic fluid temperature range   °C -20 … +80
    preferably °C +40 … +50
    Viscosity range   mm²/s 20 … 380
    preferably mm²/s 30 … 46
    Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 1)   Class 20/18/15 according to ISO 4406 (c)
    Hysteresis   % ≤ 0.1
    Range of inversion   % ≤ 0.05
    Response sensitivity   % ≤ 0.05
    Zero shift upon change of Hydraulic fluid temperature %/10 K ≤ 0.15
    Operating pressure %/100 bar ≤ 0.1
    1) The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.
    Hydraulic fluid Classification Suitable sealing materials Standards
    Mineral oils and related hydrocarbons HL, HLP NBR / FKM DIN 51524
    Flame-resistant - containing water HFC (Fuchs HYDROTHERM 46M, Petrofer Ultra Safe 620) NBR ISO 12922

    Important information on hydraulic fluids:

    For more information and data on the use of other hydraulic fluids please contact us.

    There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.).

    The flash point of the process and operating medium used must be 40 K over the maximum solenoid surface temperature.

    Flame-resistant - containing water:
    Maximum pressure differential per control edge 175 bar
    Pressure pre-loading at the tank port > 20 % of the pressure differential, otherwise increased cavitation
    Life cycle as compared to operation with mineral oil HL, HLP 50 % to 100 %

    Electrical

    Size 6
    Voltage type   Direct voltage
    Maximum current consumption of the amplifier A 2
    of the amplifier (impulse current) A 3
    Solenoid coil resistance Cold value at 20 °C Ω 2.65
    Maximum hot value Ω 4.05
    Actuated time   % 100
    Maximum coil temperature 1)   °C 150
    Protection class according to DIN EN 60529   IP65 (with mating connector mounted and locked)
    Power supply   V 24
    Supply voltage range   V 19.4 … 35
    1) Due to the surface temperatures occurring at solenoid coils, the European standards ISO 13732-1 and ISO 4413 need to be adhered to.



    SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

    Rexroth 4WRE6E 4WRE6EA 4WRE6Q 4WRE6V 4WRE6W 4WRE10E 4WRE10Q 4WRE10V 4WRE10W Proportional Directional Valve​ on Sale, Short lead time, Best price!!!



    R900726605 4WRE10E1-25-2X/G24K4/V
    R900954103 4WRE10E1-50-2X/G24K4/V
    R900954104 4WRE10E1-75-2X/G24K4/V
    R900954100 4WRE10E25-2X/G24K4/V
    R901048036 4WRE10E3-75-2X/G24K4/V
    R900954101 4WRE10E50-2X/G24K4/V

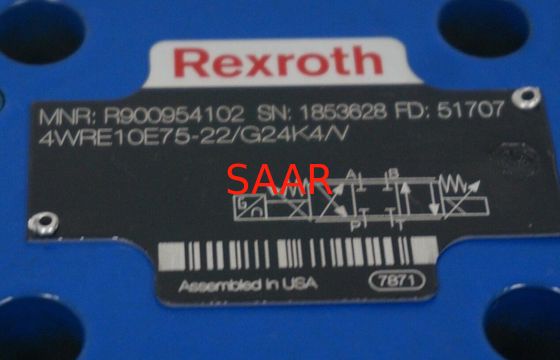

    R900954102 4WRE10E75-2X/G24K4/V
    R901039213 4WRE10EA25-2X/G24K4/V
    R900752971 4WRE10EA50-2X/G24K4/V
    R900969351 4WRE10EA75-2X/G24K4/V
    R900703186 4WRE10EB50-2X/G24K4/V
    R901151585 4WRE10V1-25-2X/G24K4/V
    R901415922 4WRE10V1-50-2X/G24K4/M
    R901017446 4WRE10V1-50-2X/G24K4/V
    R901414444 4WRE10V1-75-2X/G24K4/V
    R900954115 4WRE10V25-2X/G24K4/V
    R902568186 4WRE10V25-2X/G24Z4/V
    R900954116 4WRE10V50-2X/G24K4/V
    R902562587 4WRE10V50-2X/G24Z4/V
    R901236220 4WRE10V50-2X=G24K4/V
    R900954117 4WRE10V75-2X/G24K4/V
    R900974152 4WRE10W1-25-2X/G24K4/V
    R900954113 4WRE10W1-50-2X/G24K4/V
    R900954114 4WRE10W1-75-2X/G24K4/V
    R900954105 4WRE10W25-2X/G24K4/V
    R900608420 4WRE10W3-75-2X/G24K4/V
    R900954106 4WRE10W50-2X/G24K4/V
    R900954107 4WRE10W75-2X/G24K4/V
    R901436393 4WRE10WA25-2X/G24K4/V
    R901086329 4WRE10WA50-2X/G24K4/V
    R901030897 4WRE10WA75-2X/G24K4/V
    R901339372 4WRE10WB75-2X/G24K4/V
    R901031274 4WRE6E04-2X/G24K4/V
    R900933478 4WRE6E08-2X/G24K4/V
    R900968149 4WRE6E1-08-2X/G24K4/V
    R900954093 4WRE6E1-16-2X/G24K4/V
    R900954094 4WRE6E1-32-2X/G24K4/V
    R900954092 4WRE6E16-2X/G24K4/V
    R900926366 4WRE6E32-2X/G24K4/V
    R900783105 4WRE6EA08-2X/G24K4/V
    R900720198 4WRE6EA16-2X/G24K4/V
    R900752799 4WRE6EA32-2X/G24K4/V
    R901364823 4WRE6Q2-08-2X/G24K4/V
    R900246943 4WRE6V04-2X/G24K4/V
    R900954097 4WRE6V08-2X/G24K4/V
    R900966805 4WRE6V1-16-2X/G24K4/V
    R901403868 4WRE6V16-2X/G24K4/M
    R900954098 4WRE6V16-2X/G24K4/V
    R900954099 4WRE6V32-2X/G24K4/V
    R901246418 4WRE6W04-2X/G24K4/V
    R900941264 4WRE6W08-2X/G24K4/V
    R900953729 4WRE6W1-08-2X/G24K4/V
    R900954095 4WRE6W1-16-2X/G24K4/V
    R901236264 4WRE6W1-16-2X=G24K4/V
    R900954096 4WRE6W1-32-2X/G24K4/V
    R900775379 4WRE6W1-32-2X/G24K4/V=LB
    R900944121 4WRE6W16-2X/G24K4/V
    R900773304 4WRE6W16-2X/G24K4/V=LB
    R900933480 4WRE6W32-2X/G24K4/V
    R901433171 4WRE6W9-32-2X/G24K4/V
    R901022178 4WRE6WA08-2X/G24K4/V
    R900965434 4WRE6WA16-2X/G24K4/V
    R901011624 4WRE6WA32-2X/G24K4/V
