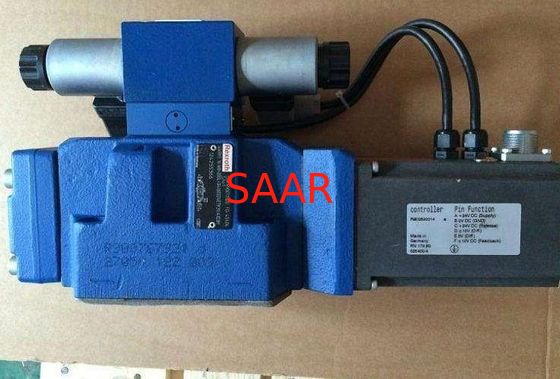

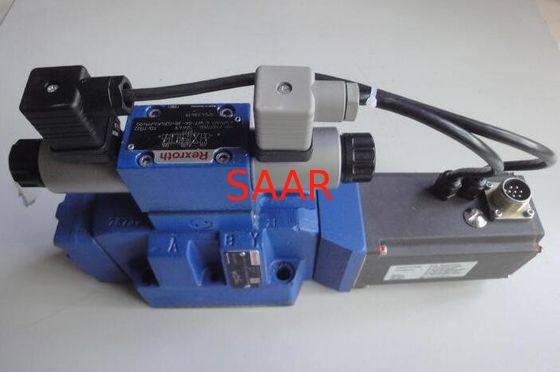

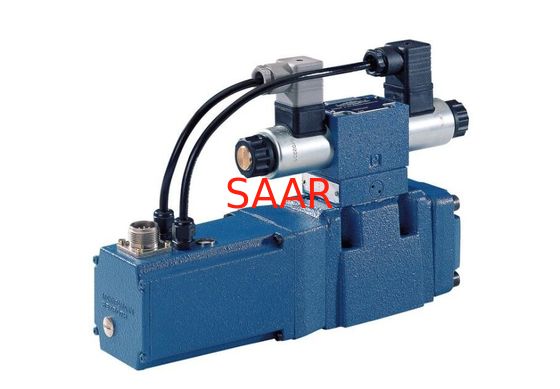

Rexroth Type 4WRKE35 Directional Valve, Hydraulic Proportional Valve

Product Details:

Place of Origin:	Germany
Brand Name:	Rexroth
Model Number:	Rexroth 4WRKE35E1000L 4WRKE1-1000L 4W4RKE35W6-1000L 4WRKE35W8-1000L Proportional Directional Valve
CertifiSAARion:	ISO

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	On request
Packaging Details:	Standard paper box
Delivery Time:	7-10days
Payment Terms:	T/T, Western Union
Supply Ability:	100PCS per month

Contact Now

Detailed Product Description

High Light:

rexroth proportional valve

hydraulic pressure relief valve

Rexroth Type 4WRKE35 Directional Valve, Hydraulic Proportional Valve 0 Rexroth 4WRKE Series Proportional Directional Valve

Size 10, 16, 25, 27, 32, 35
Component series 3X
Maximum operating pressure 350 bar
Maximum flow 3000 l/min

Features

*Pilot-operated 2-stage proportional directional valves with electrical position feedbackof the main control spool and integrated electronics (OBE) Control of flow direction and size
*Proportional solenoid operation
For subplate mounting: Porting pattern according to ISO 4401 Electrical position feedback
*Spring-centered main control spool Pilot control valve: single-stage proportional directional valve
*Main stage with position control

Technical Data

General

Type		4WRKE
Size		10	16	25	27	32	35
Installation position		any, preferably horizontal
Ambient temperature range	°C	-20 … +50
Storage temperature range	°C	-20 … +80
Weight	kg	8.7	11.2	16.8	17	31.5	34
Sine test according to DIN EN 60068-2-6		10 cycles, 10…2000.. 10 Hz with logarithmic frequency changing speed of 1 octave/min, 5 to 57 Hz, amplitude 1.5 mm (p-p), 57 to 2000 Hz, amplitude 10g, 3 axes
Noise test according to DIN EN 60068-2-64		20…2000 Hz, amplitude 0.05g2/Hz (10gRMS) 3 axes, testing time 30 min per axis
Shock test according to DIN EN 60068-2-27		Half-sine 15g / 11 ms, 3 times in positive and 3 times in negative direction per axis, 3 axes
Damp heat according to DIN EN 60068-2-30		Variant 2: +25 °C … +55 °C, 90 % … 97 % relative humidity, 2 cycles á 24 hours

Hydraulic

Size				10	16	25	27	32	35
Maximum operating pressure			bar	350
Maximum operating pressure	Port P		bar	315	350		210	350
	Port A		bar	315	350		210	350
	Port B		bar	315	350		210	350
Operating pressure range	Pilot control valve, pilot oil supply		bar	25 … 315
Maximum return flow pressure	Port T, external pilot oil return		bar	315	250		210	250
	Port T, internal pilot oil return		bar	10
	Port Y		bar	10
Maximum flow			l/min	170	460	870	1000	1600	3000
Nominal flow ¹⁾			l/min	25 50 100	125 150 200 220	220 350	500	400 600	1000
Pilot flow	input signal 0 → 100%	Port X and Y	l/min	4.1	8.5	11.7		13
Hydraulic fluid temperature range			°C	-20 … +80
Hydraulic fluid temperature range	preferably		°C	-40 … +50
Viscosity range			mm²/s	20 … 380
Viscosity range	preferably		mm²/s	30 … 45
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) ²⁾	Pilot control valve			Class 18/16/13 according to ISO 4406 (c)
	Main valve			Class 20/18/15 according to ISO 4406 (c)
Hysteresis			%	≤ 1
Response sensitivity			%	≤ 0.5

¹⁾	±10% with Δp = 10 bar, Δp = valve pressure differential
²⁾	The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

Electrical

Size			10	16	25	27	32	35
Voltage type			Direct voltage
Type of signal			analog
Maximum current consumption	of the amplifier	A	1.5
Maximum current consumption	of the amplifier (impulse current)	A	3
Protection class according to DIN EN 60529			IP65 (with mating connector mounted and locked)
Power supply		V	24
Supply voltage range		V	18 … 35
Earthing (GND)		V	0
Command value input	"A1"	V	10
Command value input range	"F1"	mA	4 … 20
Actual value output	"A1"	V	10
Actual value output range	"F1"	mA	4 … 20

Hydraulic fluid	ClassifiSAARion	Suitable sealing materials	Standards
Mineral oils and related hydrocarbons	HL, HLP	NBR / FKM	DIN 51524
Flame-resistant - containing water	HFC (Fuchs HYDROTHERM 46M, Petrofer Ultra Safe 620)	NBR	ISO 12922
Phosphoric acid esters	HFD-R	FKM
Important information on hydraulic fluids: For more information and data on the use of other hydraulic fluids please contact us. There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.). The flash point of the process and operating medium used must be 40 K over the maximum solenoid surface temperature. Flame-resistant - containing water: Maximum pressure differential per control edge 175 bar Pressure pre-loading at the tank port > 20 % of the pressure differential, otherwise increased cavitation Life cycle as compared to operation with mineral oil HL, HLP 50 % to 100 %

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth 4WRKE35E1000L 4WRKE1-1000L 4W4RKE35W6-1000L 4WRKE35W8-1000L Proportional Directional Valve on Sale, Short lead time, Best price!!!

R901025614	4WRKE35E1000L-3X/6EG24EK31/A1D3M
R901211507	4WRKE35E1000L-3X/6EG24EK31/A1D3V
R900762781	4WRKE35E1000L-3X/6EG24EK31/C1D3M
R900717029	4WRKE35E1000L-3X/6EG24ETK31/A1D3M
R900773355	4WRKE35E1000L-3X/6EG24K31/A1D3M
R901024647	4WRKE35E1000L-3X/6EG24K31/A1D3M-280
R901132836	4WRKE35E1000L-3X/6EG24K31/A1D3M-905
R901102529	4WRKE35E1000L-3X/6EG24K31/A1D3V
R901102529	4WRKE35E1000L-3X/6EG24K31/A1D3V021-60510260
R900726602	4WRKE35E1000L-3X/6EG24K31/A5D3M
R900718328	4WRKE35E1000L-3X/6EG24K31/A5D3M-280
R901177187	4WRKE35E1000L-3X/6EG24K31/C1D3M
R901135910	4WRKE35E1000L-3X/6EG24TK31/A1D3M
R901025013	4WRKE35E1-1000L-3X/6EG24EK31/A1D3M
R901100929	4WRKE35E1-1000L-3X/6EG24EK31/A1D3V
R901101368	4WRKE35E1-1000L-3X/6EG24EK31/A5D3M-280
R900775473	4WRKE35E1-1000L-3X/6EG24ETK31/A1D3M
R900718331	4WRKE35E1-1000L-3X/6EG24ETK31/A5D3M
R901033705	4WRKE35E1-1000L-3X/6EG24K31/A1D3M
R901018298	4WRKE35E1-1000L-3X/6EG24K31/A1D3M-280
R901056255	4WRKE35E1-1000L-3X/6EG24K31/A1D3V
R901093110	4WRKE35E1-1000L-3X/6EG24K31/A5D3M
R900756658	4WRKE35E1-1000L-3X/6EG24K31/A5D3M-280
R901231227	4WRKE35E1-1000L-3X/6EG24K31/C1D3M
R901052827	4WRKE35E1-1000L-3X/6EG24K31/F1D3V
R901039677	4WRKE35E3-1000L-3X/6EG24K31/A1D3M
R901081173	4WRKE35E3-1000L-3X/6EG24TK31/A1D3M
R901124051	4WRKE35EA-1000L-3X/6EG24EK31/A1D3M
R901160858	4WRKE35R3-1000L-3X/6EG24K31/A1D3M
R901183466	4WRKE35R3-1000L-3X/6EG24K31/F1D3M
R900751307	4WRKE35W2-1000L-3X/6EG24K31/A5D3M
R901094074	4WRKE35W6-1000L-3X/6EG24EK31/A1D3M
R901263621	4WRKE35W6-1000L-3X/6EG24EK31/F1D3M
R900717030	4WRKE35W6-1000L-3X/6EG24ETK31/A1D3M
R901094481	4WRKE35W6-1000L-3X/6EG24ETK31/F1D3M
R901136533	4WRKE35W6-1000L-3X/6EG24K31/A1D3M
R900715082	4WRKE35W6-1000L-3X/6EG24K31/A5D3M
R901240438	4WRKE35W6-1000L-3X/6EG24K31/C1D3M
R900773088	4WRKE35W6-1000L-3X/6EG24K31/F1D3M
R901242289	4WRKE35W6-1000P-3X/6EG24EK31/C1D3M
R901227838	4WRKE35W6-1000P-3X/6EG24K31/F1D3M
R901054883	4WRKE35W8-1000L-3X/6EG24EK31/A1D3M
R901127413	4WRKE35W8-1000L-3X/6EG24EK31/F1D3M
R900759331	4WRKE35W8-1000L-3X/6EG24ETK31/A5D3M
R901160961	4WRKE35W8-1000L-3X/6EG24ETK31/F1D3M
R900704404	4WRKE35W8-1000L-3X/6EG24K31/A5D3M
R901176133	4WRKE35W8-1000L-3X/6EG24K31/F1D3M
R901048598	4WRKE35W8-1000L-3X/6EG24TK31/A1D3M
