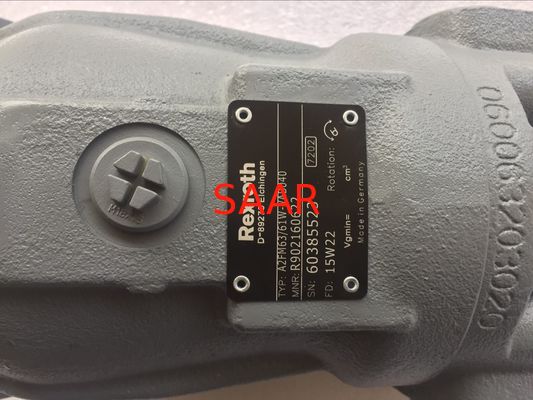

High Power Rexroth Hydraulic Pump , A2FM56 A2FM63 Series Fixed Axial Piston Motor

High Power Rexroth Hydraulic Pump , A2FM56 A2FM63 Series Fixed Axial Piston Motor

  • High Power Rexroth Hydraulic Pump , A2FM56 A2FM63 Series Fixed Axial Piston Motor
  • High Power Rexroth Hydraulic Pump , A2FM56 A2FM63 Series Fixed Axial Piston Motor
  • High Power Rexroth Hydraulic Pump , A2FM56 A2FM63 Series Fixed Axial Piston Motor
  • High Power Rexroth Hydraulic Pump , A2FM56 A2FM63 Series Fixed Axial Piston Motor
High Power Rexroth Hydraulic Pump , A2FM56 A2FM63 Series Fixed Axial Piston Motor
Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Model Number: Rexroth Type A2FM56 A2FM63 Axial Piston Fixed Motor
CertifiSAARion: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: On request
Packaging Details: Standard paper box
Delivery Time: 7-10days
Payment Terms: T/T, Western Union
Supply Ability: 100PCS per month
Contact Now
Detailed Product Description
High Light:

hydraulic driven water pump

,

commercial hydraulic pumps

High Power Rexroth Hydraulic Pump , A2FM56 A2FM63 Series Fixed Axial Piston Motor 0Rexroth A2FM 6X Series Axial Piston Fixed Motor

All-purpose high pressure motor
Size 5 … 1000
Nominal pressure up to 400 bar
Maximum pressure up 450 bar
Open and closed circuit
Metric version

Features
Large variety of available nominal sizes allows exact adjustment to the appliSAARion
High power density
Very high total efficiency
High starting efficiency
Working ports SAE flange or thread
Optional with integrated pressure relief valve
Optional with mounted addifitonal valve: counterbalance valve (BVD/BVE), flushingand boost-pressure valve
Bent-axis design



Technical data

Table of values

Size 5 10 12 16 23 28 32 107 125 160 180 200 250 355 500 710 1000
Displacement
geometric, per revolution		 Vg cm³ 4.93 10.3 12 16 22.9 28.1 32 106.7 125 160.4 180 200 250 355 500 710 1000
Nominal pressure pnom bar 315 400 400 400 400 400 400 400 400 400 400 400 350 350 350 350 350
Maximum pressure pmax bar 350 450 450 450 450 450 450 450 450 450 450 450 400 400 400 400 400
Maximum speed nnom 1) rpm 10000 8000 8000 8000 6300 6300 6300 4000 4000 3600 3600 2750 2700 2240 2000 1600 1800
nmax 2) rpm 11000 8800 8800 8800 6900 6900 6900 4400 4400 4000 4000 3000
Inlet flow 3) at nnom qV l/min 49 82 96 128 144 177 202 427 500 577 648 550 675 795 1000 1136 1600
Torque 4) at pnom M Nm 24.7 66 76 102 146 179 204 679 796 1021 1146 1273 1393 1978 2785 3955 5570
Rotary stiffness c kNm/rad 0.63 0.92 1.25 1.59 2.56 2.93 3.12 11.2 11.9 17.4 18.2 57.3 73.1 96.1 144 270 324
Moment of inertia for rotary group JTW kg·m² 0.00006 0.0004 0.0004 0.0004 0.0012 0.0012 0.0012 0.0116 0.0116 0.022 0.022 0.0353 0.061 0.102 0.178 0.55 0.55
Maximum angular acceleration ɑ rad/s² 5000 5000 5000 5000 6500 6500 6500 4500 4500 3500 3500 11000 10000 8300 5500 4300 4500
Case volume V l   0.17 0.17 0.17 0.2 0.2 0.2 0.8 0.8 1.1 1.1 2.7 2.5 3.5 4.2 8 8
Weight (approx.) m kg 2.5 5.4 5.4 5.4 9.5 9.5 9.5 32 32 45 45 66 73 110 155 325 336


Table of values

Size 5 10 12 16 23 28 32 107 125 160 180 200 250 355 500 710 1000
Displacement
geometric, per revolution		 Vg cm³ 4.93 10.3 12 16 22.9 28.1 32 106.7 125 160.4 180 200 250 355 500 710 1000
Nominal pressure pnom bar 315 400 400 400 400 400 400 400 400 400 400 400 350 350 350 350 350
Maximum pressure pmax bar 350 450 450 450 450 450 450 450 450 450 450 450 400 400 400 400 400
Maximum speed nnom 1) rpm 10000 8000 8000 8000 6300 6300 6300 4000 4000 3600 3600 2750 2700 2240 2000 1600 1800
nmax 2) rpm 11000 8800 8800 8800 6900 6900 6900 4400 4400 4000 4000 3000
Inlet flow 3) at nnom qV l/min 49 82 96 128 144 177 202 427 500 577 648 550 675 795 1000 1136 1600
Torque 4) at pnom M Nm 24.7 66 76 102 146 179 204 679 796 1021 1146 1273 1393 1978 2785 3955 5570
Rotary stiffness c kNm/rad 0.63 0.92 1.25 1.59 2.56 2.93 3.12 11.2 11.9 17.4 18.2 57.3 73.1 96.1 144 270 324
Moment of inertia for rotary group JTW kg·m² 0.00006 0.0004 0.0004 0.0004 0.0012 0.0012 0.0012 0.0116 0.0116 0.022 0.022 0.0353 0.061 0.102 0.178 0.55 0.55
Maximum angular acceleration ɑ rad/s² 5000 5000 5000 5000 6500 6500 6500 4500 4500 3500 3500 11000 10000 8300 5500 4300 4500
Case volume V l   0.17 0.17 0.17 0.2 0.2 0.2 0.8 0.8 1.1 1.1 2.7 2.5 3.5 4.2 8 8
Weight (approx.) m kg 2.5 5.4 5.4 5.4 9.5 9.5 9.5 32 32 45 45 66 73 110 155 325 336
1) These values are valid at:
- for the optimum viscosity range from vopt = 36 to 16 mm2/s
- with hydraulic fluid based on mineral oils
2) Intermittent maximum speed: overspeed for unload and overhauling processest, t < 5 s and Δp < 150 bar
3) Restriction of input flow with counterbalance valve
4) Torque without radial force, with radial force see table "Permissible radial and axial forces of the drive shafts"
1) These values are valid at:
- for the optimum viscosity range from vopt = 36 to 16 mm2/s
- with hydraulic fluid based on mineral oils
2) Intermittent maximum speed: overspeed for unload and overhauling processest, t < 5 s and Δp < 150 bar
3) Restriction of input flow with counterbalance valve
4) Torque without radial force, with radial force see table "Permissible radial and axial forces of the drive shafts"



SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth Type A2FM56 A2FM63 Axial Piston Fixed Motors on Sale, Short lead time, Best price!!!

R909424905 A2FM56/61W-VAB010
R909422129 A2FM56/61W-VAB020
R902160738 A2FM56/61W-VAB027
R909429251 A2FM56/61W-VAB040
R902160714 A2FM56/61W-VAB100
R909610664 A2FM56/61W-VBB010
R909610665 A2FM56/61W-VBB020
R909605544 A2FM56/61W-VBB040
R902047250 A2FM56/61W-VBB100
R902160674 A2FM56/61W-VPB020
R909409736 A2FM56/61W-VZB010
R902160680 A2FM56/61W-VZB040
R902088982 A2FM56/61W-VZB046
R902160520 A2FM56/61W-VZB100
R987205471 A2FM56/61W-VZB181
R902030709 A2FM63/61L-VAB010-S
R909428860 A2FM63/61W-NAB010
R902014105 A2FM63/61W-NAB020
R902016702 A2FM63/61W-NAB100
R909611084 A2FM63/61W-NAB106D
R902011656 A2FM63/61W-NAB180
R902078927 A2FM63/61W-PAB040
R909416621 A2FM63/61W-PAB080
R909610987 A2FM63/61W-PAB192
R909442131 A2FM63/61W-PBB010D
R909442293 A2FM63/61W-PBB020D
R902198422 A2FM63/61W-PBB040-S
R909429179 A2FM63/61W-PBB080
R909446766 A2FM63/61W-PZB180
R902229136 A2FM63/61W-VAB010
R902009535 A2FM63/61W-VAB010D
R902084329 A2FM63/61W-VAB010F
R902084329 A2FM63/61W-VAB010F-K
R902211966 A2FM63/61W-VAB010H
R902004482 A2FM63/61W-VAB010J
R902075010 A2FM63/61W-VAB010J-S
R902084028 A2FM63/61W-VAB010-S
R909428616 A2FM63/61W-VAB016
R902034457 A2FM63/61W-VAB016D
R902101037 A2FM63/61W-VAB016F
R909408524 A2FM63/61W-VAB020
R902034455 A2FM63/61W-VAB020D
R909429721 A2FM63/61W-VAB026
R902068601 A2FM63/61W-VAB026D
R909417843 A2FM63/61W-VAB027
R902034447 A2FM63/61W-VAB027D
R902027180 A2FM63/61W-VAB027J
R902082194 A2FM63/61W-VAB027-S
R909408526 A2FM63/61W-VAB040
R909408514 A2FM63/61W-VBB010
R909408549 A2FM63/61W-VBB020
R909408551 A2FM63/61W-VBB040
R902011709 A2FM63/61W-VZB027
