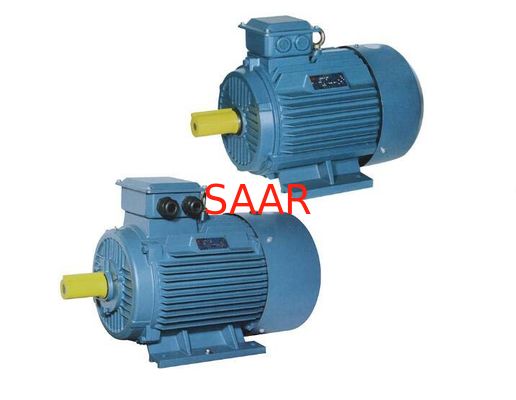

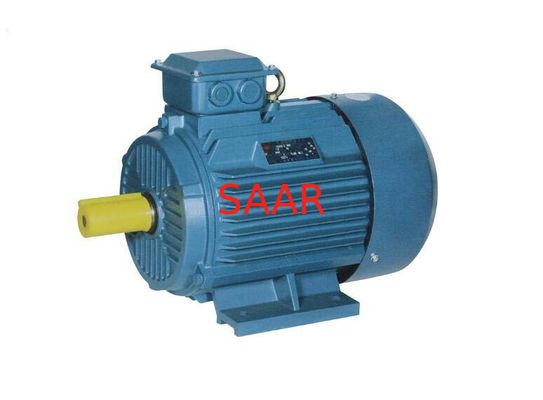

YE3 Series Electric Motor / Three Phase Induction Motor With Cast Iron Frame

YE3 Series Electric Motor / Three Phase Induction Motor With Cast Iron Frame

    • YE3 Series Electric Motor / Three Phase Induction Motor With Cast Iron Frame
    • YE3 Series Electric Motor / Three Phase Induction Motor With Cast Iron Frame
    • YE3 Series Electric Motor / Three Phase Induction Motor With Cast Iron Frame
  • YE3 Series Electric Motor / Three Phase Induction Motor With Cast Iron Frame

    Product Details:

    Place of Origin: China
    Brand Name: China
    Certification: ISO9001
    Model Number: YE3-80M YE3-90S YE3-100L YE3-112M YE3-132S YE3-160M YE3-180M YE3-200L YE3-225M YE3-250M YE3-280S YE3-315M YE3-355M

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: On Request
    Packaging Details: Wooden Carton
    Delivery Time: 5-7days
    Payment Terms: T/T, Western Union
    Supply Ability: 1000/Month
    Contact Now
    Detailed Product Description

    YE3 series of three phase induction motors





    Standard: IEC
    Efficiency Level: IE3
    Frame Size: 80~355 cast iron frame
    Output Range: 0.75~375KW
    Protection Class: IP55
    YE3 series ( center height H80~355mm, 0.55~315kw ) motor is totally enclosed, fan-cooled, three-phase squirrel cage induction motor. Energy efficiency is consistent with IE3 and IDC60034-30 standard. Normally the voltage is 380V, the frequency is 50Hz, customization support . Working environment -15~40℃, altitude does not exceed 1000 meters, insulation class F (class B assessment), protection class IP55, cooling method IC411, duty S1, installation in accordance with IEC and DIN standards.
    YE3 series motors are for general usage. Suitable for driving various machinery and equipments without special requirements. YE3 series motors meet the GB18613-2012 energy efficiency Limit 2.



    INSULATING MATERIAL


    1. Use 3940 Magnetic slot wedge, heated and extruded by epoxy resin and fiberglass.
    2. Use DMD high-temperature insulating paper, combined with mylar limpness composite material and polyester non-woven fabrics thin film.
    3. Use High temperature resistant 180℃ Cable line.
    4. Use Oxyhydrogen carbon-free welding technology. Dense flame, strong welding and carbon embrittlement-free.



    Technical Specification



    Motor Type Rated Power Current Rated Speed Rated Torque Power Factor Efficiency Locked Current Locked Torque Maximum Torque Weight
    Rated Current Rated Torque Rated Torque
    KW HP 380V InA 400V IoA r/min N.m cosΦ η% Ist/IN Tst/TN TM/TN kg
    YE3-80M1-2 0.75 1 1.7 1.6 2845 2.39 0.82 80.7 7 2.3 2.3 15
    YE3-80M2-2 1.1 1.5 2.4 2.3 2840 3.5 0.83 82.7 7.3 2.2 2.3 16
    YE3-90S-2 1.5 2 3.2 3.1 2840 4.77 0.84 84.2 7.6 2.2 2.3 22
    YE3-90L-2 2.2 3 4.6 4.3 2840 7 0.85 85.9 7.6 2.2 2.3 25
    YE3-100L-2 3 4 6 5.7 2860 9.55 0.87 87.1 7.8 2.2 2.3 33
    YE3-112M-2 4 5.5 7.8 7.4 2890 12.73 0.88 88.1 8.3 2.2 2.3 40
    YE3-132S1-2 5.5 7.5 10.6 10.1 2910 17.51 0.88 89.2 8.3 2 2.3 59
    YE3-132S2-2 7.5 10 14.4 13.7 2905 23.87 0.88 90.1 7.9 2 2.3 62
    YE3-160M1-2 11 15 20.6 19.6 2935 35.01 0.89 91.2 8.1 2 2.3 107
    YE3-160M2-2 15 20 27.9 26.5 2935 47.75 0.89 91.9 8.1 2 2.3 117
    YE3-160L-2 18.5 25 34.2 32.5 2935 58.89 0.89 92.4 8.2 2 2.3 134
    YE3-180M-2 22 30 40.5 38.5 2940 70.03 0.89 92.7 8.2 2 2.3 169
    YE3-200L1-2 30 40 54.9 52.1 2945 95.49 0.89 93.3 7.6 2 2.3 220
    YE3-200L2-2 37 50 67.4 64 2945 117.77 0.89 93.7 7.6 2 2.3 239
    YE3-225M-2 45 60 80.8 76.8 2950 143.24 0.9 94 7.7 2 2.3 297
    YE3-250M-2 55 75 98.5 93.5 2965 175.07 0.9 94.3 7.7 2 2.3 380
    YE3-280S-2 75 100 133.7 127 2965 238.73 0.9 94.7 7.1 1.8 2.3 510
    YE3-280M-2 90 125 159.9 151.9 2965 286.47 0.9 95 7.1 1.8 2.3 540
    YE3-315S-2 110 150 195.1 185.3 2975 350.13 0.9 95.2 7.1 1.8 2.3 920
    YE3-315M-2 132 180 233.6 221.9 2975 420.16 0.9 95.4 7.1 1.8 2.3 970
    YE3-315L1-2 160 215 279.4 265.5 2975 509.28 0.91 95.6 7.2 1.8 2.3 1080
    YE3-315L2-2 200 270 348.6 331.1 2975 636.6 0.91 95.8 7.2 1.8 2.2 1170
    YE3-355M-2 250 340 435.7 413.9 2970 795.75 0.91 95.8 7.2 1.6 2.2 1690
    YE3-355L-2 315 420 549 521.5 2970 1002.65 0.91 95.8 7.2 1.6 2.2 1860
    YE3-355X1-2 355 475 618.7 587.8 2970 1129.97 0.91 95.8 7.2 1.6 2.2 1960
    YE3-355X2-2 375 500 653.6 620.9 2970 1193.63 0.91 95.8 7.2 1.6 2.2 1980
    YE3-80M2-4 0.75 1 1.8 1.7 1380 4.77 0.75 82.5 6.6 2.3 2.3 16
    YE3-90S-4 1.1 1.5 2.6 2.5 1390 7 0.76 84.1 6.8 2.3 2.3 22
    YE3-90L-4 1.5 2 3.5 3.3 1390 9.55 0.77 85.3 7 2.3 2.3 27
    YE3-100L1-4 2.2 3 4.8 4.5 1410 14.01 0.81 86.7 7.6 2.3 2.3 34
    YE3-100L2-4 3 4 6.3 6 1410 19.1 0.82 87.7 7.6 2.3 2.3 35
    YE3-112M-4 4 5.5 8.4 7.9 1440 25.46 0.82 88.6 7.8 2.2 2.3 44
    YE3-132S-4 5.5 7.5 11.2 10.7 1445 35.01 0.83 89.6 7.9 2 2.3 61
    YE3-132M-4 7.5 10 15 14.3 1445 47.75 0.84 90.4 7.5 2 2.3 73
    YE3-160M-4 11 15 21.5 20.4 1460 70.03 0.85 91.4 7.7 2.2 2.3 113
    YE3-160L-4 15 20 28.8 27.3 1460 95.49 0.86 92.1 7.8 2.2 2.3 133
    YE3-180M-4 18.5 25 35.3 33.5 1470 117.77 0.86 92.6 7.8 2 2.3 167
    YE3-180L-4 22 30 41.8 39.7 1470 140.05 0.86 93 7.8 2 2.3 181
    YE3-200L-4 30 40 56.6 53.8 1470 190.98 0.86 93.6 7.3 2 2.3 232
    YE3-225S-4 37 50 69.6 66.1 1475 235.54 0.86 93.9 7.4 2 2.3 287
    YE3-225M-4 45 60 84.4 80.2 1475 286.47 0.86 94.2 7.4 2 2.3 322
    YE3-250M-4 55 75 102.7 97.6 1475 350.13 0.86 94.6 7.4 2.2 2.3 385
    YE3-280S-4 75 100 136.3 129.5 1485 477.45 0.88 95 6.9 2 2.3 510
    YE3-280M-4 90 125 163.2 155.1 1485 572.94 0.88 95.2 6.9 2 2.3 600
    YE3-315S-4 110 150 196.8 187 1485 700.26 0.89 95.4 7 2 2.2 930
    YE3-315M-4 132 180 235.7 223.9 1485 840.31 0.89 95.6 7 2 2.2 1010
    YE3-315L1-4 160 215 285.1 270.9 1485 1018.56 0.89 95.8 7.1 2 2.2 1070
    YE3-315L2-4 200 270 351.7 334.1 1485 1273.2 0.9 96 7.1 2 2.2 1170
    YE3-355M-4 250 340 439.6 417.7 1490 1591.5 0.9 96 7.1 2 2.2 1720
    YE3-355L-4 315 420 553.9 526.2 1490 2005.29 0.9 96 7.1 2 2.2 1870
    YE3-355X1-4 355 475 638.5 606.5 1490 2259.93 0.88 96 7 1.7 2.2 1960
    YE3-355X2-4 375 500 674.4 640.7 1490 2387.25 0.88 96 7 1.7 2.2 1980
    YE3-90S-6 0.75 1 2 1.9 915 7.16 0.71 78.9 6 2 2.1 23
    YE3-90L-6 1.1 1.5 2.8 2.7 915 10.5 0.73 81 6 2 2.1 28.5
    YE3-100L-6 1.5 2 3.8 3.6 920 14.32 0.73 82.5 6.5 2 2.1 37.5
    YE3-112M-6 2.2 3 5.4 5.1 940 21.01 0.74 84.3 6.6 2 2.1 48
    YE3-132S-6 3 4 7.2 6.8 960 28.65 0.74 85.6 6.8 2 2.1 65
    YE3-132M1-6 4 5.5 9.5 9 960 38.2 0.74 86.8 6.8 2 2.1 73
    YE3-132M2-6 5.5 7.5 12.7 12 960 52.52 0.75 88 7 2 2.1 82
    YE3-160M-6 7.5 10 16.2 15.4 970 71.62 0.79 89.1 7 2 2.1 113
    YE3-160L-6 11 15 23.1 22 970 105.04 0.8 90.3 7.2 2 2.1 134
    YE3-180L-6 15 20 30.9 29.3 970 143.24 0.81 91.2 7.3 2 2.1 178
    YE3-200L1-6 18.5 25 37.8 36 975 176.66 0.81 91.7 7.3 2 2.1 226
    YE3-200L2-6 22 30 44.8 42.5 975 210.08 0.81 92.2 7.4 2 2.1 243
    YE3-225M-6 30 40 59.1 56.2 980 286.47 0.83 92.9 6.9 2 2.1 294
    YE3-250M-6 37 50 71.7 68.1 980 353.31 0.84 93.3 7.1 2 2.1 369
    YE3-280S-6 45 60 85.8 81.6 980 429.71 0.85 93.7 7.3 2 2 513
    YE3-280M-6 55 75 103.3 98.1 980 525.2 0.86 94.1 7.3 2 2 661
    YE3-315S-6 75 100 143.4 136.2 985 716.18 0.84 94.6 6.6 2 2 910
    YE3-315M-6 90 125 169.5 161 985 859.41 0.85 94.9 6.7 2 2 970
    YE3-315L1-6 110 150 206.8 196.4 985 1050.39 0.85 95.1 6.7 2 2 1155
    YE3-315L2-6 132 180 244.5 232.2 985 1260.47 0.86 95.4 6.8 2 2 1260
    YE3-355M1-6 160 215 295.7 280.9 990 1527.84 0.86 95.6 6.8 1.8 2 1638
    YE3-355M2-6 200 270 364.6 346.4 990 1909.8 0.87 95.8 6.8 1.8 2 1788
    YE3-355L-6 250 340 455.7 433 990 2387.25 0.87 95.8 6.8 1.8 2 1931
    YE3-355X1-6 315 420 580.9 551.9 990 3007.94 0.86 95.8 6.8 1.8 2 1960
