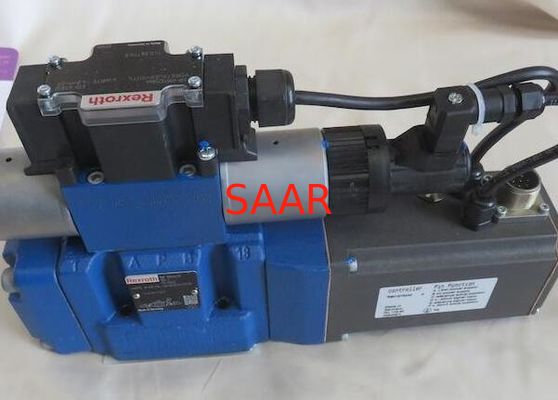

On Stock Rexroth Valve 4WRTE10W8-50L-46/6EG24K31/F1M MNR R901164220

On Stock Rexroth Valve 4WRTE10W8-50L-46/6EG24K31/F1M MNR R901164220

    • On Stock Rexroth Valve 4WRTE10W8-50L-46/6EG24K31/F1M MNR R901164220
    • On Stock Rexroth Valve 4WRTE10W8-50L-46/6EG24K31/F1M MNR R901164220
    • On Stock Rexroth Valve 4WRTE10W8-50L-46/6EG24K31/F1M MNR R901164220
    • On Stock Rexroth Valve 4WRTE10W8-50L-46/6EG24K31/F1M MNR R901164220
  • On Stock Rexroth Valve 4WRTE10W8-50L-46/6EG24K31/F1M MNR R901164220

    Product Details:

    Place of Origin: Germany
    Brand Name: Rexroth
    Certification: ISO9001
    Model Number: 4WRTE10E100L-41/6EG24K/31/A5M 4WRTE10V100L-43/6EG24K31/A1M 4WRTE10V100L-43/6EG24K31/A1M 4WRTE10R5-100P-4X/6EG24TK31/A1M

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: On request
    Packaging Details: Standard paper box
    Delivery Time: 7-10days
    Payment Terms: T/T, Western Union
    Supply Ability: 100PCS per month
    Contact Now
    Detailed Product Description
    Model: 4WRTE10E1-100L-4X/6EG24ETK31/F1M MNR: R901270609

    On Stock Rexroth Valve 4WRTE10W8-50L-46/6EG24K31/F1M MNR R901164220Rexroth High-response directional valves, pilot operated, with electrical position feedbackand integrated electronics (OBE) 4WRTE

    Size 10 … 35
    Component series 4X
    Maximum operating pressure 350 bar
    Maximum flow 3000 l/min
    Nominal flow 25 … 1000 l/min


    Features
    Reliable - proven and robust design
    Safe
    - Automatic pressure compensation in the control chambers of the main stage bythe pilot controlvalve
    - Control spool of the main stage in the springcentered centralposition and/or in the offset position
    - Optionally with spool position monitoring
    Flexible - suitable for position, velocity and pressure control
    Precise - high response sensitivity and little hysteresis





    Technical data

    For applications outside these parameters, please consult us!

    general

    Type 4WRTE
    Size 10 16 25 27 32 35
    Component series   4X
    Installation position   any, preferably horizontal
    Earth kg 8.7 11.2 16.8 17 31.5 34
    Ambient temperature range °C -20 … +50
    Sine test according to DIN EN 60068-2-6   10 ... 2000 Hz / maximum 10 g / 10 cycles / 3 axes
    Noise test according to DIN EN 60068-2-64   20 ... 2000 Hz / 10 gRMS / 30 g peak / 30 min / 3 axes
    Transport shock according to DIN EN 60068-2-27   15 g / 11 ms / 3 shocks / 3 axes
    MTTFD values according to EN ISO 13849 1) Years 150
    Damp heat according to DIN EN 60068-2-30   Variant 2: +25 °C … +55 °C, 90 % … 97 % relative humidity, 2 cycles á 24 hours
    1) With symbol E, E1, W6 and W8; in longitudinal control spool direction, there is sufficient positive overlap without shock/vibration load; observe the installation orientation with regard to the main direction of acceleration.

    hydraulic

    Type 4WRTE
    Size 10 16 25 27 32 35
    Maximum operating pressure bar 350 270 350
    Maximum operating pressure Port P bar 350 270 350
    Port A bar 350 270 350
    Port B bar 350 270 350
    Maximum operating pressure Pilot control valve Pilot oil supply 1) bar 25 … 315
    Maximum return flow pressure Port T Internal pilot oil supply   static < 10 bar
    Port T External pilot oil supply bar 315 250 210 250
    Port Y   static < 10 bar
    Nominal flow 2) l/min 25
    50
    100
    125
    150
    200
    220
    220
    350
    500 400
    600
    1000
    Maximum flow l/min 170 460 870 1000 1600 3000
    Pilot flow 3) l/min 7 14 20 27 29
    Pilot volume 0 … 100% cm³ 1.1 2.9 6.8 17.7 33.9
    Hydraulic fluid temperature range   °C -20 … +80
    preferably °C +40 … +80
    Viscosity range   mm²/s 20 … 380
    preferably mm²/s 30 … 45
    Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 4)     Class 18/16/13 according to ISO 4406 (c)
    Hysteresis % ≤ 0.1
    Response sensitivity % ≤ 0.05
    Temperature drift %/10° C < 0.3
    1) For perfect system behavior, we recommend an external pilot oil supply for pressures above 210 bar.
    2) qV nom ±10% with Δp = 5 bar/control edge; flow for deviating Δp see formula.
    3) At port X or Y with stepped input signal from 0 to 100% (315 bar)
    4) The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

    Hydraulic fluid Classification Suitable sealing materials Standards Data sheet
    Mineral oils HL, HLP, HLPD, HVLP, HVLPD NBR, FKM DIN 51524 90220
    Bio-degradable Insoluble in water HETG NBR, FKM ISO 15380 90221
    HEES FKM
    Soluble in water HEPG FKM ISO 15380
    Flame-resistant Water-free HFDU, HFDR FKM ISO 12922 90222
    Containing water HFC (Fuchs Hydrotherm 46M, Petrofer Ultra Safe 620) NBR ISO 12922 90223

    Important information on hydraulic fluids:

    For further information and data on the use of other hydraulic fluids, please refer to the data sheets above or contact us.
    There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.).
    The ignition temperature of the hydraulic fluid used must be 40 K higher than the maximum solenoid surface temperature.
    Flame-resistant – containing water:
    Maximum operating pressure 210 bar
    Maximum pressure differential per control edge 175 bar
    Pressure pre-loading at the tank port >20% of the pressure differential, otherwise increased cavitation erosion
    Life cycle as compared to operation with mineral oil HL, HLP 50 … 100%
    Maximum hydraulic fluid temperature 50 °C

    electrical

    Type 4WRTE
    Voltage type   Direct voltage
    Power supply Nominal voltage VDC 24
    Lower limit value VDC 18
    Upper limit value VDC 35
    Maximum admissible residual ripple 1) Vpp 2.5
    Maximum current consumption of the amplifier A 1.6
    of the amplifier (impulse current) A 2.7
    Maximum coil temperature 2) °C 150
    Duty cycle % 100
    Maximum power consumption   72 VA (average = 24 VA)
    Required fuse protection AT 4 (time-lag)
    Protection class according to DIN EN 60529   IP65 (with mating connector mounted and locked)
    Zero point calibration 3) % ≤ 1

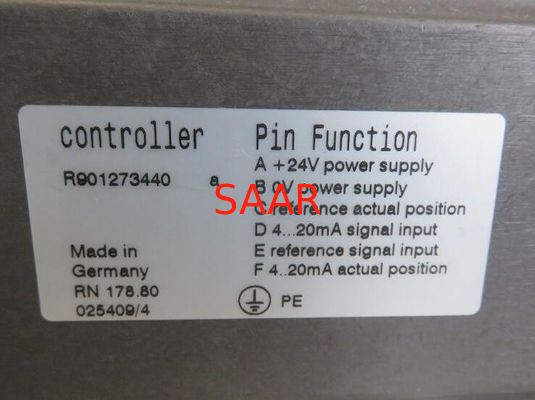

    Voltage input "A1" (differential input) Measurement range VDC -10 ... +10
    Input resistance Ω 100
    Current input "F1" Input current mA ​4 ... ​20
    Input resistance Ω 100
    Enable input "A5" Low level VDC ​0 ... ​2
    High level VDC > 11
    1) Observe the absolute limit values of the supply voltage.
    2) Due to the surface temperatures of the solenoid coils, the standards ISO 13732-1 and ISO 4413 (contact protection) must be observed.
    3) Related to the pressure-signal characteristic curve (symbol V), ex works

    Inductive position switch: Electrical connection

    The electrical connection is realized via a 4-pole mating connector (separate order, see "Accessories") with connection thread M12 x 1.

    Inductive position switch: Switching logics

    Position switch on side A, monitored spool position "0"

    Central position (mechanical control spool overlap)
    Valve opening P→B
    Valve opening P→A



    SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.
