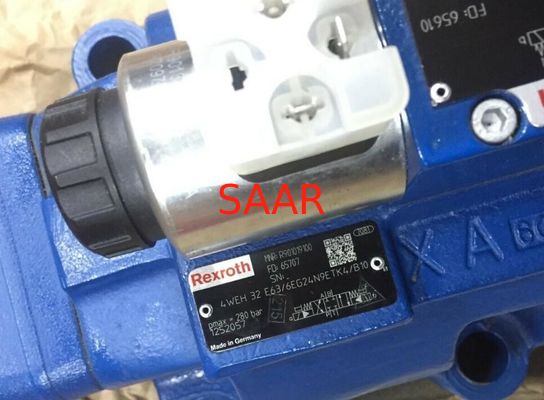

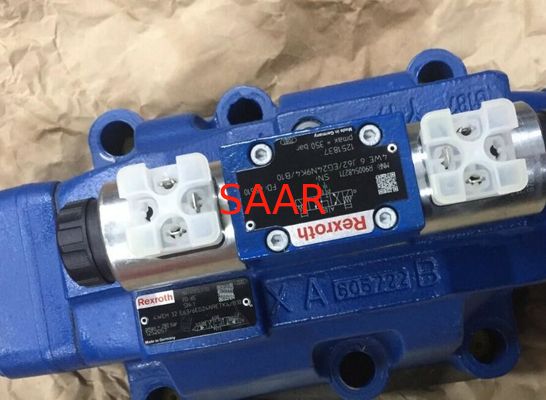

Rexroth 4WEH32 Series Directional Spool Valves

Rexroth 4WEH32 Series Directional Spool Valves

    • Rexroth 4WEH32 Series Directional Spool Valves
    • Rexroth 4WEH32 Series Directional Spool Valves
    • Rexroth 4WEH32 Series Directional Spool Valves
    • Rexroth 4WEH32 Series Directional Spool Valves
  • Rexroth 4WEH32 Series Directional Spool Valves

    Product Details:

    Place of Origin: Germany
    Brand Name: Rexroth
    Certification: ISO9001
    Model Number: 4WEH32D6X/6EW110N9ES2K4/V 4WEH32E6X/6EW110N9TS2K4/P4,5 4WEH32J6X/6EG24N9ETS2K4 H-4WEH32J6X/6EG24N9ETS2K4

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: On request
    Packaging Details: Standard paper box
    Delivery Time: 7-10days
    Payment Terms: T/T, Western Union
    Supply Ability: 100PCS per month
    Contact Now
    Detailed Product Description
    Material No.: R978914143 Type No.: H-4WEH32L6X/6EG24N9ETS2K4



    Rexroth 4WEH Series Directional Spool Valves, pilot operated, with electro-hydraulic actuation



    Size 10, 16, 25 (WEH22), 25 (WEH25), 32
    Component series 4X, 7X, 6X
    Maximum operating pressure 280 bar
    Maximum flow 1100 l/min



    Features

    • Types of actuation (internal or external pilot control): Electro-hydraulic (type WEH)
    • For subplate mounting
    • Porting pattern according toISO 4401
    • 4/3-, 4/2- or 3/2-way version
    • Spring or pressure centering, spring end position or hydraulic end position
    • Wet-pin DC or AC solenoids, optional
    • Electric connection as single or central connection
    • Optional versions:
      - Manual override
      - Switching time adjustment
      - Preload valve in channel P of the main valve
      - Stroke setting and/or spool position monitoring

    Type Code

    01 up to 280 bar no code
    02 3-way version 3
    4-way version 4
    Types of actuation
    03 Electro-hydraulic WEH
    Size
    04 NG10 10
    NG16 16
    NG25 (version "WEH 22") 22
    NG25 (version "WEH 25") 25
    Size 32 32
    Spool return in the main valve
    05 By means of springs no code

    hydraulic

    1)

    H
    06 Symbols; for the possible version, see "Symbols/Circuit diagrams"
    07 Component series 40 … 49 (40 … 49: unchanged installation and connection dimension) – NG10 4X
    Component series 60 … 69 (60 … 69: unchanged installation and connection dimension) – NG25 ("WEH 25") and NG32 6X
    Component series 70 … 79 (70 … 79: unchanged installation and connection dimension) – NG16 (from series 72) andNG25 ("WEH 22") 7X
    Control spool return in the pilot control valve with 2 spool positions and 2 solenoids (only possible with symbols C, D, K, Z and hydraulic control spool return in the main valve)
    08 With spring return no code
    Without spring return O

    Without spring return with detent

    2)

    OF

    Pilot control valve

    2)

    09 High-power valve 6E
    10

    Direct voltage 24 V

    2)

    G24

    Alternating voltage 230 V, 50/60 Hz

    2)

    W230
    For other voltages, frequencies and electric data, see data sheet of high-power valve
    11 Without manual override no code
    With manual override N
    With concealed manual override N9
    Pilot oil flow
    12

    External pilot oil supply, external pilot oil return

    3)

    no code

    Internal pilot oil supply, external pilot oil return

    3; 4)

    E

    Pilot oil supply internal, pilot oil return internal

    4)

    ET

    External pilot oil supply, internal pilot oil return

    3)

    T
    version “ET” and “T” with 3-spool position valve, pressure-centered, only possible if ppilot ≥ 2 x ptank + ppilot min!)
    Switching time adjustment
    13 Without switching time adjustment no code
    Switching time adjustment as supply control S
    Switching time adjustment as discharge control S2
    Corrosion resistance
    14 None (valve housing primed) no code
    Improved corrosion protection (240 h salt spray test according to EN ISO 9227) J3

    Electrical connection

    2)

    15 Individual connection
    Without mating connector; connector DIN EN 175301-803 K4 6)
    For further electrical connections, see data sheet 23178 and 08010
    Spool position monitoring
    16 Without position switch no code
    Monitored spool position "a" QMAG24
    Monitored spool position "b" QMBG24
    Monitored spool position "a" and "b" QMABG24
    Monitored rest position QM0G24
    Stroke setting
    17 For ordering code, see stroke setting

    Throttle insert

    2)

    18 Without throttle insert no code
    Throttle Ø 0.8 mm B08
    Throttle Ø 1.0 mm B10
    Throttle Ø 1.2 mm B12
    Throttle Ø 1.5 mm B15
    Throttle Ø 2.0 mm B20
    Throttle Ø 2.5 mm B25

    preload valve (not for NG10)

    2)

    19 without preload valve no code
    with preload valve (pö = 4.5 bar) P4,5
    20 without pressure reducing valve no code
    With pressure reducing valve D3 5)
    Seal material
    21 NBR seals no code
    FKM seals V
    Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)
    22 Further details in the plain text *



    SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

    Rexroth 4WEH32 Series Directional Spool Valves on Sale, Short lead time, Best price!!!



    R978902515 4WEH32C6X/6EG24N9K4
    R978909285 4WEH32C6X/6EW110N9EK4
    R978909502 4WEH32C6X/6EW110N9K4
    R978910914 4WEH32C6X/E/P4,5
    R978910275 4WEH32D6X/6EG24N9EK4
    R978901744 4WEH32D6X/6EG24N9K4
    R978911410 4WEH32D6X/6EW110N9ES2K4/V
    R978900102 4WEH32D6X/6EW110N9ETK4
    R978905712 4WEH32D6X/6EW110N9K4
    R978910276 4WEH32D6X/OF6EG24N9EK4/P4,5
    R978901828 4WEH32E6X/6EG24N9EK4
    R978906498 4WEH32E6X/6EG24N9ESK4/10B10
    R978900062 4WEH32E6X/6EG24N9ETK4
    R978906913 4WEH32E6X/6EG24N9ETK4/B10
    R978901530 4WEH32E6X/6EG24N9ETS2K4
    R978906027 4WEH32E6X/6EG24N9K4
    R978906710 4WEH32E6X/6EG24N9SK4
    R978897478 4WEH32E6X/6EW110N9EK4/B10
    R978900108 4WEH32E6X/6EW110N9ETK4
    R978905898 4WEH32E6X/6EW110N9ETS2K4/B10
    R978905796 4WEH32E6X/6EW110N9S2K4
    R978913483 4WEH32E6X/6EW110N9TS2K4/P4,5
    R978910014 4WEH32E6X/6EW110N9TS2K4/P4,5V
    R978900762 4WEH32E6X/6EW110N9TSK4/V
    R978905897 4WEH32EB6X/6EG24N9ESK4/B10
    R978906934 4WEH32EB6X/6EG24N9K4
    R978909404 4WEH32F6X/6EW110N9TSK4/P4,5V
    R978900072 4WEH32G6X/6EG24N9ETK4
    R978910105 4WEH32G6X/6EG24N9ETS2K4/P4,5
    R978900119 4WEH32G6X/6EW110N9ETK4
    R978912794 4WEH32G6X/6EW110N9ETSK4
    R978909420 4WEH32G6X/6EW110N9K4/V
    R978910724 4WEH32G6X/6EW110N9S2K4
    R978905455 4WEH32G6X/6EW110N9TS2K4
    R978911384 4WEH32H6X/6EW110N9ETK4/P4,5
    R978912568 4WEH32H6X/6EW110N9K4/B20
    R978910383 4WEH32HD6X/6EW110N9ETSK4/V
    R978904431 4WEH32HD6X/OF6EG24N9S2K4
    R978908424 4WEH32HD6X/OF6EW110N9ES2K4/B10
    R978900041 4WEH32J6X/6EG24N9ETK4
    R978899905 4WEH32J6X/6EG24N9ETS2K4
    R978901226 4WEH32J6X/6EG24N9K4
    R978911043 4WEH32J6X/6EW110N9ES2K4/V
    R978900350 4WEH32J6X/6EW110N9ESK4
    R978900125 4WEH32J6X/6EW110N9ETK4
    R978900246 4WEH32J6X/6EW110N9ETK4/B10
    R978904744 4WEH32J6X/6EW110N9ETS2K4
    R978906031 4WEH32J6X/6EW110N9ETS2K4/B10V
    R978910758 4WEH32J6X/6EW110N9ETS2K4/V
    R978909619 4WEH32J6X/6EW110N9K4/10/B10
    R978896429 4WEH32J6X/6EW110N9S2K4
    R978911638 4WEH32J6X/6EW110N9TK4
    R978897350 4WEH32L6X/6EG24N9ES2K4/10B08
    R978907174 4WEH32L6X/6EW110N9ES2K4/10B10
    R978908446 4WEH32L6X/6EW110N9ETS2K4/B10P4,5
    R978910154 4WEH32L6X/6EW110N9ETS2K4/P4,5
    R978916982 4WEH32L6X/6EW110N9ETS2K4/P4,5V
    R978915876 4WEH32L6X/6EW110N9K4
    R978908877 4WEH32L6X/E
    R978913649 4WEH32MB6X/6EW24N9ETK4
    R978913277 4WEH32Q6X/6EG24N9EK4/B08
    R978911985 4WEH32Q6X/6EW110N9EK4/B08
    R978915348 4WEH32T6X/6EG24N9K4
    R978910984 4WEH32T6X/6EW110N9TK4
    R978908829 4WEH32U6X/6EW110N9EK4
    R978897257 4WEH32W6X/6EG24N9K4
    R978908803 H-4WEH32D6X/6EW110N9ETK4
    R978897545 H-4WEH32D6X/6EW110N9K4
    R978913257 H-4WEH32D6X/6EW110N9SK4
    R978914626 H-4WEH32D6X/6EW110NS2K4
    R978913659 H-4WEH32D6X/6EW110NSK4
    R978910924 H-4WEH32E6X/6EG24N9ETS2K4/V
    R978913841 H-4WEH32E6X/6EW110N9ETK4
    R978906686 H-4WEH32E6X/6EW110N9K4
    R978910155 H-4WEH32E6X/6EW110N9S2K4
    R978913043 H-4WEH32E6X/6EW110N9TS2K4/P4,5V
    R978914619 H-4WEH32E6X/6EW220N9ETK4
    R978897053 H-4WEH32G6X/6EG24N9K4
    R978910717 H-4WEH32G6X/6EW110N9S2K4
    R978910726 H-4WEH32G6X/6EW110NS2K4
    R978912676 H-4WEH32H6X/6EG24N9EK4
    R978909408 H-4WEH32H6X/6EW110N9S2K4
    R978916059 H-4WEH32HD6X/6EW110N9ETSK4/V
    R978910150 H-4WEH32HD6X/6EW110N9S2K4
    R978906965 H-4WEH32HD6X/OF6EG24N9S2K4
    R978913073 H-4WEH32HD6X/OF6EW110N9ETS2K4
    R978910616 H-4WEH32HE6X/6EG24N9SK4/B08V
    R978913278 H-4WEH32HG6X/6EG24N9S2K4
    R978909554 H-4WEH32HG6X/6EG24N9TK4
    R978910648 H-4WEH32HG6X/U/V
    R978909651 H-4WEH32J6X/6EG24N9ETS2K4
    R978906149 H-4WEH32J6X/6EG24N9K4
    R978912557 H-4WEH32J6X/6EW110N9ES2K4/B10
    R978911136 H-4WEH32J6X/6EW110N9ES2K4/V
    R978915530 H-4WEH32J6X/6EW110N9ETK4
    R978907990 H-4WEH32JB6X/6EW110N9K4
    R978914143 H-4WEH32L6X/6EG24N9ETS2K4
    R978910922 H-4WEH32L6X/6EG24N9ETSK4/P4,5V
    R978910007 H-4WEH32L6X/6EW110N9TS2K4/P4,5
    R978906966 H-4WEH32M6X/6EG24N9S2K4
    R978909599 H-4WEH32R6X/6EG24N9ES2K4
    R978914638 H-4WEH32U6X/6EG24NETK4
    R978914149 H-4WEH32W6X/6EG24N9ETS2K4
