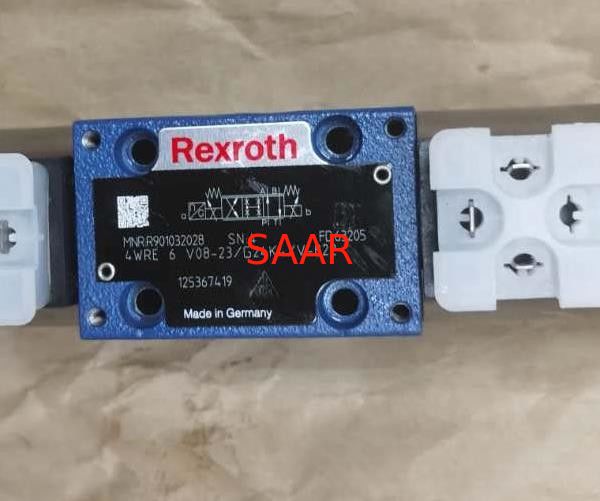

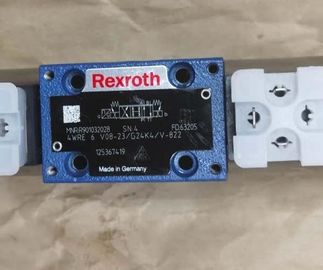

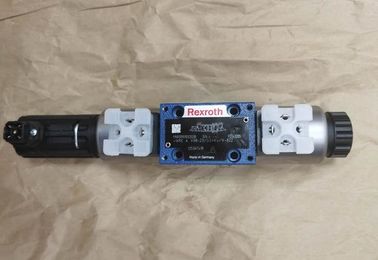

R901032028 4WRE6V08-23/G24K4/V-822 4WRE6V08-2X/G24K4/V-822

R901032028 4WRE6V08-23/G24K4/V-822 4WRE6V08-2X/G24K4/V-822

  • R901032028 4WRE6V08-23/G24K4/V-822 4WRE6V08-2X/G24K4/V-822
  • R901032028 4WRE6V08-23/G24K4/V-822 4WRE6V08-2X/G24K4/V-822
R901032028 4WRE6V08-23/G24K4/V-822 4WRE6V08-2X/G24K4/V-822
Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Model Number: R901032028 4WRE6V08-23/G24K4/V-822 4WRE6V08-2X/G24K4/V-822
CertifiSAARion: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: On request
Packaging Details: Standard paper box
Delivery Time: 7-10days
Payment Terms: T/T, Western Union
Supply Ability: 100PCS per month
Contact Now
Detailed Product Description
Model No.: 4WRE6V08-23/G24K4/V-822 4WRE6V08-2X/G24K4/V-822 MNR: R901032028
High Light:

hydraulic pressure relief valve

,

hydraulic solenoid valve

R901032028 4WRE6V08-23/G24K4/V-822 4WRE6V08-2X/G24K4/V-822 0







Rexroth 4WREE Series Proportional Directional Valves

Size 6, 10

Component series 2X

Maximum operating pressure 315 bar

Maximum flow 180 l/min





Features

– Actuation is by proportional solenoids with central thread and removable coil
– Electrical position feed-back
– For subplates: porting pattern to DIN 24 340 form A, ISO 4401, CETOP-RP 121 H, NFPA T3.5.1M R1, and ANSI B93.7 D 03, D 05 Subplates to SAARalog sheets RA 45 052 and RA 45 054 (separate order), see pages 15 and 16
– Spring centered control spool
– Model 4WREE, integrated valve electronics with interface A1and F1
– Control electronics for model 4WRE: electronic amplifier VT-VRPA2-1-1X in Eurocard format (separate order)



Type Code:

01 02 03 04 05   06   07 08   09 10
4 WRE       2X / G24 K4 /   *
01 4 main ports 4
02 Proportional directional valve with electrical position feedback WRE
03 Size 6 6
Size 10 10
04 Symbols; for the possible version, see "Symbols/Circuit diagrams" E; E1-; V; V1-; W; W1-; EA; WA
Rated flow NG6
05 4 l/min 4
8 l/min 8
16 l/min 16
32 l/min 32
Rated flow NG10
05 25 l/min 25
50 l/min 50
75 l/min 75
06 Component series 20 ... 29 (20 ... 29: unchanged installation and connection dimensions) 2X
07 Supply voltage 24 V G24
Electrical connection
08 Connector DIN EN 175301-803 K4
Seal material
09 NBR seals M
FKM seals V
10 Further details in the plain text

*







SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth 4WRE6E 4WRE6EA 4WRE6Q 4WRE6V 4WRE6W 4WRE10E 4WRE10Q 4WRE10V 4WRE10W Proportional Directional Valve​ on Sale, Short lead time, Best price!!!



R900726605 4WRE10E1-25-2X/G24K4/V
R900954103 4WRE10E1-50-2X/G24K4/V
R900954104 4WRE10E1-75-2X/G24K4/V
R900954100 4WRE10E25-2X/G24K4/V
R901048036 4WRE10E3-75-2X/G24K4/V
R900954101 4WRE10E50-2X/G24K4/V
R900954102 4WRE10E75-2X/G24K4/V
R901039213 4WRE10EA25-2X/G24K4/V
R900752971 4WRE10EA50-2X/G24K4/V
R900969351 4WRE10EA75-2X/G24K4/V
R900703186 4WRE10EB50-2X/G24K4/V
R901151585 4WRE10V1-25-2X/G24K4/V
R901415922 4WRE10V1-50-2X/G24K4/M
R901017446 4WRE10V1-50-2X/G24K4/V
R901414444 4WRE10V1-75-2X/G24K4/V
R900954115 4WRE10V25-2X/G24K4/V
R902568186 4WRE10V25-2X/G24Z4/V
R900954116 4WRE10V50-2X/G24K4/V
R902562587 4WRE10V50-2X/G24Z4/V
R901236220 4WRE10V50-2X=G24K4/V
R900954117 4WRE10V75-2X/G24K4/V
R900974152 4WRE10W1-25-2X/G24K4/V
R900954113 4WRE10W1-50-2X/G24K4/V
R900954114 4WRE10W1-75-2X/G24K4/V
R900954105 4WRE10W25-2X/G24K4/V
R900608420 4WRE10W3-75-2X/G24K4/V
R900954106 4WRE10W50-2X/G24K4/V
R900954107 4WRE10W75-2X/G24K4/V
R901436393 4WRE10WA25-2X/G24K4/V
R901086329 4WRE10WA50-2X/G24K4/V
R901030897 4WRE10WA75-2X/G24K4/V
R901339372 4WRE10WB75-2X/G24K4/V
R901031274 4WRE6E04-2X/G24K4/V
R900933478 4WRE6E08-2X/G24K4/V
R900968149 4WRE6E1-08-2X/G24K4/V
R900954093 4WRE6E1-16-2X/G24K4/V
R900954094 4WRE6E1-32-2X/G24K4/V
R900954092 4WRE6E16-2X/G24K4/V
R900926366 4WRE6E32-2X/G24K4/V
R900783105 4WRE6EA08-2X/G24K4/V
R900720198 4WRE6EA16-2X/G24K4/V
R900752799 4WRE6EA32-2X/G24K4/V
R901364823 4WRE6Q2-08-2X/G24K4/V
R900246943 4WRE6V04-2X/G24K4/V
R900954097 4WRE6V08-2X/G24K4/V
R900966805 4WRE6V1-16-2X/G24K4/V
R901403868 4WRE6V16-2X/G24K4/M
R900954098 4WRE6V16-2X/G24K4/V
R900954099 4WRE6V32-2X/G24K4/V
R901246418 4WRE6W04-2X/G24K4/V
R900941264 4WRE6W08-2X/G24K4/V
R900953729 4WRE6W1-08-2X/G24K4/V
R900954095 4WRE6W1-16-2X/G24K4/V
R901236264 4WRE6W1-16-2X=G24K4/V
R900954096 4WRE6W1-32-2X/G24K4/V
R900775379 4WRE6W1-32-2X/G24K4/V=LB
R900944121 4WRE6W16-2X/G24K4/V
R900773304 4WRE6W16-2X/G24K4/V=LB
R900933480 4WRE6W32-2X/G24K4/V
R901433171 4WRE6W9-32-2X/G24K4/V
R901022178 4WRE6WA08-2X/G24K4/V
R900965434 4WRE6WA16-2X/G24K4/V
R901011624 4WRE6WA32-2X/G24K4/V
