| Place of Origin: | Germany |
| Brand Name: | Rexroth |

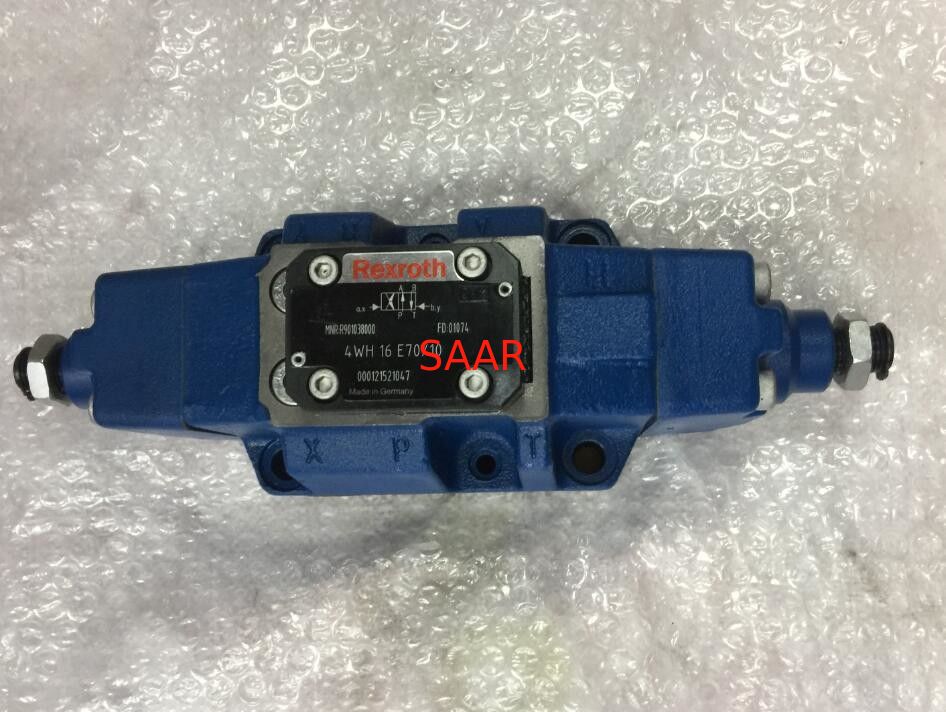

| Model Number: | R901038000 4WH16E70//10 4WH16E7X//10 |
| CertifiSAARion: | ISO9001 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | On request |
| Packaging Details: | Standard paper box |
| Delivery Time: | 7-10days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100PCS per month |
| MNR: | R901038000 | Model No.: | 4WH16E7X//10 |
|---|---|---|---|
| High Light: | R901038000,4WH16E7X//10,Rexroth Hydraulic Directional Spool Valve |
||
| 01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | ||
| / |
|
/ | * |
| 01 | up to 280 bar | no code |
| Up to 350 bar | H- | |
| Main ports | ||
| 02 | 3-way version | 3 |
| 4-way version | 4 | |
| Type of actuation | ||
| 03 | Hydraulic | WH |
| Electro-hydraulic | WEH | |
| Size | ||
| 04 | NG10 | 10 |
| NG16 | 16 | |
| NG25 (version "W.H 22") | 22 | |
| NG25 (version "W.H 25") | 25 | |
| Size 32 | 32 | |
| Spool return in the main valve | ||
| 05 | By means of springs | no code |
|
Hydraulic 1) |
H | |
| 06 | Symbols; for the possible version, see "Symbols/Circuit diagrams" | |
| Component series | ||
| 07 | Component series 40 … 49 (40 … 49: unchanged installation and connection dimension) – NG10 | 4X |
| Component series 60 … 69 (60 … 69: unchanged installation and connection dimension) – NG25 ("W.H 25") and NG32 | 6X | |
| Component series 70 … 79 (70 … 79: unchanged installation and connection dimension) – NG16 (from series 72) andNG25 ("W.H 22") | 7X | |
| Control spool return in the pilot control valve with 2 spool positions and 2 solenoids (only possible with symbols C, D, K, Z and hydraulic control spool return in the main valve) | ||
| 08 | With spring return | no code |
| Without spring return | O | |
|
Without spring return with detent 2) |
OF | |
|
Pilot control valve 2) |
||
| 09 | High-power valve (data sheet 23178) | 6E |
|
Electrical voltages 2) |
||
| 10 | Direct voltage 24 V | G24 |
| Alternating voltage 230 V, 50/60 Hz | W230 | |
| Manual override | ||
| 11 | Without manual override | no code |
| With manual override | N | |
| With concealed manual override | N9 | |
|
Pilot oil flow 3) |
||
| 12 |
External pilot oil supply, external pilot oil return 4) |
no code |
|
Internal pilot oil supply, external pilot oil return 4; 5) |
E | |
|
Pilot oil supply internal, pilot oil return internal 5) |
ET | |
|
External pilot oil supply, internal pilot oil return 4) |
T | |
| Switching time adjustment | ||
| 13 | Without switching time adjustment | no code |
| Switching time adjustment as supply control | S | |
| Switching time adjustment as discharge control | S2 | |
| Corrosion resistance (outside) | ||
| 14 | None (valve housing primed) | no code |
| Improved corrosion protection (240 h salt spray test according to EN ISO 9227) | J3 | |
|
Electrical connection 2) |
||
| 15 | Individual connection | |
| Without mating connector, connector according to DIN EN 175301-803 | K4 6) | |
| Spool position monitoring | ||
| 16 | Without position switch | no code |
| Monitored spool position "a" | QMAG24 | |
| Monitored spool position "b" | QMBG24 | |
| Monitored spool position "a" and "b" | QMABG24 | |
| Monitored rest position | QM0G24 | |
| Stroke setting | ||
| 17 | Stroke setting on valve side A and B | 10 |
| Stroke setting on valve side A | 11 | |
| Stroke setting on valve side B | 12 | |
|
Throttle insert 2) |
||
| 18 | Without throttle insert | no code |
| Throttle Ø 0.8 mm | B08 | |
| Throttle Ø 1.0 mm | B10 | |
| Throttle Ø 1.2 mm | B12 | |
| Throttle Ø 1.5 mm | B15 | |
| Throttle Ø 2.0 mm | B20 | |
| Throttle Ø 2.5 mm | B25 | |
|
preload valve (not for NG10) 2) |
||
| 19 | Without pre-decompression | no code |
| With preload valve | P4,5 | |
| 20 | Without pressure reducing valve | no code |
| With pressure reducing valve | D3 7) | |
| Seal material (observe compatibility of seals with hydraulic fluid used, see "Technical data") | ||
| 21 | NBR seals | no code |
| FKM seals | V | |
| 22 | Further details in the plain text | * |
| R900923821 | 4WH16C7X/ |
| R901055946 | 4WH16C7X/S/V |
| R900923871 | 4WH16D7X/ |
| R900716637 | 4WH16D7X//V |
| R900760506 | 4WH16D7X/S2 |
| R900951712 | 4WH16D7X/S2/V |
| R900923875 | 4WH16E7X/ |
| R901038000 | 4WH16E7X//10 |
| R901155293 | 4WH16E7X//11 |
| R900723402 | 4WH16E7X//J |
| R900720459 | 4WH16E7X//V |
| R901312926 | 4WH16E7X/S |
| R900967424 | 4WH16E7X/S2 |
| R900954136 | 4WH16E7X/S2/12 |
| R900925628 | 4WH16F7X/ |
| R900787984 | 4WH16F7X//12 |
| R900939612 | 4WH16F7X//12 |
| R900924015 | 4WH16G7X/ |
| R901018853 | 4WH16G7X//11 |
| R900931734 | 4WH16G7X//J |
| R900974771 | 4WH16G7X//V |
| R901254892 | 4WH16G7X/S |
| R900932349 | 4WH16H7X/ |
| R900967113 | 4WH16H7X/S2 |
| R900977385 | 4WH16H7X/U |
| R901001970 | 4WH16HC7X/ |
| R900923812 | 4WH16HD7X/ |
| R901190259 | 4WH16HD7X//10 |
| R900939240 | 4WH16HD7X//12 |
| R901070108 | 4WH16HD7X//42 |
| R900721522 | 4WH16HD7X//V |
| R901013427 | 4WH16HD7X/S2 |
| R901067804 | 4WH16HE7X/ |
| R901116692 | 4WH16HE7X//V |
| R900953403 | 4WH16HG7X/S2 |
| R901280994 | 4WH16HH7X/ |
| R901127458 | 4WH16HJ7X/ |
| R900924016 | 4WH16J7X/ |
| R900786192 | 4WH16J7X//10 |
| R900721523 | 4WH16J7X//V |
| R900248744 | 4WH16J7X/6EG24N9ETK4/B10 |
| R900705234 | 4WH16J7X/S2 |
| R900756090 | 4WH16JA7X/ |
| R900925629 | 4WH16L7X/ |
| R983070708 | 4WH16L7X/IN010 |
| R900952800 | 4WH16L7X//SO12 |
| R901147071 | 4WH16L7X/S2 |
| R900925631 | 4WH16Q7X/ |
| R900925632 | 4WH16R7X/ |
| R901057843 | 4WH16R7X/S2 |
| R900712426 | 4WH16T7X/ |
| R900711688 | 4WH16T7X/U |
| R900925633 | 4WH16U7X/ |
| R900925634 | 4WH16W7X/ |
| R901022494 | 4WH16W7X//10 |
| R900969806 | 4WH16W7X/ET/10 |
| R901531741 | 4WH16W7X/S2 |
| R900925635 | 4WH16Y7X/ |
| R900248743 | 4WH16Y7X/6EG24N9ETK4/B10 |
| R900970260 | 4WH16Z7X/ |
| R978902772 | 4WH16C7X/S2 |
| R978903665 | 4WH16E7X/S/V |
| R978915103 | 4WH16G7X/P4,5 |
| R978901444 | 4WH16G7X/S2 |
| R978914169 | 4WH16H7X/S2/P4,5 |
| R978918840 | 4WH16HC7X/ |
| R978901781 | 4WH16HD7X/S2 |
| R978018185 | 4WH16RB7X/VSO8 |
| R978013239 | 4WH16U7X/S2/D3 |
| R900923978 | H-4WH16C7X/ |
| R900925637 | H-4WH16D7X/ |
| R901528640 | H-4WH16E42-7X/ |
| R900925638 | H-4WH16E7X/ |
| R901248515 | H-4WH16E7X//10 |
| R901072638 | H-4WH16E7X//V |
| R901077552 | H-4WH16E7X//Z |
| R900925640 | H-4WH16G7X/ |
| R901077688 | H-4WH16G7X//Z |
| R901079824 | H-4WH16G7X/S2 |
| R901070926 | H-4WH16H7X/ |
| R901231792 | H-4WH16H7X//Z |
| R900923979 | H-4WH16HC7X//V |
| R900949597 | H-4WH16HD7X/ |
| R901175984 | H-4WH16HD7X//ZV |
| R900732849 | H-4WH16HJ7X/ |
| R901410577 | H-4WH16HJ7X/S |
| R901055638 | H-4WH16HM7X/ |
| R901090634 | H-4WH16HZ7X/ |
| R900925644 | H-4WH16J7X/ |
| R901077689 | H-4WH16J7X//Z |
| R901110869 | H-4WH16J7X/S |
| R900943695 | H-4WH16Q7X/ |
| R901157904 | H-4WH16R7X//ZV |
| R900617278 | H-4WH16T7X/S2 |
| R900955928 | H-4WH16U7X/ |
| R900925646 | H-4WH16Y7X/ |
| R901210042 | H-4WH16Y7X//ZV |
| R978916302 | H-4WH16E7X/S2 |
| R978016004 | H-4WH16G7X/V |
| R978901772 | H-4WH16H7X/ |
| R978910372 | H-4WH16HZ7X/ |
| R978916303 | H-4WH16Y7X/S2 |
