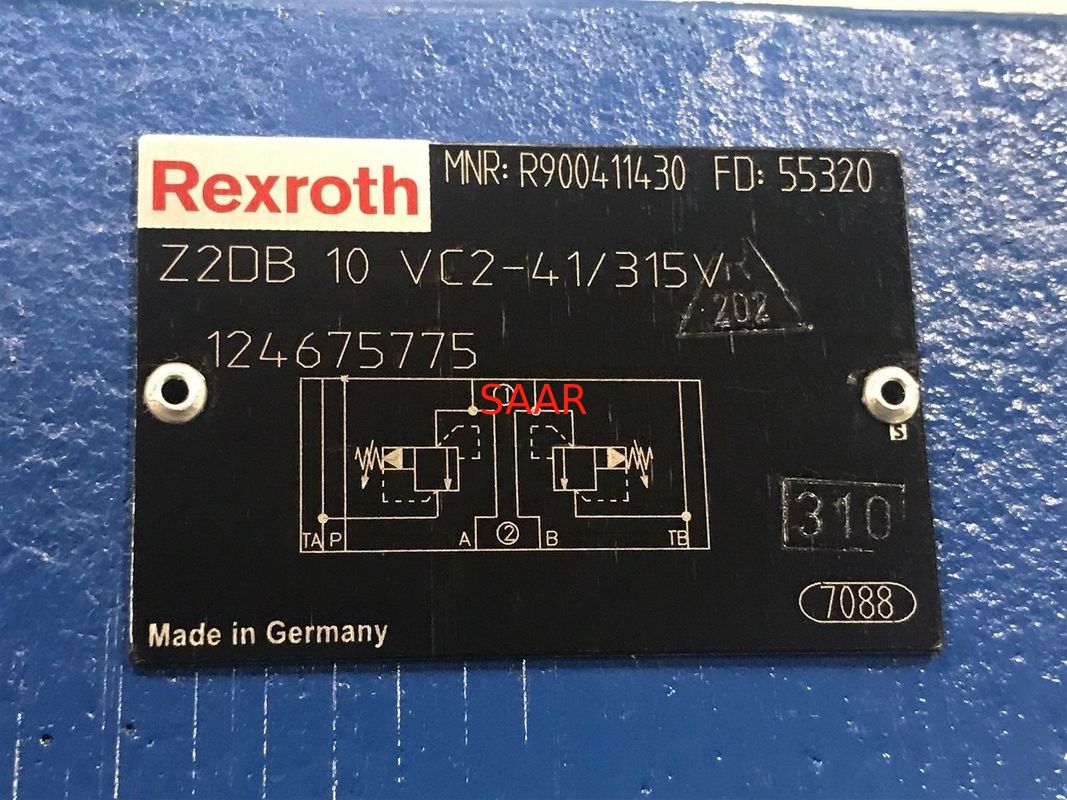

Name: Rexroth R900411430 Z2DB10VC2-41/315V Z2DB10VC2-4X/315V Piloted Pressure Relief Valve
Brand: Rexroth
SKU: R900411430 Z2DB10VC2-41/315V Z2DB10VC2-4X/315V
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (176 reviews)

Home Products Rexroth Hydraulic Valves

Rexroth R900411430 Z2DB10VC2-41/315V Z2DB10VC2-4X/315V Piloted Pressure Relief Valve

Product Details:

Place of Origin:	Germany
Brand Name:	Rexroth
Model Number:	R900411430 Z2DB10VC2-41/315V Z2DB10VC2-4X/315V
CertifiSAARion:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	On request
Packaging Details:	Standard paper box
Delivery Time:	7-10days
Payment Terms:	T/T, Western Union
Supply Ability:	100PCS per month

Contact Now

Detailed Product Description

Model:

R900411430

MNR:

Z2DB10VC2-41/315V Z2DB10VC2-4X/315V

High Light:

Rexroth Piloted Pressure Relief Valve

R900411430

Z2DB10VC2-41/315V

Rexroth Pressure relief valve, pilot controlled ZDB10, Z2DB10

Size 10
Component series 4X
Maximum operating pressure 315 bar
Maximum flow 100 l/min

Features

Sandwich plate valve
Porting pattern according to ISO 4401-05-04-0-05
4 pressure ratings
6 circuit options
With 1 or 2 pressure valve cartridges
4 adjustment types for pressure adjustment, optionally
• Rotary knob
• Sleeve with hexagon and protective cap
• Lockable rotary knob with scale
• Rotary knob with scale
Corrosion-protected design

Type Code:

01	02	03	04	05	06		07		08	09	10	11
Z		DB	10			–	4X	/				*

01	Sandwich plate	Z
02	1 pressure valve cartridge (only with version “VA”, “VB”. “VT” and “VP”)	no code
02	2 pressure valve cartridges (only with version “VC” and “VD”)	2
03	Pressure relief valve	DB
04	Size 10	10
Relief function from – to:
05	A – TA	VA
	P – TA	VP
	TB1 – TA2	VT
	B – TB	VB
	A – TA and B – TB	VC
	A – B and B – A	VD
Adjustment type for pressure adjustment
06	Rotary knob	1
	Sleeve with hexagon and protective cap	2
	Lockable rotary knob with scale ¹⁾	3
	Rotary knob with scale	7
07	Component series 40 … 49 (40 … 49: unchanged installation and mounting dimensions)	4X
08	Set pressure up to 50 bar	50
	Set pressure up to 100 bar	100
	Set pressure up to 200 bar	200
	Set pressure up to 315 bar	315
Corrosion resistance
09	None	no code
	Improved corrosion protection (240 h salt spray test according to EN ISO 9227)	J3²⁾
	High corrosion protection (720 h salt spray test according to EN ISO 9227)	J5²⁾
Seal material
10	NBR seals	no code
	FKM seals	V
	Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)
11	Further details in the plain text	*

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth Pressure relief valve, pilot controlled Z2DB10 Series Model List:

R900425722	Z2DB10VC2-4X/100V
R900512182	Z2DB10VC.-4X/...V
R900967514	Z2DB10VC1-4X/100
R900510772	Z2DB10VC1-4X/100V
R900435042	Z2DB10VC1-4X/200
R900437272	Z2DB10VC1-4X/200V
R900967915	Z2DB10VC1-4X/315
R900599776	Z2DB10VC1-4X/315V
R900967513	Z2DB10VC1-4X/50
R900552548	Z2DB10VC1-4X/50V
R900422071	Z2DB10VC2-4X/100
R900521455	Z2DB10VC2-4X/100JV
R901206084	Z2DB10VC2-4X/100P70
R900904299	Z2DB10VC2-4X/100P80
R900425700	Z2DB10VC2-4X/100V
R900430550	Z2DB10VC2-4X/200
R901145422	Z2DB10VC2-4X/200-40
R901138428	Z2DB10VC2-4X/200-70
R901191061	Z2DB10VC2-4X/200J
R900521447	Z2DB10VC2-4X/200JV
R901268265	Z2DB10VC2-4X/200P180
R900496390	Z2DB10VC2-4X/200V
R900431828	Z2DB10VC2-4X/315
R901138594	Z2DB10VC2-4X/315-205
R901229979	Z2DB10VC2-4X/315-250V
R901371287	Z2DB10VC2-4X/315-300
R901350258	Z2DB10VC2-4X/315-300V
R901015176	Z2DB10VC2-4X/315J
R901447427	Z2DB10VC2-4X/315J3
R900411430	Z2DB10VC2-4X/315V
R900426865	Z2DB10VC2-4X/315VSO450
R900967515	Z2DB10VC2-4X/50
R900441974	Z2DB10VC2-4X/50V
R900598834	Z2DB10VC3-4X/100V
R900439764	Z2DB10VC3-4X/200
R900426667	Z2DB10VC3-4X/200V
R900583299	Z2DB10VC3-4X/315V
R900586469	Z2DB10VC3-4X/50V
R900920715	Z2DB10VC7-4X/100V
R900515778	Z2DB10VC7-4X/200V
R900722255	Z2DB10VC7-4X/315V
R900515779	Z2DB10VC7-4X/50V
R900507057	Z2DB10VD.-4X/...V
R900967518	Z2DB10VD1-4X/100
R900505079	Z2DB10VD1-4X/100V
R900442576	Z2DB10VD1-4X/200
R900967519	Z2DB10VD1-4X/200
R900443479	Z2DB10VD1-4X/200V
R900967917	Z2DB10VD1-4X/315
R900523756	Z2DB10VD1-4X/315V
R900967516	Z2DB10VD1-4X/50
R900967517	Z2DB10VD1-4X/50V
R900425928	Z2DB10VD2-4X/100
R901039302	Z2DB10VD2-4X/100-30
R901039303	Z2DB10VD2-4X/100-40
R901039309	Z2DB10VD2-4X/100-60
R901072625	Z2DB10VD2-4X/100-70
R900411413	Z2DB10VD2-4X/100V
R900433648	Z2DB10VD2-4X/100VSO30
R900440550	Z2DB10VD2-4X/200
R901066646	Z2DB10VD2-4X/200-105
R901041137	Z2DB10VD2-4X/200-140
R901041137	Z2DB10VD2-4X/200-140
R901113407	Z2DB10VD2-4X/200-150V
R901072624	Z2DB10VD2-4X/200-160
R901041134	Z2DB10VD2-4X/200-30
R901146519	Z2DB10VD2-4X/200-40
R901041135	Z2DB10VD2-4X/200-50
R901041136	Z2DB10VD2-4X/200-60
R901131870	Z2DB10VD2-4X/200-70
R901131870	Z2DB10VD2-4X/200-70
R901057563	Z2DB10VD2-4X/200-90
R900582337	Z2DB10VD2-4X/200J
R901447431	Z2DB10VD2-4X/200J3V
R900518717	Z2DB10VD2-4X/200JV
R900411358	Z2DB10VD2-4X/200V
R900408156	Z2DB10VD2-4X/315
R901129985	Z2DB10VD2-4X/315-210
R900434937	Z2DB10VD2-4X/315J
R901447435	Z2DB10VD2-4X/315J3V
R900437271	Z2DB10VD2-4X/315JV
R900411462	Z2DB10VD2-4X/315V
R901052228	Z2DB10VD2-4X/315V=TA
R900444618	Z2DB10VD2-4X/50
R900479846	Z2DB10VD2-4X/50V
R900598833	Z2DB10VD3-4X/100
R900503367	Z2DB10VD3-4X/100V
R900449068	Z2DB10VD3-4X/200
R900500928	Z2DB10VD3-4X/200V
R900587771	Z2DB10VD3-4X/315V
R900580734	Z2DB10VD7-4X/200
R900772006	Z2DB10VD7-4X/200V
R900786685	Z2DB10VD7-4X/315-225
R900929694	Z2DB10VD7-4X/315-250V
R900583042	Z2DB10VD7-4X/315V
R901061609	Z2DB10VD7-4X100V
R978895588	Z2DB10VD3-4X/315
