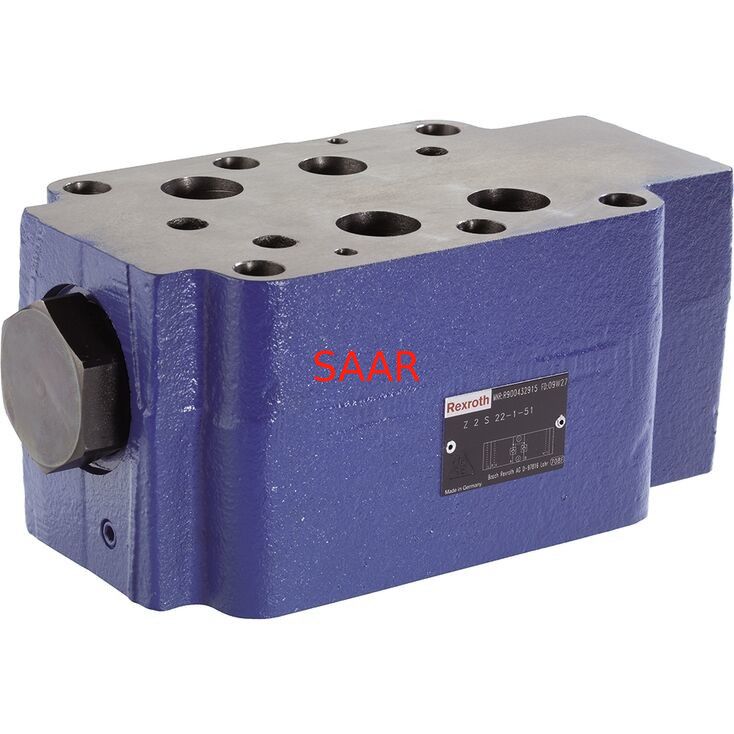

Rexroth R900432915 Z2S22-1-51/ Z2S22-1-5X/ Pilot Operated Check Valve

Rexroth R900432915 Z2S22-1-51/ Z2S22-1-5X/ Pilot Operated Check Valve

  • Rexroth R900432915 Z2S22-1-51/  Z2S22-1-5X/ Pilot Operated Check Valve
Rexroth R900432915 Z2S22-1-51/  Z2S22-1-5X/ Pilot Operated Check Valve
Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Model Number: R900432915 Z2S22-1-51/ Z2S22-1-5X/
CertifiSAARion: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: On request
Packaging Details: Standard paper box
Delivery Time: 7-10days
Payment Terms: T/T, Western Union
Supply Ability: 100PCS per month
Contact Now
Detailed Product Description
Model: R900432915 MNR: Z2S22-1-51/ Z2S22-1-5X/
High Light:

R900432915 Pilot Operated Check Valve

,

450L/Min Rexroth Hydraulic Valves

,

315 Bar Pilot Check Valve

Check valves, pilot operated Z2S22



Size 25
Component series 5X
Maximum operating pressure 315 bar
Maximum flow 450 l/min



Features
Sandwich plate valve for use in vertical stackings
Porting pattern according to ISO 4401-08-08-0-05
For the leakage-free blocking of one or two actuator ports, optional
Various cracking pressures
Pre-opening standard
Check valve installation sets available individually
Special versions on request



Type Code:

01 02 03 04   05   06 07 08 09
Z2S 22     5X /       *
01 Check valve, Sandwich plate design Z2S
02 Size 25 22
Leakage-free blocking
03 Channel A and B
Channel A A
Channel B B
Cracking pressure
04 3 bar 1
5 bar 2
7,5 bar 3
10 bar 4
05 Component series 50 ... 59 (50 ... 59: unchanged technical data and pin assignment) 5X
06

Surface without corrosion resistance

1)

no code
Seal material
07 NBR seals no code
FKM seals V
Observe compatibility of seals with hydraulic fluid used.
Special version
08 Without no code
Control open by external port G1/4 (only version "A" and "B") SO40
Control spool unloaded to port T SO60
09 Further details in the plain text *

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.



Rexroth Check valves, pilot operated Z2S22 Model List:



R900433032 Z2S22A1-5X/
R900539017 Z2S22A1-5X/SO21
R900346704 Z2S22A1-5X/V
R900457907 Z2S22A2-5X/
R900589414 Z2S22A2-5X/V
R900507469 Z2S22A3-5X/
R900988977 Z2S22A3-5X/V
R900522102 Z2S22A4-5X/
R900433037 Z2S22B1-5X/
R900533752 Z2S22B1-5X/V
R901017619 Z2S22B1-5X/VSO60
R900072796 Z2S22B1-5X=
R900437818 Z2S22B2-5X/
R900591053 Z2S22B2-5X/V
R900528638 Z2S22B3-5X/
R900509911 Z2S22B4-5X/
R900432915 Z2S22-1-5X/
R900443803 Z2S22-1-5X/SO21
R900436495 Z2S22-1-5X/V
R900072795 Z2S22-1-5X=
R900433031 Z2S22-2-5X/
R900525586 Z2S22-2-5X/V
R900439719 Z2S22-3-5X/
R900476296 Z2S22-3-5X/V
R900435968 Z2S22-4-5X/
R901337072 Z2S22-4-5X/V
R987123806 Z2S22-4-5X/V
R987123806 Z2S22-4-5X/V
R978859136 Z2S22B3-5X/V
R978859137 Z2S22B4-5X/V
