Name: R900906359 DBW20B2-52/315-6EW220N9K4 DBW20B2-5X/315-6EW220N9K4 Pressure Relief Valve, Pilot Controlled
Brand: Rexroth
SKU: R900906359 DBW20B2-52/315-6EW220N9K4 DBW20B2-5X/315-6EW220N9K4
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (196 reviews)

Home Products Rexroth Hydraulic Valves

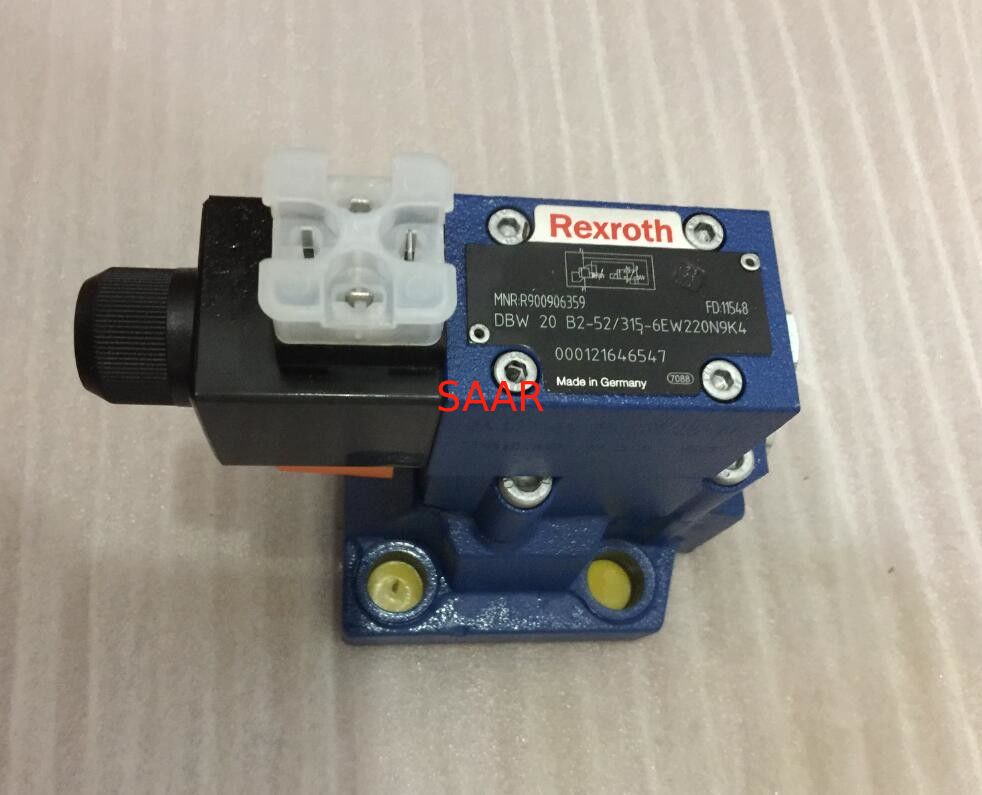

R900906359 DBW20B2-52/315-6EW220N9K4 DBW20B2-5X/315-6EW220N9K4 Pressure Relief Valve, Pilot Controlled

Product Details:

Place of Origin:	Germany
Brand Name:	Rexroth
Model Number:	R900906359 DBW20B2-52/315-6EW220N9K4 DBW20B2-5X/315-6EW220N9K4
CertifiSAARion:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	On request
Packaging Details:	Standard paper box
Delivery Time:	7-10days
Payment Terms:	T/T, Western Union
Supply Ability:	100PCS per month

Contact Now

Detailed Product Description

Type No.:

R900906359

Model No.:

DBW20B2-52/315-6EW220N9K4 DBW20B2-5X/315-6EW220N9K4

High Light:

ISO Rexroth Pressure Relief Valve

R900906359 Rexroth Pressure Relief Valve

Pilot Controlled Rexroth Hydraulic Valves

Rexroth Pressure relief valve, pilot controlled DBW Series

Size 10 … 32
Component series 5X
Maximum operating pressure 350 bar
Maximum flow 650 l/min

Features
For subplate mounting
Porting pattern according to ISO 6264-06-09 (NG10), ISO 6264-08-13 (NG25) and ISO 6264-10-17 (NG32)
For threaded connection
As screw-in cartridge valve (cartridge)
4 adjustment types for pressure adjustment, optionally
• Rotary knob
• Sleeve with hexagon and protective cap
• Lockable rotary knob with scale
• Rotary knob with scale
5 pressure ratings
Solenoid-operated unloading via built-on directional spool valve or directional poppet valve
High-power solenoid
Switching shock damping, optional

Type Code:

01	Pressure relief valve	DB
02	With attached directional valve	W
03	Pilot-operated valve (complete)	no code
	Pilot control valve without main spool insert (do not enter any size)	C
	Pilot control valve with main spool insert (enter size 10 or 30)	C
	Pilot control valve without main spool insert for subplate mounting (do not enter any size)	T ¹⁾
04	Size 10
	Subplate mounting "no code"	10
	Threaded connection "G"	10 (G1/2)
	Size 16
	Threaded connection "G"	15 (G3/4)
	Size 25
	Subplate mounting "no code"	20
	Threaded connection "G"	20 (G1)
	Threaded connection "G"	25 (G1 1/4)
	Size 32
	Subplate mounting "no code"	30
	Threaded connection "G"	30 (G1 1/2)
05	Normally closed	A
05	Normally open	B
Type of connection
06	Subplate mounting or cartridge valve	no code
06	For threaded connection	G
Adjustment type for pressure adjustment
07	Rotary knob (not for version "C" and "T")	1
	Sleeve with hexagon and protective cap	2
	Lockable rotary knob with scale	3 ²⁾
	Rotary knob with scale	7
08	Main spool Ø24 mm (all sizes)	–
08	Main spool Ø28 mm (only for NG32)	N
09	Component series 50 … 59 (50 … 59: unchanged installation and connection dimensions)	5X
10	Set pressure up to 50 bar	50
	Set pressure up to 100 bar	100
	Set pressure up to 200 bar	200
	Set pressure up to 315 bar	315
	Set pressure up to 350 bar	350
Pilot oil flow
11	External pilot oil supply, internal pilot oil return	X³⁾
	Internal pilot oil supply, external pilot oil return	Y
	Pilot oil supply and pilot oil return external	XY³⁾
12	Standard version	no code
12	Valve for minimum cracking pressure (not for versions "without main spool insert" and not suitable for mutual relief)	U ⁴⁾
13	Without switching shock damping	no code
13	With switching shock damping	S
14	With directional spool valve (data sheet 23178)	6E
14	With directional seat valve (data sheet 22058)	6SM
15	Direct voltage 24 V	G24
15	Alternating voltage 230 V, 50/60 Hz	W230
16	Without manual override	no code
	With concealed manual override	N9
	With manual override	N
Electrical connection
17	Connector DIN EN 175301-803	K4 ⁵⁾
18	Nozzle Ø1,2 mm in channel B of the directional spool valve (version "6E")	R12⁶⁾
18	Nozzle Ø1,2 mm in channel P of the directional seat valve (version "6SM")	B12⁶⁾
Corrosion resistance
19	None	no code
Seal material
20	NBR seals	no code
	FKM seals	V
	Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)
Equipment Directive
21	Without type-examination procedure	no code
21	Type-examination tested safety valve according to Pressure Equipment Directive 2014/68/EU	E
22	Further details in the plain text	*

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth Pressure relief valve, pilot controlled DBW Model List:

R901216656	DBW20B2-5X/100-6EW100N9DL
R901315952	DBW20B2-5X/100-6EW100N9K4
R900701987	DBW20B2-5X/100-6EW110K4V
R900909952	DBW20B2-5X/100-6EW110N9K4
R900928006	DBW20B2-5X/100-6EW110N9K4/12
R900760086	DBW20B2-5X/100-6EW110N9K4/12=CSA
R900778064	DBW20B2-5X/100-6EW110N9K4=CSA
R900923463	DBW20B2-5X/100-6EW110N9K4V
R900579088	DBW20B2-5X/100-6EW110N9Z4
R900906493	DBW20B2-5X/100-6EW110N9Z55L
R900912909	DBW20B2-5X/100-6EW110N9Z5L
R900931376	DBW20B2-5X/100-6EW110NDAL
R901262166	DBW20B2-5X/100-6EW110NDAL/12
R901021244	DBW20B2-5X/100-6EW127N9K4
R900749416	DBW20B2-5X/100-6EW200N9DL
R900910239	DBW20B2-5X/100-6EW220N9Z4
R901129280	DBW20B2-5X/100-6EW230N9DL
R900920785	DBW20B2-5X/100-6EW230N9K4
R900244124	DBW20B2-5X/100-6EW230N9K4/12
R901196386	DBW20B2-5X/100-6EW230N9K4V/12
R900912937	DBW20B2-5X/100-6EW230N9Z4
R900917207	DBW20B2-5X/100-6EW230N9Z5L/12
R900701672	DBW20B2-5X/100-6EW42N9K4
R901079337	DBW20B2-5X/100T6EW100N9DL
R900742835	DBW20B2-5X/100T6EW110N9K4
R901016442	DBW20B2-5X/100T6EW200RN9DL
R901075790	DBW20B2-5X/100T6EW230N9K4
R901076948	DBW20B2-5X/100U6EW110N9DAL
R900933814	DBW20B2-5X/100U6EW110N9K4
R900767887	DBW20B2-5X/100U6EW110N9K4/12=CSA
R900747308	DBW20B2-5X/100U6EW110N9K4=CSA
R901005063	DBW20B2-5X/100U6EW110N9K4V/12
R900917768	DBW20B2-5X/100U6EW110N9Z4
R900941110	DBW20B2-5X/100U6EW230N9K4
R900724661	DBW20B2-5X/100U6EW230N9K4V
R901032631	DBW20B2-5X/100X6EW230N9K4
R901430657	DBW20B2-5X/100XY6EW230N9K4
R987123166	DBW20B2-5X/100XYU6EW110N9K4
R901060028	DBW20B2-5X/100XYU6EW110N9K4
R901201756	DBW20B2-5X/100XYU6EW110N9K4/12
R900901730	DBW20B2-5X/100Y6EW110N9DL
R900913180	DBW20B2-5X/100Y6EW110N9K4
R901339552	DBW20B2-5X/100Y6EW127N9K4
R900923298	DBW20B2-5X/100Y6EW230N9K4
R901439208	DBW20B2-5X/150-6EW230N9K4E
R900705668	DBW20B2-5X/160-6EW230N9K4B
R901039273	DBW20B2-5X/160-6EW230N9K4E
R900910684	DBW20B2-5X/160-6EW230N9Z5LB
R901128619	DBW20B2-5X/200-175-6EW230N9K4
R900759484	DBW20B2-5X/200-6EW100N9DL
R900763627	DBW20B2-5X/200-6EW100N9K4
R900952917	DBW20B2-5X/200-6EW110K4
R901023065	DBW20B2-5X/200-6EW110N9DAL=CSA
R900934511	DBW20B2-5X/200-6EW110N9DALV/12
R901325653	DBW20B2-5X/200-6EW110N9DL
R900906353	DBW20B2-5X/200-6EW110N9K4
R900925587	DBW20B2-5X/200-6EW110N9K4/12
R900725035	DBW20B2-5X/200-6EW110N9K4/12=CSA
R900943398	DBW20B2-5X/200-6EW110N9K4=CSA
R900949697	DBW20B2-5X/200-6EW110N9K4V
R978911377	DBW20B2-5X/200-6EW110N9K4V/12
R900908942	DBW20B2-5X/200-6EW110N9Z5L
R900769067	DBW20B2-5X/200-6EW200N9DL
R901365435	DBW20B2-5X/200-6EW200N9K4
R900907543	DBW20B2-5X/200-6EW220N9K4
R901200777	DBW20B2-5X/200-6EW230N9DL
R901036829	DBW20B2-5X/200-6EW230N9DL1
R900911669	DBW20B2-5X/200-6EW230N9K4
R901075719	DBW20B2-5X/200-6EW230N9K4D
R901257299	DBW20B2-5X/200-6EW230N9K4V
R900914086	DBW20B2-5X/200-6EW230N9Z4
R900912504	DBW20B2-5X/200-6EW230N9Z5L
R900918026	DBW20B2-5X/200-6EW230RN9Z5L
R900740670	DBW20B2-5X/200T6EW100N9DL
R901038250	DBW20B2-5X/200T6EW100N9K4
R900753082	DBW20B2-5X/200T6EW110N9K4
R900758715	DBW20B2-5X/200T6EW230N9K4
R901026678	DBW20B2-5X/200U6EW110N9DAL
R901066241	DBW20B2-5X/200U6EW110N9K4
R900977792	DBW20B2-5X/200U6EW230N9K4
R901366756	DBW20B2-5X/200X6EW110N9K4
R901148847	DBW20B2-5X/200XY6EW230N9K4
R987123169	DBW20B2-5X/200XYU6EW110N9K4
R901060029	DBW20B2-5X/200XYU6EW110N9K4
R901201758	DBW20B2-5X/200XYU6EW110N9K4/12
R900953198	DBW20B2-5X/200Y6EW110N9K4
R900926956	DBW20B2-5X/200Y6EW230N9K4
R901529120	DBW20B2-5X/315-200-6EW230N9K4
R901128618	DBW20B2-5X/315-220-6EW110N9K4
R900575789	DBW20B2-5X/315-6EW110N9DAL/12
R900743920	DBW20B2-5X/315-6EW110N9DALV/12
R900752303	DBW20B2-5X/315-6EW110N9DALV/12=CSA
R900935309	DBW20B2-5X/315-6EW110N9DL
R900906355	DBW20B2-5X/315-6EW110N9K4
R900920872	DBW20B2-5X/315-6EW110N9K4/12
R900750921	DBW20B2-5X/315-6EW110N9K4=CSA
R901345847	DBW20B2-5X/315-6EW110N9K4R10
R900909412	DBW20B2-5X/315-6EW110N9K4V
R900920873	DBW20B2-5X/315-6EW110N9K4V/12
R901425773	DBW20B2-5X/315-6EW110N9K4V=CSA
R900906586	DBW20B2-5X/315-6EW110N9Z4
R979005568	DBW20B2-5X/315-6EW110N9Z4
R900906016	DBW20B2-5X/315-6EW110N9Z45
R900907546	DBW20B2-5X/315-6EW110N9Z45V
R900901324	DBW20B2-5X/315-6EW110N9Z5L
R900902380	DBW20B2-5X/315-6EW110N9Z5LV
R900902380	DBW20B2-5X/315-6EW110N9Z5LV
R900908982	DBW20B2-5X/315-6EW110RN9Z5
R900914427	DBW20B2-5X/315-6EW110RN9Z5LV
R900910692	DBW20B2-5X/315-6EW120N9DAL/12
R900964895	DBW20B2-5X/315-6EW127N9K4
R900958987	DBW20B2-5X/315-6EW127N9K4V
R900906359	DBW20B2-5X/315-6EW220N9K4
R900911748	DBW20B2-5X/315-6EW230N9K4
R900927333	DBW20B2-5X/315-6EW230N9K4V
R900908197	DBW20B2-5X/315-6EW230N9Z5L
R900917654	DBW20B2-5X/315-6EW230N9Z5LV
R900917654	DBW20B2-5X/315-6EW230N9Z5LV
R900915045	DBW20B2-5X/315-6EW230RN9Z5
R901413293	DBW20B2-5X/315-6EW240N9K4
R900918300	DBW20B2-5X/315-6EW24N9Z4
R900953681	DBW20B2-5X/315-6EW48N9K4
R901426670	DBW20B2-5X/315U6EW100N9DL
R900616948	DBW20B2-5X/315U6EW110N9DAL/12=CSA
R900919637	DBW20B2-5X/315U6EW110N9K4
R978916574	DBW20B2-5X/315U6EW110N9K4V/12
R900969699	DBW20B2-5X/315U6EW110N9K4V/12=CSA
R900942702	DBW20B2-5X/315U6EW230N9K4
R901338570	DBW20B2-5X/315U6EW230NK4
R900970707	DBW20B2-5X/315US6EW110N9K4R10
R901044057	DBW20B2-5X/315US6EW110N9K4R12
R900709975	DBW20B2-5X/315US6EW230N9K4R10
R901055953	DBW20B2-5X/315US6EW230N9K4R12
R900937810	DBW20B2-5X/315X6EW110N9K4
R900912257	DBW20B2-5X/315X6EW110N9Z4
R900937512	DBW20B2-5X/315X6EW230N9K4
R901121446	DBW20B2-5X/315XU6EW110N9K4
R901318905	DBW20B2-5X/315XU6EW110N9K4/12
R901018447	DBW20B2-5X/315XU6EW230N9K4
R987011934	DBW20B2-5X/315XY-6EW110N9K4
R901108959	DBW20B2-5X/315XY6EW110N9K4
R901143165	DBW20B2-5X/315XY6EW230N9K4
R901210212	DBW20B2-5X/315XYU6EW230N9K4
R900943196	DBW20B2-5X/315Y6EW110N9K4
R900906905	DBW20B2-5X/315Y6EW110N9Z5L
R900927080	DBW20B2-5X/315Y6EW230N9K4
R901295400	DBW20B2-5X/315Y6EW230N9K4=CSA
R900969125	DBW20B2-5X/315YU6EW110N9K4
R987118112	DBW20B2-5X/315YU6EW110N9K4/B08
R901057604	DBW20B2-5X/315YU6EW110N9K4=CSA
R900708394	DBW20B2-5X/315YU6EW110N9K4V
R900910683	DBW20B2-5X/315YU6EW230N9K4
R900919425	DBW20B2-5X/315YU6EW230N9Z4
R900740662	DBW20B2-5X/350-6EW100N9DL
R900744566	DBW20B2-5X/350-6EW100N9K4
R900742836	DBW20B2-5X/350-6EW100N9K4
R900975510	DBW20B2-5X/350-6EW110N9DAL=CSA
R900741918	DBW20B2-5X/350-6EW110N9DL
R901055215	DBW20B2-5X/350-6EW110N9DL1
R900921396	DBW20B2-5X/350-6EW110N9K4
R900941545	DBW20B2-5X/350-6EW110N9K4/12
R900770709	DBW20B2-5X/350-6EW200N9DL
R901412171	DBW20B2-5X/350-6EW200N9K4
R901044363	DBW20B2-5X/350-6EW230N9DL
R901045195	DBW20B2-5X/350-6EW230N9DL1
R900944955	DBW20B2-5X/350-6EW230N9K4
R901368582	DBW20B2-5X/350-6EW230N9K4/12
R900556116	DBW20B2-5X/350-6EW230N9Z4
R900944654	DBW20B2-5X/350-6EW230NK4
R900910694	DBW20B2-5X/350-6EW230RN9Z5L
R987047354	DBW20B2-5X/350-X6EW230N9K4
R900752601	DBW20B2-5X/350T6EW100N9DL
R900760522	DBW20B2-5X/350T6EW100N9K4
R900740675	DBW20B2-5X/350T6EW110N9K4
R900741150	DBW20B2-5X/350T6EW200N9DL
R901150553	DBW20B2-5X/350T6EW200N9K4
R900937177	DBW20B2-5X/50-6EW110N9K4
R900928522	DBW20B2-5X/50-6EW110N9K4/12
R900954323	DBW20B2-5X/50-6EW230N9K4
R901077130	DBW20B2-5X/50-6EW230N9K4V
R900909857	DBW20B2-5X/50-6EW230N9Z4
R900976542	DBW20B2-5X/50-6EW48N9K4
R900933022	DBW20B2-5X/50X6EW110N9K4
R900973332	DBW20B2-5X/50Y6EW110NK4
R978873386	DBW20B2-5X/100-6EW110N9DA/12
R978911376	DBW20B2-5X/100-6EW110N9K4V/12
R978014574	DBW20B2-5X/1006EW110N9DAL/12
R978910965	DBW20B2-5X/100U6EW110N9K4/12
R978910284	DBW20B2-5X/100U6EW110N9K4V/12
R978912366	DBW20B2-5X/100U6EW110NK4/12
R978917121	DBW20B2-5X/100U6EW220N9K4V/12
R978910893	DBW20B2-5X/100X6EW110N9DA/12
R978012965	DBW20B2-5X/100X6EW110N9K4/12
R978911860	DBW20B2-5X/100YU6EW110N9K4/12
R978873397	DBW20B2-5X/200-6EW110N9DA/12
R978873398	DBW20B2-5X/200-6EW110N9DAL/12
R978028237	DBW20B2-5X/200-6EW110RN9DALV/12
R978919731	DBW20B2-5X/200U6EW110N9DA/12
R978915891	DBW20B2-5X/200U6EW110N9K4/12
R978918842	DBW20B2-5X/200U6EW110N9K4/12=CSA
R978913796	DBW20B2-5X/200U6EW110N9K4V/12
R978892931	DBW20B2-5X/200X6EW110N9DAL/12
R978899167	DBW20B2-5X/200X6EW110N9DL/12
R978910635	DBW20B2-5X/200Y6EW110N9K4/12
R978873409	DBW20B2-5X/315-6EW110N9DA/12
R978005155	DBW20B2-5X/315-6EW110N9K4/12=CSA
R978004961	DBW20B2-5X/315-6EW110NK4/12
R979811310	DBW20B2-5X/315-6EW220N9Z4
R978911203	DBW20B2-5X/315U6EW110N9K4/12
R978917673	DBW20B2-5X/315U6EW220N9K4/12
R978015516	DBW20B2-5X/315X6EW110NK4/12
R978906773	DBW20B2-5X/315X6EW220NK4/12
R978909842	DBW20B2-5X/315XU6EW110N9DA/12
R978919476	DBW20B2-5X/315XU6EW110N9K4V/12
R978915095	DBW20B2-5X/315Y6EW110N9K4/12
R987122730	DBW20B2-5X/315YU6EW110N9K4=CSA
R978913485	DBW20B2-5X/315YU6EW110N9K4V/12
R978910797	DBW20B2-5X/350-6EW110N9K4V/12
R978014207	DBW20B2-5X/350U6EW110N9K4/12
R978911165	DBW20B2-5X/350Y6EW110N9K4/12

Saar HK Electronic Limited
Add: Rm 1506,28# Moyu Rd,Shanghai,China,201805
Tel: +86-21-5956 1370
Fax:+86-21-5012 3536
Email: jason@hydraulicpumpvalve.com
Skype: jason.saar
Mobile/WhatsApp: +8613918187448
