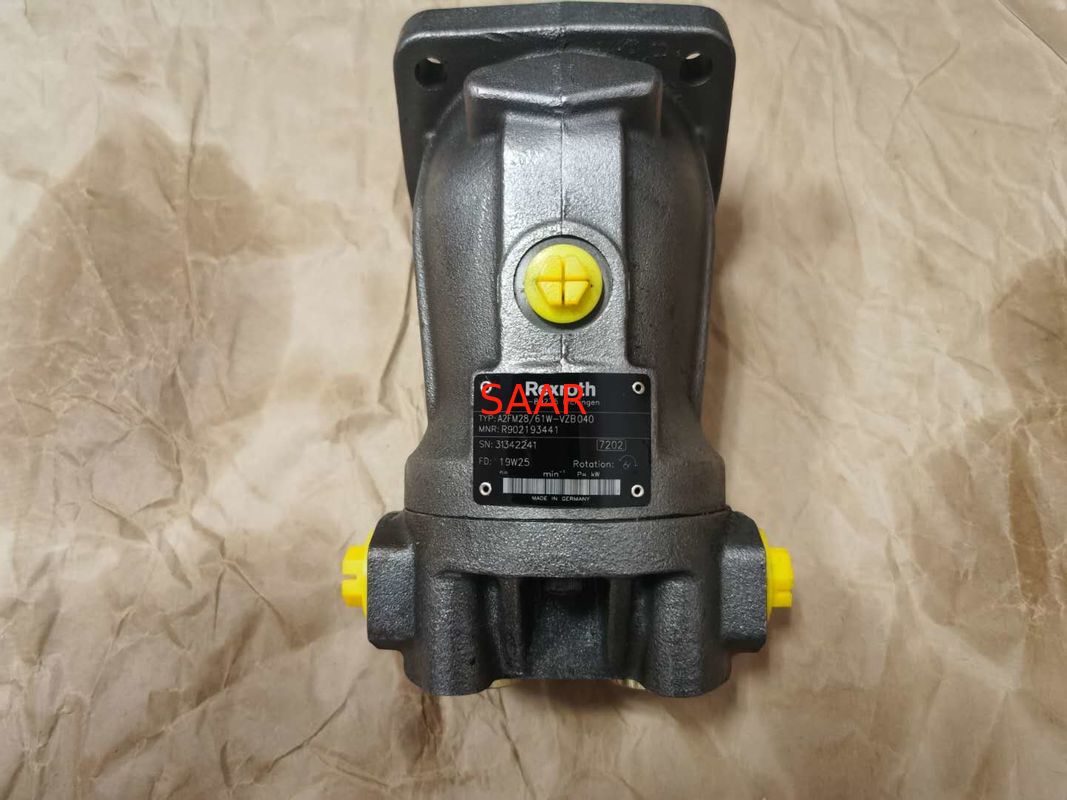

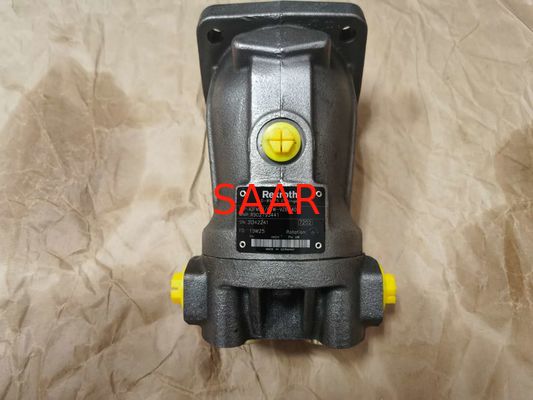

R902193441 A2FM28/61W-VZB040 Rexroth Axial Piston Fixed Motor

R902193441 A2FM28/61W-VZB040 Rexroth Axial Piston Fixed Motor

    • R902193441 A2FM28/61W-VZB040 Rexroth Axial Piston Fixed Motor
  • R902193441 A2FM28/61W-VZB040 Rexroth Axial Piston Fixed Motor

    Product Details:

    Place of Origin: Germany
    Brand Name: Rexroth
    Certification: ISO9001
    Model Number: R902193441 A2FM28/61W-VZB040

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: On request
    Packaging Details: Standard paper box
    Delivery Time: 7-10days
    Payment Terms: T/T, Western Union
    Supply Ability: 100PCS per month
    Contact Now
    Detailed Product Description
    MNR: R902193441 Model No.: A2FM28/61W-VZB040
    High Light:

    R902193441

    ,

    Rexroth Axial Piston Fixed Motor

    ,

    A2FM28/61W-VZB040

    Rexroth A2FM 6X Series Axial Piston Fixed Motor



    All-purpose high pressure motor
    Size 5 … 1000
    Nominal pressure up to 400 bar
    Maximum pressure up 450 bar
    Open and closed circuit
    Metric version

    Features
    Large variety of available nominal sizes allows exact adjustment to the application
    High power density
    Very high total efficiency
    High starting efficiency
    Working ports SAE flange or thread
    Optional with integrated pressure relief valve
    Optional with mounted addifitonal valve: counterbalance valve (BVD/BVE), flushingand boost-pressure valve
    Bent-axis design



    Technical data

    Size 5 10 12 16 23 28 32 107 125 160 180 200 250 355 500 710 1000
    Displacement
    geometric, per revolution
    Vg cm³ 4.93 10.3 12 16 22.9 28.1 32 106.7 125 160.4 180 200 250 355 500 710 1000
    Nominal pressure pnom bar 315 400 400 400 400 400 400 400 400 400 400 400 350 350 350 350 350
    Maximum pressure pmax bar 350 450 450 450 450 450 450 450 450 450 450 450 400 400 400 400 400
    Maximum speed nnom 1) rpm 10000 8000 8000 8000 6300 6300 6300 4000 4000 3600 3600 2750 2700 2240 2000 1600 1800
    nmax 2) rpm 11000 8800 8800 8800 6900 6900 6900 4400 4400 4000 4000 3000
    Inlet flow 3) at nnom qV l/min 49 82 96 128 144 177 202 427 500 577 648 550 675 795 1000 1136 1600
    Torque 4) at pnom M Nm 24.7 66 76 102 146 179 204 679 796 1021 1146 1273 1393 1978 2785 3955 5570
    Rotary stiffness c kNm/rad 0.63 0.92 1.25 1.59 2.56 2.93 3.12 11.2 11.9 17.4 18.2 57.3 73.1 96.1 144 270 324
    Moment of inertia for rotary group JTW kg·m² 0.00006 0.0004 0.0004 0.0004 0.0012 0.0012 0.0012 0.0116 0.0116 0.022 0.022 0.0353 0.061 0.102 0.178 0.55 0.55
    Maximum angular acceleration ɑ rad/s² 5000 5000 5000 5000 6500 6500 6500 4500 4500 3500 3500 11000 10000 8300 5500 4300 4500
    Case volume V l   0.17 0.17 0.17 0.2 0.2 0.2 0.8 0.8 1.1 1.1 2.7 2.5 3.5 4.2 8 8
    Weight (approx.) m kg 2.5 5.4 5.4 5.4 9.5 9.5 9.5 32 32 45 45 66 73 110 155 325 336



    SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

    Rexroth Type A2FM23 A2FM28 A2FM32 Axial Piston Fixed Motors on Sale, Short lead time, Best price!!!

    R902018478 A2FM23/61W-PPB010
    R909446477 A2FM23/61W-PPB026D
    R909610941 A2FM23/61W-PPB040D
    R902027087 A2FM23/61W-PZB010
    R902045438 A2FM23/61W-PZB026-S
    R909423337 A2FM23/61W-VAB010
    R909446024 A2FM23/61W-VAB016
    R909422092 A2FM23/61W-VAB020
    R902031740 A2FM23/61W-VAB026
    R902193408 A2FM23/61W-VAB030
    R909611352 A2FM23/61W-VAB030D
    R902099463 A2FM23/61W-VAB036F
    R909428547 A2FM23/61W-VAB040
    R902034404 A2FM23/61W-VAB040D
    R902065792 A2FM23/61W-VAP030
    R902006525 A2FM23/61W-VBB010
    R902090257 A2FM23/61W-VBB010D
    R902099306 A2FM23/61W-VBB010F
    R902082050 A2FM23/61W-VBB010-S
    R902215345 A2FM23/61W-VBB020
    R902034386 A2FM23/61W-VBB026D
    R902006545 A2FM23/61W-VBB030
    R902088954 A2FM23/61W-VBB030F
    R902088956 A2FM23/61W-VBB030F-K
    R909610660 A2FM23/61W-VBB040
    R902075218 A2FM23/61W-VBB040D
    R902090367 A2FM23/61W-VBB040-S
    R902088563 A2FM23/61W-VBB046
    R902193895 A2FM23/61W-VPB010
    R902000425 A2FM23/61W-VPB010D
    R902094891 A2FM23/61W-VPB010F
    R909437097 A2FM23/61W-VPB010-S
    R902024887 A2FM23/61W-VPB016
    R909411826 A2FM23/61W-VPB020
    R902161435 A2FM23/61W-VPB040
    R909411822 A2FM23/61W-VZB040
    R987184745 A2FM23/61W-VZB040F
    R909433728 A2FM28/61W-PPB027
    R902198420 A2FM28/61W-PPB030-S
    R909438928 A2FM28/61W-PZB020D
    R909442545 A2FM28/61W-PZB026D
    R909603456 A2FM28/61W-PZB027
    R909442680 A2FM28/61W-PZB200
    R909427484 A2FM28/61W-VAB010
    R909611199 A2FM28/61W-VAB016
    R902034390 A2FM28/61W-VAB016D
    R902193462 A2FM28/61W-VAB020
    R902040248 A2FM28/61W-VAB020D
    R902000008 A2FM28/61W-VAB020-S
    R909438286 A2FM28/61W-VAB026
    R902004456 A2FM28/61W-VAB026D
    R902208680 A2FM28/61W-VAB027-S
    R902261075 A2FM28/61W-VAB027V
    R909421628 A2FM28/61W-VAB030
    R909604603 A2FM28/61W-VAB036
    R902197753 A2FM28/61W-VAB040
    R902034408 A2FM28/61W-VAB040D
    R909446360 A2FM28/61W-VAB046
    R902014112 A2FM28/61W-VAB100
    R909610661 A2FM28/61W-VBB010
    R909610662 A2FM28/61W-VBB020
    R909610663 A2FM28/61W-VBB040
    R902078881 A2FM28/61W-VBD520
    R909408984 A2FM28/61W-VPB010
    R909408986 A2FM28/61W-VPB020
    R909408990 A2FM28/61W-VPB040
    R909408989 A2FM28/61W-VZB040
    R902016569 A2FM32/61W-NAB020
    R902014180 A2FM32/61W-NAB030
    R902016590 A2FM32/61W-NAB100
    R909438984 A2FM32/61W-PAB010-S
    R909448562 A2FM32/61W-PAB020D
    R909603637 A2FM32/61W-PAB026D
    R909433856 A2FM32/61W-PAB027
    R909447983 A2FM32/61W-PAB037
    R909610855 A2FM32/61W-PBB020D
    R909603688 A2FM32/61W-PBB030D
    R909433857 A2FM32/61W-PZB027
    R987049415 A2FM32/61W-VAB01
    R909427703 A2FM32/61W-VAB010
    R909611078 A2FM32/61W-VAB010D
    R902100098 A2FM32/61W-VAB010F
    R902155996 A2FM32/61W-VAB010H
    R902080727 A2FM32/61W-VAB010-S
    R909603892 A2FM32/61W-VAB016
    R902107742 A2FM32/61W-VAB016F
    R987049415 A2FM32/61W-VAB01-SO
    R902014063 A2FM32/61W-VAB020
    R909611077 A2FM32/61W-VAB020D
    R902080770 A2FM32/61W-VAB020F
    R902078731 A2FM32/61W-VAB020FJ
    R909418884 A2FM32/61W-VAB020-S
    R909429332 A2FM32/61W-VAB026
    R902034368 A2FM32/61W-VAB026D
    R909610949 A2FM32/61W-VAB026-S
    R902261307 A2FM32/61W-VAB027
    R909437247 A2FM32/61W-VAB030
    R902016525 A2FM32/61W-VAB030D
    R909419142 A2FM32/61W-VAB030-S
    R909428887 A2FM32/61W-VAB036
    R902193380 A2FM32/61W-VAB040
    R902072506 A2FM32/61W-VAB040D
    R909437065 A2FM32/61W-VAB046
    R909438817 A2FM32/61W-VAB100
    R902040260 A2FM32/61W-VAB100D
    R902101285 A2FM32/61W-VAB100F
    R902198174 A2FM32/61W-VAB106
    R987205470 A2FM32/61W-VAB181
    R902024620 A2FM32/61W-VAB191
    R909410194 A2FM32/61W-VBB010
    R909410195 A2FM32/61W-VBB020
    R909410197 A2FM32/61W-VBB040
    R902101087 A2FM32/61W-VBB040F
    R902038611 A2FM32/61W-VBB100D
