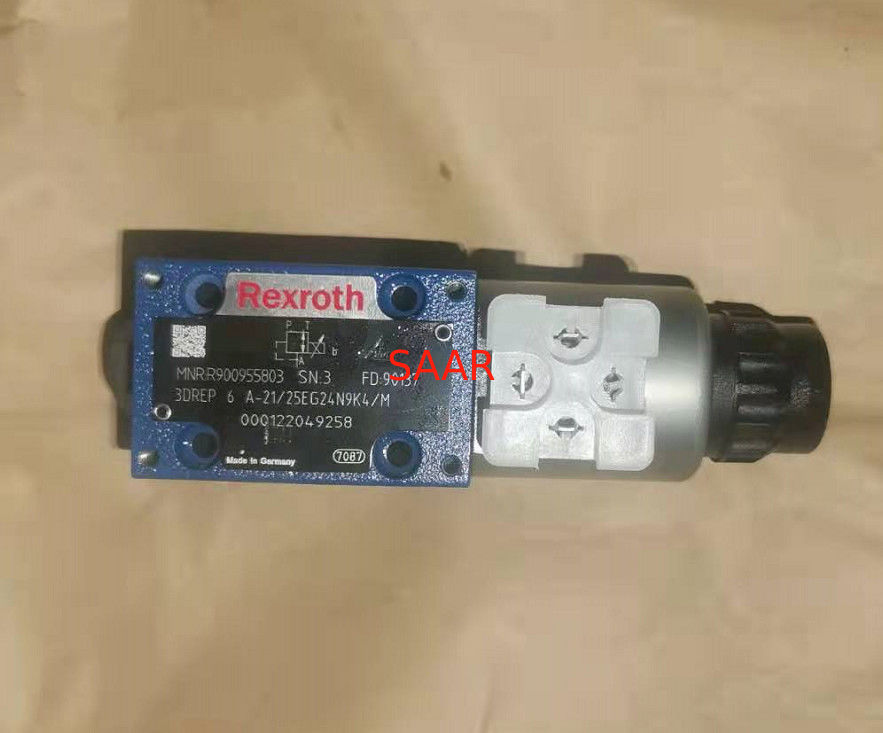

Rexroth R900955803 3DREP6A-21/25EG24N9K4/M 3DREP6A-2X/25EG24N9K4/M Proportional Pressure Reducing Valve

Rexroth Proportional pressure reducing valves, direct operated, in 3-way version

3DREP(E) 6

Size 6
Component series 2X
Max. operating pressure 100 bar
Flow, max. 15 l/min

Features

Direct operated proportional valve for controlling the pressure and direction of aflow
Actuation by proportional solenoid with central thread and detachable coil
For subplate mounting: Porting pattern according to ISO 4401
Manual override, optional
Spring-centered control spool
Type 3DREPE with integrated electronics (OBE)
Type 3DREP with external electronics

Type Code:

01	Proportional pressure relief valve in 3-way version		3DREP
02	For external analog electronics		no code
	With integrated control electronics		E
03	Size 6		6
Version
04	Type 3DREP6 A 2X/..		A
	Type 3DREP6 B 2X/..		B
	Type 3DREP6 C 2X/..		C
05	Component series 20 ... 29 (20 ... 29: unchanged installation and connection dimensions) - Size 6		2X
Pressure rating
06	16 bar		16
	25 bar		25
	45 bar		45
07	Proportional solenoid with detachable coil		E
Power supply
08	Direct voltage 24 V		G24
09	Without manual override		no code
	With concealed manual override		N9 3)
10	Without special type of protection		no code
	Sea water-resistant		J 2)
Electrical connection
11	For type DREP:	Without mating connector; connector DIN EN 175301-803	K4 1)
	For type DREPE:	Without mating connector; connector DIN EN 175201-804	K311)
Electrical interface
12	For type DREP:		no code
	For type DREPE:	Command value/actual value ±10 V	A1
		Command value/actual value 4 … 20 mA	F1
Seal material
13	NBR seals		M
	FKM seals		V
14	Further details in the plain text		*
1)	For version "J" = seawater-resistant only indiSAARe "K31"
2)	Only for version 3DREP6
3)	With version “J”, indiSAARe “N” only instead of “N9”
Special electrical types of protection upon request
