| RM 1902, EASEY BLDG., 253-261 HENNESSY ROAD, WANCHAI, HONGKONG | jason@hydraulicpumpvalve.com |
 |
| Place of Origin: | Germany |
| Brand Name: | Rexroth |
| Model Number: | R900205503 2FRM6A36-33/1,5QRV 2FRM6A36-3X/1,5QRV |
| CertifiSAARion: | ISO9001 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | On request |
| Packaging Details: | Standard paper box |
| Delivery Time: | 7-10days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100PCS per month |
| MNR: | R900205503 | Model No.: | 2FRM6A36-33/1,5QRV 2FRM6A36-3X/1,5QRV |
|---|---|---|---|
| High Light: | R900205503,Rexroth Flow Control Valve,2FRM Flow Control Valve |
||

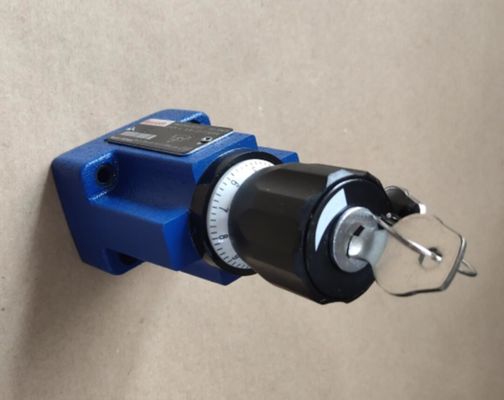

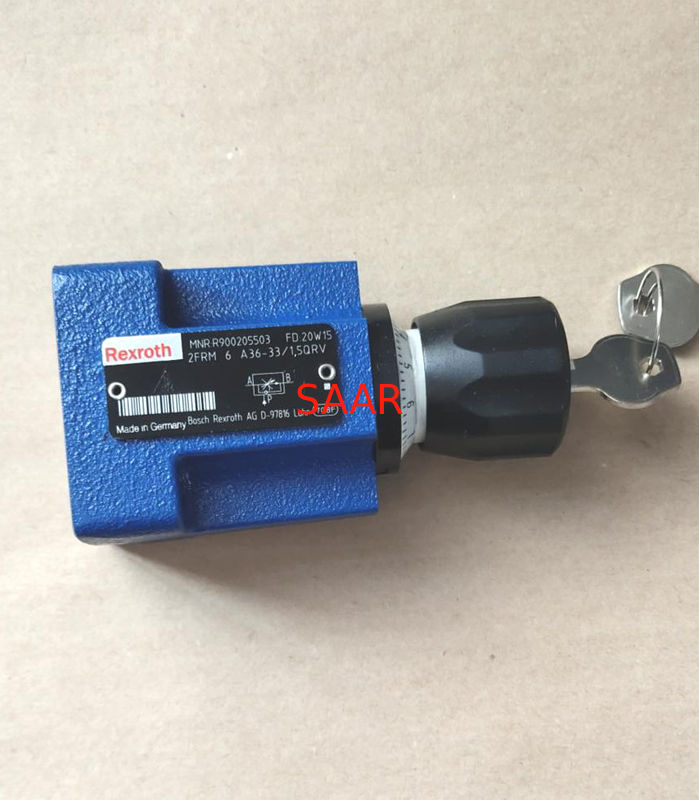

2-Way Flow Control Valve Type 2FRM
Size 6
Component series 3X
Maximum operating pressure 315 bar
Maximum flow 32 l/min
Features
* Porting pattern according to DIN 24340 form A
* Subplates (separate order)
* External closing of the pressure compensator
* Check valve, optional
* 2 adjustment types, optional:
– Rotary knob with scale
– Lockable rotary knob withscale
| 01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | 10 | ||
| 2FRM | 6 | 6 | – | 3X | / | V | * |
| 01 | 2-way flow control valve | 2FRM |
| 02 | Size 6 | 6 |
| 03 | with closing of the pressure compensator (suppression of the start-up jump) | A |
| Adjustment type | ||
| 04 |
Lockable rotary knob with scale 1) |
3 |
| Rotary knob with scale | 7 | |
| 05 | Zero position of the marking at port P | 6 |
| 06 | Component series 30 ... 39 (30 ... 39: unchanged installation and connection dimensions) | 3X |
| Flow (A → B) | ||
| 07 | up to 0.2 l/min | 0,2Q |
| up to 0.6 l/min | 0,6Q | |
| up to 1.5 l/min | 1,5Q | |
| up to 3.0 l/min | 3Q | |
| up to 6.0 l/min | 6Q | |
| up to 10 l/min | 10Q | |
| up to 16 l/min | 16Q | |
| up to 25.0 l/min | 25Q | |
| up to 32.0 l/min | 32Q | |
| 08 | With check valve | R |
| Without check valve | M | |
| Seal material | ||
| 09 | FKM seals (other seals upon request) | V |
| Observe compatibility of seals with hydraulic fluid used. | ||
| 10 | Further details in the plain text | * |
SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.
Rexroth 2-Way Flow Control Valve Type 2FRM6A on Sale, Short lead time, Best price!!!
| R900757849 | 2FRM6A36-3X/0,2QMV |
| R900225234 | 2FRM6A36-3X/0,2QRV |
| R900241525 | 2FRM6A36-3X/0,6QMV |
| R900205576 | 2FRM6A36-3X/0,6QRV |
| R900216628 | 2FRM6A36-3X/1,5QMV |
| R900205503 | 2FRM6A36-3X/1,5QRV |
| R901332824 | 2FRM6A36-3X/10QJMV |
| R900241847 | 2FRM6A36-3X/10QJRV |
| R900211134 | 2FRM6A36-3X/10QMV |
| R900210351 | 2FRM6A36-3X/10QRV |
| R900218348 | 2FRM6A36-3X/16QMV |
| R900211840 | 2FRM6A36-3X/16QRV |
| R901332846 | 2FRM6A36-3X/25QJMV |
| R900212586 | 2FRM6A36-3X/25QMV |
| R900209842 | 2FRM6A36-3X/25QRV |
| R900708353 | 2FRM6A36-3X/32QJMV |
| R900986124 | 2FRM6A36-3X/32QMV |
| R900210353 | 2FRM6A36-3X/32QRV |
| R900210721 | 2FRM6A36-3X/3QMV |
| R900205504 | 2FRM6A36-3X/3QRV |
| R900210722 | 2FRM6A36-3X/6QMV |
| R900205505 | 2FRM6A36-3X/6QRV |
| R901421481 | 2FRM6A36-3X=3QMV |
| R900213296 | 2FRM6A76-3X/0,2QMV |
| R901031622 | 2FRM6A76-3X/0,2QRV |
| R900212935 | 2FRM6A76-3X/0,6QMV |
| R900217646 | 2FRM6A76-3X/0,6QRV |
| R900214778 | 2FRM6A76-3X/1,5QMV |
| R900213378 | 2FRM6A76-3X/1,5QRV |
| R900209925 | 2FRM6A76-3X/10QMV |
| R900212323 | 2FRM6A76-3X/10QRV |
| R900216559 | 2FRM6A76-3X/16QMV |
| R900208589 | 2FRM6A76-3X/16QRV |
| R900987983 | 2FRM6A76-3X/25QMV |
| R900210352 | 2FRM6A76-3X/25QRV |
| R900217537 | 2FRM6A76-3X/32QMV |
| R900212869 | 2FRM6A76-3X/32QRV |
| R900209926 | 2FRM6A76-3X/3QMV |
| R900226906 | 2FRM6A76-3X/3QRV |
| R900217917 | 2FRM6A76-3X/6QMV |
| R900214886 | 2FRM6A76-3X/6QRV |
