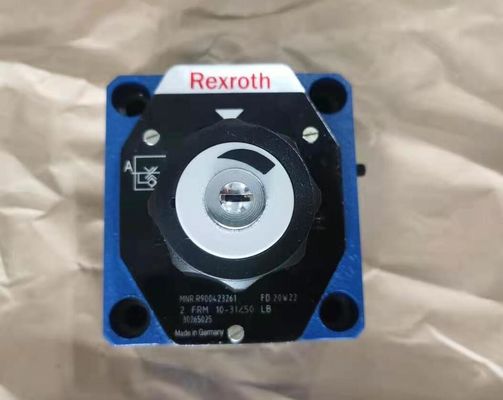

Name: Rexroth R900423261 2FRM10-3X/50LB 2FRM10-31/50LB Flow Control Valve
Brand: Rexroth
SKU: R900423261 2FRM10-3X/50LB 2FRM10-31/50LB
Price: 1.00 USD
Availability: InStock
Rating: 5 (140 reviews)

Home Products Rexroth Hydraulic Valves

Rexroth R900423261 2FRM10-3X/50LB 2FRM10-31/50LB Flow Control Valve

Product Details:

Place of Origin:	Germany
Brand Name:	Rexroth
Model Number:	R900423261 2FRM10-3X/50LB 2FRM10-31/50LB
CertifiSAARion:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	On request
Packaging Details:	Standard paper box
Delivery Time:	7-10days
Payment Terms:	T/T, Western Union
Supply Ability:	100PCS per month

Contact Now

Detailed Product Description

MNR:

R900423261

MODEL:

2FRM10-3X/50LB 2FRM10-31/50LB

High Light:

R900423261

2FRM10-3X/50LB

Rexroth Flow Control Valve

Rexroth 2-way flow control valve 2FRM

Size 10, 16
Component series 3X
Maximum operating pressure 315 bar
Maximum flow 160 l/min

For subplate mounting
Porting pattern according to DIN 24340 form G and ISO 6263
Mechanical actuation
Pressure compensator stroke limitation, optional
Start-up jump reduction
Flow control in both directions through rectifier sandwich plate

Type Code:

01	02	03		04		05	06	07	08	09	10	11
2FR			–	3X	/							*

01	2-way flow control valve	2FR
Type of actuation
02	Mechanical	M
	Hydraulic	H
	Electro-hydraulic	W
03	Size 10	10
03	Size 16	16
04	Component series 30 ... 39 (30 ... 39: unchanged installation and connection dimensions)	3X
Flow range A to B
05	Size 10, linear
	Up to 10 l/min	10L
	Up to 16 l/min	16L
	Up to 25 l/min	25L
	Up to 50 l/min	50L
	Size 16, linear
	Up to 60 l/min	60L
	Up to 100 l/min	100L
	Up to 160 l/min	160L
06	Without pressure compensator stroke limitation	no code
06	With pressure compensator stroke limitation	B
07	Without actual value potentiometer	no code
07	With actual value potentiometer (only types 2FRH and 2FRW)	P
08	With concealed manual override (standard)	N9
	With manual override	N
	Without manual override	no code
Electrical connection
09	Individual connection
09	Without mating connector; connector DIN EN 175301-803	K4¹⁾
Seal material
10	NBR seals	no code
	FKM seals	V
	Observe compatibility of seals with hydraulic fluid used.
11	Further details in the plain text	*

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth 2-way flow control valve 2FRM10 Model List:

R900424887	2FRM10-3X/10L
R900423250	2FRM10-3X/10LB
R900448303	2FRM10-3X/10LBJ
R901348411	2FRM10-3X/10LBJV
R900440368	2FRM10-3X/10LBV
R900344343	2FRM10-3X/10LJ
R900427774	2FRM10-3X/10LV
R900424673	2FRM10-3X/10Q
R900442350	2FRM10-3X/10QB
R900447196	2FRM10-3X/10QV
R900423251	2FRM10-3X/16L
R900380613	2FRM10-3X/16L/5
R900423252	2FRM10-3X/16LB
R900354594	2FRM10-3X/16LBJ
R900437694	2FRM10-3X/16LBV
R900499624	2FRM10-3X/16LJ
R900362811	2FRM10-3X/16LJV
R900423253	2FRM10-3X/16LV
R900424933	2FRM10-3X/16Q
R900434256	2FRM10-3X/16QB
R900344318	2FRM10-3X/16QJ
R900432630	2FRM10-3X/1Q
R900439985	2FRM10-3X/1QB
R900421789	2FRM10-3X/1QBV
R900988740	2FRM10-3X/1QJ
R900423255	2FRM10-3X/25L
R900380610	2FRM10-3X/25L/5
R900423256	2FRM10-3X/25LB
R900389455	2FRM10-3X/25LBJ
R900427522	2FRM10-3X/25LBV
R900494447	2FRM10-3X/25LJ
R900331067	2FRM10-3X/25LJV
R900427523	2FRM10-3X/25LV
R900424037	2FRM10-3X/25Q
R900424015	2FRM10-3X/25QB
R900451502	2FRM10-3X/25QJV
R900423254	2FRM10-3X/2L
R900436366	2FRM10-3X/2LB
R900349835	2FRM10-3X/2LV
R900424831	2FRM10-3X/2Q
R900438040	2FRM10-3X/2QB
R900991478	2FRM10-3X/2QEB
R900364203	2FRM10-3X/35L
R900455542	2FRM10-3X/35LB
R900497430	2FRM10-3X/35LBJ
R900586236	2FRM10-3X/35LJ
R900584877	2FRM10-3X/35LJV
R900446174	2FRM10-3X/3Q
R900420286	2FRM10-3X/50L
R900331205	2FRM10-3X/50L/5
R900072065	2FRM10-3X/50L=LB
R900423261	2FRM10-3X/50LB
R900411045	2FRM10-3X/50LBJ
R900533609	2FRM10-3X/50LBJV
R900424898	2FRM10-3X/50LBV
R900466286	2FRM10-3X/50LJ
R900427776	2FRM10-3X/50LV
R900442648	2FRM10-3X/50QB
R900423258	2FRM10-3X/5L
R900409902	2FRM10-3X/5LSO4
R900423259	2FRM10-3X/5LB
R900488841	2FRM10-3X/5LBJ
R900359466	2FRM10-3X/5LBV
R900455777	2FRM10-3X/5LV
R900424732	2FRM10-3X/5Q
R900424776	2FRM10-3X/5QB
R900440258	2FRM10-3X/5QE
R900212686	2FRM10-3X=10L
R901247928	2FRM10-3X=50LB
