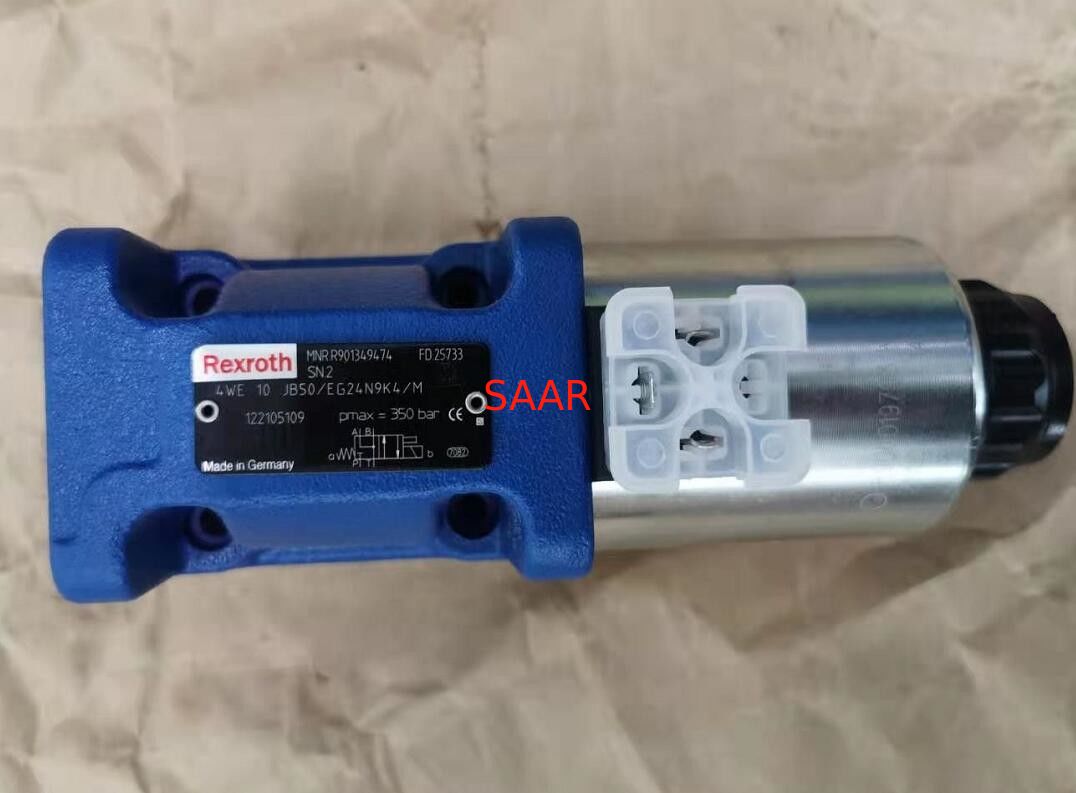

Rexroth R901349474 4WE10JB50/EG24N9K4/M 4WE10JB5X/EG24N9K4/M Directional Spool Valve

Rexroth 4WE10 Series Directional Spool Valves, Direct Operated, with Solenoid Actuation

Size 10
Component series 5X
Maximum operating pressure 350 bar
Maximum flow 160 l/min

Features
▶ 4/3-, 4/2- or 3/2-way version
▶ Porting pattern according to ISO 4401-05-04-0-05 and NFPA T3.5.1 R2-2002 D05
▶ High-power solenoid, optionally rotatable by 90°
▶ Electrical connection as individual or central connection
▶ Cartridge optionally equipped with PWM connector (fast switching amplifier, energy reduction)
▶ Manual override, optional
▶ CE conformity according to the Low Voltage Directive 2006/95/EC for electrical voltages >50 VAC or > 75 VDC
▶ Solenoid coil with UR approval UL 429
▶ Approval according to CSA C22.2 No. 139-10, optional

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth 4WE10JB5X Series Directional Spool Valves Model List:
