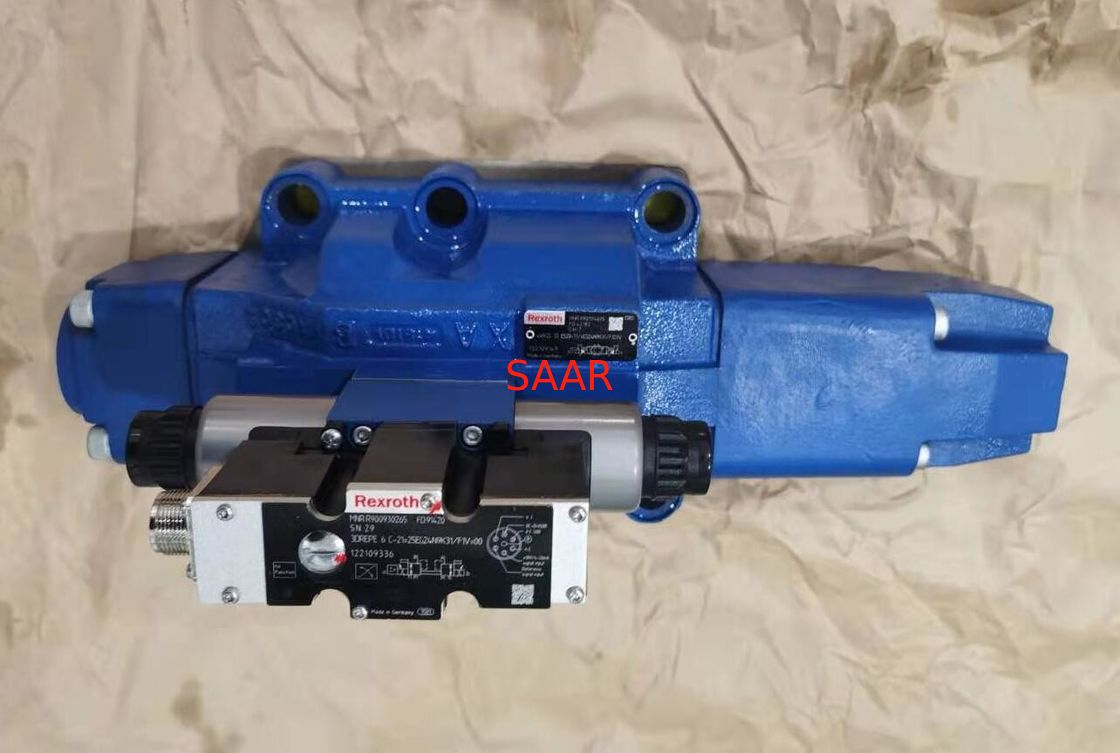

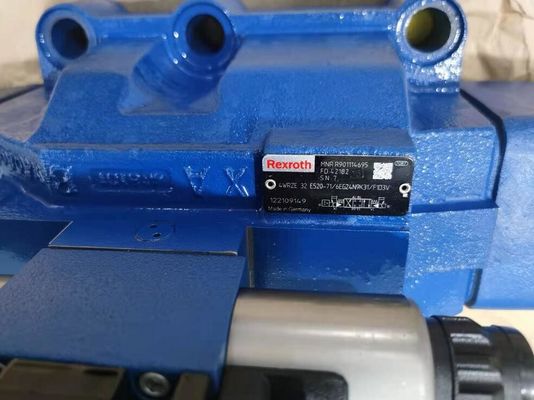

Name: Rexroth R901114695 4WRZE32E520-71/6EG24N9K31/F1D3V 4WRZE32E520-7X/6EG24N9K31/F1D3V Proportional Directional Valve
Brand: Rexroth
SKU: R901114695 4WRZE32E520-71/6EG24N9K31/F1D3V 4WRZE32E520-7X/6EG24N9K31/F1D3V
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (126 reviews)

Home Products Rexroth Hydraulic Valves

Rexroth R901114695 4WRZE32E520-71/6EG24N9K31/F1D3V 4WRZE32E520-7X/6EG24N9K31/F1D3V Proportional Directional Valve

Product Details:

Place of Origin:	Germany
Brand Name:	Rexroth
Model Number:	R901114695 4WRZE32E520-71/6EG24N9K31/F1D3V 4WRZE32E520-7X/6EG24N9K31/F1D3V
CertifiSAARion:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	On request
Packaging Details:	Standard paper box
Delivery Time:	7-10days
Payment Terms:	T/T, Western Union
Supply Ability:	100PCS per month

Contact Now

Detailed Product Description

MNR:

R901114695

Model No.:

4WRZE32E520-71/6EG24N9K31/F1D3V 4WRZE32E520-7X/6EG24N9K31/F1D3V

High Light:

4WRZE32E520-71/6EG24N9K31/F1D3V

R901114695

2800l/Min Proportional Directional Valve

Rexroth 4WRZE Proportional directional valves, pilot operated, without electrical position feedback, with integrated electronics (OBE)

Size 10, 16, 25, 32, 52
Component series 7X
Maximum operating pressure 350 bar
Maximum flow 2800 l/min

Features
Pilot-operated, 2-stage proportional directional valves with integrated electronics (OBE)
Control of the direction and magnitude of a flow
Operation by means of proportional solenoids with central thread and detachable coil
For subplate mounting: Porting pattern according to ISO 4401
Optional auxiliary operating device
Spring-centered control spool

For appliSAARions outside these parameters, please consult us!

Type Code:

01	02	03	04	05		06	07		08	09	10	11	12	13	14	15	16	17
4	WRZE				‒	7X		/	6E	G24				K31				*

01	4 main ports	4
02	Proportional directional valve with electro-hydraulic actuation and integrated electronics	WRZE
03	Size 10	10
	Size 16	16
	Size 25	25
	Size 32	32
	Size 52	52
04	Symbols; for the possible version, see "Symbols/Circuit diagrams"	E; E1-; E3-; W6-; W8-; W9-; EA; W6A
Rated flow NG10
05	25 l/min	25
	50 l/min	50
	90 l/min	85
Rated flow NG16
05	100 l/min	100
	125 l/min	125
	150 l/min	150
	180 l/min	180
Rated flow NG25
05	220 l/min	220
05	325 l/min	325
Rated flow NG32
05	360 l/min	360
05	520 l/min	520
Rated flow NG52
05	1000 l/min	1000
06	Component series 70 ... 79 (70 ... 79: unchanged installation and connection dimensions)	7X
07	For subplate mounting	no code
07	For flange connection (only NG 52)	F
08	Pilot control valve NG6 Proportional solenoid with detachable coil	6E
09	Supply voltage 24 V	G24
10	Without manual override	no code
10	With concealed manual override	N9¹⁾
11	Without special type of protection	no code
11	Sea water-resistant	J²⁾
Pilot oil supply and return
12	External pilot oil supply, external pilot oil return	no code
	Internal pilot oil supply, external pilot oil return	E
	Pilot oil supply internal, pilot oil return internal	ET
	External pilot oil supply, internal pilot oil return	T
Electrical connection
	Without mating connector, connector according to DIN EN 175201-804	K31
Electrical interface
14	Command value ±10 V	A1
14	Command value 4 to 20 mA	F1
15	Without pressure reducing valve	no code
15	With pressure reducing valve ZDR 6 DP0-4X/40YM-W80 (fixedly set)	D3
16	NBR seals	M
16	FKM seals	V
17	Further details in the plain text	*
¹⁾	With version “J” → “N” instead of “N9”
²⁾	For data regarding the seawater-resistant version refer to data sheet 29115-M
