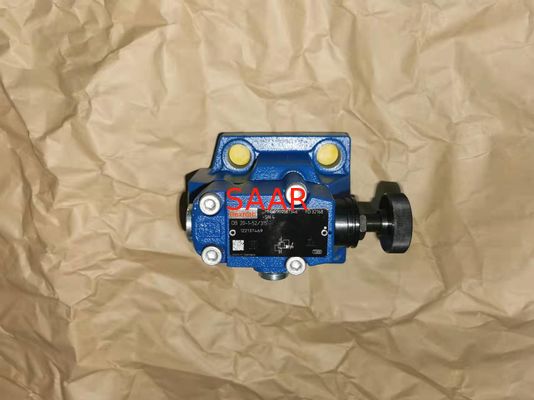

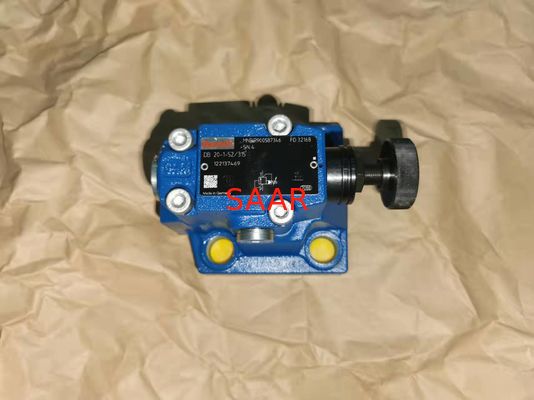

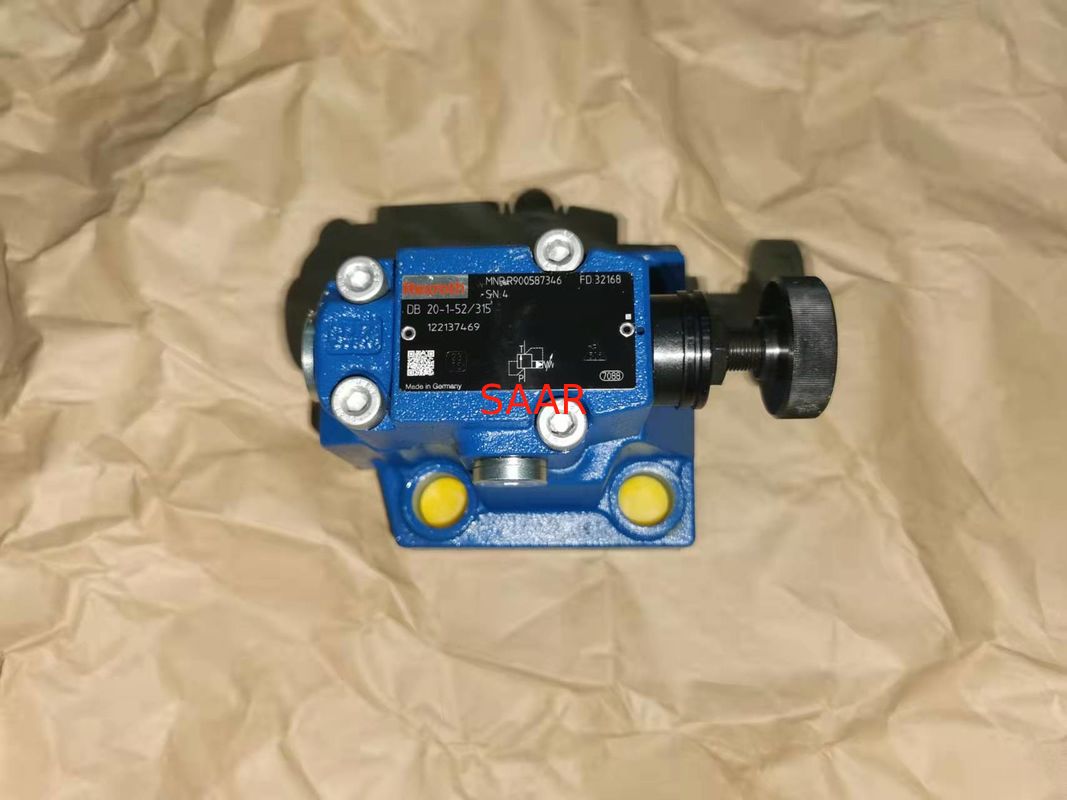

R900587346 DB20-1-52/315 DB20-1-5X/315 Pressure Relief Valve

R900587346 DB20-1-52/315 DB20-1-5X/315 Pressure Relief Valve

  • R900587346 DB20-1-52/315 DB20-1-5X/315 Pressure Relief Valve
  • R900587346 DB20-1-52/315 DB20-1-5X/315 Pressure Relief Valve
R900587346 DB20-1-52/315 DB20-1-5X/315 Pressure Relief Valve
Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Model Number: Rexroth R900587346 DB20-1-52/315 DB20-1-5X/315
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: On request
Packaging Details: Standard paper box
Delivery Time: 7-10days
Payment Terms: T/T, Western Union
Supply Ability: 100PCS per month
Contact Now
Detailed Product Description
MNR: R900587346 Model No.: DB20-1-52/315 DB20-1-5X/315
High Light:

R900587346 Pressure Relief Valve

,

DB20-1-5X/315

,

650l/Min Rexroth Pressure Relief Valve

Rexroth Pressure Relief Valve,Pilot-operated Type DB10 DB20 DB30



Size 10 … 32
Component series 5X
Maximum operating pressure 350 bar
Maximum flow 650 l/min



Features
▶▶ For subplate mounting
▶▶ Porting pattern according to ISO 6264-06-09 (NG10),
ISO 6264-08-13 (NG25) and ISO 6264-10-17 (NG32)
▶▶ For threaded connection
▶▶ As cartridge valve (cartridge)
▶▶ 4 adjustment types for pressure adjustment, optionally:
–– Rotary knob
–– Bushing with hexagon and protective cap
–– Lockable rotary knob with scale
–– Rotary knob with scale
▶▶ 5 pressure ratings
▶▶ Solenoid-actuated unloading via an installed directional
spool valve or directional seat valve
▶▶ High-power solenoid
▶▶ Explosion-protected solenoid (upon request)
▶▶ Switching shock damping, optional (DBW type only)
▶▶ Corrosion-protected design



Type code

01 02 03 04 05 06 07 08 09   10 11 12 13 14 15 16 17 18 19 20 21 22
DB               5X /                         *

01 Pressure relief valve DB
02 Without directional valve no code
03 Pilot-operated valve (complete) no code
Pilot control valve without main spool insert (do not enter any size) C
Pilot control valve with main spool insert (enter size 10 or 30) C
Pilot control valve without main spool insert for subplate mounting (do not enter any size) T 1)
04 Size 10
Subplate mounting "no code" 10
Threaded connection "G" 10 (G1/2)
Size 16
Threaded connection "G" 15 (G3/4)
Size 25
Subplate mounting "no code" 20
Threaded connection "G" 20 (G1)
Threaded connection "G" 25 (G1 1/4)
Size 32
Subplate mounting "no code" 30
Threaded connection "G" 30 (G1 1/2)
05 Without directional valve no code
Type of connection
06 Subplate mounting or cartridge valve no code
For threaded connection G
Adjustment type for pressure adjustment
07 Rotary knob (not for version "C" and "T") 1
Sleeve with hexagon and protective cap 2
Lockable rotary knob with scale 3 2)
Rotary knob with scale 7
08 Main spool Ø24 mm (all sizes)
Main spool Ø28 mm (only for NG32) N
09 Component series 50 … 59 (50 … 59: unchanged installation and connection dimensions) 5X
10 Set pressure up to 50 bar 50
Set pressure up to 100 bar 100
Set pressure up to 200 bar 200
Set pressure up to 315 bar 315
Set pressure up to 350 bar 350
Pilot oil flow
11 External pilot oil supply, internal pilot oil return X 3)
Internal pilot oil supply, external pilot oil return Y
Pilot oil supply and pilot oil return external XY 3)
12 Standard version no code
Valve for minimum cracking pressure (not for versions "without main spool insert" and not suitable for mutual relief) U 4)
13 Without switching shock damping no code
14 Without directional valve no code
15 Without directional valve no code
16 Without manual override no code
Electrical connection
17 Without directional valve no code
18 Without directional valve no code
Corrosion resistance
19 None no code
Improved corrosion protection (240 h salt spray test according to EN ISO 9227) J3 5)
Seal material
20 NBR seals no code
FKM seals V
Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)
Equipment Directive
21 Without type-examination procedure no code
Type-examination tested safety valve according to Pressure Equipment Directive 2014/68/EU E
22 Further details in the plain text *
1) DBT corresponds to DBC, however with closed central bore
2) H-Key with material no. R900008158 is included in the scope of delivery.
3) Not with version "DBC"
4) Only possible up to pressure rating 315 bar
5) Only version "2", however without protective cap
