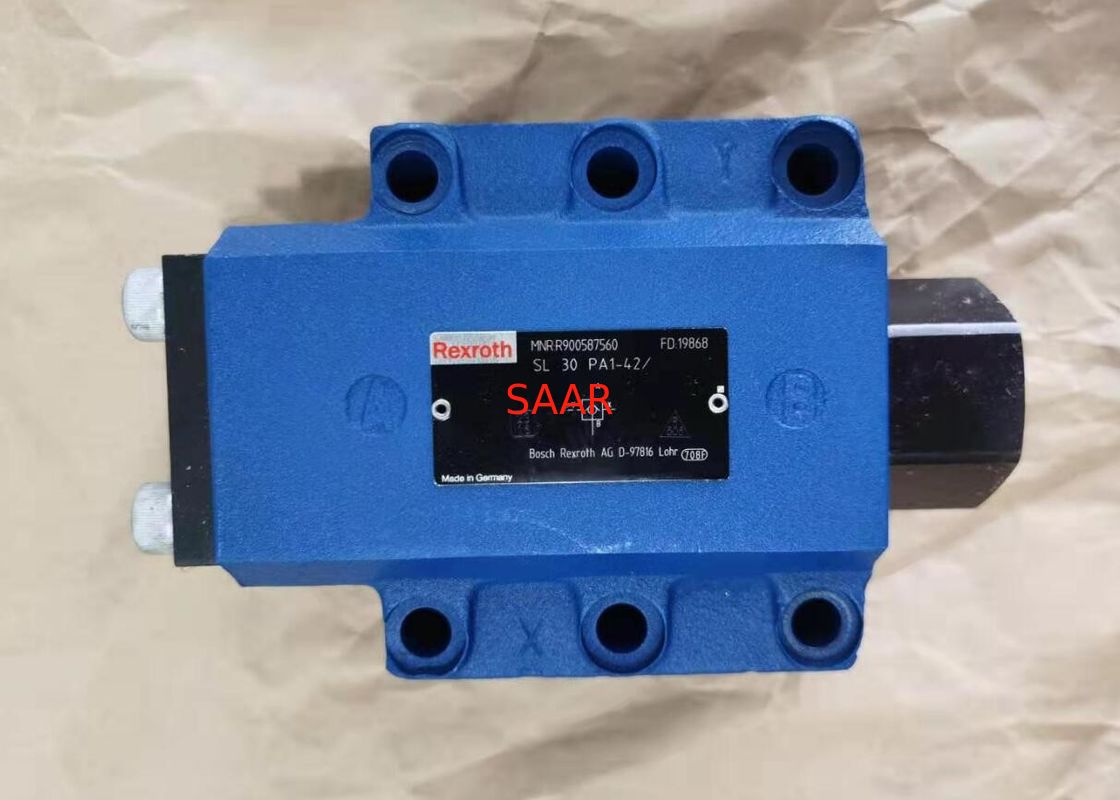

R900587560 SL30PA1-42/ SL30PA1-4X/ Rexroth Pilot Operated Check Valve

R900587560 SL30PA1-42/ SL30PA1-4X/ Rexroth Pilot Operated Check Valve

  • R900587560 SL30PA1-42/ SL30PA1-4X/ Rexroth Pilot Operated Check Valve
R900587560 SL30PA1-42/ SL30PA1-4X/ Rexroth Pilot Operated Check Valve
Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Model Number: R900587560 SL30PA1-42/ SL30PA1-4X/
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: On request
Packaging Details: Standard paper box
Delivery Time: 7-10days
Payment Terms: T/T, Western Union
Supply Ability: 100PCS per month
Contact Now
Detailed Product Description
MNR: R900587560 Model No.: SL30PA1-42/ SL30PA1-4X/
High Light:

R900587560

,

SL30PA1-42/

,

ISO Pilot Operated Check Valve

Check valves, pilot operated
SV 10...32



Size 10 … 32
Component series 4X
Maximum operating pressure 315 bar
Maximum flow 550 l/min



Type Code:

01 02 03 04 05 06   07   08   09 10 11 12 13 14
S V         4X /             *
Pilot oil return internal = V Pilot oil return external = L
01 Check valve S
02 Pilot oil return, internal V
03 Size 10 10
Size 20 20
Size 32 30
Type of connection
04 Subplate mounting P
Threaded connection G
05 With pre-opening A
Without pre-opening B
Cracking pressure
06 See characteristic curves (A → B) 1
2
3
4
07 Component series 40 … 49 (40 … 49: unchanged installation and mounting dimensions) 4X
Spool position monitoring
08 Without position switch no code

With position switch

1)​

QMG24
For more information see "Electrical connection"
Orifice fitting channel Y
09 Channel Y closed (standard) Y99

Orifice Ø** in channel Y

2)

Y**
Seal material
10 NBR seals N
FKM seals V
Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)
Corrosion resistance
11 None no code
Improved corrosion protection (240 h salt spray test according to EN ISO 9227) J3
12 Standard no code
Pilot pressure ppilot from channel X SO168
Control open spool with shaft sealing (between channel X–Y and Y–A) SO286
Connection thread (versions with threaded connection "G" only)
13 Pipe thread "G" according to ISO 228-1 no code
Pipe thread “UNF/UN” according to ANSI/ASME B 1.1 /12
14 Further details in the plain text *

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth Check valves, pilot operated SL30 Model List:

R900587556 SL30GA1-4X/
R900502331 SL30GA1-4X//12
R900526615 SL30GA1-4X//5
R901319655 SL30GA1-4X/6U
R901275923 SL30GA1-4X/6U/J50
R901254790 SL30GA1-4X/6U/V
R901013652 SL30GA1-4X/SO322
R900599870 SL30GA1-4X/V
R900225859 SL30GA1-4X/V/12
R900536288 SL30GA1-4X/V/5
R900500618 SL30GA2-4X/
R900724680 SL30GA2-4X//12
R901387645 SL30GA2-4X/6U
R900538547 SL30GA2-4X/B08
R900069082 SL30GA2-4X/B10
R900537807 SL30GA2-4X/B10V
R900528010 SL30GA2-4X/V
R900769195 SL30GA2-4X/V/12
R900500045 SL30GA3-4X/
R901204186 SL30GA3-4X/6U
R900599347 SL30GA3-4X/V
R900510219 SL30GA4-4X/
R900717664 SL30GA4-4X//12
R901176941 SL30GA4-4X/V
R900500617 SL30GB1-4X/
R978866082 SL30GB1-4X/12
R900990186 SL30GB1-4X/V
R900502193 SL30GB2-4X/
R900538548 SL30GB2-4X/B08
R900537805 SL30GB2-4X/B10V
R900537235 SL30GB2-4X/V
R900503385 SL30GB2-4X/V/12
R900524111 SL30GB3-4X/
R978865784 SL30GB3-4X/12
R900031561 SL30GB3-4X/SO311
R978910923 SL30GB3-4X/V/12
R900536798 SL30GB4-4X/
R900587560 SL30PA1-4X/
R900566143 SL30PA1-4X/B10
R900522458 SL30PA1-4X/J
R900508764 SL30PA1-4X/SO168
R900504777 SL30PA1-4X/SO22
R900500095 SL30PA1-4X/V
R901338224 SL30PA1-4X=V
R900599473 SL30PA2-4X/
R900506911 SL30PA2-4X/J
R900523231 SL30PA2-4X/SO295
R900514206 SL30PA2-4X/V
R900599553 SL30PA3-4X/
R900529023 SL30PA3-4X/SO306
R900518694 SL30PA3-4X/V
R900501652 SL30PA4-4X/
R900501897 SL30PA4-4X/V
R900599968 SL30PB1-4X/
R900513418 SL30PB1-4X/SO298
R900508354 SL30PB1-4X/V
R900503740 SL30PB2-4X/
R900058475 SL30PB2-4X/V
R900505807 SL30PB3-4X/
R900564927 SL30PB3-4X/V
R900513491 SL30PB4-4X/
R900212472 SL30PB4-4X/V
