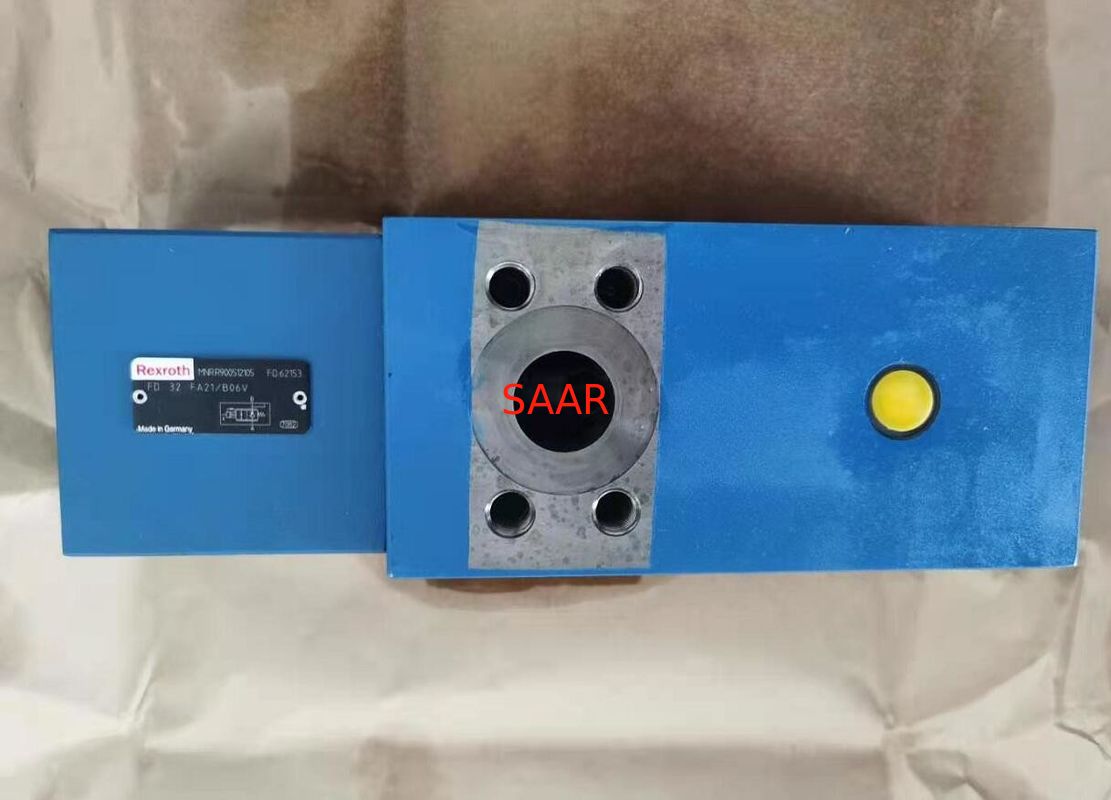

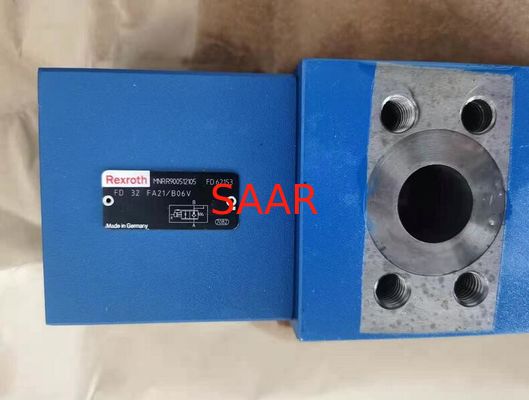

R900512105 FD32FA21/B06V FD32FA2X/B06V Rexroth Check Q Meter

R900512105 FD32FA21/B06V FD32FA2X/B06V Rexroth Check Q Meter

  • R900512105 FD32FA21/B06V FD32FA2X/B06V Rexroth Check Q Meter
  • R900512105 FD32FA21/B06V FD32FA2X/B06V Rexroth Check Q Meter
R900512105 FD32FA21/B06V FD32FA2X/B06V Rexroth Check Q Meter
Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Model Number: R900512105 FD32FA21/B06V FD32FA2X/B06V
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: On request
Packaging Details: Standard paper box
Delivery Time: 7-10days
Payment Terms: T/T, Western Union
Supply Ability: 1-200 per month
Contact Now
Detailed Product Description
MNR: R900512105 Model No.: FD32FA21/B06V FD32FA2X/B06V
High Light:

R900512105

,

Rexroth Check Q Meter

,

FD32FA21/B06V

Check-Q-meter FD Series



To prevent acceleration of hydraulic motors and cylinders at pulling loads
Pilot operated check valve (leak-free) for installation in manifolds (cartridge valve), for sub plate mounting or with SAE flanged ports
Size 12 … 32
Nominal pressure up to 350 bar
Maximum flow 80 … 560 l/min



Features


Outflow controlled in accordance with the inflow on the side opposite the consumer
Load-independent speed control
Free flow in the opposite direction
Optional with secondary relief valve
Ratio of control pressure : load pressure = 1 : 20
Variation of the opening time by orifice preselection
Variation of the closing time is possible by an external throttle check valve when being used at cylinders
Series 2x



Type Code:



R900512105 FD32FA21/B06V FD32FA2X/B06V Rexroth Check Q Meter 0

General

Size       12 16 25 32
Weight (approx.)   m   See chapter Dimensions
Installation position     Upright preferred, port X face upwards
Ambient temperature ϑ °C -20 … +80
Standard painting       Single coat RAL 5010

Hydraulic

Size         12 16 25 32
Maximum operating pressure Port A   p bar 350
Port B   p bar 420
Pilot pressure Port X   pmin 1) bar 20 ... 70
  pmax bar 350
Cracking pressure A → B   p bar 2
Maximum pressure setting
Secondary pressure relief valve
    p bar 400
Maximum flow Port A, B   qV l/min 80 200 320 560
Hydraulic fluid temperature     ϑ °C -20 ... +80
Viscosity range     v mm²/s 10 ... 800

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth Check-Q-meter FD32 Series Model List

R900599662 FD32FA2X/B00V
R900521670 FD32FA2X/B00V-006
R900515618 FD32FA2X/B03V
R900565496 FD32FA2X/B04V
R900512105 FD32FA2X/B06V
R900526450 FD32FA2X/B06V-006
R900504246 FD32FA2X/B06V12
R900035993 FD32FA2X/B08V12
R901005516 FD32FA2X/JB08V
R901427693 FD32FB2X/200-190B06V
R900088048 FD32FB2X/200B00V
R900518400 FD32FB2X/200B04V
R900053748 FD32FB2X/200B04V-006
R900532404 FD32FB2X/200B04V12
R900515258 FD32FB2X/200B06V
R900063661 FD32FB2X/200B06V12
R900211411 FD32FB2X/200JB06V
R901427694 FD32FB2X/300-256B06V
R900525176 FD32FB2X/300B00V
R900987598 FD32FB2X/300B00V-077
R900524205 FD32FB2X/300B03V
R900513235 FD32FB2X/300B04V
R900517189 FD32FB2X/300B06V
R900503530 FD32FB2X/300B06V-006
R900561332 FD32FB2X/300B06V12
R900513096 FD32FB2X/300JB06V
R901064602 FD32FB2X/400-350B06V
R900521395 FD32FB2X/400B00V
R900521020 FD32FB2X/400B04V
R900783011 FD32FB2X/400B06M-067
R900750225 FD32FB2X/400B06MT-080
R900513267 FD32FB2X/400B06V
R900512726 FD32FB2X/400B06V-002
R900987798 FD32FB2X/400B06V-006
R901051989 FD32FB2X/400B06V-028
R901052498 FD32FB2X/400B06V-029
R900034273 FD32FB2X/400B06V-067
R900079174 FD32FB2X/400B06V-068
R901049531 FD32FB2X/400B06V-078
R900707934 FD32FB2X/400B06V-080
R900721247 FD32FB2X/400B06V-081
R901082122 FD32FB2X/400B06V-082
R901197159 FD32FB2X/400B06V-083
R901257786 FD32FB2X/400B06V-084
R901527907 FD32FB2X/400B06V-085=NO
R901282621 FD32FB2X/400B06V-100
R901368185 FD32FB2X/400B06V-104
R900516153 FD32FB2X/400B06V12
R901359398 FD32FB2X/400B07V-103
R901429331 FD32FB2X/400B07V-113
R901100160 FD32FB2X/400B08V-078
R901120253 FD32FB2X=400B04V-028=NO
R901468517 FD32FB2X=400B04V-085=NO
R901137251 FD32FB2X=400B06V-078=CO
R900518729 FD32KA2X/B00V
R900515067 FD32KA2X/B00V12
R900523558 FD32KA2X/B04V
R901031554 FD32KA2X/B06M
R900519010 FD32KA2X/B06V
R900073261 FD32KA2X/B06V-006
R900515053 FD32KA2X/B06V12
R901101829 FD32KA2X/B08V
R900241972 FD32KA2X/JB06V
R900522444 FD32PA2X/B00V
R900524381 FD32PA2X/B00V-006
R900059770 FD32PA2X/B00V-072
R900212748 FD32PA2X/B00V-073
R900513774 FD32PA2X/B00V12
R900515096 FD32PA2X/B03V
R900987584 FD32PA2X/B03V12
R900515264 FD32PA2X/B04V
R900532547 FD32PA2X/B04V12
R901476599 FD32PA2X/B06M
R900513337 FD32PA2X/B06V
R900523603 FD32PA2X/B06V-002
R901128739 FD32PA2X/B06V-003
R900536621 FD32PA2X/B06V-006
R900740056 FD32PA2X/B06V-014
R900742004 FD32PA2X/B06V-063
R900776644 FD32PA2X/B06V-079
R901342410 FD32PA2X/B06V-101
R900516657 FD32PA2X/B06V12
R900720311 FD32PA2X/JB06V
R900230371 FD32PA2X/JB08V
