| Place of Origin: | Germany |
| Brand Name: | Rexroth |
| Model Number: | Rexroth A11VLO260DR/11R-NPD12K07 A11VLO260DR/11R-NZD12N00 A11VLO260DRL/11R-NPD12N00 A11VLO260DRS/11R-NZD12K17 A11VLO260LRDS/11R-NSD12K07 A11VLO260LRS/11R-NSD12N00 |
| CertifiSAARion: | ISO9001 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | On Request |
| Packaging Details: | Standard Wooden Box |
| Delivery Time: | 7-10days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000/Month |
| Model No.: | A11VLO260DR/11L-NZD12N00 | Origin: | Germany |
|---|---|---|---|
| High Light: | A11VLO260DR/11L-NSD12N00,R902037253,A11VO Series Axial Piston Variable Pump |
||

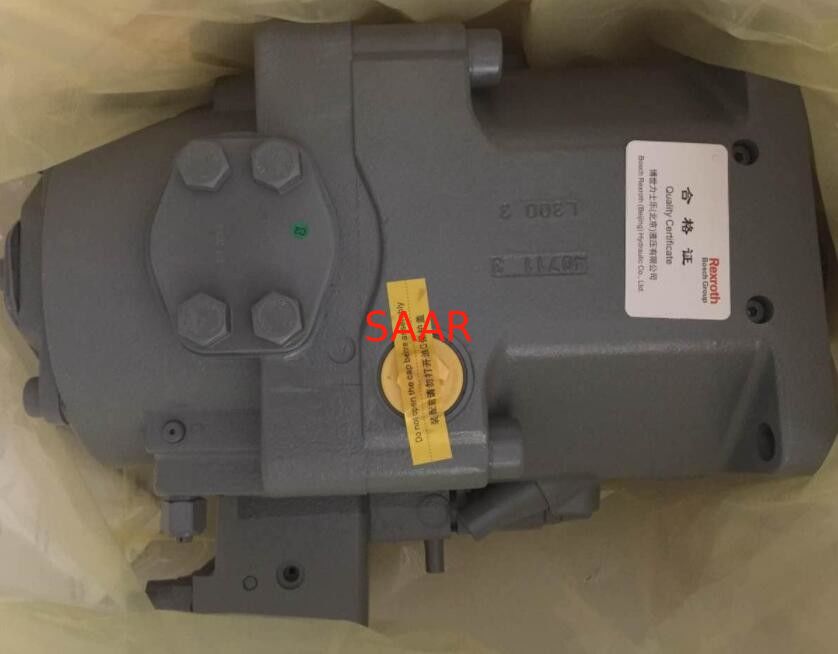

Rexroth A11VO Series Axial Piston Variable Pump
Features
Through drive for mounting of further pumps up to same nominal size
Optional with charge pump for the nominal sizes 130…260
Particularly high speeds are possible with impeller pump version (A11VLO)
Large variety of controls
Swashplate design
Table of values
| Size | 40 | 60 | 75 | 95 | 130 | 145 | 190 | 260 | 130 | 145 | 190 | 260 | |||
| Version | Standard | With charge pump | |||||||||||||
| Displacement geometric, per revolution |
Vg max | cm³ | 42 | 58.5 | 74 | 93.5 | 130 | 145 | 193 | 260 | 130 | 145 | 193 | 260 | |
| Nominal pressure | pnom | bar | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | |
| Maximum pressure | pmax | bar | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | |
| Maximum speed | at Vg max | nnom | rpm | 3000 1) | 2700 1) | 2550 1) | 2350 1) | 2100 1) | 2200 1) | 2100 1) | 1800 1) | 2500 2) | 2500 2) | 2500 2) | 2300 2) |
| Flow | at Vg max and nnom | qV nom | l/min | 126 | 158 | 189 | 220 | 273 | 319 | 405 | 468 | 325 | 363 | 483 | 598 |
| Power | at qV nom and pnom | P | kW | 74 | 92 | 110 | 128 | 159 | 186 | 236 | 273 | 190 | 211 | 281 | 349 |
| Torque | at Vg max and pnom | M | Nm | 234 | 326 | 412 | 521 | 724 | 808 | 1075 | 1448 | 724 | 808 | 1075 | 1448 |
| Weight (approx.) | m | kg | 32 | 40 | 45 | 53 | 66 | 76 | 95 | 125 | 72 | 73 | 104 | 138 | |
| R902037253 | A11VLO260DR/11L-NSD12N00 |
| R902031370 | A11VLO260DR/11L-NZD12N00 |
| R902190332 | A11VLO260DR/11R+A11VLO260DR/11R |
| R902041396 | A11VLO260DR/11R-NPD12K01 |
| R902061747 | A11VLO260DR/11R-NPD12K07 |
| R902170578 | A11VLO260DR/11R-NPD12N00 |
| R902243232 | A11VLO260DR/11R-NPD12N00 |
| R902231166 | A11VLO260DR/11R-NPD12N00 |
| R902037282 | A11VLO260DR/11R-NPD12N00 |
| R902233257 | A11VLO260DR/11R-NPD12N00 |
| R902196220 | A11VLO260DR/11R-NPD12N00 |
| R902117318 | A11VLO260DR/11R-NPD12N00 BR-BEIJ-1 |
| R902131446 | A11VLO260DR/11R-NPD12N00V |
| R902190321 | A11VLO260DR/11R-NZD12K67 |
| R902103577 | A11VLO260DR/11R-NZD12N00 |
| R902122094 | AA11VLO260DR/11L-NSDXXK07-S |
| R902150738 | AA11VLO260DR/11L-WSD07K07-S |
| R902208915 | AA11VLO260DR/11L-WSD07N00-S |
| R902044772 | AA11VLO260DR/11R-NSD62N00 |
| R902092257 | AA11VLO260DR/11R-NSD62N00-E |
