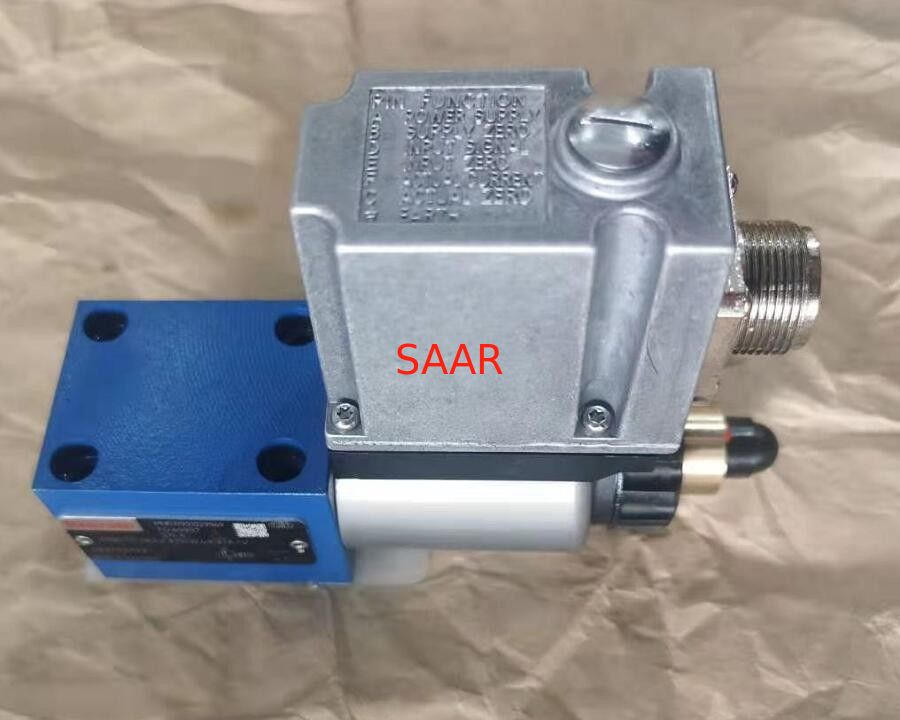

Rexroth R901314410 DREE10-6X/315YMG24K31A1V Piolt Proportional Pressure Reducing Valve

I'm Online Chat Now

Rexroth R901314410 DREE10-6X/315YMG24K31A1V Piolt Proportional Pressure Reducing Valve

Rexroth R901314410 DREE10-6X/315YMG24K31A1V Piolt Proportional Pressure Reducing Valve
Rexroth R901314410 DREE10-6X/315YMG24K31A1V Piolt Proportional Pressure Reducing Valve

Large Image :  Rexroth R901314410 DREE10-6X/315YMG24K31A1V Piolt Proportional Pressure Reducing Valve

Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Model Number: R901314410 DREE10-6X/315YMG24K31A1V
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: On request
Packaging Details: Standard paper box
Delivery Time: 7-10days
Payment Terms: T/T, Western Union
Supply Ability: 100PCS per month
Detailed Product Description
MNR: R901314410 Model No.: DREE10-6X/315YMG24K31A1V
High Light:

R901314410

,

DREE10-6X/315YMG24K31A1V

,

Rexroth Proportional Pressure Reducing Valve

Proportional Pressure Reducing Valve, Pilot-operated
DRE(M)E 10, DRE(M)E 20





Size 10, 25
Component series 6X
Max. operating pressure 315 bar
Flow, max. 300 l/min



Features
Valve for reducing a system pressure
Operation by means of a proportional solenoid
Proportional solenoid with rotatable and detachable coil
For subplate mounting: porting pattern according to ISO 5781
Third way A to Y (Ø 7.5 mm)
Linearized pressure/command value characteristic curve
Good transient response
Optional check valve between A and B
Optional maximum pressure limitation
With integrated electronics (OBE)



Type Code:

01 02 03 04   05   06 07 08 09 10 11 12 13 14
DRE       6X /   Y   G24   K31     *
01 Proportional pressure reducing valve, pilot-operated DRE
02 Without maximum pressure limitation no code
With maximum pressure limitation M 1)
03 With integrated electronics (OBE)   E
04 Size 10 10
Size 25 20
05 Component series 60 … 69 (60 … 69: unchanged installation and connection dimensions) 6X
Pressure rating
06 50 bar 50
100 bar 100
200 bar 200
315 bar 315
07 Pilot oil return always external, separate and depressurized to the tank Y
08 With check valve between A and B no code
Without check valve M
Supply voltage of the control electronics
09 Direct voltage 24 V G24
10 1600 mA version no code
800 mA version -8 2)
Electrical connection
11 Without mating connector, connector according to DIN EN 175201-804 K31
Electrical interface
12 Command value 0 … 10 V A1
Command value 4 to 20 mA F1
Seal material
13 NBR seals M
FKM seals V
14 Further details in the plain text *
1) The maximum pressure limitation only serves as protection against overpressure in case of an error in the pilot valve (e. g. in case of contamination or over-current).
2) Replacement for series 5X. (Attention! External amplifiers only suitable for G24 = 1.6 A solenoid),



SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.



Rexroth DREE10 Series Proportional Pressure Reducing Valve Model List:



R901320205 DREE10-6X/100YG24K31A1M
R901299774 DREE10-6X/100YG24K31A1V
R901302026 DREE10-6X/100YG24K31F1M
R901347474 DREE10-6X/100YG24K31F1V
R901298775 DREE10-6X/100YMG24K31A1M
R901269802 DREE10-6X/100YMG24K31A1V
R901450695 DREE10-6X/100YMG24K31F1M
R901272204 DREE10-6X/100YMG24K31F1V
R901273234 DREE10-6X/200YG24K31A1M
R901240104 DREE10-6X/200YG24K31A1V
R901278156 DREE10-6X/200YG24K31F1M
R901300488 DREE10-6X/200YG24K31F1V
R901272516 DREE10-6X/200YMG24K31A1M
R901321146 DREE10-6X/200YMG24K31A1V
R901278464 DREE10-6X/200YMG24K31F1M
R901154508 DREE10-6X/200YMG24K31F1V
R901442731 DREE10-6X/200YMG24K31F1V-4
R901298256 DREE10-6X/315YG24K31A1M
R901279568 DREE10-6X/315YG24K31A1V
R901289406 DREE10-6X/315YG24K31F1M
R901328264 DREE10-6X/315YG24K31F1V
R901278309 DREE10-6X/315YMG24K31A1M
R901326166 DREE10-6X/315YMG24K31A1M-4
R901314410 DREE10-6X/315YMG24K31A1V
R901326169 DREE10-6X/315YMG24K31A1V-4
R901438092 DREE10-6X/315YMG24K31F1M
R901328238 DREE10-6X/315YMG24K31F1M-4
R901348210 DREE10-6X/315YMG24K31F1V
R901327462 DREE10-6X/315YMG24K31F1V-4
R901350583 DREE10-6X/50YG24K31A1M
R901361836 DREE10-6X/50YG24K31F1M
R901336135 DREE10-6X/50YMG24K31A1M
R901378478 DREE10-6X/50YMG24K31A1V
R901342656 DREE10-6X/50YMG24K31F1M
