| Place of Origin: | Germany |
| Brand Name: | Rexroth |
| Model Number: | R902482676 A10VSO45DR/32L-VPB12N00 |
| CertifiSAARion: | ISO9001 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | On request |
| Packaging Details: | Standard paper box |
| Delivery Time: | 7-10days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100PCS per month |
| MNR: | R902482676 | MODEL: | A10VSO45DR/32L-VPB12N00 |
|---|---|---|---|
| High Light: | R902482676,A10VSO45DR/32L-VPB12N00,Size 45 Rexroth Axial Piston Pump |
||

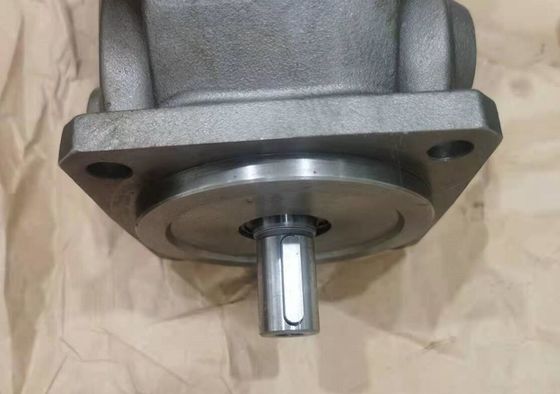

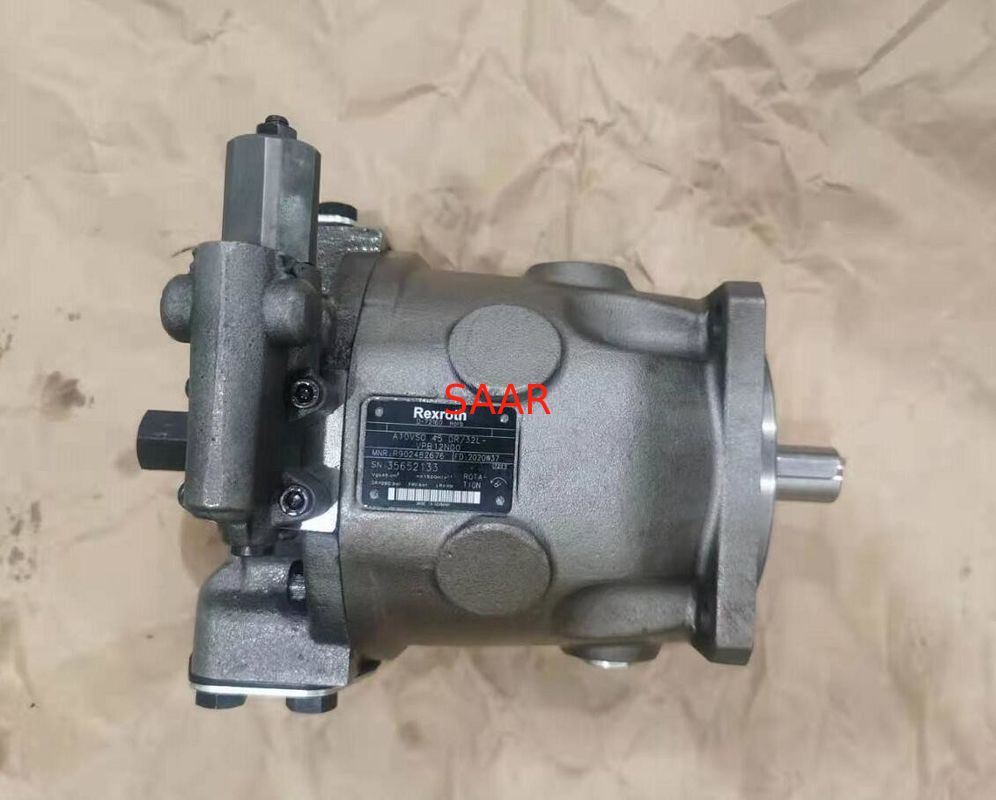

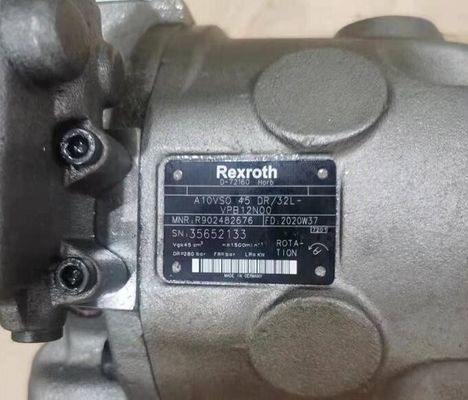

Axial piston variable pump A10VSO series 32
Optimized medium pressure pump for high power machines
Size 45 … 180
Nominal pressure 280 bar
Maximum pressure 350 bar
Open circuit
Features
Through drive for mounting of further pumps up to same nominal size
Approved for high speeds
Increased functional reliability
Hydrostatically relieved swashplate bearing
Large variety of controls
Low operating noise
Swashplate design
| Size | 45 | 71 | 100 | 140 | 180 | |||
| Displacement geometric, per revolution |
Vg max | cm³ | 45 | 71 | 100 | 140 | 180 | |
| Nominal pressure | pnom | bar | 280 | 280 | 280 | 280 | 280 | |
| Maximum pressure | pmax | bar | 350 | 350 | 350 | 350 | 350 | |
| Maximum speed | at Vg max | nnom | rpm | 1800 | 1800 | 1800 | 1800 | 1800 |
| Flow | at Vg max and nnom | qV nom | l/min | 81 | 128 | 180 | 252 | 324 |
| at Vg max and n = 1500 rpm | qV 1500 | l/min | 67.5 | 106.7 | 150 | 210 | 270 | |
| Power | at qV nom and pnom | P | kW | 38 | 59.7 | 84 | 118 | 151 |
| at qV 1500 and pnom | P 1500 | kW | 67.5 | 106.7 | 150 | 210 | 270 | |
| Torque | at Vg max and pnom | M | Nm | 200 | 317 | 446 | 624 | 802 |
| Weight (approx.) | m | kg | 30 | 47 | 69 | 73 | 78 | |
SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.
Axial piston variable pump A10VSO45DR/32 A10VSO45DRG/32 A10VSO45DRS/32 Series Model List:
| R902482676 | AA10VSO45DR/32L-VPB12N00 |
| R902487047 | AA10VSO45DR/32R-VPB12N00 |
| R902515048 | AA10VSO45DR/32R-VPB22U00E |
| R902541904 | AA10VSO45DR/32R-VPB32U00E |
| R902488533 | AA10VSO45DR/32R-VSB12N00-S2709 |
| R902515006 | AA10VSO45DR/32R-VSD72UE2EE |
| R902530923 | AA10VSO45DRF/32R-VPB22U00E |
| R902512324 | AA10VSO45DRF/32R-VSB22U68E |
| R902566574 | AA10VSO45DRG/32R-VPB22U00E |
| R902494250 | AA10VSO45DRG/32R-VPB22U99 |
| R902574498 | AA10VSO45DRG/32R-VPB32U00E |
| R902519912 | AA10VSO45DRG/32R-VSB22U00E |
| R902575841 | AA10VSO45DRG/32R-VSB22U00E |
| R902542120 | AA10VSO45DRG/32R-VSB32UB2E |
| R902569165 | AA10VSO45DRG/32R-VSD32U68E-SO546 |
| R902513876 | AA10VSO45DRG/32R-VSD72U00E |
| R902513874 | AA10VSO45DRG/32R-VSD72UE2E |
| R902520865 | AA10VSO45DRS/32R-VPB12N00 |
| R902516545 | AA10VSO45DRS/32R-VPB12N00-S3937 |
| R902530642 | AA10VSO45DRS/32R-VPB22U52E-S2513 |
| R902543742 | AA10VSO45DRS/32R-VPB22U52ECS2513 |
| R902531492 | AA10VSO45DRS/32R-VPB32L40E-SO52 |
| R902573004 | AA10VSO45DRS/32R-VPB32L40ECSO52 |
| R902496242 | AA10VSO45DRS/32R-VPB32U00E |
| R902546605 | AA10VSO45DRS/32R-VPB32U01E |
| R902570798 | AA10VSO45DRS/32R-VPB32UB2E-S1440 |
| R902543947 | AA10VSO45DRS/32R-VRB22UE1E |
| R902543949 | AA10VSO45DRS/32R-VSB22U00E |
| R902488275 | AA10VSO45DRS/32R-VSB22U99 |
| R902513630 | AA10VSO45DRS/32R-VSB32U00E |
| R902539607 | AA10VSO45DRS/32R-VSB32U00EE |
| R902532467 | AA10VSO45DRS/32R-VSB32U00E*GO2EU* |
| R902566714 | AA10VSO45DRS/32R-VSB32U00E*QDP1* |
| R902470426 | AA10VSO45DRS/32R-VSB32U99-S1440*G* |
| R902470416 | AA10VSO45DRS/32R-VSB32U99-SO109*G* |
| R902473279 | AA10VSO45DRS/32R-VPB32U99-S1440 |
| R902485485 | AA10VSO45DRS/32R-VPB32UB2-S1440 |
| R902470572 | AA10VSO45DRS/32R-VSB12N00-S2655 |
| R902565979 | AA10VSO45DRG/32R-VSD32U68E-SO420 |
| R902470442 | AA10VSO45DRS/32R-VSB32U99-S1439 |
| R902571829 | A10VSO100DRG+A10VSO71DRG+A10VSO45DRG/32R |
| R902563247 | A10VSO140DRS/32R+A10VSO45DRG/32R |
| R902512325 | A10VSO180DRF/32R+A10VSO45DRF/32R |
| R902543946 | A10VSO45DRS/32R+A10VSO45DRS/32R |
| R902481073 | ALA10VSO45DR/32R-VPB12N00 |
| R902520847 | ALA10VSO45DR/32R-VSB22U00E |
| R902566725 | ALA10VSO45DR/32R-VSB22U00E |
| R902477270 | ALA10VSO45DRS/32R-VPB12N00-S2655 |
