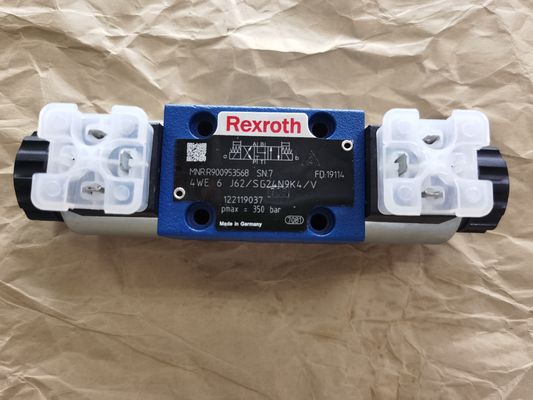

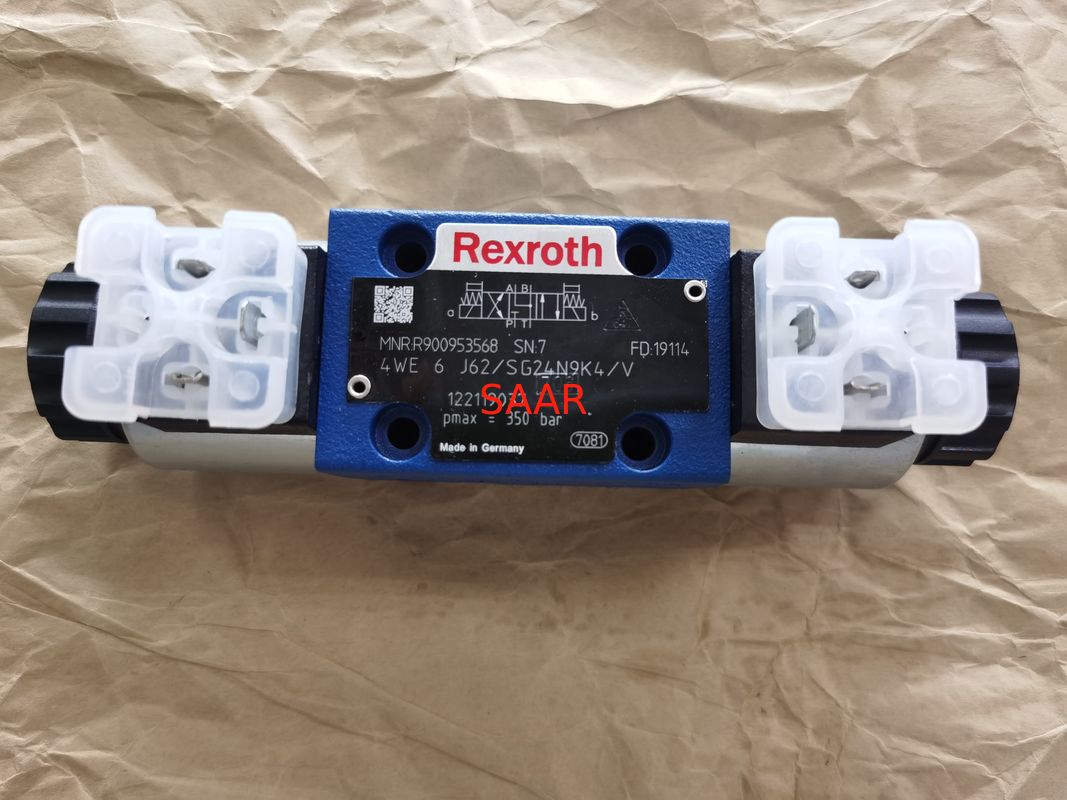

Rexroth R900953568 4WE6J62/SG24N9K4/V 4WE6J6X/SG24N9K4/V Directional Spool Valve

Product Details:

Place of Origin:	Germany
Brand Name:	Rexroth
Model Number:	R900953568 4WE6J62/SG24N9K4/V 4WE6J6X/SG24N9K4/V
CertifiSAARion:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	On request
Packaging Details:	Standard paper box
Delivery Time:	7-10days
Payment Terms:	T/T, Western Union
Supply Ability:	100PCS per month

Contact Now

Detailed Product Description

MNR:

R900953568

Model No.:

4WE 6 J62/SG24N9K4/V 4WE6J6X/SG24N9K4/V

High Light:

R900953568 Directional Spool Valve

4WE6J6X/SG24N9K4/V Directional Spool Valve

Direct Operated Rexroth Hydraulic Valves

Rexroth Directional spool valves, direct operated, with solenoid actuation WE 6...E

Name: Rexroth R900953568 4WE6J62/SG24N9K4/V 4WE6J6X/SG24N9K4/V Directional Spool Valve
Brand: Rexroth
SKU: R900953568 4WE6J62/SG24N9K4/V 4WE6J6X/SG24N9K4/V
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (101 reviews)

Size 6
Component series 6X
Maximum operating pressure 350 bar
Maximum flow (DC) 80 l/min
Maximum flow (AC) 60 l/min

Features

4/3-, 4/2- or 3/2-way version
Porting pattern according to ISO 4401-03-02-0-05 (with or without loSAARing hole)
High-power solenoid, optionally rotatable by 90°
Electric connection as single or central connection
Optional auxiliary operating device
Spool position monitoring, optional
CE conformity according to the Low-Voltage Directive 2014/35/EU for electrical voltages >50 VAC or >75VDC
Solenoid coil as approved component with UR marking according to UL 906, edition 1982, optional
Approval according to CSA C22.2 no. 139-1982, optional

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth 4WE6 Series Directional Spool Valves Model List:

R900953618	4WE6J6X/SG12K4/V
R900953599	4WE6J6X/SG12N9K4/V
R900968271	4WE6J6X/SG12N9K4/V=HY
R900953609	4WE6J6X/SG12NK4/V
R900953590	4WE6J6X/SG24K4/V
R900950181	4WE6J6X/SG24N9K4
R901041492	4WE6J6X/SG24N9K4/B10
R900979902	4WE6J6X/SG24N9K4/B10V
R901067456	4WE6J6X/SG24N9K4/B12V
R901041504	4WE6J6X/SG24N9K4/B15
R901031904	4WE6J6X/SG24N9K4/B15V
R901079849	4WE6J6X/SG24N9K4/B16V
R901081260	4WE6J6X/SG24N9K4/B24V
R901054544	4WE6J6X/SG24N9K4/R08V
R900953568	4WE6J6X/SG24N9K4/V
R900750163	4WE6J6X/SG24N9K4/V=CSA
R900968272	4WE6J6X/SG24N9K4/V=HY
R900953581	4WE6J6X/SG24NK4/V
R900953647	4WE6J6X/SG26K4/V
R900953627	4WE6J6X/SG26N9K4/V
R900953636	4WE6J6X/SG26NK4/V
