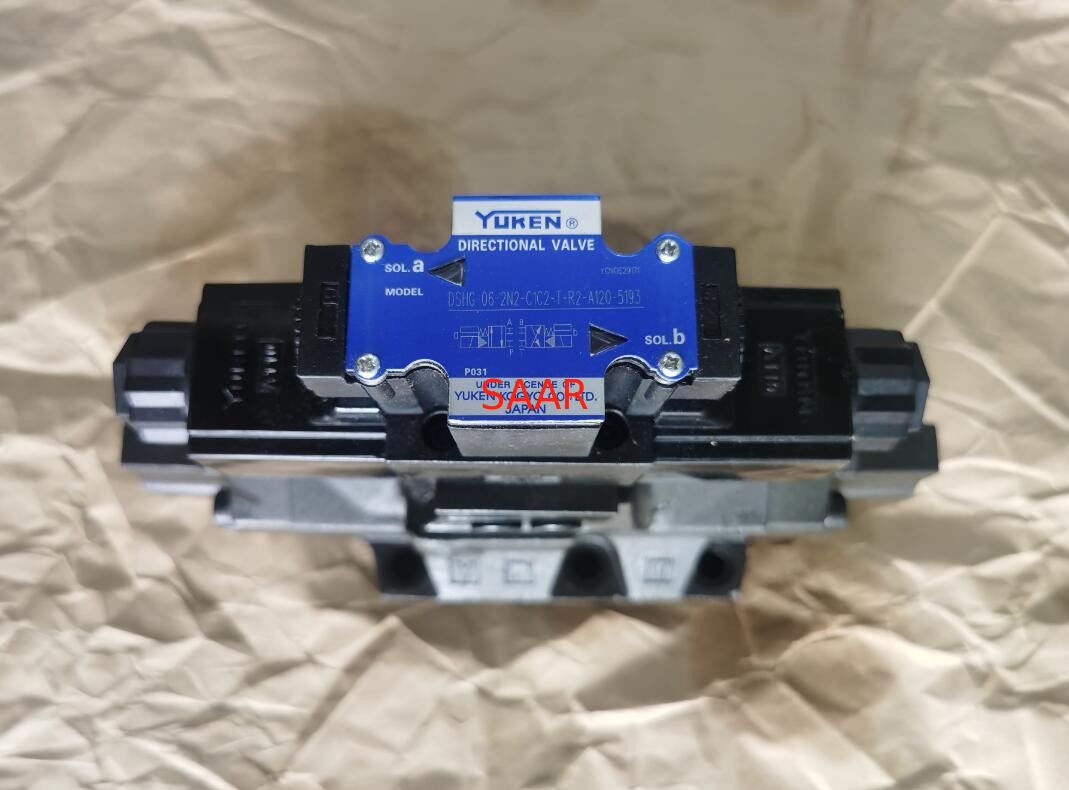

Yuken DSHG-06-2N2-C1C2-T-R2-A120-5193 Solenoid Controlled Pilot Operated Directional Valves

Yuken DSHG-06-2N2-C1C2-T-R2-A120-5193 Solenoid Controlled Pilot Operated Directional Valves

  • Yuken DSHG-06-2N2-C1C2-T-R2-A120-5193 Solenoid Controlled Pilot Operated Directional Valves
Yuken DSHG-06-2N2-C1C2-T-R2-A120-5193 Solenoid Controlled Pilot Operated Directional Valves
Product Details:
Place of Origin: Japan
Brand Name: Yuken
Certification: ISO9001
Model Number: DSHG-06-2N2-C1C2-T-R2-A120-5193
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: On request
Packaging Details: Paper box or wooden carton
Delivery Time: 7-10days
Payment Terms: T/T, Western Union
Supply Ability: 1000/Month
Contact Now
Detailed Product Description
High Light:

DSHG-06-2N2-C1C2-T-R2-A120-5193

,

Yuken Pilot Operated Directional Valves

,

31.5MPa Yuken Hydraulic Valve

Yuken DSHG Series Solenoid Controlled Pilot Operated Directional Valves


These valves are composed of a solenoid operated pilot valve and a pilot operated slave valve. When a solenoid is energised the pilot valve directs the flow to move the spool of the slave valve, thus changing the direction of flow in the hydraulic circuit.


Features


● High Pressure High Flow
High pressure [31.5 MPa (4570 PSI)] along which high flow means
compact system design.
● Lower Pressure Drop
System energy saving increased as pressure drop of each valve has been
greatly reduced.





Specifications

Valve

Type

Model Numbers

Max. Flow*1

L/min

(U.S.GPM)

Max.

Operating

Pressure

MPa(PSI)

Max. Pilot

Pressure

MPa(PSI)

Min*2

Required

Pilot Pres.

MPa(PSI)

Max. T-Line Back

Pressure

MPa(PSI)

Max. Change-

over Frequency min -1(Cycles/Min)

Approx.

Mass

(Kg)

Ext. Drain Int. Drain AC DC R

Standard

Type



Shock less

Type

DSHG-03-3C*-*-13 160 (42.3) 25 (3630) 25 (3630) 0.7 (100) 16 (2320) 16 (2320) 120 120 120 6.9
DSHG-03-2N*-*-13 6.9
DSHG-03-2B*-*-13 6.4
(S-)DSHG-04-3C*-*-51 300 (79.3) 31.5 (4570) 25 (3630) 0.8 (120) 21 (3050) 16 (2320) 120 120 120 8.5
(S-)DSHG-04-2N*-*-51 8.5
(S-)DSHG-04-2B*-*-51 8.0
(S-)DSHG-06-3C*-*-52 500 (132) 31.5 (4570) 25 (3630)

* 3

0.8 (120)

21 (3050) 16 (2320) 120 120 120 12.4
(S-)DSHG-06-2N*-*-52 12.4
(S-)DSHG-06-2B*-*-52 11.9
(S-)DSHG-06-3H*-*-52 21 (3050) 1.0 (150) 110 100 110 13.2
(S-)DSHG-10-3C*-*-42 1100 (291) 31.5 (4570) 25 (3630) *3 1.0 (150) 21 (3050) 16 (2320) 100 120 100 45.0
(S-)DSHG-10-2N*-*-42 100 100 100 45.0
(S-)DSHG-10-2B*-*-42 21 (3050) 60 60 50 44.5
(S-)DSHG-10-3H*-*-42 52.9

1.The maximum flow means the limited flow without inducing any abnormality to the operation (changeover) of the valve. For details, please consult .

2.In case of internal drain type valve, the differential pressure between pilot pressure and back pressure at tank port should be kept more than the minimum pilot pressure.

3.The minimum pilot pressure for the valve with pilot piston is 1.8 MPa (260 PSI).



SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Yuken DSHG-06-2B2 DSHG-06-2B2A DSHG-06-2B2B DSHG-06-2B3 DSHG-06-2N2 DSHG-06-3C12 DSHG-06-3C2 DSHG-06-3C3 DSHG-06-3C40 DSHG-06-3C4 DSHG-06-3C60 Valves​ on Sale, Short lead time, Best price!!!

DSHG-06-2B10B-A120-53 11.9KG
DSHG-06-2B2-A100-53 11.9KG
DSHG-06-2B2-A100-53 11.9KG
DSHG-06-2B2-A120-53 11.9KG
DSHG-06-2B2-A120-53 11.9KG
DSHG-06-2B2-A120-53-L 11.9KG
DSHG-06-2B2-A120-N-53 11.9KG
DSHG-06-2B2-A200-53 11.9KG
DSHG-06-2B2-A240-53 11.9KG
DSHG-06-2B2A-A100-53 11.9KG
DSHG-06-2B2A-A120-53 11.9KG
DSHG-06-2B2A-A120-N-53 11.9KG
DSHG-06-2B2A-C1-A120-53 11.9KG
DSHG-06-2B2A-C2-ET-D24-53 11.9KG
DSHG-06-2B2A-E-A120-N-53 11.9KG
DSHG-06-2B2A-PA-A100-53 11.9KG
DSHG-06-2B2A-T-A100-53 11.9KG
DSHG-06-2B2A-T-P2-A100-53 11.9KG
DSHG-06-2B2A-T-PA-A100-53 11.9KG
DSHG-06-2B2A-T-PA-A120-N-53 11.9KG
DSHG-06-2B2A-T-PA-D12-N-53 11.9KG
DSHG-06-2B2B-A120-53 11.9KG
DSHG-06-2B2B-A120-N1-53 11.9KG
DSHG-06-2B2B-C1-T-D24-N-53 11.9KG
DSHG-06-2B2B-C2-E-D24-53 11.9KG
DSHG-06-2B2B-C2-E-R100-53 11.9KG
DSHG-06-2B2B-D24-N-53 11.9KG
DSHG-06-2B2B-E-D24-53 11.9KG
DSHG-06-2B2B-E-D24-N-53 11.9KG
DSHG-06-2B2B-E-D24-N-53-L 11.9KG
DSHG-06-2B2B-R100-53 11.9KG
DSHG-06-2B2B-R110-N-53 11.9KG
DSHG-06-2B2B-T-A100-53 11.9KG
DSHG-06-2B2B-T-D24-N-53 11.9KG
DSHG-06-2B2B-T-D24-N-53-L 11.9KG
DSHG-06-2B2B-T-PA-A100-53 11.9KG
DSHG-06-2B2-C1C2-A120-53 11.9KG
DSHG-06-2B2-C1C2-D24-N1-53 11.9KG
DSHG-06-2B2-C1-D110-53-L 11.9KG
DSHG-06-2B2-C1-ET-D24-N1-53 11.9KG
DSHG-06-2B2-C1-T-D24-53 11.9KG
DSHG-06-2B2-C2-A120-N-53 11.9KG
DSHG-06-2B2-C2-T-A100-53 11.9KG
DSHG-06-2B2-C2-T-A120-N-53 11.9KG
DSHG-06-2B2-C2-T-D24-N1-53-L 11.9KG
DSHG-06-2B2-D12-53 11.9KG
DSHG-06-2B2-D12-N1-53 11.9KG
DSHG-06-2B2-D24-53 11.9KG
DSHG-06-2B2-D24-53 11.9KG
DSHG-06-2B2-D24-N1-53 11.9KG
DSHG-06-2B2-D24-N-53 11.9KG
DSHG-06-2B2-D24-N-53-L 11.9KG
DSHG-06-2B2-E-A120-53 11.9KG
DSHG-06-2B2-E-A120-N-53 11.9KG
DSHG-06-2B2-E-A200-53 11.9KG
DSHG-06-2B2-E-D12-53 11.9KG
DSHG-06-2B2-E-D24-53 11.9KG
DSHG-06-2B2-E-D24-N1-53 11.9KG
DSHG-06-2B2-E-D24-N1-53 11.9KG
DSHG-06-2B2-E-D24-N-53 11.9KG
DSHG-06-2B2-ET-A120-53 11.9KG
DSHG-06-2B2-ET-D24-53 11.9KG
DSHG-06-2B2-ET-D24-53 11.9KG
DSHG-06-2B2-ET-P2-A100-53 11.9KG
DSHG-06-2B2-ET-P2-A120-53 11.9KG
DSHG-06-2B2-R100-53 11.9KG
DSHG-06-2B2-R110-53 11.9KG
DSHG-06-2B2-T-A100-53 11.9KG
DSHG-06-2B2-T-A100-53 11.9KG
DSHG-06-2B2-T-A120-53 11.9KG
DSHG-06-2B2-T-A120-53 11.9KG
DSHG-06-2B2-T-A120-535 11.9KG
DSHG-06-2B2-T-A120-53-L 11.9KG
DSHG-06-2B2-T-A120-N1-53 11.9KG
DSHG-06-2B2-T-A120-N-53 11.9KG
DSHG-06-2B2-T-A200-53 11.9KG
DSHG-06-2B2-T-D12-53 11.9KG
DSHG-06-2B2-T-D125-53 11.9KG
DSHG-06-2B2-T-D12-N-53 11.9KG
DSHG-06-2B2-T-D24-53 11.9KG
DSHG-06-2B2-T-D24-53 11.9KG
DSHG-06-2B2-T-D24-53-L 11.9KG
DSHG-06-2B2-T-D24-N1-53 11.9KG
DSHG-06-2B2-T-D24-N-53 11.9KG
DSHG-06-2B2-T-D24-N-53-L 11.9KG
DSHG-06-2B2-T-D24Y1-C-52 11.9KG
DSHG-06-2B2-T-P2-A100-53 11.9KG
DSHG-06-2B2-T-P2-A120-53 11.9KG
DSHG-06-2B2-T-PA-A100-53 11.9KG
DSHG-06-2B2-T-PA-A120-53 11.9KG
DSHG-06-2B2-T-PA-A120-N-53 11.9KG
DSHG-06-2B2-T-R110-53 11.9KG
DSHG-06-2B2-T-R2-A120-N-53 11.9KG
DSHG-06-2B2-T-R2-R100-53 11.9KG
DSHG-06-2B3-A120-53 11.9KG
DSHG-06-2B3-A120-53 11.9KG
DSHG-06-2B3-A120-N-53 11.9KG
DSHG-06-2B3A-A120-N-53 11.9KG
DSHG-06-2B3B-A100-53 11.9KG
DSHG-06-2B3B-A120-53 11.9KG
DSHG-06-2B3B-A120-N-53 11.9KG
DSHG-06-2B3B-A240-53 11.9KG
DSHG-06-2B3B-D24-53 11.9KG
DSHG-06-2B3B-D24-N1-53 11.9KG
DSHG-06-2B3-C1C2-A120-53 11.9KG
DSHG-06-2B3-C1C2-A120-N-53 11.9KG
DSHG-06-2B3-D12-N-53 11.9KG
DSHG-06-2B3-D24-53 11.9KG
DSHG-06-2B3-D24-N-53 11.9KG
DSHG-06-2B3-E-A120-53 11.9KG
DSHG-06-2B3-E-A120-N1-53 11.9KG
DSHG-06-2B3-E-A120-N-53 11.9KG
DSHG-06-2B3-E-D12-53 11.9KG
DSHG-06-2B3-ET-A120-53 11.9KG
DSHG-06-2B3-ET-A120-53 11.9KG
DSHG-06-2B3-ET-A120-N-53 11.9KG
DSHG-06-2B3-ET-D12-53 11.9KG
DSHG-06-2B40B-T-A120-53 11.9KG
DSHG-06-2B4-A120-53 11.9KG
DSHG-06-2B4-A120-N-53 11.9KG
DSHG-06-2B4A-E-A120-53 11.9KG
DSHG-06-2B4B-A120-53 11.9KG
DSHG-06-2B4B-A120-N-53 11.9KG
DSHG-06-2B4B-E-D24-N1-53 11.9KG
DSHG-06-2B4B-E-D24-N1-53 11.9KG
DSHG-06-2B4B-E-D24-N-53 11.9KG
DSHG-06-2B4B-E-D24-N-53 11.9KG
DSHG-06-2B4-C2-ET-A120-53 11.9KG
DSHG-06-2B4-E-D24-N1-53 11.9KG
DSHG-06-2B4-E-D24-N1-53 11.9KG
DSHG-06-2B4-ET-A120-53 11.9KG
DSHG-06-2B4-T-D24-N-53 11.9KG
DSHG-06-2B60B-A120-53 11.9KG
DSHG-06-2B60B-A120-N-53-L 11.9KG
DSHG-06-2B60B-D12-53 11.9KG
DSHG-06-2B60B-D12-53-L 11.9KG
DSHG-06-2B60B-D12-N-53-L 11.9KG
DSHG-06-2B9A-A120-53 11.9KG
DSHG-06-2B9A-ET-A120-53-L 11.9KG
DSHG-06-2B9A-ET-D24-53-L 11.9KG
DSHG-06-2B9A-ET-D24-N-53-L 11.9KG
DSHG-06-2B9B-A120-53 11.9KG
DSHG-06-2B9B-A120-53-L 11.9KG
DSHG-06-2H2-C2-T-R2-D100-53 11.9KG
DSHG-06-2N2-A120-53 12.4KG
DSHG-06-2N2-A120-53 12.4KG
DSHG-06-2N2-A120-N-53 12.4KG
DSHG-06-2N2-A200-53 12.4KG
DSHG-06-2N2-C1C2-A120-N-53 12.4KG
DSHG-06-2N2-C1C2-T-A100-53 12.4KG
DSHG-06-2N2-C1C2-T-A120-N-53 12.4KG
DSHG-06-2N2-C1C2-T-D100-53 12.4KG
DSHG-06-2N2-C1-T-D24-53 12.4KG
DSHG-06-2N2-C1-T-D24-53 12.4KG
DSHG-06-2N2-C2-A100-53 12.4KG
DSHG-06-2N2-C2-T-A100-53 12.4KG
DSHG-06-2N2-C2-T-D100-53 12.4KG
DSHG-06-2N2-C2-T-D24-53 12.4KG
DSHG-06-2N2-C2-T-D24-N1-53 12.4KG
DSHG-06-2N2-C2-T-R2-D100-53 12.4KG
DSHG-06-2N2-D24-53 12.4KG
DSHG-06-2N2-D24-53 12.4KG
DSHG-06-2N2-D24-N-53 12.4KG
DSHG-06-2N2-E-A120-N1-53 12.4KG
DSHG-06-2N2-R2-A120-N-53 12.4KG
DSHG-06-2N2-T-A120-53 12.4KG
DSHG-06-2N2-T-A120-53 12.4KG
DSHG-06-2N2-T-A120-N-53 12.4KG
DSHG-06-2N2-T-A120-N-535 12.4KG
DSHG-06-2N2-T-D12-53 12.4KG
DSHG-06-2N2-T-D12-N-53 12.4KG
DSHG-06-2N2-T-D24-53 12.4KG
DSHG-06-2N2-T-D24-53 12.4KG
DSHG-06-2N2-T-R2-D100-53 12.4KG
DSHG-06-2N3-E-A120-53 12.4KG
DSHG-06-2N3-R2-A120-N-53 12.4KG
DSHG-06-2N3-T-A120-N-53 12.4KG
DSHG-06-2N3-T-D12-53 12.4KG
DSHG-06-2N4-A120-N-53 12.4KG
DSHG-06-2N4B-A120-N-53 12.4KG
DSHG-06-2N7-E-A100-53 12.4KG
DSHG-06-2N9A-A120-53 12.4KG
DSHG-06-3C10-D24-53 12.4KG
DSHG-06-3C10-D24-N1-53 12.4KG
DSHG-06-3C10-D24-N-53 12.4KG
DSHG-06-3C10-E-A120-N1-53 12.4KG
DSHG-06-3C10-E-D24-53 12.4KG
DSHG-06-3C10-ET-D24-N-53 12.4KG
DSHG-06-3C10-T-A100-53 12.4KG
DSHG-06-3C10-T-A120-53 12.4KG
DSHG-06-3C10-T-D24-53 12.4KG
DSHG-06-3C11-A120-53 12.4KG
DSHG-06-3C11-C1C2-T-R110-N53 12.4KG
DSHG-06-3C11-E-A120-53 12.4KG
DSHG-06-3C11-T-D24-N-53 12.4KG
DSHG-06-3C12-A100-53 12.4KG
DSHG-06-3C12-A120-53 12.4KG
DSHG-06-3C12-A120-N-53 12.4KG
DSHG-06-3C12-C1-A120-N-53 12.4KG
DSHG-06-3C12-C1-E-A100-53 12.4KG
DSHG-06-3C12-C2-T-D24-N-53 12.4KG
DSHG-06-3C12-D24-53 12.4KG
DSHG-06-3C12-D24-N1-53 12.4KG
DSHG-06-3C12-E-A100-53 12.4KG
DSHG-06-3C12-E-A120-53 12.4KG
DSHG-06-3C12-E-A200-53 12.4KG
DSHG-06-3C12-E-R2-A200-53 12.4KG
DSHG-06-3C12-ET-A120-53 12.4KG
DSHG-06-3C12-T-A100-53 12.4KG
DSHG-06-3C12-T-A120-53 12.4KG
DSHG-06-3C12-T-A120-53 12.4KG
DSHG-06-3C12-T-D24-53 12.4KG
DSHG-06-3C12-T-RA-D24-53 12.4KG
DSHG-06-3C2-A100-53 12.4KG
DSHG-06-3C2-A100-N-53 12.4KG
DSHG-06-3C2-A120-53 12.4KG
DSHG-06-3C2-A120-53 12.4KG
DSHG-06-3C2-A120-535 12.4KG
DSHG-06-3C2-A120-N1-53 12.4KG
DSHG-06-3C2-A120-N1-53 12.4KG
DSHG-06-3C2-A120-N-53 12.4KG
DSHG-06-3C2-A200-53 12.4KG
DSHG-06-3C2-A240-53 12.4KG
DSHG-06-3C2-A240-N1-53 12.4KG
DSHG-06-3C2-C1-A100-53 12.4KG
DSHG-06-3C2-C1-A120-53 12.4KG
DSHG-06-3C2-C1C2-A100-53 12.4KG
DSHG-06-3C2-C1C2-A120-53 12.4KG
DSHG-06-3C2-C1C2-A120-N-53 12.4KG
DSHG-06-3C2-C1C2-A240-53 12.4KG
DSHG-06-3C2-C1C2-A240-N1-53 12.4KG
DSHG-06-3C2-C1C2-E-D24-N1-53 12.4KG
DSHG-06-3C2-C1C2-R2-A100-53 12.4KG
DSHG-06-3C2-C1C2-T-A100-53 12.4KG
DSHG-06-3C2-C1C2-T-A120-53 12.4KG
DSHG-06-3C2-C1C2-T-D24-N1-53 12.4KG
DSHG-06-3C2-C1C2-T-D24-N1-53 12.4KG
DSHG-06-3C2-C1C2-T-R110-53 12.4KG
DSHG-06-3C2-C1C2-T-R2-A100-53 12.4KG
DSHG-06-3C2-C1C2-T-R2-A120-N-53 12.4KG
DSHG-06-3C2-C1C2-T-R2-D24-53 12.4KG
DSHG-06-3C2-C1-D24-53 12.4KG
DSHG-06-3C2-C1-E-D24-N1-53 12.4KG
DSHG-06-3C2-C1-R2-A100-53 12.4KG
DSHG-06-3C2-C2-A120-53 12.4KG
DSHG-06-3C2-C2-A120-N-53 12.4KG
DSHG-06-3C2-C2-D24-53 12.4KG
DSHG-06-3C2-C2-E-A120-53 12.4KG
DSHG-06-3C2-C2-E-A120-N1-53 12.4KG
DSHG-06-3C2-C2-ET-A100-53 12.4KG
DSHG-06-3C2-C2-E-T-A120-53 12.4KG
DSHG-06-3C2-C2-ET-D24-53 12.4KG
DSHG-06-3C2-C2-T-A100-53 12.4KG
DSHG-06-3C2-C2-T-A120-53 12.4KG
DSHG-06-3C2-C2-T-A120-N-53 12.4KG
DSHG-06-3C2-C2-T-D12-53 12.4KG
DSHG-06-3C2-C2-T-D24-C-N1-53 12.4KG
DSHG-06-3C2-C2-T-D24-N-53 12.4KG
DSHG-06-3C2-C2-T-R220-53 12.4KG
DSHG-06-3C2-D100-53 12.4KG
DSHG-06-3C2-D12-53 12.4KG
DSHG-06-3C2-D12-N-53 12.4KG
DSHG-06-3C2-D24-53 12.4KG
DSHG-06-3C2-D24-53 12.4KG
DSHG-06-3C2-D24-535 12.4KG
DSHG-06-3C2-D24-C-N1-53 12.4KG
DSHG-06-3C2-D24-N1-53 12.4KG
DSHG-06-3C2-D24-N-53 12.4KG
DSHG-06-3C2-D24-N-53 12.4KG
DSHG-06-3C2-E-A100-53 12.4KG
DSHG-06-3C2-E-A120-53 12.4KG
DSHG-06-3C2-E-A120-N1-53 12.4KG
DSHG-06-3C2-E-A200-53 12.4KG
DSHG-06-3C2-E-A200-N1-53 12.4KG
DSHG-06-3C2-E-D12-53 12.4KG
DSHG-06-3C2-E-D24-53 12.4KG
DSHG-06-3C2-E-D24-53 12.4KG
DSHG-06-3C2-E-D24-N1-53 12.4KG
DSHG-06-3C2-E-D24-N1-53 12.4KG
DSHG-06-3C2-E-D24-N-53 12.4KG
DSHG-06-3C2-ET-A120-53 12.4KG
DSHG-06-3C2-ET-A120-N-53 12.4KG
DSHG-06-3C2-P2-D24-53 12.4KG
DSHG-06-3C2-PB-D24-53 12.4KG
DSHG-06-3C2-R110-53 12.4KG
DSHG-06-3C2-R2-D12-N-53 12.4KG
DSHG-06-3C2-R2-D24-53 12.4KG
DSHG-06-3C2-R2-D24-53 12.4KG
DSHG-06-3C2-R2-D24-N1-53 12.4KG
DSHG-06-3C2-R2-D24-N-53 12.4KG
DSHG-06-3C2-R2-T-D24-53 12.4KG
DSHG-06-3C2-T-A100-53 12.4KG
DSHG-06-3C2-T-A100-535 12.4KG
DSHG-06-3C2-T-A120-53 12.4KG
DSHG-06-3C2-T-A120-53 12.4KG
DSHG-06-3C2-T-A120-535 12.4KG
DSHG-06-3C2-T-A120-N1-53 12.4KG
DSHG-06-3C2-T-A120-N1-53 12.4KG
DSHG-06-3C2-T-A120-N-53 12.4KG
DSHG-06-3C2-T-A200-53 12.4KG
DSHG-06-3C2-T-A240-53 12.4KG
DSHG-06-3C2-T-A240-N1-53 12.4KG
DSHG-06-3C2-T-D12-53 12.4KG
DSHG-06-3C2-T-D12-N-53 12.4KG
DSHG-06-3C2-T-D24-53 12.4KG
DSHG-06-3C2-T-D24-53 12.4KG
DSHG-06-3C2-T-D24-C-N1-53 12.4KG
DSHG-06-3C2-T-D24-N1-53 12.4KG
DSHG-06-3C2-T-D24-N1-53 12.4KG
DSHG-06-3C2-T-D24-N-53 12.4KG
DSHG-06-3C2-T-D24-N-53 12.4KG
DSHG-06-3C2-T-R110-53 12.4KG
DSHG-06-3C2-T-R110-N-53 12.4KG
DSHG-06-3C2-T-R2-A120-53 12.4KG
DSHG-06-3C2-T-R2-A120-N-53 12.4KG
DSHG-06-3C2-T-R2-D24-N-53 12.4KG
DSHG-06-3C2-T-R2-R100-53 12.4KG
DSHG-06-3C2-T-RB-A100-53 12.4KG
DSHG-06-3C2-T-RB-A100-535 12.4KG
DSHG-06-3C3-A100-53 12.4KG
DSHG-06-3C3-A120-53 12.4KG
DSHG-06-3C3-A120-N-53 12.4KG
DSHG-06-3C3-A240-53 12.4KG
DSHG-06-3C3-C1C2-E-D24-N-53 12.4KG
DSHG-06-3C3-C2-E-A120-53 12.4KG
DSHG-06-3C3-D12-53 12.4KG
DSHG-06-3C3-D12-N1-53 12.4KG
DSHG-06-3C3-D24-53 12.4KG
DSHG-06-3C3-D24-N-53 12.4KG
DSHG-06-3C3-E-A120-53 12.4KG
DSHG-06-3C3-E-D12-53 12.4KG
DSHG-06-3C3-E-D12-N-53 12.4KG
DSHG-06-3C3-E-D24-53 12.4KG
DSHG-06-3C3-E-D24-N-53 12.4KG
DSHG-06-3C3-ET-A120-53 12.4KG
DSHG-06-3C3-ET-A120-N1-53 12.4KG
DSHG-06-3C3-ET-A120-N-53 12.4KG
DSHG-06-3C3-ET-A240-N-53 12.4KG
DSHG-06-3C3-ET-D12-53 12.4KG
DSHG-06-3C3-R100-53 12.4KG
DSHG-06-3C40-A100-53 12.4KG
DSHG-06-3C40-A120-53 12.4KG
DSHG-06-3C40-A120-535 12.4KG
DSHG-06-3C40-A120-N-53 12.4KG
DSHG-06-3C40-C1-A120-53 12.4KG
DSHG-06-3C40-C1C2-A120-53 12.4KG
DSHG-06-3C40-C1C2-D24-53 12.4KG
DSHG-06-3C40-C1C2-E-D24-53 12.4KG
DSHG-06-3C40-C1C2-E-D24-N-53 12.4KG
DSHG-06-3C40-C1C2-R2-A120-N1-53 12.4KG
DSHG-06-3C40-C1C2-T-A100-53 12.4KG
DSHG-06-3C40-C1C2-T-A100-53 12.4KG
DSHG-06-3C40-C1C2-T-A100-N1-53 12.4KG
DSHG-06-3C40-C1C2-T-D100-53 12.4KG
DSHG-06-3C40-C1C2-T-D24-53 12.4KG
DSHG-06-3C40-C1C2-T-D24-N1-53 12.4KG
DSHG-06-3C40-C1C2-T-R2-A100-53 12.4KG
DSHG-06-3C40-C1C2-T-R2-D24-53 12.4KG
DSHG-06-3C40-C1-T-A100-53 12.4KG
DSHG-06-3C40-C1-T-A100-53 12.4KG
DSHG-06-3C40-C1-T-D24-53 12.4KG
DSHG-06-3C40-C2-A120-53 12.4KG
DSHG-06-3C40-C2-A120-N-53 12.4KG
DSHG-06-3C40-C2-R110-N1-53 12.4KG
DSHG-06-3C40-C2-T-D24-N1-53 12.4KG
DSHG-06-3C40-D00-53 12.4KG
DSHG-06-3C40-D24-53 12.4KG
DSHG-06-3C40-D24-N1-53 12.4KG
DSHG-06-3C40-D24-N-53 12.4KG
DSHG-06-3C40-E-A100-53 12.4KG
DSHG-06-3C40-E-A120-53 12.4KG
DSHG-06-3C40-E-A120-53 12.4KG
DSHG-06-3C40-E-A120-N-53 12.4KG
DSHG-06-3C40-E-D24-53 12.4KG
DSHG-06-3C40-T-A100-53 12.4KG
DSHG-06-3C40-T-A100-53 12.4KG
DSHG-06-3C40-T-A120-53 12.4KG
DSHG-06-3C40-T-A120-53 12.4KG
DSHG-06-3C40-T-A120-N-53 12.4KG
DSHG-06-3C40-T-A240-53 12.4KG
DSHG-06-3C40-T-D12-53 12.4KG
DSHG-06-3C40-T-D24-53 12.4KG
DSHG-06-3C40-T-D24-53 12.4KG
DSHG-06-3C40-T-R200-53 12.4KG
DSHG-06-3C4-A100-53 12.4KG
DSHG-06-3C4-A100-53 12.4KG
DSHG-06-3C4-A120-53 12.4KG
DSHG-06-3C4-A120-53 12.4KG
DSHG-06-3C4-A120-535 12.4KG
DSHG-06-3C4-A120-N1-53 12.4KG
DSHG-06-3C4-A120-N1-53 12.4KG
DSHG-06-3C4-A120-N-53 12.4KG
DSHG-06-3C4-A200-53 12.4KG
DSHG-06-3C4-A200-53 12.4KG
DSHG-06-3C4-A240-53 12.4KG
DSHG-06-3C4-C1-A120-53 12.4KG
DSHG-06-3C4-C1C2-A120-53 12.4KG
DSHG-06-3C4-C1C2-A120-C-N1-53 12.4KG
DSHG-06-3C4-C1C2-A120-N1-53 12.4KG
DSHG-06-3C4-C1C2-D24-53 12.4KG
DSHG-06-3C4-C1C2-D24-N1-53 12.4KG
DSHG-06-3C4-C1C2-E-D24-N-53 12.4KG
DSHG-06-3C4-C1C2-ET-A100-53 12.4KG
DSHG-06-3C4-C1C2-R2-A120N53 12.4KG
DSHG-06-3C4-C1C2-R2-D24-53 12.4KG
DSHG-06-3C4-C1C2-T-A100-53 12.4KG
DSHG-06-3C4-C1C2-T-A100-53 12.4KG
DSHG-06-3C4-C1C2-T-A120-53 12.4KG
DSHG-06-3C4-C1C2-T-D24-53 12.4KG
DSHG-06-3C4-C1C2-T-R110-53 12.4KG
DSHG-06-3C4-C1C2-T-R110-N-53 12.4KG
DSHG-06-3C4-C1C2-T-R2-A120 12.4KG
DSHG-06-3C4-C2-A120-53 12.4KG
DSHG-06-3C4-C2-D24-53 12.4KG
DSHG-06-3C4-C2-D24-53 12.4KG
DSHG-06-3C4-C2-D24-N1-53 12.4KG
DSHG-06-3C4-C2-D24-N-53 12.4KG
DSHG-06-3C4-C2-E-D24-53 12.4KG
DSHG-06-3C4-C2-E-R110-N1-53 12.4KG
DSHG-06-3C4-C2-E-R110-N-53 12.4KG
DSHG-06-3C4-C2-ET-A120-53 12.4KG
DSHG-06-3C4-C2-T-A100-53 12.4KG
DSHG-06-3C4-C2-T-A120-53 12.4KG
DSHG-06-3C4-C2-T-A120-N-53 12.4KG
DSHG-06-3C4-C2-T-D24-53 12.4KG
DSHG-06-3C4-C2-T-D24-N-53 12.4KG
DSHG-06-3C4-C2-T-D24-N-53 12.4KG
DSHG-06-3C4-D12-53 12.4KG
DSHG-06-3C4-D12-N-53 12.4KG
DSHG-06-3C4-D24-53 12.4KG
DSHG-06-3C4-D24-53 12.4KG
DSHG-06-3C4-D24-N1-53 12.4KG
DSHG-06-3C4-D24-N-53 12.4KG
DSHG-06-3C4-D24-N-53 12.4KG
DSHG-06-3C4-D24-N-535 12.4KG
DSHG-06-3C4-E-A100-53 12.4KG
DSHG-06-3C4-E-A120-53 12.4KG
DSHG-06-3C4-E-A200-53 12.4KG
DSHG-06-3C4-E-A200-N1-53 12.4KG
DSHG-06-3C4-E-D12-53 12.4KG
DSHG-06-3C4-E-D24-53 12.4KG
DSHG-06-3C4-E-D24-53 12.4KG
DSHG-06-3C4-E-D24-N1-53 12.4KG
DSHG-06-3C4-E-D24-N1-53 12.4KG
DSHG-06-3C4-E-D24-N-53 12.4KG
DSHG-06-3C4-ET-A100-53 12.4KG
DSHG-06-3C4-ET-A120-53 12.4KG
DSHG-06-3C4-ET-D12-53 12.4KG
DSHG-06-3C4-ET-D24-53 12.4KG
DSHG-06-3C4-R110-53 12.4KG
DSHG-06-3C4-R110Y1-53 12.4KG
DSHG-06-3C4-R2-A120-N-53 12.4KG
DSHG-06-3C4-R2-D24-53 12.4KG
DSHG-06-3C4-R2-D24-N1-53 12.4KG
DSHG-06-3C4-T-A100-53 12.4KG
DSHG-06-3C4-T-A100-53 12.4KG
DSHG-06-3C4-T-A120-53 12.4KG
DSHG-06-3C4-T-A120-53 12.4KG
DSHG-06-3C4-T-A120-535 12.4KG
DSHG-06-3C4-T-A120-N1-53 12.4KG
DSHG-06-3C4-T-A120-N-53 12.4KG
DSHG-06-3C4-T-A120-N-53 12.4KG
DSHG-06-3C4-T-A200-53 12.4KG
DSHG-06-3C4-T-A200-53 12.4KG
DSHG-06-3C4-T-A200-N-53 12.4KG
DSHG-06-3C4-T-A240-53 12.4KG
DSHG-06-3C4-T-A240-N1-53 12.4KG
DSHG-06-3C4-T-A240-N-53 12.4KG
DSHG-06-3C4-T-D100-53 12.4KG
DSHG-06-3C4-T-D12-53 12.4KG
DSHG-06-3C4-T-D12-N1-53 12.4KG
DSHG-06-3C4-T-D12-N-53 12.4KG
DSHG-06-3C4-T-D12-N-53 12.4KG
DSHG-06-3C4-T-D24-53 12.4KG
DSHG-06-3C4-T-D24-53 12.4KG
DSHG-06-3C4-T-D24-N1-53 12.4KG
DSHG-06-3C4-T-D24-N1-53 12.4KG
DSHG-06-3C4-T-D24-N-53 12.4KG
DSHG-06-3C4-T-D24-N-53 12.4KG
DSHG-06-3C4-T-D24-N-535 12.4KG
DSHG-06-3C4-T-R100-53 12.4KG
DSHG-06-3C4-T-R2-A120-N-53 12.4KG
DSHG-06-3C5-A120-53 12.4KG
DSHG-06-3C5-A120-N-53 12.4KG
DSHG-06-3C5-E-A120-53 12.4KG
DSHG-06-3C5-E-A120-N-53 12.4KG
DSHG-06-3C5-E-A240-53 12.4KG
DSHG-06-3C5-R110-53 12.4KG
DSHG-06-3C60-A100-53 12.4KG
DSHG-06-3C60-A120-53 12.4KG
DSHG-06-3C60-A120-53 12.4KG
DSHG-06-3C60-A120-535 12.4KG
DSHG-06-3C60-A120-N-53 12.4KG
DSHG-06-3C60-A240-N1-53 12.4KG
DSHG-06-3C60-C1-A120-53 12.4KG
DSHG-06-3C60-C1-A120-N-53 12.4KG
DSHG-06-3C60-C1C2-A120-53 12.4KG
DSHG-06-3C60-C1C2-A120-N-53 12.4KG
DSHG-06-3C60-C1C2-D24-53 12.4KG
DSHG-06-3C60-C1C2-E-A100-53 12.4KG
DSHG-06-3C60-C1C2-E-D24-53 12.4KG
DSHG-06-3C60-C1C2-E-D24-N-53 12.4KG
DSHG-06-3C60-C1C2-ET-D24-53 12.4KG
DSHG-06-3C60-C1-D12-53 12.4KG
DSHG-06-3C60-C2-A120-53 12.4KG
DSHG-06-3C60-C2-A240-53 12.4KG
DSHG-06-3C60-C2-D24-53 12.4KG
DSHG-06-3C60-C2-E-A120-53 12.4KG
DSHG-06-3C60-C2-R110-N-53 12.4KG
DSHG-06-3C60-C2-T-A120-53 12.4KG
DSHG-06-3C60-D12-53 12.4KG
DSHG-06-3C60-D12-53 12.4KG
DSHG-06-3C60-D12-N1-53 12.4KG
DSHG-06-3C60-D12-N-53 12.4KG
DSHG-06-3C60-D24-53 12.4KG
DSHG-06-3C60-D24-53 12.4KG
DSHG-06-3C60-D24-N-53 12.4KG
DSHG-06-3C60-E-A120-53 12.4KG
DSHG-06-3C60-E-A120-N1-53 12.4KG
DSHG-06-3C60-E-A120-N-53 12.4KG
DSHG-06-3C60-E-A240-53 12.4KG
DSHG-06-3C60-E-A240-N1-53 12.4KG
DSHG-06-3C60-E-D12-53 12.4KG
DSHG-06-3C60-E-D12-C-N-53 12.4KG
DSHG-06-3C60-E-D12-N-53 12.4KG
DSHG-06-3C60-E-D24-53 12.4KG
DSHG-06-3C60-E-D24-N1-53 12.4KG
DSHG-06-3C60-E-D24-N-53 12.4KG
DSHG-06-3C60-E-R110-N-53 12.4KG
DSHG-06-3C60-ET-A120-53 12.4KG
DSHG-06-3C60-ET-A120-535 12.4KG
DSHG-06-3C60-ET-A120-N-53 12.4KG
DSHG-06-3C60-ET-D12-53 12.4KG
DSHG-06-3C60-ET-D12-N-53 12.4KG
DSHG-06-3C60-ET-D24-N-53 12.4KG
DSHG-06-3C60-ET-R110-53 12.4KG
DSHG-06-3C60-R110-53 12.4KG
DSHG-06-3C60-R2-A120-N-53 12.4KG
DSHG-06-3C60-R2-D12-53 12.4KG
DSHG-06-3C60-RA-D24-53 12.4KG
DSHG-06-3C60-RB-A120-N-53 12.4KG
DSHG-06-3C60-T-A100-53 12.4KG
DSHG-06-3C60-T-A240-N-53 12.4KG
DSHG-06-3C6-A100-53 12.4KG
DSHG-06-3C6-A120-53 12.4KG
DSHG-06-3C6-A120-53 12.4KG
DSHG-06-3C6-A120-N-53 12.4KG
DSHG-06-3C6-C1C2-E-A120-53 12.4KG
DSHG-06-3C6-C1-D12-53 12.4KG
DSHG-06-3C6-D24-53 12.4KG
DSHG-06-3C6-D24-N1-53 12.4KG
DSHG-06-3C6-E-A120-535 12.4KG
DSHG-06-3C9-A120-53 12.4KG
DSHG-06-3C9-C2-D24-N-53 12.4KG
DSHG-06-3C9-ET-A120-53 12.4KG
DSHG-06-3C9-T-D24-N-53 12.4KG
DSHG-06-3C9-T-R110-N-53 12.4KG
DSHG-06-3H2-C2-T-R2-D100-53 13.2KG
DSHG-06-3H2-R2-A120-N-53 13.2KG
DSHG-06-3H4-R2-A120-N-53 13.2KG
DSHG-06-3H60-A100-53 13.2KG
DSHG-06-3H60-A120-53 13.2KG



Saar HK Electronic Limited
Add: Rm 1506,28# Moyu Rd,Shanghai,China,201805
Tel: +86-21-5956 1370
Fax:+86-21-5012 3536
Email: jason@hydraulicpumpvalve.com
Skype: jason.saar
Mobile/WhatsApp: +8613918187448

Contact Details
Saar HK Electronic Limited

Contact Person: jason

Tel: +8613918187448

Send your inquiry directly to us (0 / 3000)

Other Products
