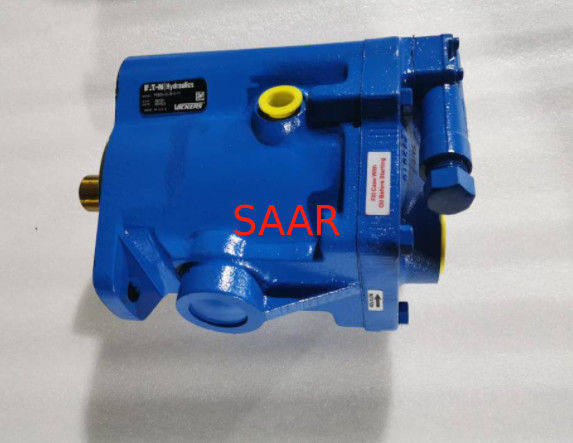

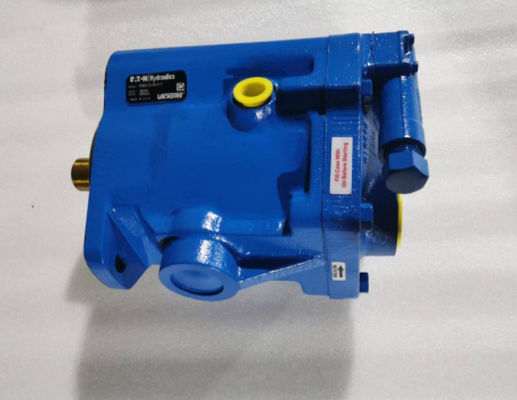

362031 PVB20-LS-20-C-11 Eaton Vickers PVB20 Axial Piston Pump

362031 PVB20-LS-20-C-11 Eaton Vickers PVB20 Axial Piston Pump

  • 362031 PVB20-LS-20-C-11 Eaton Vickers PVB20 Axial Piston Pump
  • 362031 PVB20-LS-20-C-11 Eaton Vickers PVB20 Axial Piston Pump
362031 PVB20-LS-20-C-11 Eaton Vickers PVB20 Axial Piston Pump
Product Details:
Place of Origin: USA
Brand Name: Eaton Vickers
Model Number: 362031 PVB20-LS-20-C-11
CertifiSAARion: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: On request
Packaging Details: Paper or wooden carton
Delivery Time: 7-10days
Payment Terms: T/T, Western Union
Supply Ability: 100/Month
Contact Now
Detailed Product Description

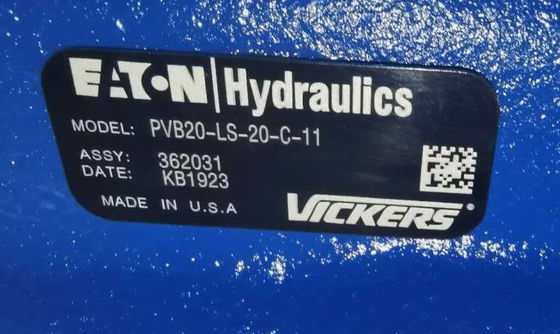

MODEL: PVB20-LS-20-C-11 ASSY: 362031
High Light:

PVB20-LS-20-C-11

,

362031 Axial Piston Pump

,

Eaton Vickers Axial Piston Pump

Eaton Vickers PVB5/PFB6/PFB5 Axial Piston Pumps


Fixed and Variable Displacement
PFB 5, PFB 10, PFB 20
PVB 5/6, PVB 10/15, PVB 20/29, PVB 45 and PVB 90 to SAE
PVB 5/6, PVB 10/15, PVB 20/29 to DIN/ISO 3019



Features
Operating pressure up to 210 bar (3000 psi)
Model with compensator control “C” or “CM”
Displacement from 10,5 to 197,5 cm3/r (0.64 to 12 in3/r)
Speed up to 1800 r/min





Variable displacement models make up this range of axial piston pumps. Their high performance ratings and efficiencies are achieved with a variety of hydraulic fluids. PVB pump models can closely match pressure and/or flow demand with a control selected from:



– Pressure compensator with or without a remote control facility.

– Pressure compensator with adjustable displacement control.

– Load sensing compensator.

– Mechanical (lever) control.

– Hand wheel control



Technical Data of Eaton Vickers PVB pump



Table of values (theoretical values, without efficiency and tolerances; values rounded)



Vickers PVB pump Max. displacement Output flow Speed Max. pressure Input KW [hp]
cm3/r [ in3/rev] LPM [gpm] @rpm rpm Bar [psi] @high pressure & speed
PVB5 10,55[.64] 18,9[5] 1800 210[3000] 13,0[17.5]
PVB6 13,81[.084] 22,7[6] 1800 140[2000] 26,1[35]
PVB10 21,1[1.29] 37,5[10.0] 1800 210[3000] 29,4[39.5]
PVB15 33,0[2.01] 59,4[15.7] 1800 141[2000] 29,4[39.5]
PVB20 42,80[2.61] 75,7[20.0] 1800 210[3000] 29,4[39.5]
PVB29 61,6[3.76] 109,7[29] 1800 140[2000] 29,4[39.5]
PVB45 94,5[5.76] 170,3[45.0] 1800 210[3000] 29,4[39.5]
PVB90 197,5[12.0] 348[91.9] 1800 210[3000] 29,4[39.5]



Axial and radial running clearances, along with lubriSAARing oil film on the rotor and vanes, are optimized over the entire operating pressure range. Excellent cold-start capability and superior resistance to seizure make Vickers VQ pumps highly reliable and efficient.



SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.



Eaton Vickers PVB20 Series Axial Piston Pumps on Sale, Short lead time, Best price!!!



362030 PVB20-RS-20-C-11
389117 PVB20-RS-20-CC-11
677167 PVB20-RS-20-CG-20
380673 PVB20-RS-20-CM-11
521950 PVB20-RS-20-CVP-12
385637 PVB20-RSFW-20-CC-11
362031 PVB20-LS-20-C-11
436837 PVB20-LS-20-C-11
389118 PVB20-LS-20-CC-11
389118 PVB20-LS-20-CC-11
451570 PVB20-LS-20-CCD-20
380132 PVB20-LS-20-CM-11
362030 PVB20-RS-20-C-11
391893 PVB20-RS-20-C-11
436836 PVB20-RS-20-C-11
436836 PVB20-RS-20-C-11-S-124
02-312413 PVB20-RS-20-CC-11
389117 PVB20-RS-20-CC-11
436588 PVB20-RS-20-CC-11S
419051 PVB20-RS-20-CC-11-S30
419051 PVB20-RS-20-CC-11-S30
430466 PVB20-RS-20-CCG-20
677167 PVB20-RS-20-CG-20
423637 PVB20-RS-20-CG-20-S30
423637 PVB20-RS-20-CG-20-S30
02-104017 PVB20-RS-20-CM-11
380673 PVB20-RS-20-CM-11
388706 PVB20-RS-20-CM-11
763518 PVB20-RS-20-CM-11
436346 PVB20-RS-20-CM-11-S124
389151 PVB20-RS-20-CMC-11
02-142878 PVB20-RS-20-CVP-12
521950 PVB20-RS-20-CVP-12
380187 F3-PVB20-RS-20-C-11
411106 F3-PVB20-RS-20-CC-11
877084 F3-PVB20-RS-20-CG-20
