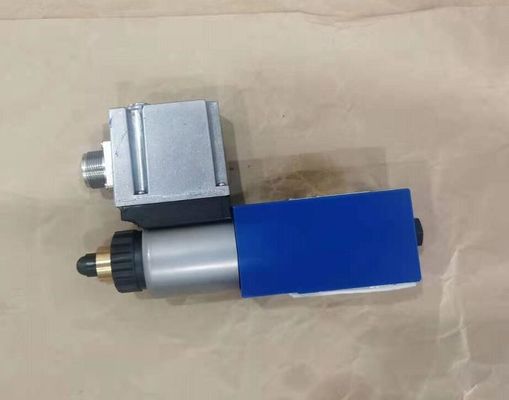

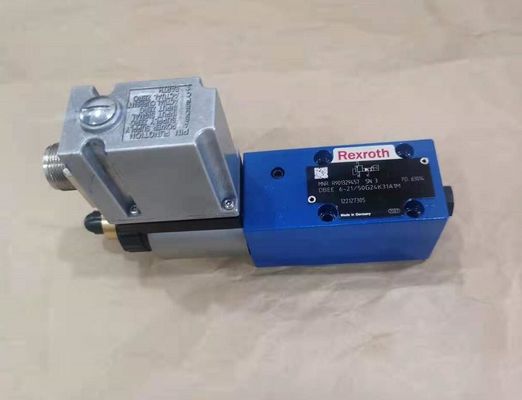

R901329457 DBEE6-21/50G24K31A1M DBEE6-2X/50G24K31A1M Rexroth DBEE6 Proportional Pressure Relief Valve

R901329457 DBEE6-21/50G24K31A1M DBEE6-2X/50G24K31A1M Rexroth DBEE6 Proportional Pressure Relief Valve

  • R901329457 DBEE6-21/50G24K31A1M DBEE6-2X/50G24K31A1M Rexroth DBEE6 Proportional Pressure Relief Valve
  • R901329457 DBEE6-21/50G24K31A1M DBEE6-2X/50G24K31A1M Rexroth DBEE6 Proportional Pressure Relief Valve
  • R901329457 DBEE6-21/50G24K31A1M DBEE6-2X/50G24K31A1M Rexroth DBEE6 Proportional Pressure Relief Valve
R901329457 DBEE6-21/50G24K31A1M DBEE6-2X/50G24K31A1M Rexroth DBEE6 Proportional Pressure Relief Valve
Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: ISO9001
Model Number: R901329457 DBEE6-21/50G24K31A1M DBEE6-2X/50G24K31A1M
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: On Request
Packaging Details: Standard paper box
Delivery Time: 7-10days
Payment Terms: T/T, Western Union
Supply Ability: 100PCS per month
Contact Now
Detailed Product Description
MNR: R901329457 Model No.: DBEE6-21/50G24K31A1M DBEE6-2X/50G24K31A1M
High Light:

R901329457 Rexroth Hydraulic Valves

,

DBEE6-21/50G24K31A1M

,

Rexroth DBEE6 Pressure Relief Valve

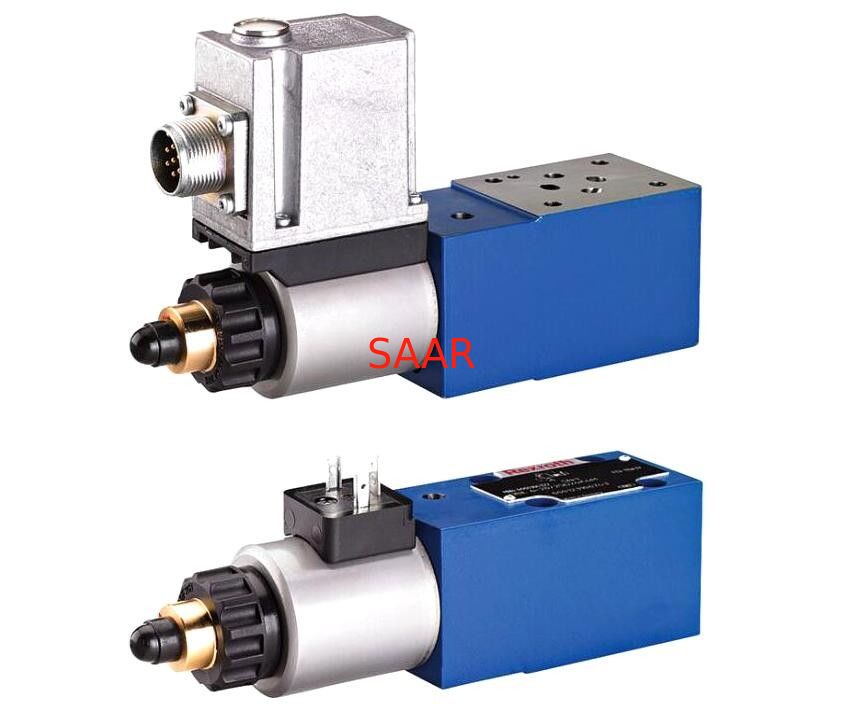

Proportional pressure relief valve, pilot-operated DBE6, DBEE6

Size 6

Component series 2X
Max. operating pressure 350 bar
Flow, max. 30 l/min

Features

Pilot-operated proportional valve for system pressure limitation
Proportional solenoid operation
Proportional solenoid with rotatable and detachable coil
For subplate mounting or sandwich plate design: Porting pattern according to ISO 4401-03-02-05 and DIN24340
Valve and control electronics from a single source
External control electronics for types DBE and ZDBE
Linear pressure/command value characteristic curve
Types DBEE and ZDBEE with integrated electronics (OBE)

Type Code:
01
02
03
04
05
06

07

08
09
10
11
12
13
14

DBE

6

2
-
2X
/


G24



*
01
Subplate mounting
no code
Sandwich plate
Z
02
Proportional pressure relief valve
DBE
03
For external analog electronics
no code
With integrated electronics (OBE)
E
04
Size 6
6
05
Subplate mounting
no code
Pressure limitation in channel P
VP
06
Preferred position of mating connector
R901329457 DBEE6-21/50G24K31A1M DBEE6-2X/50G24K31A1M Rexroth DBEE6 Proportional Pressure Relief Valve 0
The mating connector can be brought to the desired position when the nut was loosened
2
07
Component series 20 ... 29 (20 ... 29: unchanged installation and connection dimensions) - Size 6
2X
Maximum set pressure
08
Pressure rating 25 bar
25
Pressure rating 50 bar
50
Pressure rating 100 bar
100
Pressure rating 200 bar
200
Pressure rating 315 bar
315
Pressure rating 350 bar
350
09
Pilot oil return, internal
no code 1)
Pilot oil return, external
Y 2)
Power supply
10
Direct voltage 24 V
G24
Electrical connection types DBE and ZDBE
11
Without mating connector, with connector according to DIN EN 175301-803, separate order
K4
Electrical connection types DBEE and ZDBEE
11
Without mating connector, connector according to DIN EN 175201-804
K31
Electronics interface types DBEE and ZDBEE
12
Command value 0 … 10 V
A1
Command value 4 to 20 mA
F1
Seal material
13
NBR seals
M
FKM seals
V
14
Further details in the plain text
*
1)
Recommendation: Subplate mounting up to qvmax = 15 l/min

2)
Only possible with subplate mounting


SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Proportional pressure relief valve, pilot-operated DBE6, DBEE6 Series:

R901317466
DBEE6-2X/100G24K31A1M
R901389850
DBEE6-2X/100G24K31A1V
R901374908
DBEE6-2X/100G24K31F1M
R901340832
DBEE6-2X/100YG24K31A1M
R901415985
DBEE6-2X/100YG24K31A1V
R901362531
DBEE6-2X/100YG24K31F1M
R901324603
DBEE6-2X/200G24K31A1M
R901375094
DBEE6-2X/200G24K31A1V
R901350548
DBEE6-2X/200G24K31F1M
R901431790
DBEE6-2X/200G24K31F1V
R901337464
DBEE6-2X/200YG24K31A1M
R901410497
DBEE6-2X/200YG24K31F1M
R901255355
DBEE6-2X/25G24K31A1M
R901342296
DBEE6-2X/25G24K31A1V
R901323940
DBEE6-2X/315G24K31A1M
R901345967
DBEE6-2X/315G24K31A1V
R901368833
DBEE6-2X/315G24K31F1M
R901335147
DBEE6-2X/315YG24K31A1M
R901433168
DBEE6-2X/315YG24K31A1V
R901408278
DBEE6-2X/315YG24K31F1M
R901531285
DBEE6-2X/350G24K31A1M
R901322928
DBEE6-2X/350YG24K31A1M
R901348117
DBEE6-2X/350YG24K31F1M
R901329457
DBEE6-2X/50G24K31A1M
R901439889
DBEE6-2X/50G24K31A1V
R901384016
DBEE6-2X/50G24K31F1M
R901327852
DBEE6-2X/50YG24K31A1M
R901385073
DBEE6-2X/50YG24K31F1M
R901304331
DBE6-2X/100G24K4M
R901417852
DBE6-2X/100G24K4V
R901304333
DBE6-2X/100YG24K4M
R901304383
DBE6-2X/200G24K4M
R901390101
DBE6-2X/200G24K4V
R901304384
DBE6-2X/200YG24K4M
R901304322
DBE6-2X/25G24K4M
R901401619
DBE6-2X/25G24K4V
R901304396
DBE6-2X/315G24K4M
R901324825
DBE6-2X/315G24K4V
R901335210
DBE6-2X/315G24K4V-667
R901304402
DBE6-2X/315YG24K4M
R901346344
DBE6-2X/315YG24K4V
R901304433
DBE6-2X/350G24K4M
R901447274
DBE6-2X/350G24K4V
R901304443
DBE6-2X/350YG24K4M
R901429010
DBE6-2X/350YG24K4V
R901304326
DBE6-2X/50G24K4M
R901358691
DBE6-2X/50G24K4V
R901304329
DBE6-2X/50YG24K4M
R901441162
DBE6-2X/50YG24K4V
