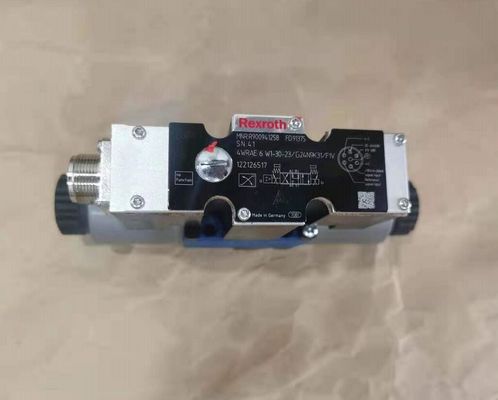

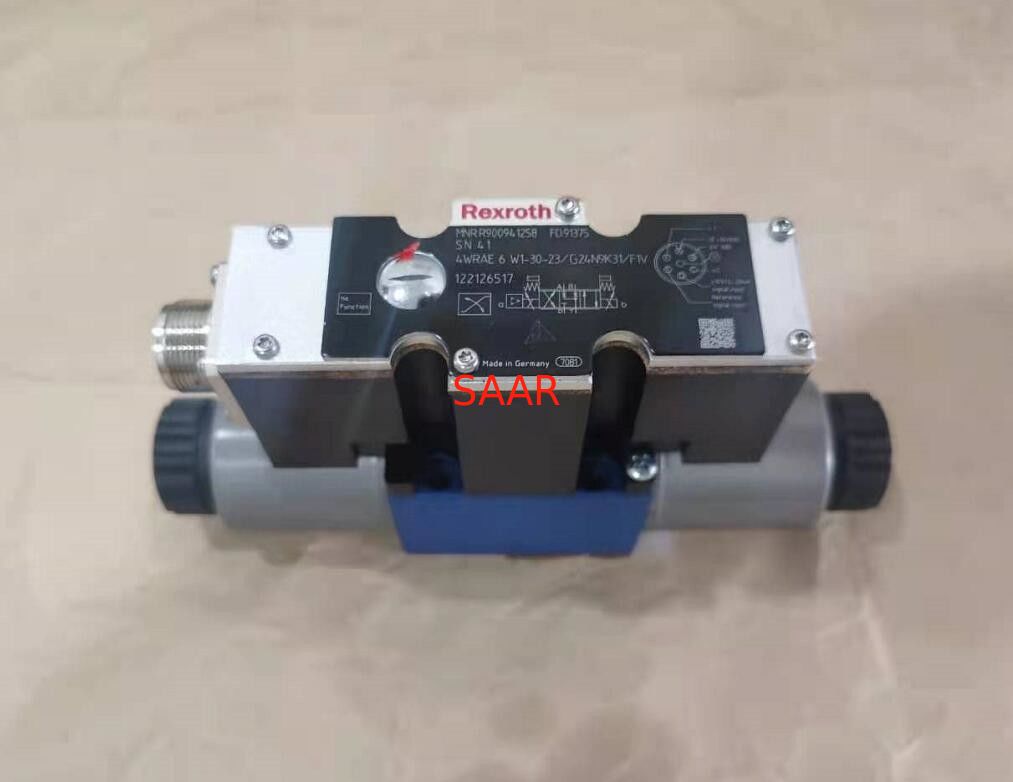

R900941258 4WRAE6W1-30-23/G24N9K31/F1V 4WRAE6W1-30-2X/G24N9K31/F1V Rexroth 4WRAE6 Type Proportional Directional Valve

R900941258 4WRAE6W1-30-23/G24N9K31/F1V 4WRAE6W1-30-2X/G24N9K31/F1V Rexroth 4WRAE6 Type Proportional Directional Valve

  • R900941258 4WRAE6W1-30-23/G24N9K31/F1V 4WRAE6W1-30-2X/G24N9K31/F1V Rexroth 4WRAE6 Type Proportional Directional Valve
  • R900941258 4WRAE6W1-30-23/G24N9K31/F1V 4WRAE6W1-30-2X/G24N9K31/F1V Rexroth 4WRAE6 Type Proportional Directional Valve
R900941258 4WRAE6W1-30-23/G24N9K31/F1V 4WRAE6W1-30-2X/G24N9K31/F1V Rexroth 4WRAE6 Type Proportional Directional Valve
Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: ISO9001
Model Number: R900941258 4WRAE6W1-30-23/G24N9K31/F1V 4WRAE6W1-30-2X/G24N9K31/F1V
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: On request
Packaging Details: Standard paper box
Delivery Time: 7-10days
Payment Terms: T/T, Western Union
Supply Ability: 100PCS per month
Contact Now
Detailed Product Description
MNR: R900941258 Model No.: 4WRAE6W1-30-23/G24N9K31/F1V 4WRAE6W1-30-2X/G24N9K31/F1V
High Light:

R900941258 Rexroth Hydraulic Valves

,

4WRAE6W1-30-23/G24N9K31/F1V

,

Rexroth 4WRAE6 Proportional Directional Valve

Rexroth 4WRAE 4/2 and 4/3 proportional directional valves, direct operated, without electrical position feedback, with integrated electronics (OBE)



Size 6, 10
Component series 2X
Maximum operating pressure 315 bar
Maximum flow 75 l/min

Features


Direct operated proportional directional valve, without electrical position feedback, with integrated electronics (OBE)
Control of the direction and magnitude of a flow
Operation by means of proportional solenoids with central thread and detachable coil
For subplate mounting: Porting pattern according to ISO 4401
Spring-centered control spool





Type Code:

01 02 03 04 05   06   07 08 09   10 11 12
4 WRAE       2X / G24     /     *
01 4 main ports 4
02 Proportional directional valve with integrated electronics WRAE
03 Size 6 6
Size 10 10
04 Symbols; for the possible version, see "Symbols/Circuit diagrams" E; E1-; W; W1-; EA; WA
Rated flow NG6
05 7 l/min 7
15 l/min 15
30 l/min 30
Rated flow NG10
05 30 l/min 30
60 l/min 60
06 Component series 20 ... 29 (20 ... 29: unchanged installation and connection dimensions) 2X
07 Supply voltage 24 V G24
Special type of protection
08 Without special type of protection no code
Sea water-resistant J1)
Electrical connection
09 Connector DIN EN 175201-804 K312)
Electrical interface
10 Command value ±10 V A1
Command value 4 to 20 mA F1
Seal material
11 NBR seals M
FKM seals V
12 Further details in the plain text *
1) Electrical protection classes on request
2)

Only with NG6: only indicate "K31" for version “J”!



SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth 4WRAE6E03 4WRAE6E07 4WRAE6E1 4WRAE6V1 4WRAE6W 4WRAE6WA Proportional Directional Valves​ on Sale, Short lead time, Best price!!!

R978916639 4WRAE6E03-2X/G24K31/A1V
R900953168 4WRAE6E03-2X/G24N9K31/A1V
R901066051 4WRAE6E03-2X/G24N9K31/F1V
R900920071 4WRAE6E03-2X/G24N9Z31/A1V
R900954069 4WRAE6E07-2X/G24K31/A1V
R901201706 4WRAE6E07-2X/G24K31/A1V-280
R900759329 4WRAE6E07-2X/G24K31/F1V
R900925006 4WRAE6E07-2X/G24N9K31/A1V
R901130352 4WRAE6E07-2X/G24N9K31/A1V-280
R900925456 4WRAE6E07-2X/G24N9K31/F1V
R900912300 4WRAE6E07-2X/G24N9Z31/A1V
R901015564 4WRAE6E1-07-2X/G24K31/A1V
R900617493 4WRAE6E1-07-2X/G24K31/F1V
R901355164 4WRAE6E1-07-2X/G24N9K31/A1V
R900711880 4WRAE6E1-07-2X/G24N9K31/F1V
R900954072 4WRAE6E1-15-2X/G24K31/A1V
R900738355 4WRAE6E1-15-2X/G24K31/F1V
R900753599 4WRAE6E1-15-2X/G24N9K31/A1V
R901446529 4WRAE6E1-15-2X/G24N9K31/F1V
R900954073 4WRAE6E1-30-2X/G24K31/A1V
R900928872 4WRAE6E1-30-2X/G24N9K31/A1V
R900947058 4WRAE6E1-30-2X/G24N9K31/F1V
R900954070 4WRAE6E15-2X/G24K31/A1V
R901282085 4WRAE6E15-2X/G24K31/A1V-280
R901019997 4WRAE6E15-2X/G24K31/F1V
R900909389 4WRAE6E15-2X/G24N9K31/A1V
R900947059 4WRAE6E15-2X/G24N9K31/F1V
R900553353 4WRAE6E15-2X/G24N9Z31/A1V
R900957274 4WRAE6E3-30-2X/G24N9K31/F1V
R900954071 4WRAE6E30-2X/G24K31/A1V
R901015613 4WRAE6E30-2X/G24K31/F1V
R900558355 4WRAE6E30-2X/G24N9K31/A1V
R900974925 4WRAE6E30-2X/G24N9K31/A1V-280
R900931485 4WRAE6E30-2X/G24N9K31/F1V
R900552113 4WRAE6E30-2X/G24N9Z31/A1V
R900920810 4WRAE6E30-2X/G24N9Z31/F1V
R900745630 4WRAE6EA07-2X/G24K31/A1V
R900966133 4WRAE6EA07-2X/G24N9K31/A1V
R900723376 4WRAE6EA07-2X/G24N9K31/F1V
R900954074 4WRAE6EA15-2X/G24K31/A1V
R901145773 4WRAE6EA15-2X/G24K31/F1V
R900750718 4WRAE6EA15-2X/G24N9K31/A1V
R900957490 4WRAE6EA15-2X/G24N9K31/F1V
R900579463 4WRAE6EA15-2X/G24N9Z31/F1V
R900954075 4WRAE6EA30-2X/G24K31/A1V
R901021332 4WRAE6EA30-2X/G24K31/F1V
R900937158 4WRAE6EA30-2X/G24N9K31/A1V
R900938373 4WRAE6EA30-2X/G24N9K31/F1V
R900916339 4WRAE6EA30-2X/G24N9Z31/A1V
R900929851 4WRAE6EB07-2X/G24N9K31/A1V
R900916594 4WRAE6EB15-2X/G24K31/A1V
R900935661 4WRAE6EB15-2X/G24N9K31/A1V
R900963738 4WRAE6EB15-2X/G24N9K31/F1V
R900969665 4WRAE6EB30-2X/G24N9K31/A1V
R900935958 4WRAE6M30-2X/G24N9K31/A1V
R900909958 4WRAE6M30-2X/G24N9Z31/A1V
R901117558 4WRAE6V03-2X/G24N9K31/A1V
R900703358 4WRAE6V07-2X/G24N9K31/A1V
R901306165 4WRAE6V07-2X/G24N9K31/F1V
R901201460 4WRAE6V1-07-2X/G24N9K31/F1V
R901201458 4WRAE6V1-15-2X/G24N9K31/F1V
R900965020 4WRAE6V1-30-2X/G24N9K31/F1V
R900577739 4WRAE6V1-30-2X/G24N9Z31/A1V
R900578084 4WRAE6V1-30-2X/G24N9Z31/F1V
R900576353 4WRAE6V1-30-2X/G24Z31/F1V
R900758996 4WRAE6V15-2X/G24K31/A1V
R901250162 4WRAE6V15-2X/G24N9K31/A1V
R900551850 4WRAE6V15-2X/G24N9Z31/A1V
R900935370 4WRAE6V30-2X/G24N9K31/A1V
R901424158 4WRAE6V30-2X/G24N9K31/F1V
R900736894 4WRAE6W03-2X/G24N9K31/A1V
R900618361 4WRAE6W03-2X/G24N9K31/F1V
R900954076 4WRAE6W07-2X/G24K31/A1V
R900778280 4WRAE6W07-2X/G24K31/F1V
R900932003 4WRAE6W07-2X/G24N9K31/A1V
R900950144 4WRAE6W07-2X/G24N9K31/F1V
R901026400 4WRAE6W1-07-2X/G24K31/A1V
R901099279 4WRAE6W1-07-2X/G24K31/F1V
R900947785 4WRAE6W1-07-2X/G24N9K31/A1V
R900958128 4WRAE6W1-07-2X/G24N9K31/F1V
R900954079 4WRAE6W1-15-2X/G24K31/A1V
R901018004 4WRAE6W1-15-2X/G24K31/F1V
R900913442 4WRAE6W1-15-2X/G24N9K31/A1V
R900950774 4WRAE6W1-15-2X/G24N9K31/F1V
R900555820 4WRAE6W1-15-2X/G24N9Z31/A1V
R900954080 4WRAE6W1-30-2X/G24K31/A1V
R900974817 4WRAE6W1-30-2X/G24K31/F1V
R900913445 4WRAE6W1-30-2X/G24N9K31/A1V
R900941258 4WRAE6W1-30-2X/G24N9K31/F1V
R900549444 4WRAE6W1-30-2X/G24N9Z31/A1V
R900954077 4WRAE6W15-2X/G24K31/A1V
R900976919 4WRAE6W15-2X/G24K31/F1V
R900908938 4WRAE6W15-2X/G24N9K31/A1V
R901290623 4WRAE6W15-2X/G24N9K31/A1V-280
R900908195 4WRAE6W15-2X/G24N9K31/F1V
R900900159 4WRAE6W15-2X/G24N9Z31/A1V
R901439515 4WRAE6W2-30-2X/G24N9K31/A1V
R900915895 4WRAE6W3-15-2X/G24N9Z31/F1V
R900975416 4WRAE6W3-30-2X/G24N9K31/A1V
R900763437 4WRAE6W30-2X/G24JK31/A1V
R900954078 4WRAE6W30-2X/G24K31/A1V
R900762072 4WRAE6W30-2X/G24K31/F1V
R900900987 4WRAE6W30-2X/G24N9K31/A1V
R900974927 4WRAE6W30-2X/G24N9K31/A1V-280
R900943826 4WRAE6W30-2X/G24N9K31/F1V
R900557303 4WRAE6W30-2X/G24N9Z31/A1V
R900914844 4WRAE6W30-2X/G24N9Z31/A1V-612
R900786463 4WRAE6WA07-2X/G24K31/A1V
R900783251 4WRAE6WA07-2X/G24K31/F1V
R900946529 4WRAE6WA07-2X/G24N9K31/A1V
R900954081 4WRAE6WA15-2X/G24K31/A1V
R900951675 4WRAE6WA15-2X/G24N9K31/A1V
R900901182 4WRAE6WA15-2X/G24N9K31/F1V
R900905675 4WRAE6WA15-2X/G24N9Z31/A1V
R900954082 4WRAE6WA30-2X/G24K31/A1V
R901100348 4WRAE6WA30-2X/G24K31/F1V
R900962407 4WRAE6WA30-2X/G24N9K31/A1V
R900752021 4WRAE6WA30-2X/G24N9K31/F1V
R900903760 4WRAE6WA30-2X/G24N9Z31/A1V
R901170924 4WRAE6WB07-2X/G24N9K31/F1V
R900913647 4WRAE6WB15-2X/G24N9K31/A1V
R901239200 4WRAE6WB15-2X/G24N9K31/F1V
R900941851 4WRAE6WB30-2X/G24N9K31/A1V
