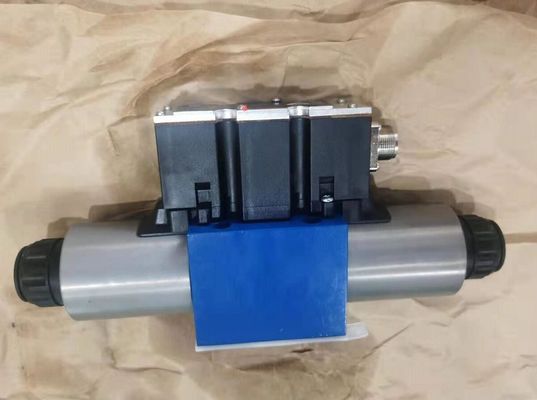

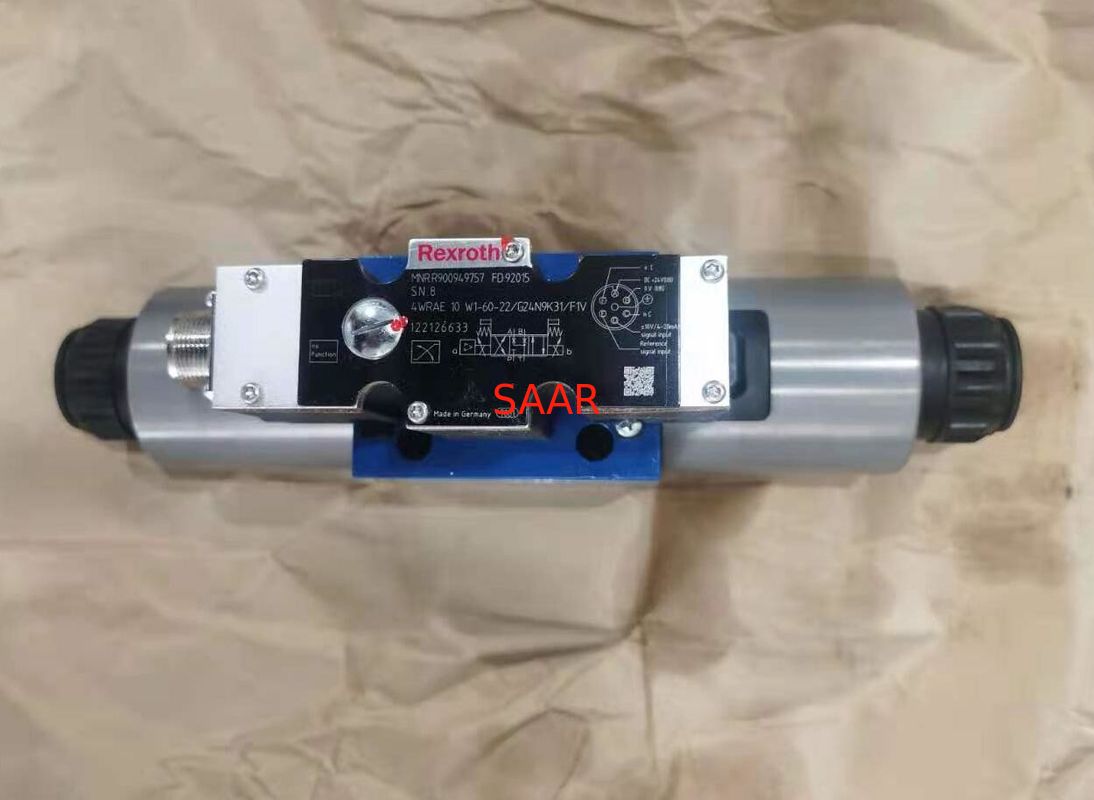

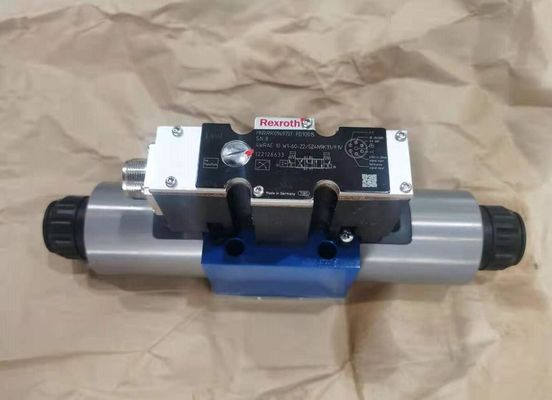

R900949757 4WRAE10W1-60-22/G24N9K31/F1V 4WRAE10W1-60-2X/G24N9K31/F1V Rexroth 4WRAE10 Type Proportional Directional Valve

R900949757 4WRAE10W1-60-22/G24N9K31/F1V 4WRAE10W1-60-2X/G24N9K31/F1V Rexroth 4WRAE10 Type Proportional Directional Valve

  • R900949757 4WRAE10W1-60-22/G24N9K31/F1V 4WRAE10W1-60-2X/G24N9K31/F1V Rexroth 4WRAE10 Type Proportional Directional Valve
  • R900949757 4WRAE10W1-60-22/G24N9K31/F1V 4WRAE10W1-60-2X/G24N9K31/F1V Rexroth 4WRAE10 Type Proportional Directional Valve
  • R900949757 4WRAE10W1-60-22/G24N9K31/F1V 4WRAE10W1-60-2X/G24N9K31/F1V Rexroth 4WRAE10 Type Proportional Directional Valve
R900949757 4WRAE10W1-60-22/G24N9K31/F1V 4WRAE10W1-60-2X/G24N9K31/F1V Rexroth 4WRAE10 Type Proportional Directional Valve
Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: ISO9001
Model Number: R900949757 4WRAE10W1-60-22/G24N9K31/F1V 4WRAE10W1-60-2X/G24N9K31/F1V
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: On request
Packaging Details: Standard paper box
Delivery Time: 7-10days
Payment Terms: T/T, Western Union
Supply Ability: 100PCS per month
Contact Now
Detailed Product Description
MNR: R900949757 MODEL: 4WRAE10W1-60-22/G24N9K31/F1V 4WRAE10W1-60-2X/G24N9K31/F1V
High Light:

R900949757 Rexroth Hydraulic Valves

,

4WRAE10W1-60-22/G24N9K31/F1V

,

4WRAE10 Type Proportional Directional Valve

Rexroth 4WRAE 4/2 and 4/3 proportional directional valves, direct operated, without electrical position feedback, with integrated electronics (OBE)



Size 6, 10
Component series 2X
Maximum operating pressure 315 bar
Maximum flow 75 l/min

Features


Direct operated proportional directional valve, without electrical position feedback, with integrated electronics (OBE)
Control of the direction and magnitude of a flow
Operation by means of proportional solenoids with central thread and detachable coil
For subplate mounting: Porting pattern according to ISO 4401
Spring-centered control spool



Type Code:

01 02 03 04 05   06   07 08 09   10 11 12
4 WRAE       2X / G24     /     *
01 4 main ports 4
02 Proportional directional valve with integrated electronics WRAE
03 Size 6 6
Size 10 10
04 Symbols; for the possible version, see "Symbols/Circuit diagrams" E; E1-; W; W1-; EA; WA
Rated flow NG6
05 7 l/min 7
15 l/min 15
30 l/min 30
Rated flow NG10
05 30 l/min 30
60 l/min 60
06 Component series 20 ... 29 (20 ... 29: unchanged installation and connection dimensions) 2X
07 Supply voltage 24 V G24
Special type of protection
08 Without special type of protection no code
Sea water-resistant J 1)
Electrical connection
09 Connector DIN EN 175201-804 K31 2)
Electrical interface
10 Command value ±10 V A1
Command value 4 to 20 mA F1
Seal material
11 NBR seals M
FKM seals V
12 Further details in the plain text *
1) Electrical protection classes on request
2)

Only with NG6: only indicate "K31" for version “J”!



SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth 4WRAE10E1 4WRAE10E30 4WRAE10EB 4WRAE10W1 4WRAE10W30 4WRAE10W60 Proportional Directional Valves on Sale, Short lead time, Best price!!!

R900954084 4WRAE10E1-30-2X/G24K31/A1V
R901311329 4WRAE10E1-30-2X/G24K31/F1V
R900936848 4WRAE10E1-30-2X/G24N9K31/A1V
R901213358 4WRAE10E1-30-2X/G24N9K31/F1V
R900921596 4WRAE10E1-30-2X/G24N9Z31/A1V
R900954409 4WRAE10E1-60-2X/G24K31/A1V
R901049206 4WRAE10E1-60-2X/G24K31/F1V
R900909658 4WRAE10E1-60-2X/G24N9K31/A1V
R901384952 4WRAE10E1-60-2X/G24N9K31/F1M
R900773932 4WRAE10E1-60-2X/G24N9K31/F1V
R900904991 4WRAE10E1-60-2X/G24N9Z31/A1V
R978016005 4WRAE10E3-60-2X/G24N9K31/A1V
R900933793 4WRAE10E30-2X/G24K31/A1V
R901026395 4WRAE10E30-2X/G24K31/F1V
R900920588 4WRAE10E30-2X/G24N9K31/A1V
R900904010 4WRAE10E30-2X/G24N9K31/F1V
R900570901 4WRAE10E30-2X/G24N9Z31/A1V
R900934721 4WRAE10E30-2X/G24Z31/A1V
R900954083 4WRAE10E60-2X/G24K31/A1V
R900965674 4WRAE10E60-2X/G24K31/F1V
R900558356 4WRAE10E60-2X/G24N9K31/A1V
R901038922 4WRAE10E60-2X/G24N9K31/A1V-280
R900929318 4WRAE10E60-2X/G24N9K31/F1V
R900572096 4WRAE10E60-2X/G24N9Z31/A1V
R900908419 4WRAE10E60-2X/G24N9Z31/F1V
R900954085 4WRAE10EA30-2X/G24K31/A1V
R900940206 4WRAE10EA30-2X/G24N9K31/A1V
R900954109 4WRAE10EA30-2X/G24N9K31/F1V
R900914273 4WRAE10EA30-2X/G24N9Z31/A1V
R900954086 4WRAE10EA60-2X/G24K31/A1V
R900786039 4WRAE10EA60-2X/G24K31/F1V
R900916601 4WRAE10EA60-2X/G24N9K31/A1V
R900930423 4WRAE10EA60-2X/G24N9K31/F1V
R900546669 4WRAE10EA60-2X/G24N9Z31/A1V
R900939576 4WRAE10EB30-2X/G24N9K31/A1V
R900906761 4WRAE10EB30-2X/G24N9Z31/A1V
R900926473 4WRAE10EB60-2X/G24N9K31/A1V
R901316266 4WRAE10EB60-2X/G24N9K31/F1V
R900551277 4WRAE10EB60-2X/G24N9Z31/A1V
R900913578 4WRAE10V60-2X/G24N9Z31/A1V
R900953496 4WRAE10W1-30-2X/G24K31/A1V
R900707215 4WRAE10W1-30-2X/G24K31/F1V
R900555967 4WRAE10W1-30-2X/G24N9K31/A1V
R900925687 4WRAE10W1-30-2X/G24N9K31/F1V
R900912261 4WRAE10W1-30-2X/G24N9Z31/A1V
R900954089 4WRAE10W1-60-2X/G24K31/A1V
R900732536 4WRAE10W1-60-2X/G24K31/F1V
R900936006 4WRAE10W1-60-2X/G24N9K31/A1V
R900949757 4WRAE10W1-60-2X/G24N9K31/F1V
R900909337 4WRAE10W1-60-2X/G24N9Z31/A1V
R900961942 4WRAE10W3-30-2X/G24N9K31/A1V
R978011121 4WRAE10W3-60-2X/G24K31/F1V
R900946871 4WRAE10W3-60-2X/G24N9K31/A1V
R900968832 4WRAE10W3-60-2X/G24N9K31/F1V
R900911320 4WRAE10W3-60-2X/G24N9Z31/A1V
R900954087 4WRAE10W30-2X/G24K31/A1V
R901059583 4WRAE10W30-2X/G24K31/A1V-280
R900711868 4WRAE10W30-2X/G24K31/F1V
R900913646 4WRAE10W30-2X/G24N9K31/A1V
R900922439 4WRAE10W30-2X/G24N9K31/F1V
R900900163 4WRAE10W30-2X/G24N9Z31/A1V
R900954088 4WRAE10W60-2X/G24K31/A1V
R901369568 4WRAE10W60-2X/G24K31/F1M
R900710530 4WRAE10W60-2X/G24K31/F1V
R901416065 4WRAE10W60-2X/G24N9K31/A1M
R900900988 4WRAE10W60-2X/G24N9K31/A1V
R900974924 4WRAE10W60-2X/G24N9K31/A1V-280
R900920055 4WRAE10W60-2X/G24N9K31/F1V
R900570097 4WRAE10W60-2X/G24N9Z31/A1V
R901239551 4WRAE10W60-2X=G24N9K31/F1V
R900954090 4WRAE10WA30-2X/G24K31/A1V
R900901949 4WRAE10WA30-2X/G24N9Z31/A1V
R900954091 4WRAE10WA60-2X/G24K31/A1V
R900904801 4WRAE10WA60-2X/G24N9K31/A1V
R901151668 4WRAE10WA60-2X/G24N9K31/F1V
R900966303 4WRAE10WB30-2X/G24K31/A1V
R901239201 4WRAE10WB30-2X/G24N9K31/F1V
R978019392 4WRAE10WB60-2X/G24N9K31/A1V
R901239457 4WRAE10WB60-2X/G24N9K31/F1V
