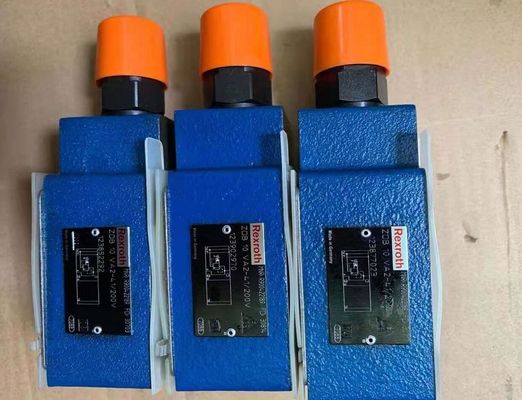

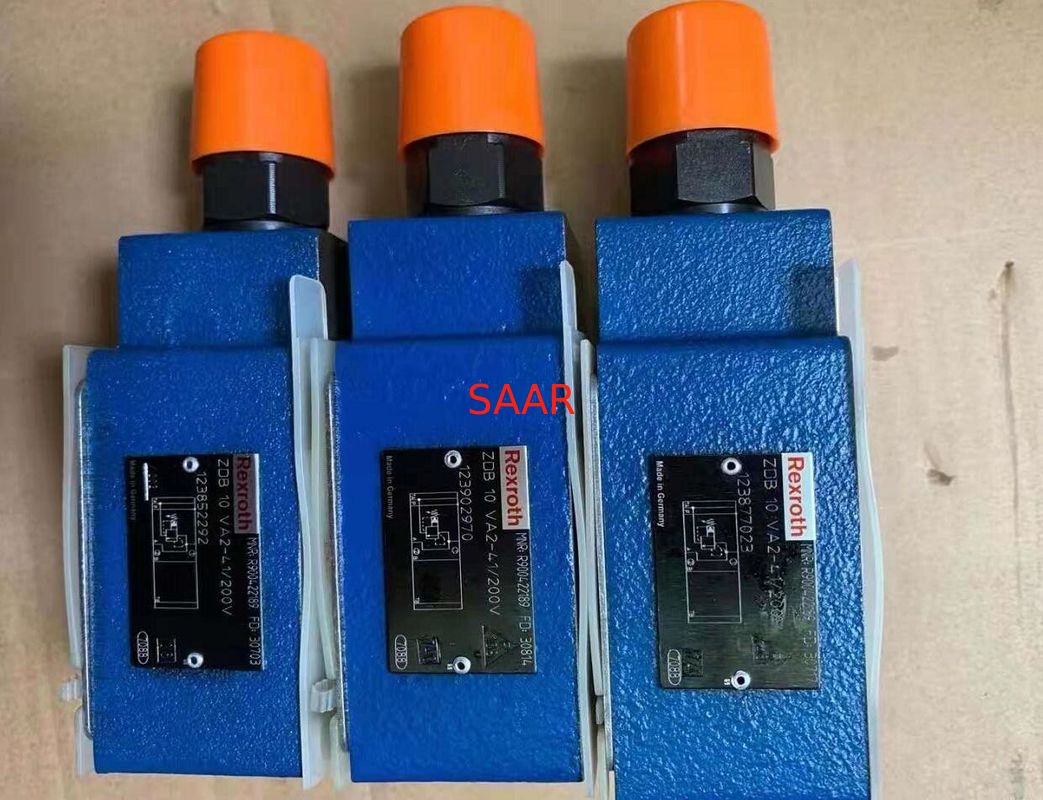

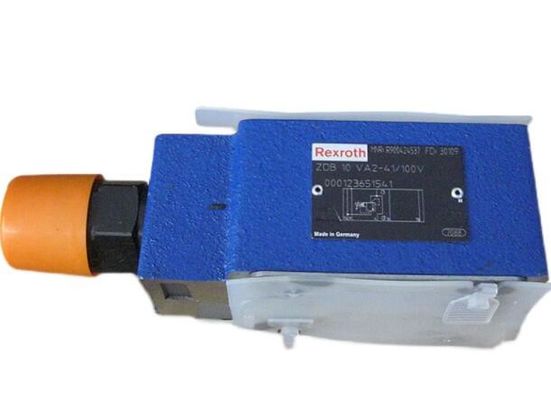

R900422189 ZDB10VA2-41/200V ZDB10VA2-4X/200V Rexroth ZDB10 Type Pressure Piloted Relief Valve

R900422189 ZDB10VA2-41/200V ZDB10VA2-4X/200V Rexroth ZDB10 Type Pressure Piloted Relief Valve

  • R900422189 ZDB10VA2-41/200V ZDB10VA2-4X/200V Rexroth ZDB10 Type Pressure Piloted Relief Valve
  • R900422189 ZDB10VA2-41/200V ZDB10VA2-4X/200V Rexroth ZDB10 Type Pressure Piloted Relief Valve
R900422189 ZDB10VA2-41/200V ZDB10VA2-4X/200V Rexroth ZDB10 Type Pressure Piloted Relief Valve
Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: ISO9001
Model Number: R900422189 ZDB10VA2-41/200V ZDB10VA2-4X/200V
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: On request
Packaging Details: Standard paper box
Delivery Time: 7-10days
Payment Terms: T/T, Western Union
Supply Ability: 100PCS per month
Contact Now
Detailed Product Description
Model: R900422189 MNR: ZDB10VA2-41/200V ZDB10VA2-4X/200V
High Light:

R900422189 Rexroth Hydraulic Valves

,

ZDB10VA2-41/200V

,

ZDB10 Type Pressure Piloted Relief Valve

Rexroth Pressure relief valve, pilot controlled ZDB10, Z2DB10



Size 10
Component series 4X
Maximum operating pressure 315 bar
Maximum flow 100 l/min





Features


Sandwich plate valve
Porting pattern according to ISO 4401-05-04-0-05
4 pressure ratings
6 circuit options
With 1 or 2 pressure valve cartridges
4 adjustment types for pressure adjustment, optionally
• Rotary knob
• Sleeve with hexagon and protective cap
• Lockable rotary knob with scale
• Rotary knob with scale
Corrosion-protected design



Type Code:



01 02 03 04 05 06   07   08 09 10 11
Z   DB 10     4X /       *
01 Sandwich plate Z
02 1 pressure valve cartridge (only with version “VA”, “VB”. “VT” and “VP”) no code
2 pressure valve cartridges (only with version “VC” and “VD”) 2
03 Pressure relief valve DB
04 Size 10 10
Relief function from – to:
05 A – TA VA
P – TA VP
TB1 – TA2 VT
B – TB VB
A – TA and B – TB VC
A – B and B – A VD
Adjustment type for pressure adjustment
06 Rotary knob 1
Sleeve with hexagon and protective cap 2

Lockable rotary knob with scale

1)

3
Rotary knob with scale 7
07 Component series 40 … 49 (40 … 49: unchanged installation and mounting dimensions) 4X
08 Set pressure up to 50 bar 50
Set pressure up to 100 bar 100
Set pressure up to 200 bar 200
Set pressure up to 315 bar 315
Corrosion resistance
09 None no code
Improved corrosion protection (240 h salt spray test according to EN ISO 9227) J3 2)
High corrosion protection (720 h salt spray test according to EN ISO 9227) J5 2)
Seal material
10 NBR seals no code
FKM seals V
Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)
11 Further details in the plain text *

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth Pressure relief valve, pilot controlled ZDB10 Series Model List:

R900927065 ZDB10VA1-4X/100
R901133117 ZDB10VA1-4X/100-40V
R901174980 ZDB10VA1-4X/100-90V
R900510491 ZDB10VA1-4X/100V
R900501258 ZDB10VA1-4X/200
R900506739 ZDB10VA1-4X/200V
R900569824 ZDB10VA1-4X/315
R900596771 ZDB10VA1-4X/315V
R900967520 ZDB10VA1-4X/50
R900967521 ZDB10VA1-4X/50V
R900427434 ZDB10VA2-4X/100
R900424537 ZDB10VA2-4X/100V
R900421265 ZDB10VA2-4X/200
R901025502 ZDB10VA2-4X/200-100V
R900776766 ZDB10VA2-4X/200-130V
R901018335 ZDB10VA2-4X/200-140V
R901079890 ZDB10VA2-4X/200-95
R900502038 ZDB10VA2-4X/200J
R901085240 ZDB10VA2-4X/200JV
R900422189 ZDB10VA2-4X/200V
R900430984 ZDB10VA2-4X/315
R901052771 ZDB10VA2-4X/315-215
R901310101 ZDB10VA2-4X/315-255V
R900409955 ZDB10VA2-4X/315V
R900432106 ZDB10VA2-4X/50
R900969830 ZDB10VA2-4X/50MIL15
R900751018 ZDB10VA2-4X/50P10V
R901154578 ZDB10VA2-4X/50P30V
R900423244 ZDB10VA2-4X/50V
R900590340 ZDB10VA2-4X/50VSO30
R900906981 ZDB10VA3-4X/100
R900587577 ZDB10VA3-4X/100V
R900449071 ZDB10VA3-4X/200
R900468215 ZDB10VA3-4X/200V
R900580391 ZDB10VA3-4X/315
R900589823 ZDB10VA3-4X/315V
R900425958 ZDB10VA3-4X/50
R900507069 ZDB10VA3-4X/50V
R901114420 ZDB10VA7-4X/100V
R900522100 ZDB10VA7-4X/200V
R901032480 ZDB10VA7-4X/315V
R900706121 ZDB10VA7-4X/50V
R900517585 ZDB10VB.-4X/...V
R900967524 ZDB10VB1-4X/100
R900565776 ZDB10VB1-4X/100V
R900581302 ZDB10VB1-4X/200
R900595254 ZDB10VB1-4X/200V
R900967918 ZDB10VB1-4X/315
R900910338 ZDB10VB1-4X/315V
R900967523 ZDB10VB1-4X/50
R900967522 ZDB10VB1-4X/50V
R900422073 ZDB10VB2-4X/100
R901183215 ZDB10VB2-4X/100-60
R900409951 ZDB10VB2-4X/100V
R900422261 ZDB10VB2-4X/200
R900722475 ZDB10VB2-4X/200-190V
R900422215 ZDB10VB2-4X/200V
R900425681 ZDB10VB2-4X/315
R900786686 ZDB10VB2-4X/315-150
R900927842 ZDB10VB2-4X/315J
R901447440 ZDB10VB2-4X/315J3
R901268377 ZDB10VB2-4X/315P300
R900409956 ZDB10VB2-4X/315V
R901402304 ZDB10VB2-4X/315V=KM
R900534186 ZDB10VB2-4X/350V
R900967525 ZDB10VB2-4X/50
R987009781 ZDB10VB2-4X/50
R900949361 ZDB10VB2-4X/50MIL15
R900425723 ZDB10VB2-4X/50V
R900580968 ZDB10VB3-4X/100
R900506373 ZDB10VB3-4X/100V
R900583297 ZDB10VB3-4X/200V
R900571103 ZDB10VB3-4X/315V
R900593169 ZDB10VB3-4X/50V
R900722254 ZDB10VB7-4X/100V
R900551707 ZDB10VB7-4X/200V
R901335301 ZDB10VB7-4X/315V
R901114418 ZDB10VB7-4X/50
R900583141 ZDB10VP.-4X/...V
R900967527 ZDB10VP1-4X/100
R900596905 ZDB10VP1-4X/100V
R900424559 ZDB10VP1-4X/200
R900471657 ZDB10VP1-4X/200V
R900967919 ZDB10VP1-4X/315
R900402018 ZDB10VP1-4X/315V
R900967526 ZDB10VP1-4X/50
R900520338 ZDB10VP1-4X/50V
R900431065 ZDB10VP2-4X/100
R900902076 ZDB10VP2-4X/100P60V
R900964380 ZDB10VP2-4X/100P70V
R900409959 ZDB10VP2-4X/100V
R901136398 ZDB10VP2-4X/160V
R900428468 ZDB10VP2-4X/200
R901457577 ZDB10VP2-4X/200-120
R900929776 ZDB10VP2-4X/200JV
R900409937 ZDB10VP2-4X/200V
R900425927 ZDB10VP2-4X/315
R900563544 ZDB10VP2-4X/315MIL15
R900786688 ZDB10VP2-4X/315-210
R900786687 ZDB10VP2-4X/315-225
R901020262 ZDB10VP2-4X/315-245
R901370272 ZDB10VP2-4X/315P250V
R901364367 ZDB10VP2-4X/315P270V
R900409958 ZDB10VP2-4X/315V
R900534185 ZDB10VP2-4X/350V
R900440098 ZDB10VP2-4X/50
R900449059 ZDB10VP2-4X/50J
R900972543 ZDB10VP2-4X/50P10V
R900963931 ZDB10VP2-4X/50P25V
R900422752 ZDB10VP2-4X/50V
R901136397 ZDB10VP2-4X/80V
R901457704 ZDB10VP2-4X=315-210
R900522880 ZDB10VP3-4X/100
R900583303 ZDB10VP3-4X/100V
R901136401 ZDB10VP3-4X/160V
R900439335 ZDB10VP3-4X/200
R900950503 ZDB10VP3-4X/200-160V
R900583145 ZDB10VP3-4X/200V
R900430129 ZDB10VP3-4X/315
R900431380 ZDB10VP3-4X/315V
R900460358 ZDB10VP3-4X/50
R900560613 ZDB10VP3-4X/50V
R901136399 ZDB10VP3-4X/80V
R900441130 ZDB10VP7-4X/100
R900513706 ZDB10VP7-4X/100V
R900580733 ZDB10VP7-4X/200
R900562255 ZDB10VP7-4X/200V
R900565406 ZDB10VP7-4X/315
R900550125 ZDB10VP7-4X/315V
R900967531 ZDB10VT1-4X/100
R900594382 ZDB10VT1-4X/100V
R900967532 ZDB10VT1-4X/200
R900967529 ZDB10VT1-4X/200V
R900967921 ZDB10VT1-4X/315
R900967922 ZDB10VT1-4X/315V
R900967530 ZDB10VT1-4X/50
R900472791 ZDB10VT1-4X/50
R900474291 ZDB10VT1-4X/50V
R900967528 ZDB10VT1-4X/50V
R900967533 ZDB10VT2-4X/100
R900442704 ZDB10VT2-4X/100V
R900967534 ZDB10VT2-4X/200
R900593768 ZDB10VT2-4X/200V
R900967924 ZDB10VT2-4X/315
R900505827 ZDB10VT2-4X/315V
R900428936 ZDB10VT2-4X/50
R900429149 ZDB10VT2-4X/50V
R900587512 ZDB10VT3-4X/100V
R900455615 ZDB10VT3-4X/50V
R900554170 ZDB10VT3-4X/50V
R900706120 ZDB10VT7-4X/50V
