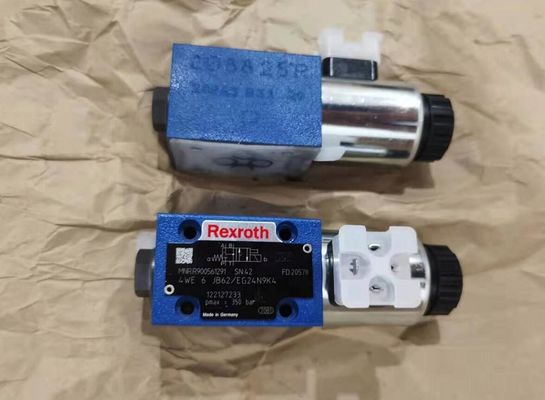

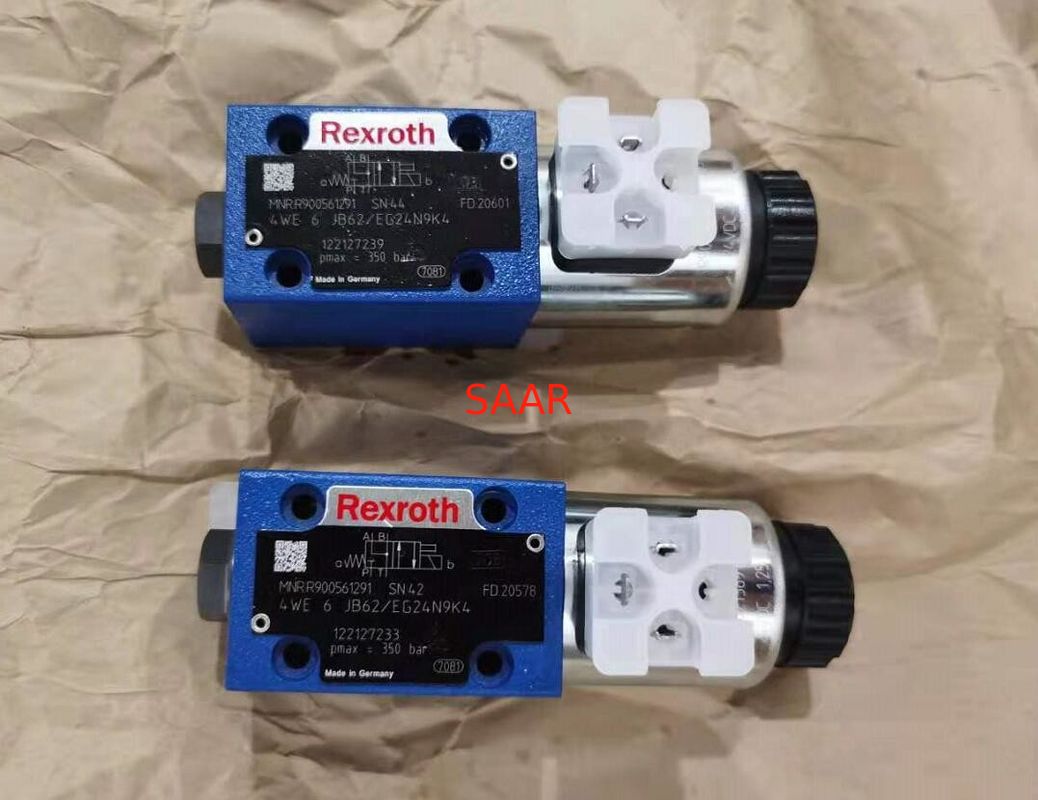

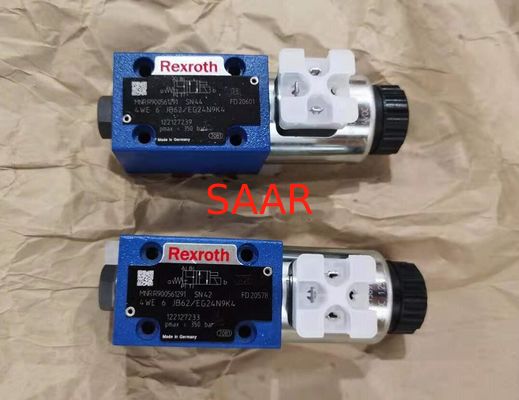

R900561291 4WE6JB62/EG24N9K4 4WE6JB6X/EG24N9K4 Rexroth 4WE6JB Type Solenoid Directional Valve

R900561291 4WE6JB62/EG24N9K4 4WE6JB6X/EG24N9K4 Rexroth 4WE6JB Type Solenoid Directional Valve

  • R900561291 4WE6JB62/EG24N9K4 4WE6JB6X/EG24N9K4 Rexroth 4WE6JB Type Solenoid Directional Valve
  • R900561291 4WE6JB62/EG24N9K4 4WE6JB6X/EG24N9K4 Rexroth 4WE6JB Type Solenoid Directional Valve
R900561291 4WE6JB62/EG24N9K4 4WE6JB6X/EG24N9K4 Rexroth 4WE6JB Type Solenoid Directional Valve
Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: ISO9001
Model Number: R900561291 4WE6JB62/EG24N9K4 4WE6JB6X/EG24N9K4
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: On request
Packaging Details: Standard paper box
Delivery Time: 7-10days
Payment Terms: T/T, Western Union
Supply Ability: 100PCS per month
Contact Now
Detailed Product Description
MNR: R900561291 MODEL: 4WE6JB62/EG24N9K4 4WE6JB6X/EG24N9K4
High Light:

R900561291 Rexroth Hydraulic Valves

,

4WE6JB62/EG24N9K4

,

Rexroth 4WE6JB Solenoid Directional Valve

Rexroth 4WE6 Series Solenoid Directional Valves

Directional spool valves, direct operated, with solenoid actuation
WE 6...E
Size 6
Component series 6X
Maximum operating pressure 350 bar
Maximum flow (DC) 80 l/min
Maximum flow (AC) 60 l/min

Features
4/3-, 4/2- or 3/2-way version
High-power solenoid
Porting pattern according to DIN 24340 form A
Porting pattern according to ISO 4401-03-02-0-05
Wet-pin DC or AC solenoids with detachable coil
Solenoid coil is rotatable by 90°
The coil can be changed without having to open the pressure-tight chamber
Electrical connection as individual or central connection
Optional auxiliary operating device
Spool position monitoring, optional

Type Code:

01
02
03
04
05

06
07
08
09
10
11

12
13
14
15
16

WE
6

6X
/

E




/




*


01
3 main ports
3
4 main ports
4
02
Directional valve
WE
03
Size 6
6
04
Symbols e. g. C, E, EA, EB, etc.; for the possible version, see Symbols

05
Component series 60 … 69 (60 … 69: unchanged installation and connection dimensions)
6X
06
With spring return
no code
Without spring return
O
Without spring return with detent
OF
07
High-power solenoid, wet-pin, with detachable coil
E​
08
Direct voltage 24 V
G24
Alternating voltage 230 V, 50/60 Hz
W230
AC voltage 110 V or 120 V, 50/60 Hz
W110
W + voltage
Direct voltage 205 V
G205
DC solenoid with rectifier for AC voltage (not frequency-related; only available with plug-in connection with cover, see central connection dimensions)
W110R
Nominal voltage 96 V at DC solenoid in case of operation with AC voltage mains (AC voltage mains 110 V - 50/60 Hz with an admissible voltage tolerance of +/- 10 %)
G96
Nominal voltage 205 V at DC solenoid with operation with AC voltage mains (AC voltage mains 230 V – 50/60 Hz with an admissible voltage tolerance of +/- 10 %)
G205
Connection to AC voltage mains via control with rectifier
1)
09
Without manual override
no code
With concealed manual override (standard)
N9 2)
With manual override
N 2)
With lockable manual override "mushroom button" (small)
N4 2)
With lockable manual override "mushroom button" (large)
N5 2); 3)
With manual override "mushroom button" (large), not lockable
N6 2)
With lockable manual override "nut"
N7 2)
Electrical connection
10
Individual connection
Without mating connector, with connector DIN EN 175301-803
K4 4)
Without mating connector, with connector AMP Junior-Timer
C44)
Without mating connector, with connector DT 04 - 2PA (Deutsch plug)
K404); 7)
Without mating connector, 4-pole with connector M12 x 1 according to IEC 60947-5-2, integrated interference protection circuit and status LED
K72L5)
Without mating connector, 4-pole with connector M12 x 1 according to IEC 60947-5-2, integrated interference protection circuit and status LED (no connection pin 1 to pin 2)
K73L5)
Central connection
Cable entry at the cover, with indicator light
DL
Central plug-in connection at the cover, with indicator light (without mating connector); connector according to DIN EN 175201-804
DK6L6)
With M12x1 plug-in connection, high-performance version: 4-pole
DK24L 5)
With M12x1 plug-in connection, high-performance version: 4-pole, integrated interference protection circuit, operating display with LED
DK35L 5)
Spool position monitoring


11
Without position switch
no code
Inductive position switch type QM
Monitored spool position “a”
QMAG24
Monitored spool position “b”
QMBG24
Monitored rest position
QM0G24
Inductive position switch type QR
Monitored rest position
QR0G24S
Monitored spool position "a" and "b"
QRABG24E
Inductive position switch type QL
Monitored spool position “a”
QLAG24
Monitored spool position “b”
QLBG24
Inductive proximity sensor type QS
Monitored spool position “a”
QSAG24W
Monitored spool position “b”
QSBG24W
Monitored spool position "0"
QS0G24W
Monitored spool position "0" and "a"
QS0AG24W
Monitored spool position "0" and "b"
QS0BG24W
Monitored spool position "a" and "b"
QSABG24W
For further details, see data sheet 24830
12
Without throttle insert
no code
With throttle insert
Connection
Throttle Ø in mm
0,8 mm
1,0 mm
1,2 mm
P
= B08
= B10
= B12
A
= H08
= H10
= H12
B
= R08
= R10
= R12
A and B
= N08
= N10
= N12
T
= X08
= X10
= X12
Use with flows which exceed the performance limit of the valve (see Product description)
Clamping length
13
42 mm (standard)
no code
22 mm
Z
Seal material
14
NBR seals
no code
FKM seals
V
Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)
15
Without locating hole
no code
With locating hole
/60 8)
With locating hole and locking pin ISO 8752-3x8-St
/62
16
Further details in the plain text
*
