Name: 0811404603 4WRPEH6C3B40L-2X/G24K0/A1M 4WRPEH6C3B40L-20/G24K0/A1M Directional Control Valve Integrated Electronics
Brand: Rexroth
SKU: 0811404603 4WRPEH6C3B40L-2X/G24K0/A1M 4WRPEH6C3B40L-20/G24K0/A1M
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (171 reviews)

Home Products Rexroth Hydraulic Valves

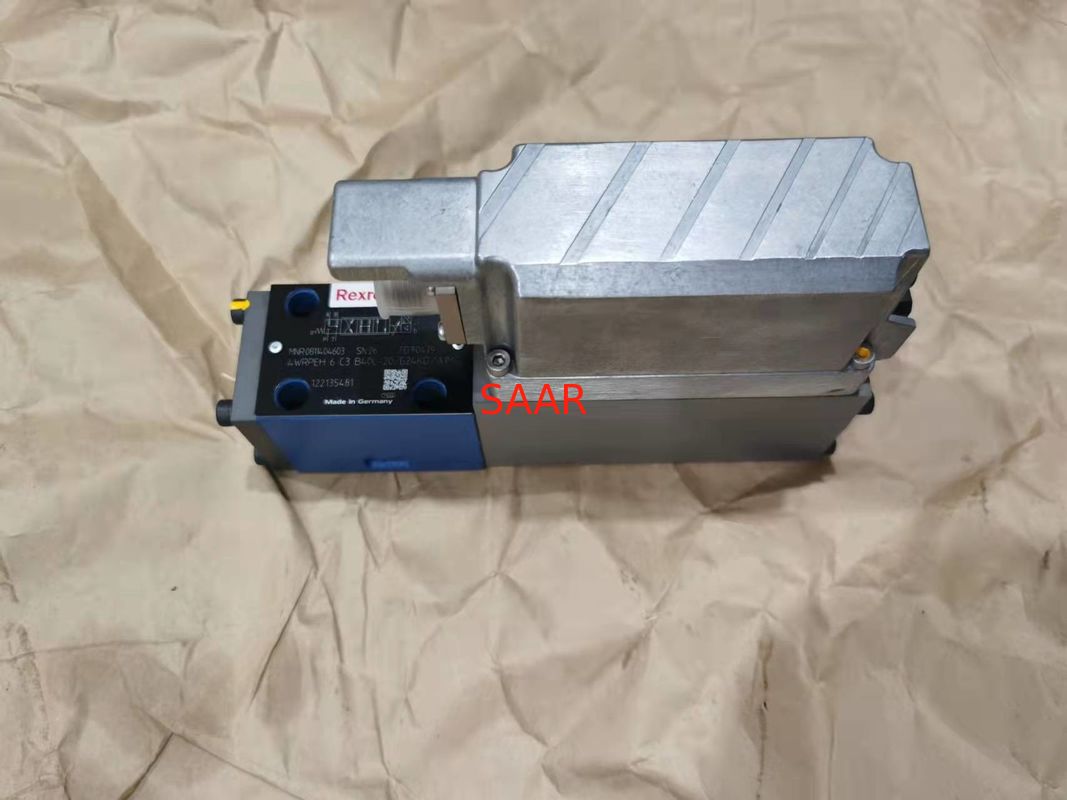

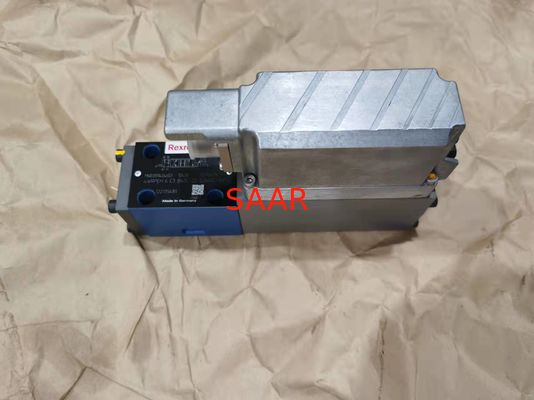

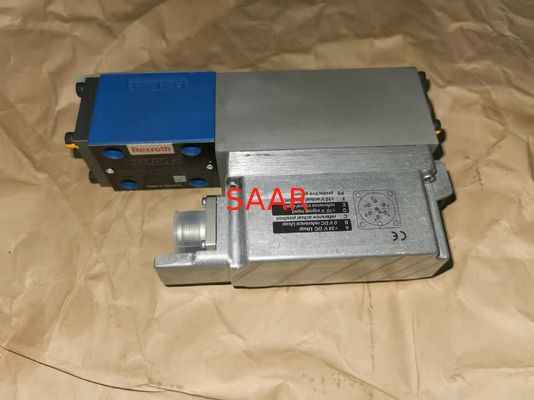

0811404603 4WRPEH6C3B40L-2X/G24K0/A1M 4WRPEH6C3B40L-20/G24K0/A1M Directional Control Valve Integrated Electronics

Product Details:

Place of Origin:	Germany
Brand Name:	Rexroth
Model Number:	0811404603 4WRPEH6C3B40L-2X/G24K0/A1M 4WRPEH6C3B40L-20/G24K0/A1M
CertifiSAARion:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	On Request
Packaging Details:	Standard paper box
Delivery Time:	7-10days
Payment Terms:	T/T, Western Union
Supply Ability:	100PCS per month

Contact Now

Detailed Product Description

Material No.:

0811404603

Type No.:

4WRPEH6C3B40L-2X/G24K0/A1M 4WRPEH6C3B40L-20/G24K0/A1M

High Light:

40l/Min Rexroth Hydraulic Valves

Integrated Electronics Directional Control Valve

Size 6 Rexroth Hydraulic Valves

High-response directional valves, direct operated, with electrical position feedback and integrated electronics (OBE)
4WRPEH 6 -2X

Size 6
Component series 2X
Maximum operating pressure 315 bar
Nominal flow 2 … 40 l/min

Features

4/4 directional design
With control spool and sleeve in servo quality
Operated on one side, 4/4 fail-safe position in switched-off condition
Electric position feedback and integrated electronics (OBE), calibrated in the factory
Electrical connection 6P+PE; signal input differential amplifier with interface "A1" ±10 V or interface "F1" 4 ... 20 mA (Rsh = 200 Ω)
Use for electro-hydraulic controls in production and test systems

Type Code:

01	02	03	04	05	06	07	08	09		10		11	12		13	14	15
4	WRP	E	H	6		B			‒	2X	/	G24	K0	/		M	*

01	4 main ports	4
02	High-response directional valve, direct operated	WRP
03	With integrated electronics (OBE)	E
04	Control spool/sleeve	H
05	Size 6	6
06	Symbols; for the possible version, see "Symbols/Circuit diagrams"	C, C1, C3, C4, C5
Installation side of the inductive position transducer
07	Valve side B (standard) (see "Symbols/Circuit diagrams")	B
Rated flow at 70 bar valve pressure differential (35 bar/control edge)
08	2 l/min (Only version "L")	02
	4 l/min	04
	12 l/min (Only version "L")	12
	15 l/min (Only version “P")	15
	24 l/min (Only version "L")	24
	25 l/min (Only version “P")	25
	40 l/min	40
Flow characteristic
09	Linear	L
09	Inflected characteristic curve (inflection 60 % for version “15” and"25", otherwise inflection 40 %)	P
10	Component series 20 ... 29 (20 ... 29: unchanged installation and connection dimensions)	2X
Supply voltage of the control electronics
11	Direct voltage 24 V	G24
Electrical connection
12	Without mating connector; connector DIN 43563-AM6	K0
Control electronics interface
13	Command value input ±10 V	A1
13	Command value input 4 … 20 mA	F1
Seal material
14	NBR seals	M
	Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)
15	Further details in the plain text	*

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

High-response directional valves, direct operated, with electrical position feedback and integrated electronics (OBE)
4WRPEH 6 -2X Model List:

1817414313	4WRPEH6C3B04P-2X/G24K0/B5M
1817414343	4WRPEH6C3B04L-2X/G24K0/F1M-816
0811404350	4WRPEH6C4B04L-2X/G24K0/F1M
0811404351	4WRPEH6C4B12L-2X/G24K0/F1M
0811404352	4WRPEH6C4B24L-2X/G24K0/F1M
0811404353	4WRPEH6C4B40L-2X/G24K0/F1M
0811404354	4WRPEH6C1B40L-2X/G24K0/F1M
0811404355	4WRPEH6CB24L-2X/G24K0/A1M
0811404356	4WRPEH6C4B40P-2X/G24K0/B5M
0811404357	4WRPEH6C3B04L-2X/G24K0/A1V
0811404358	4WRPEH6C6B02L-2X/G24K0/A1M
0811404359	4WRPEH6CB25P-2X/G24K0/A1M
0811404360	4WRPEH6C3B24L-2X/G24K0/F1M-299
0811404363	4WRPEH6CB25P-2X/G24K0/A1M-303
0811404364	4WRPEH6C4B40L-2X/G24K0/B5M
0811404365	4WRPEH6C3B12L-2X/G24K0/B5M
0811404366	4WRPEH6CB08P-2X/G24K0/A1M
0811404368	4WRPEH6C3B12P-2X/G24K0/A1M-854
0811404525	4WRPEH6C1B24L-2X/G24K0/F1M
0811404526	4WRPEH6C3B02L-2X/G24K0/F1M
0811404527	4WRPEH6CB12L-2X/G24K0/A1M
0811404528	4WRPEH6CB04P-2X/G24K0/A1M
0811404529	4WRPEH6CB24L-2X/G24K0/A1M-819
0811404530	4WRPEH6C3B12L-2X/G24K0/A1V-816
0811404531	4WRPEH6CB24L-2X/G24XNZ0/A1V
0811404533	4WRPEH6C3B04L-2X/G24XNZ0/A1V
0811404536	4WRPEH6C3B40P-2X/G24XNZ0/A1V
0811404537	4WRPEH6C4B02L-2X/G24K0/F1M
0811404538	4WRPEH6C3B40L-2X/G24K0/A1V
0811404600	4WRPEH6C3B04L-2X/G24K0/A1M
0811404601	4WRPEH6C3B12L-2X/G24K0/A1M
0811404602	4WRPEH6C3B24L-2X/G24K0/A1M
0811404603	4WRPEH6C3B40L-2X/G24K0/A1M
0811404604	4WRPEH6KB50P-2X/G24K0/A1M
0811404605	4WRPEH6C3B04P-2X/G24K0/A1M
0811404606	4WRPEH6C3B02L-2X/G24K0/A1M-816
0811404607	4WRPEH6C3B04L-2X/G24K0/A1M-816
0811404608	4WRPEH6C3B12L-2X/G24K0/A1M-816
0811404609	4WRPEH6C3B40L-2X/G24K0/A1M-816
0811404610	4WRPEH6C4B04L-2X/G24K0/A1M
0811404611	4WRPEH6C4B12L-2X/G24K0/A1M
0811404612	4WRPEH6C4B24L-2X/G24K0/A1M
0811404613	4WRPEH6C4B40L-2X/G24K0/A1M
0811404614	4WRPEH6C3B04L-2X/G24K0/A1M-818
0811404615	4WRPEH6C3B12L-2X/G24K0/A1M-818
0811404616	4WRPEH6C3B04L-2X/G24K0/A1M-817
0811404617	4WRPEH6C3B12L-2X/G24K0/A1M-817
0811404620	4WRPEH6XB24L-2X/G24K0/A1M-743
0811404621	4WRPEH6C3B04L-2X/G24K0/B5M
0811404622	4WRPEH6C3B24L-2X/G24K0/B5M
0811404623	4WRPEH6C4B12L-2X/G24K0/B5M
0811404624	4WRPEH6C3B08L-2X/G24K0/A1M-841
0811404625	4WRPEH6C3B04L-2X/G24K0/A1M-841
0811404626	4WRPEH6C3B15P-2X/G24K0/B5M
0811404627	4WRPEH6C3B04P-2X/G24K0/A1M-561
0811404628	4WRPEH6K3B50P-2X/G24K0/A1M
0811404629	4WRPEH6C3B02L-2X/G24K0/A1M-817
0811404630	4WRPEH6C3B02L-2X/G24K0/A1M-841
0811404631	4WRPEH6C3B04L-2X/G24K0/F1M
0811404632	4WRPEH6C3B12L-2X/G24K0/F1M
0811404633	4WRPEH6C3B24L-2X/G24K0/F1M
0811404634	4WRPEH6C3B40L-2X/G24K0/F1M
0811404635	4WRPEH6C3B25P-2X/G24K0/B5M
0811404636	4WRPEH6C4B24L-2X/G24K0/B5M
0811404637	4WRPEH6C3B40P-2X/G24K0/B5M
0811404638	4WRPEH6C4B40L-2X/G24K0/A1V
0811404639	4WRPEH6CB40L-2X/G24K0/A1M
0811404640	4WRPEH6CB40L-2X/G24K0/F1M
0811404641	4WRPEH6C4B02L-2X/G24K0/A1M
0811404642	4WRPEH6C3B15P-2X/G24K0/A1M
0811404643	4WRPEH6C3B25P-2X/G24K0/A1M
0811404644	4WRPEH6C3B40P-2X/G24K0/A1M
0811404645	4WRPEH6C4B15P-2X/G24K0/A1M
0811404646	4WRPEH6C4B25P-2X/G24K0/A1M
0811404647	4WRPEH6C4B40P-2X/G24K0/A1M
0811404648	4WRPEH6C5B40P-2X/G24K0/A1M
0811404649	4WRPEH6C1B40P-2X/G24K0/A1M
0811404735	4WRPEH6C3B40L-2X/G24K0/B5M
0811404736	4WRPEH6C3B15P-2X/G24K0/A1M-303
0811404737	4WRPEH6C3B15P-2X/G24K0/A1M-561
0811404738	4WRPEH6C1B40L-2X/G24K0/A1M
0811404741	4WRPEH6CB04L-2X/G24K0/A1M
0811404743	4WRPEH6CB24L-2X/G24K0/B5M
0811404744	4WRPEH6C3B02L-2X/G24K0/A1M
0811404746	4WRPEH6C5B40L-2X/G24K0/A1M
0811404747	4WRPEH6C3B25P-2X/G24K0/A1M
0811404748	4WRPEH6C5B40P-2X/G24K0/A1M
0811404749	4WRPEH6C5B40L-2X/G24K0/F1M
0811406444	4WRPEH6C3B40P-2X/G24K0/A1M
R901030333	4WRPEH6CB24L-2X/G24K0/A1M-819
R901068998	4WRPEH6C3B02L-2X/G24K0/A1M-863
R901089738	4WRPEH6C3B40L-2X/G24K0/A1M-818
R901090319	4WRPEH6C3B04P-2X/G24K0/F1M
R901094403	4WRPEH6C3B04L-2X/G24K0/F1M-885
R901098057	4WRPEH6C5B24L-2X/G24K0/A1M
R901099725	4WRPEH6C3B04L-2X=G24K0/F1M-816
R901102638	4WRPEH6C3B12L-2X/G24K0/A1V
R901114916	4WRPEH6CB12L-2X/G24K0/F1M
R901114917	4WRPEH6CB24L-2X/G24K0/F1M
R901119611	4WRPEH6C3B08L-2X/G24K0/F1V
R901125451	4WRPEH6CB04L-2X/G24K0/F1M
R901129227	4WRPEH6CB04L-2X/G24K0/F1V
R901130878	4WRPEH6C3B24L-2X/G24K0/F1M-303
R901131999	4WRPEH6C3B04L-2X/G24K0/A1V-816
R901136861	4WRPEH6C4B40L-2X/G24K0/F1V
R901137452	4WRPEH6C5B24L-2X/G24K0/F1M
R901153461	4WRPEH6C3B15P-2X/G24K0/F1M
R901167904	4WRPEH6C4B40P-2X/G24K0/F1M
R901171861	4WRPEH6C3B24L-2X/G24K0/A1V
R901172445	4WRPEH6C3B02L-2X/G24K0/A1V-816
R901172452	4WRPEH6C3B40L-2X/G24K0/A1V-816
R901172455	4WRPEH6C3B40L-2X/G24K0/F1M-816
R901174367	4WRPEH6C3B12L-2X/G24K0/F1M-936
R901179244	4WRPEH6C3B24L-2X/G24K0/F1V
R901190457	4WRPEH6C3B12L-2X/G24K0/A1M-303
R901200038	4WRPEH6C3B12L-2X/G24K0/F1V
R901201762	4WRPEH6C3B02L-2X/G24K0/B5M
R901207289	4WRPEH6C3B04L-2X/G24K0/F1V
R901208916	4WRPEH6C3B24L-2X/G24K0/A1V-936
R901208917	4WRPEH6C3B24L-2X/G24K0/F1V-936
R901213180	4WRPEH6C5B04L-2X/G24K0/F1M
R901222207	4WRPEH6C3B40L-2X/G24K0/F1V-816
R901222495	4WRPEH6C3B40L-2X/G24K0/F1V
R901226219	4WRPEH6CB40P-2X/G24K0/F1M
R901231527	4WRPEH6C5B12L-2X/G24K0/F1M
R901236471	4WRPEH6C5B12L-2X/G24K0/A1M
R901244410	4WRPEH6CB02L-2X/G24K0/A1M
R901246814	4WRPEH6C3B40P-2X/G24K0/A1M-303
R901255687	4WRPEH6C3B12L-2X/G24K0/A1M-958
R901255692	4WRPEH6C3B12L-2X/G24K0/F1M-958
R901266295	4WRPEH6C4B15P-2X/G24K0/F1M
R901266764	4WRPEH6C3B15P-2X/G24K0/A1V
R901273569	4WRPEH6C4B24L-2X/G24K0/F1V
R901274673	4WRPEH6CB02L-2X/G24K0/F1M
R901276204	4WRPEH6C5B04L-2X/G24K0/A1M
R901284158	4WRPEH6C4B02L-2X/G24K0/F1V
R901284350	4WRPEH6C3B04P-2X/G24K0/A1M-561
R901288819	4WRPEH6CB40L-2X/G24K0/A1M-819
R901295071	4WRPEH6CB24L-2X/G24K0/F1V
R901299920	4WRPEH6CB12L-2X/G24K0/A1M-819
R901303846	4WRPEH6C1B24L-2X/G24K0/A1M
R901307161	4WRPEH6C4B04L-2X/G24K0/F1V
R901308316	4WRPEH6C3B12L-2X/G24K0/F1M-885
R901316274	4WRPEH6CB15P-2X/G24K0/A1M-819
R901316275	4WRPEH6CB25P-2X/G24K0/A1M-819
R901316276	4WRPEH6CB40P-2X/G24K0/A1M-819
R901316278	4WRPEH6CB40P-2X/G24K0/A1M
R901316279	4WRPEH6CB15P-2X/G24K0/A1M
R901318493	4WRPEH6C4B25P-2X/G24K0/F1M
R901335676	4WRPEH6CB12L-2X/G24K0/A1M-981
R901335677	4WRPEH6CB24L-2X/G24K0/A1M-981
R901335678	4WRPEH6CB15P-2X/G24K0/A1M-981
R901335679	4WRPEH6CB25P-2X/G24K0/A1M-981
R901335682	4WRPEH6CB40P-2X/G24K0/A1M-981
R901335689	4WRPEH6CB12L-2X/G24K0/A1M-982
R901335693	4WRPEH6CB40L-2X/G24K0/A1M-982
R901335696	4WRPEH6CB40P-2X/G24K0/A1M-982
R901347942	4WRPEH6C4B04P-2X/G24K0/A1M
R901348187	4WRPEH6C5B40L-2X/G24K0/F1V
R901348422	4WRPEH6C3B25P-2X/G24K0/F1M
R901353808	4WRPEH6C1B12L-2X/G24K0/A1M
R901357059	4WRPEH6C3B40P-2X/G24K0/F1M
R901363412	4WRPEH6CB40L-2X/G24K0/F1V
R901363845	4WRPEH6C3B12L-2X/G24K0/A5M
R901363849	4WRPEH6CB24L-2X/G24K0/A5M
R901363856	4WRPEH6CB40L-2X/G24K0/A5M
R901366133	4WRPEH6C1B04L-2X/G24K0/F1V
R901367205	4WRPEH6CB12L-2X/G24K0/F1V
R901374649	4WRPEH6CB02L-2X/G24K0/F1V
R901374653	4WRPEH6C3B02L-2X/G24K0/F1V
R901383468	4WRPEH6C4B12L-2X/G24K0/F1V
R901387787	4WRPEH6CB04L-2X/G24K0/C6V
R901387788	4WRPEH6C4B40L-2X/G24K0/C6V
R901432014	4WRPEH6CB40L-2X/G24K0/C6M
R901PT0044	4WRPEH6C5B24L-2X/G24K0/A1M
R901PT0086	4WRPEH6C3B04L-2X/G24K0/F1M-885
R927000557	4WRPEH6C4B40L-2X/G24K0/A1M
R927000622	4WRPEH6C3B12L-2X/G24K0/A1M
R927000625	4WRPEH6C3B04L-2X/G24K0/A1M
R927000626	4WRPEH6C4B40L-2X/G24K0/A1V
R927000627	4WRPEH6C3B24L-2X/G24K0/A1M
R927000628	4WRPEH6C4B04L-2X/G24K0/A1M
R927000629	4WRPEH6C4B12L-2X/G24K0/A1M
R927000630	4WRPEH6C4B24L-2X/G24K0/A1M
R927000631	4WRPEH6C3B40P-2X/G24K0/A1M
R927000632	4WRPEH6C4B02L-2X/G24K0/A1M
R927000633	4WRPEH6C4B40P-2X/G24K0/A1M
R927000635	4WRPEH6C3B04L-2X/G24K0/F1M
R927000636	4WRPEH6C3B12L-2X/G24K0/F1M
R927000637	4WRPEH6C3B24L-2X/G24K0/F1M
R927000639	4WRPEH6C3B40L-2X/G24K0/F1M
R927000641	4WRPEH6C3B04L-2X/G24K0/B5M
R927000642	4WRPEH6C3B24L-2X/G24K0/B5M
R927000643	4WRPEH6C3B12L-2X/G24K0/B5M
R927000644	4WRPEH6C4B24L-2X/G24K0/B5M
R927000645	4WRPEH6C3B40P-2X/G24K0/B5M
R927000646	4WRPEH6C3B40L-2X/G24K0/B5M
R927000905	4WRPEH6CB40L-2X/G24K0/A1M
R927000906	4WRPEH6C3B15P-2X/G24K0/A1M
R927000907	4WRPEH6KB50P-2X/G24K0/A1M
R927000908	4WRPEH6K3B50P-2X/G24K0/A1M
R927000909	4WRPEH6C4B25P-2X/G24K0/A1M
R927000910	4WRPEH6C4B15P-2X/G24K0/A1M
R927000911	4WRPEH6C1B40L-2X/G24K0/A1M
R927000920	4WRPEH6CB04L-2X/G24K0/A1M
R927000921	4WRPEH6CB40L-2X/G24K0/F1M
R927001152	4WRPEH6C1B40P-2X/G24K0/A1M
R927001153	4WRPEH6C3B02L-2X/G24K0/A1M

Saar HK Electronic Limited
Add: Rm 1506,28# Moyu Rd,Shanghai,China,201805
Tel: +86-21-5956 1370
Fax:+86-21-5012 3536
Email: jason@hydraulicpumpvalve.com
Skype: jason.saar
Mobile/WhatsApp: +8613918187448
