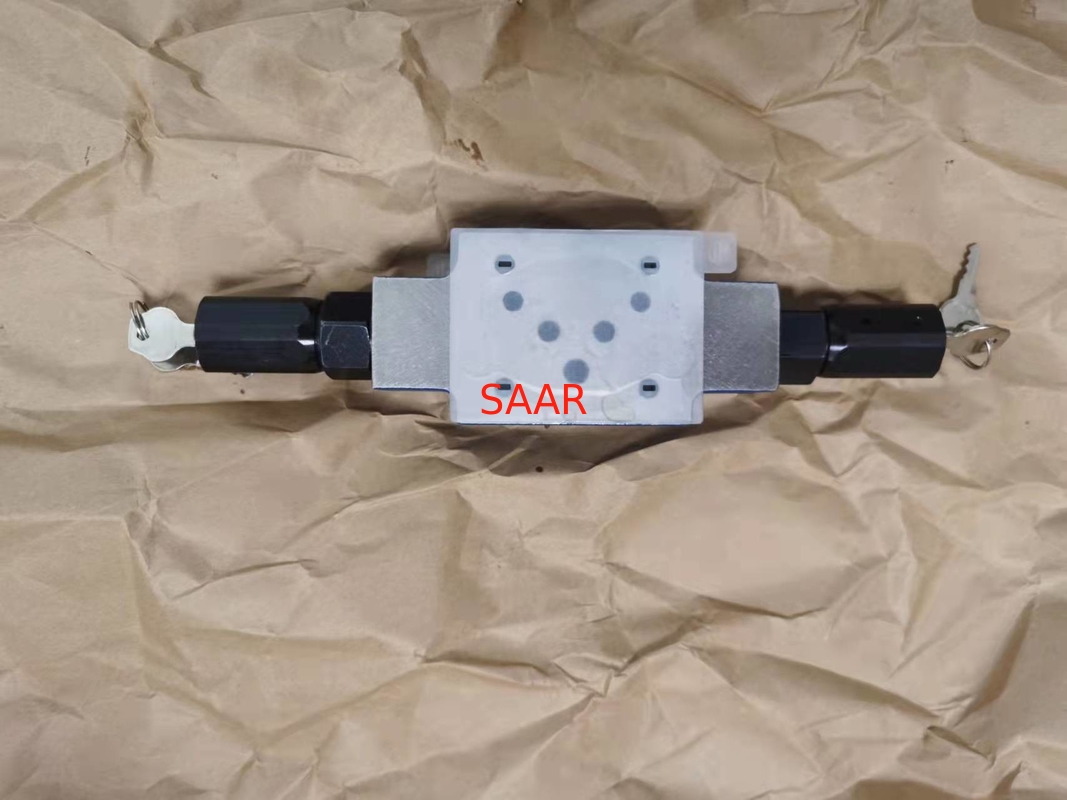

R900989094 Z2FS10-3-3X/ Z2FS10-3-32/ Throttle Check Valve

R900989094 Z2FS10-3-3X/ Z2FS10-3-32/ Throttle Check Valve

  • R900989094 Z2FS10-3-3X/ Z2FS10-3-32/ Throttle Check Valve
R900989094 Z2FS10-3-3X/ Z2FS10-3-32/ Throttle Check Valve
Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: ISO9001
Model Number: R900989094 Z2FS10-3-3X/ Z2FS10-3-32/
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: On request
Packaging Details: Standard paper box
Delivery Time: 7-10days
Payment Terms: T/T, Western Union
Supply Ability: 100PCS per month
Contact Now
Detailed Product Description
Model: R900989094 MNR: Z2FS10-3-3X/ Z2FS10-3-32/
High Light:

Size 10 Throttle Check Valve

,

R900989094 Throttle Check Valve

,

160L/Min Throttle Check Valve

Rexroth Throttle check valve Z2FS10





Size 10
Component series 3X
Maximum operating pressure 315 bar
Maximum flow 160 l/min



Features
Sandwich plate valve
Porting pattern according to ISO 4401-05-04-0-05
For the main or pilot flow limitation of 2 actuator ports.
3 adjustment types:
• Lockable rotary knob with scale• Spindle with internal hexagon and scale• Rotary knob with scale
Meter-in or meter-out throttling
Corrosion-protected design



Type Code:

01 02 03 04   05   06 07 08 09 10
Z2FS 10     3X /         *
01 Throttle check valve, sandwich plate design Z2FS
02 Size 10 10
03 Throttle check valve side A and B 1)
Throttle check valve side A A
Throttle check valve side B B
Adjustment type
04 Lockable rotary knob with scale 3 2)
Spindle with internal hexagon and scale 5
Rotary knob with scale 7
05 Component series 30 ... 39 (30 ... 39: unchanged installation and connection dimensions) 3X
06 With two throttle check valves, supply or discharge throttling (the valve can be rotated) no code
Supply throttling on side A (…A.–3X/S) S
Supply throttling on side B (…B.–3X/S)
Discharge throttling on side A (…A.–3X/S2) S2
Discharge throttling on side B (…B.–3X/S2)
Corrosion resistance
07 None no code
Improved corrosion protection (240 h salt spray test according to EN ISO 9227) J3
Seal material
08 NBR seals no code
FKM seals V
Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)
Pilot oil duct
09 None no code
Via channel X and Y SO30
10 Further details in the plain text *





SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.



Rexroth Throttle check valve Z2FS10 Model List:



R900989094 Z2FS10-3-3X/
R900523737 Z2FS10-3-3X/V
R900989095 Z2FS10-5-3X/
R901246286 Z2FS10-5-3X/J
R900536467 Z2FS10-5-3X/JV
R900537745 Z2FS10-5-3X/SO760
R900517812 Z2FS10-5-3X/V
R900080934 Z2FS10-5-3X/VSO450
R900051691 Z2FS10-5-3X/V=LB
R901427672 Z2FS10-5-3X=J3
R900072790 Z2FS10-5-3X=V
R900220059 Z2FS10-5-3X=V=PL
R900989096 Z2FS10-7-3X/
R900523926 Z2FS10-7-3X/V
R900989097 Z2FS10A3-3X/S
R900989098 Z2FS10A3-3X/S2
R900569858 Z2FS10A3-3X/S2V
R900524995 Z2FS10A3-3X/SV
R900215040 Z2FS10A5-3X/JV
R900989099 Z2FS10A5-3X/S
R900989100 Z2FS10A5-3X/S2
R900571890 Z2FS10A5-3X/S2
R900523578 Z2FS10A5-3X/S2V
R900517813 Z2FS10A5-3X/SV
R900989101 Z2FS10A7-3X/S
R900989102 Z2FS10A7-3X/S2
R900032241 Z2FS10A7-3X/S2V
R900526683 Z2FS10A7-3X/SV
R900989103 Z2FS10B3-3X/S
R900989104 Z2FS10B3-3X/S2
R900071261 Z2FS10B3-3X/S2V
R900057401 Z2FS10B3-3X/SV
R900989105 Z2FS10B5-3X/S
R900989106 Z2FS10B5-3X/S2
R900517814 Z2FS10B5-3X/S2V
R900520680 Z2FS10B5-3X/SV
R900989107 Z2FS10B7-3X/S
R900989108 Z2FS10B7-3X/S2
R900033142 Z2FS10B7-3X/S2V
R900562269 Z2FS10B7-3X/SV
