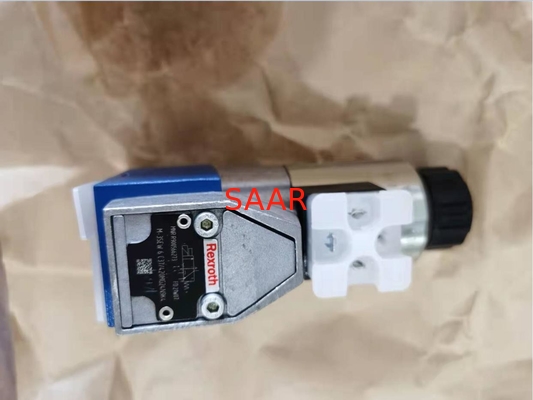

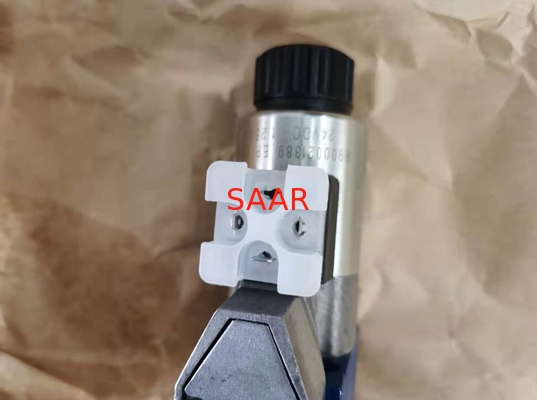

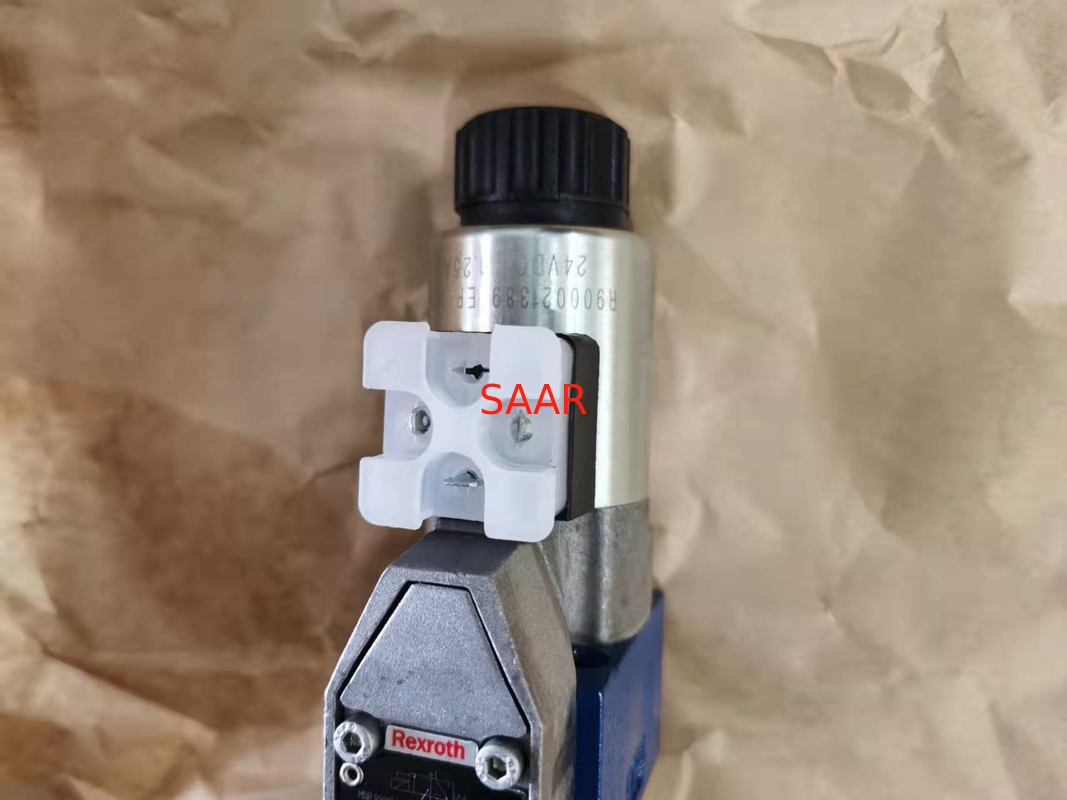

R900566273 M-3SEW6C30/420MG24N9K4 M-3SEW6C3X/420MG24N9K4 Directional Poppet Valve

Directional poppet valves, directly operated, with solenoid actuation M-3SEW6

Size 6
Component series 3X
Maximum operating pressure 420 / 630 bar
Maximum flow 25 l/min

Features
2/2-, 3/2- or 4/2-way version
Porting pattern according to DIN 24340 form A
Porting pattern according to ISO 4401-03-02-0-05
Air-gap DC solenoids with detachable coil
Solenoid coil is rotatable by 90°
The coil can be changed without having to open the pressure-tight chamber
Electrical connection as individual connection
Optional auxiliary operating device
Inductive position switch and proximity sensors (contactless)

Type Code:

01	Mineral oil				M
02	2 main ports				2
	3 main ports				3
	4 main ports				4
03	Seat valve, direct operated				SEW
04	Size 6				6
05	Symbols	Main ports			● = available
		2	3	4
		●	–	–	P
		●	–	–	N
		–	●	–	U
		–	●	–	C
		–	–	●	D
		–	–	●	Y
06	Component series 30 ... 39 (30 ... 39: unchanged installation and connection dimensions)				3X
07	Operating pressure 420 bar				420 bar
	Operating pressure 630 bar				630 bar
08	High-power solenoid (air-gap) with detachable coil				M
09	Nominal voltage 96 V at DC solenoid with operation with AC voltage mains (AC voltage mains 110 V/120 V - 50/60 Hz with an admissible voltage tolerance of +/- 10 %)				G96
	Nominal voltage 110 V at DC solenoid with operation with AC voltage mains (AC voltage mains 110 V/120 V – 50/60 Hz with an admissible voltage tolerance of +/-10 %)				G110
	Nominal voltage 205 V at DC solenoid with operation with AC voltage mains (AC voltage mains 230 V - 50/60 Hz with an admissible voltage tolerance of +/- 10 %)				G205
	Connection to the AC voltage mains via control with rectifier. Further ordering codes for other voltages are provided in the Technical data
10	With concealed manual override (standard)				N9
	Without manual override				no code
Electrical connection
11	Individual connection
	Without mating connector; connector DIN EN 175301-803				K41)
Spool position monitoring
12	Without position switch				no code
	Inductive position switch type QM
	Monitored spool position "a"				QMAG24 2)
	Monitored spool position "b"				QMBG25 2)
13	Without check valve insert, without throttle insert				no code
	With check valve insert				P
	Throttle Ø 1.2 mm				B12
	Throttle Ø 1.5 mm				B15
	Throttle Ø 1.8 mm				B18
	Throttle Ø 2.0 mm				B20
	Throttle Ø 2.2 mm				B22
	Other orifices on request
Seal material
14	NBR seals				no code
	FKM seals				V
	Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)
15	Without loSAARing hole				no code
	With loSAARing hole and locking pin ISO 8752-3x8-St				/62
16	Further details in the plain text				*
