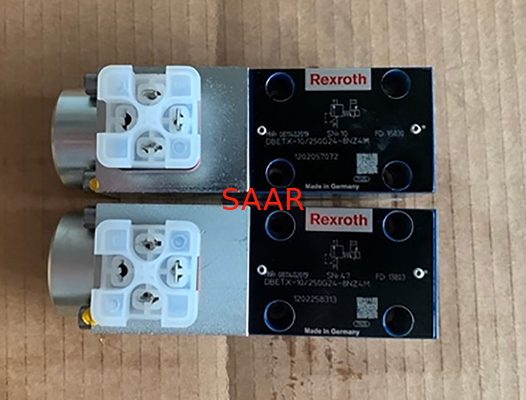

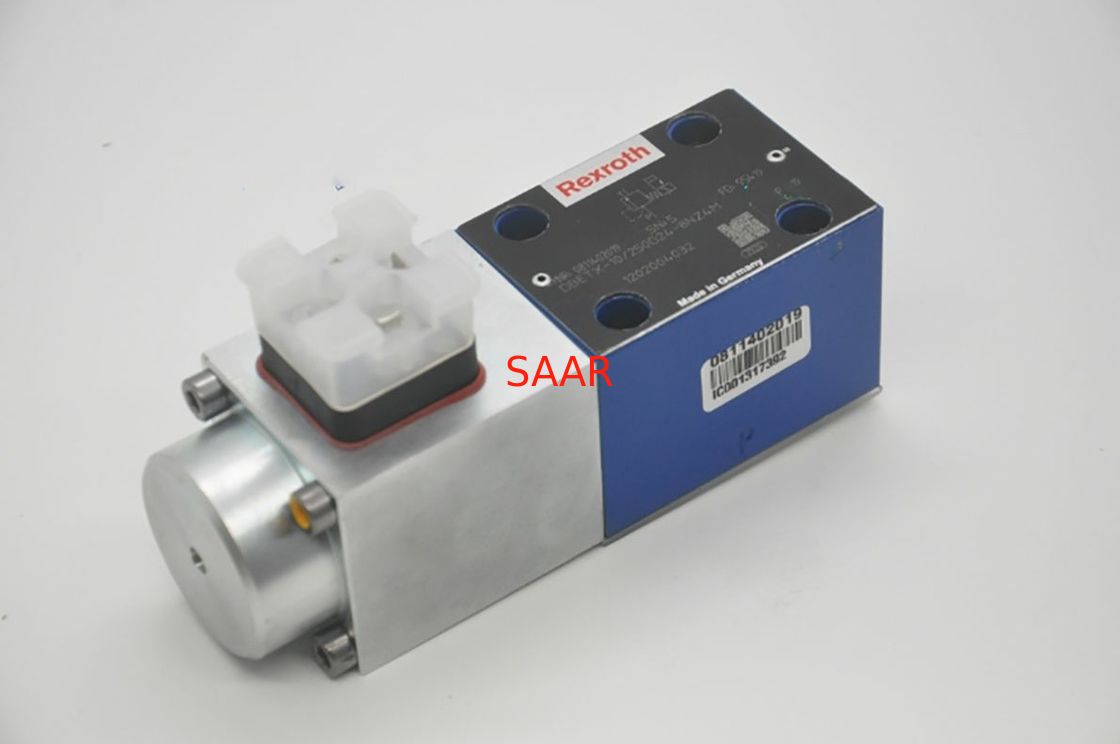

Name: 0811402019 DBETX-10/250G24-8NZ4M DBETX-1X/250G24-8NZ4M Proportional Pressure Relief Valve
Brand: Rexroth
SKU: 811402036 DBETX-1X/50G24-8NZ4M DBETX-10/50G24-8NZ4M
Price: 1.00 USD
Availability: InStock
Rating: 5 (188 reviews)

Home Products Rexroth Hydraulic Valves

0811402019 DBETX-10/250G24-8NZ4M DBETX-1X/250G24-8NZ4M Proportional Pressure Relief Valve

Product Details:

Place of Origin:	Germany
Brand Name:	Rexroth
Model Number:	811402036 DBETX-1X/50G24-8NZ4M DBETX-10/50G24-8NZ4M
CertifiSAARion:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	On request
Packaging Details:	Standard paper box
Delivery Time:	7-10days
Payment Terms:	T/T, Western Union
Supply Ability:	100PCS per month

Contact Now

Detailed Product Description

MNR:

811402036

Model No.:

DBETX-1X/50G24-8NZ4M DBETX-10/50G24-8NZ4M

High Light:

Proportional Rexroth Pressure Relief Valve

Directional Spool Rexroth Hydraulic Valves

Manual Actuation Rexroth Directional Valve

Proportional pressure relief valve, direct operated DBETX

Size 6
Component series 1X
Maximum operating pressure 315 bar
Nominal flow 1 l/min
Maximum flow 1.5 l/min

Features
Subplate mounting
Porting pattern according to NFPA T3.5.1 R2-2002 D03 (but without loSAARing hole)
Adjustable by solenoid current
Solenoid variants Imax = 0.8 A oder 2.5 A
Maximum pressure limitation, even with defective electronics
External control electronics with ramp and valve calibration

Type Code:

01	02		03		04	05		06	07	08	09	10
DBET	X	‒	1X	/		G24	‒		N	Z4	M	*

01	Proportional pressure relief valve	DBET
02	Porting pattern according to NFPA T3.5.1 R2-2002 D03	X
03	Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions) - Size 10	1X
Maximum pressure rating
04	725 psi	50
	1150 psi	80
	2600 psi	180
	3600 psi	250
	4550 psi	315
Power supply
05	Direct voltage 24 V	G24
Maximum solenoid current
06	0.8 A	8
06	2.5 A	25
07	With manual override	N
Electrical connection
08	3-pole connector (2+PE) according to DIN EN 175301-803	Z4¹⁾
Seal material (observe compatibility of seals with hydraulic fluid used, see "Technical data")
08	NBR seals	M
09	Further details in the plain text	*

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth Proportional pressure relief valve, direct operated DBETX Mode List:

811402031	DBETX-1X/180G24-25NZ4M
811402039	DBETX-1X/180G24-25NZ4M-36
0811T02017	DBETX-1X/180G24-8NZ4M
811402017	DBETX-1X/180G24-8NZ4M
811402026	DBETX-1X/180G24-8NZ4M-34
811402035	DBETX-1X/250G24-25NZ4M
811402024	DBETX-1X/250G24-25NZ4M-39
811402019	DBETX-1X/250G24-8NZ4M
811402028	DBETX-1X/250G24-8NZ4M-34
811402027	DBETX-1X/250G24-8NZ4M-35
811402038	DBETX-1X/25G24-25NZ4M-36
811402032	DBETX-1X/315G24-25NZ4M
811402016	DBETX-1X/315G24-8NZ4M
811402037	DBETX-1X/350G24-25NZ4M
811402034	DBETX-1X/50G24-25NZ4M
811402036	DBETX-1X/50G24-8NZ4M
811402030	DBETX-1X/80G24-25NZ4M
811402018	DBETX-1X/80G24-8NZ4M
R901280935	DBETX-1X=315G24-8NZ4M
0811402017	DBETX-1X/180G24-8NZ4M
811402036	DBETX-1X/50G24-8NZ4M
0811402019	DBETX-1X/250G24-8NZ4M
