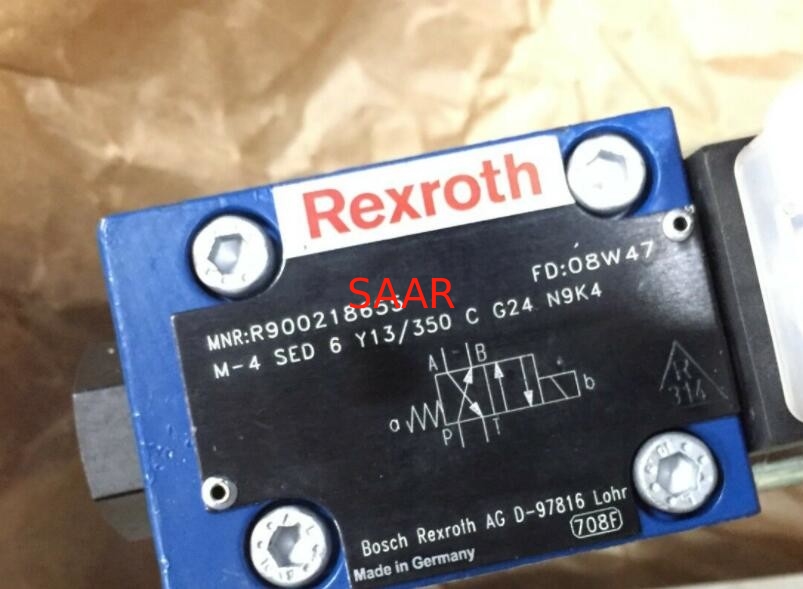

Rexroth R900218655 M-4SED6Y13/350CG24N9K4 M-4SED6Y1X/350CG24N9K4 Directional Seat Valve With Solenoid Actuation

Product Details:

Place of Origin:	Germany
Brand Name:	Rexroth
Model Number:	R900218655 M-4SED6Y13/350CG24N9K4 M-4SED6Y1X/350CG24N9K4
CertifiSAARion:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	On request
Packaging Details:	Standard paper box
Delivery Time:	7-10days
Payment Terms:	T/T, Western Union
Supply Ability:	100PCS per month

Contact Now

Detailed Product Description

MNR:

R900218655

Model No.:

M-4SED6Y13/350CG24N9K4 M-4SED6Y1X/350CG24N9K4

High Light:

Rexroth R900218655 Directional Seat Valve

Solenoid Actuation Directional Seat Valve

DIN 24340 Directional Seat Valve

2/2, 3/2 and 4/2 directional seat valve with solenoid actuation M-4SED6

Size 6
Component series 1X
Maximum operating pressure 350 bar
Maximum flow 25 l/min

Features
Direct operated directional seat valve with solenoid actuation
Porting pattern according to DIN 24340 form A (without loSAARing hole)
Porting pattern according to ISO 4401-03-02-0-05 (with loSAARing hole)
Safe switching also with longer standstill periods under pressure
Wet-pin DC solenoids with detachable coil (AC voltage possible by means of a rectifier)
Solenoid coil is rotatable by 90°
The coil can be changed without having to open the pressure-tight chamber
Electrical connection as individual connection
With concealed manual override, optional
Inductive position switch (contactless)

Type Code:

01		02	03	04	05		06		07	08	09	10	11	12		13	14	15	16
M	–		SED	6		–	1X	/	350	C			K4		/				*

01	Mineral oil				M
02	2 main ports				2
	3 main ports				3
	4 main ports				4
03	Seat valve				SED
04	Size 6				6
05	Main ports	2	3	4
	Symbols	●	–	–	PK
		●	–	–	NK
		–	●	–	UK
		–	●	–	CK
		–	–	●	D
		–	–	●	Y
	● = available
06	Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions)				1X
07	Operating pressure up to 350 bar				350 bar
08	Solenoid, wet-pin, with detachable coil				C
09	Direct voltage 24 V				G24
	Nominal voltage 205 V at DC solenoid with operation with AC voltage mains (AC voltage mains 230 V – 50/60 Hz with an admissible voltage tolerance of +/- 10 %)				G205¹⁾
	Nominal voltage 96 V at DC solenoid with operation with AC voltage mains (AC voltage mains 110 V/120 V - 50/60 Hz with an admissible voltage tolerance of +/- 10 %)				G96
	Further ordering codes for other voltages are provided in the technical data
10	With concealed manual override				N9
	Without manual override				no code
Electrical connection
11	Individual connection
	without mating connector, individual connection with connector according to DIN EN 175301-803				K4 ²⁾
	With M12x1 plug-in connection, high-performance version 5-pole, integrated interference protection circuit, operating display with LED				K72L³⁾
Spool position monitoring
12	Without position switch				no code
	Monitored spool position "a"				QMAG24
	Monitored spool position "b"				QMBG24
13	Without check valve insert, without throttle insert				no code
	With check valve insert				P
	Throttle Ø 1.2 mm				B12
	Throttle Ø 1.5 mm				B15
	Throttle Ø 1.8 mm				B18
	Throttle Ø 2.0 mm				B20
	Throttle Ø 2.2 mm				B22
14	NBR seals				no code
	FKM seals (other seals upon request)				V
	Observe compatibility of seals with hydraulic fluid used.
15	Without loSAARing hole				no code
	With loSAARing hole and locking pin ISO 8752-3x8-St				/62
16	Further details in the plain text				*

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth 2/2, 3/2 and 4/2 directional seat valve with solenoid actuation M-4SED6 Series Valves on Sale, Short lead time, Best price!!!

R900218849	M-4SED6D1X/315CG12N9K4=CSA
R901369215	M-4SED6D1X/315CG24N9K4/V=CSA
R900214821	M-4SED6D1X/315CG24N9K4=CSA
R900030607	M-4SED6D1X/315CG24N9Z5L3
R900208032	M-4SED6D1X/315CG96N9K4=CSA
R900222505	M-4SED6D1X/350CG110N9K4
R900059766	M-4SED6D1X/350CG110N9K4/B08
R901044530	M-4SED6D1X/350CG110N9K4/B12
R901132814	M-4SED6D1X/350CG110N9K4/B12V
R901214560	M-4SED6D1X/350CG110N9K4/B20
R900990251	M-4SED6D1X/350CG110N9K4/P
R900739954	M-4SED6D1X/350CG110N9K4/V
R900056441	M-4SED6D1X/350CG110N9Z4
R900985369	M-4SED6D1X/350CG125N9K4
R900220800	M-4SED6D1X/350CG125N9K4/B12
R901132812	M-4SED6D1X/350CG125N9K4/B12V
R900067059	M-4SED6D1X/350CG125N9Z4
R900994197	M-4SED6D1X/350CG12K4
R978910544	M-4SED6D1X/350CG12N9K4
R978008214	M-4SED6D1X/350CG196N9K4
R900741037	M-4SED6D1X/350CG205K4
R900990263	M-4SED6D1X/350CG205K4/B12
R900212659	M-4SED6D1X/350CG205N9K4
R900987635	M-4SED6D1X/350CG205N9K4/B12
R900211183	M-4SED6D1X/350CG205N9K4/B15
R901166927	M-4SED6D1X/350CG205N9K4/B20
R900247231	M-4SED6D1X/350CG205N9K4/P
R900724211	M-4SED6D1X/350CG205N9K4/V
R900230970	M-4SED6D1X/350CG220N9K4
R900208276	M-4SED6D1X/350CG220N9K4/B08V
R901078117	M-4SED6D1X/350CG220N9K4/B12
R901418186	M-4SED6D1X/350CG220N9K4/V
R901309066	M-4SED6D1X/350CG220N9K4QMBG24
R900216820	M-4SED6D1X/350CG24/B08SO667
R900050393	M-4SED6D1X/350CG24K4
R901351884	M-4SED6D1X/350CG24K4/P
R901254541	M-4SED6D1X/350CG24K4/V
R901223832	M-4SED6D1X/350CG24K4QMBG24/B20
R900212941	M-4SED6D1X/350CG24N9EXZ2
R900208756	M-4SED6D1X/350CG24N9EXZ2/B08
R900781143	M-4SED6D1X/350CG24N9EXZ2/V
R978916161	M-4SED6D1X/350CG24N9K33L
R900762270	M-4SED6D1X/350CG24N9K33L/V
R901126664	M-4SED6D1X/350CG24N9K33LQMBG24
R900058047	M-4SED6D1X/350CG24N9K4
R901261626	M-4SED6D1X/350CG24N9K4/62
R901031013	M-4SED6D1X/350CG24N9K4/B08
R900897758	M-4SED6D1X/350CG24N9K4/B08V
R900987651	M-4SED6D1X/350CG24N9K4/B10
R900989290	M-4SED6D1X/350CG24N9K4/B12
R901089876	M-4SED6D1X/350CG24N9K4/B12V
R900022646	M-4SED6D1X/350CG24N9K4/B15
R900616727	M-4SED6D1X/350CG24N9K4/B20
R900712476	M-4SED6D1X/350CG24N9K4/B22
R900059471	M-4SED6D1X/350CG24N9K4/P
R900226880	M-4SED6D1X/350CG24N9K4/PSO290
R901434683	M-4SED6D1X/350CG24N9K4/PSO702
R900737174	M-4SED6D1X/350CG24N9K4/V
R900897396	M-4SED6D1X/350CG24N9K4QMAG24/V
R901132322	M-4SED6D1X/350CG24N9K4QMBG24
R901406692	M-4SED6D1X/350CG24N9K4QMBG24SO290
R901415944	M-4SED6D1X/350CG24N9K72L
R901442255	M-4SED6D1X/350CG24N9K72L/P
R901255267	M-4SED6D1X/350CG24N9K72LQMBG24
R901041728	M-4SED6D1X/350CG24N9XEZ2
R901215642	M-4SED6D1X/350CG24N9XEZ2/PVSO321
R901026836	M-4SED6D1X/350CG24N9XEZ2/V
R901264773	M-4SED6D1X/350CG24N9XNK4
R901213669	M-4SED6D1X/350CG24N9XNZ4
R901210949	M-4SED6D1X/350CG24N9XNZ4/V
R900566619	M-4SED6D1X/350CG24N9Z4
R900080798	M-4SED6D1X/350CG24N9Z4/B08V
R900063090	M-4SED6D1X/350CG24N9Z4/B15
R900061861	M-4SED6D1X/350CG24N9Z4/B22
R900029978	M-4SED6D1X/350CG24N9Z4/P
R900031208	M-4SED6D1X/350CG24N9Z5L
R900054301	M-4SED6D1X/350CG24N9Z5L/B12
R900087990	M-4SED6D1X/350CG24N9Z5L1
R900034857	M-4SED6D1X/350CG24N9Z5L1/PSO290
R901351108	M-4SED6D1X/350CG24XEZ2
R901401763	M-4SED6D1X/350CG24XNK4/B15
R900221961	M-4SED6D1X/350CG42N9K4
R900213079	M-4SED6D1X/350CG48N9K4
R900052768	M-4SED6D1X/350CG48N9K4/B12
R900208419	M-4SED6D1X/350CG48N9K4/B15
R901287802	M-4SED6D1X/350CG48N9K4QMBG24
R900049890	M-4SED6D1X/350CG96N9K4
R901241595	M-4SED6D1X/350CG96N9K4/B08
R900229056	M-4SED6D1X/350CG96N9K4/B10
R901273771	M-4SED6D1X/350CG96N9K4/B12
R901031306	M-4SED6D1X/350CG96N9K4/B12V
R900986250	M-4SED6D1X/350CG96N9K4/B15
R901434883	M-4SED6D1X/350CG96N9K4/B20SO219
R901143370	M-4SED6D1X/350CG96N9K4/B22
R900246971	M-4SED6D1X/350CG96N9K4/P
R900229218	M-4SED6D1X/350CG96N9K4/V
R901213614	M-4SED6D1X/350CG96N9K4/VSO219
R900745563	M-4SED6D1X/350CW110RN9EXZ2SO321
R901158745	M-4SED6D1X/350CW110RN9XEZ2/V
R901223200	M-4SED6D1X/350CW110RN9XEZ2/VSO321
R900072062	M-4SED6D1X/350CW110RN9Z5L
R900056215	M-4SED6D1X/350CW110RN9Z5L/V
R900062363	M-4SED6D1X/350CW220RN9Z5
R900034277	M-4SED6D1X/350CW220RN9Z5/B15
R900020462	M-4SED6D1X/350CW220RN9Z5L
R900033530	M-4SED6D1X/350CW220RN9Z5L/B15
R900204898	M-4SED6D1X/350CW220RN9Z5L/P
R901198285	M-4SED6D1X/350CW230RN9XEZ2/V
R900209151	M-4SED6D1X/F350CG24N9K4
R900223872	M-4SED6DK1X/350CG205N9K4
R900223873	M-4SED6DK1X/350CG24N9K4
R900223874	M-4SED6DK1X/350CG24N9K4/P
R900223875	M-4SED6DK1X/350CG96N9K4
R901283091	M-4SED6Y1X/210CG24N9XEZ2/B07VSO151
R901374065	M-4SED6Y1X/315CG24N9K4=CSA
R900786393	M-4SED6Y1X/350CG110N9K4
R901063140	M-4SED6Y1X/350CG110N9K4/B12
R900707699	M-4SED6Y1X/350CG110N9K4/B15
R901102730	M-4SED6Y1X/350CG110N9K4/B18
R900753888	M-4SED6Y1X/350CG110N9K4/V
R901404741	M-4SED6Y1X/350CG110N9K4QMAG24
R900068913	M-4SED6Y1X/350CG110N9Z4
R900082837	M-4SED6Y1X/350CG110N9Z4QMAG24SO290
R901333075	M-4SED6Y1X/350CG125N9K4
R900569341	M-4SED6Y1X/350CG125N9Z4
R900203315	M-4SED6Y1X/350CG205N9K4
R901326290	M-4SED6Y1X/350CG205N9K4/B20
R901369308	M-4SED6Y1X/350CG205N9K4/PV
R901149031	M-4SED6Y1X/350CG205N9K4/V
R900206982	M-4SED6Y1X/350CG220N9K4
R901312057	M-4SED6Y1X/350CG220N9K4/B12
R901436283	M-4SED6Y1X/350CG220N9K4QMAG24
R900211906	M-4SED6Y1X/350CG24K4
R900020402	M-4SED6Y1X/350CG24K4/B08
R900219984	M-4SED6Y1X/350CG24K4/N08
R901209667	M-4SED6Y1X/350CG24K4QMAG24
R900744974	M-4SED6Y1X/350CG24N9EXZ2/B10SO321
R900781142	M-4SED6Y1X/350CG24N9EXZ2/V
R900218655	M-4SED6Y1X/350CG24N9K4
R900219521	M-4SED6Y1X/350CG24N9K4/B08
R900245338	M-4SED6Y1X/350CG24N9K4/B08V
R901001197	M-4SED6Y1X/350CG24N9K4/B12
R978015038	M-4SED6Y1X/350CG24N9K4/B12V
R900029526	M-4SED6Y1X/350CG24N9K4/B15
R901204471	M-4SED6Y1X/350CG24N9K4/B15V
R900068367	M-4SED6Y1X/350CG24N9K4/B18
R900230271	M-4SED6Y1X/350CG24N9K4/B20
R901287120	M-4SED6Y1X/350CG24N9K4/B22
R900229227	M-4SED6Y1X/350CG24N9K4/P
R900226881	M-4SED6Y1X/350CG24N9K4/PSO290
R901406237	M-4SED6Y1X/350CG24N9K4/PV
R900752238	M-4SED6Y1X/350CG24N9K4/V
R901223830	M-4SED6Y1X/350CG24N9K45L/P
R900225845	M-4SED6Y1X/350CG24N9K4QMAG24
R901132415	M-4SED6Y1X/350CG24N9K4QMAG24/B18
R901328357	M-4SED6Y1X/350CG24N9K4QMAG24/B22
R901212065	M-4SED6Y1X/350CG24N9K4QMAG24/P
R900705886	M-4SED6Y1X/350CG24N9K4SO290
R901293899	M-4SED6Y1X/350CG24N9K72L/V
R901332595	M-4SED6Y1X/350CG24N9K73L
R901290578	M-4SED6Y1X/350CG24N9XEZ2/P
R901215643	M-4SED6Y1X/350CG24N9XEZ2/PVSO321
R901026837	M-4SED6Y1X/350CG24N9XEZ2/V
R901264145	M-4SED6Y1X/350CG24N9XNK4
R901215188	M-4SED6Y1X/350CG24N9XNZ4
R900566620	M-4SED6Y1X/350CG24N9Z4
R900035077	M-4SED6Y1X/350CG24N9Z4/B15
R900058806	M-4SED6Y1X/350CG24N9Z4/P
R900034128	M-4SED6Y1X/350CG24N9Z4SO290
R900029401	M-4SED6Y1X/350CG24N9Z5L/B08
R900033541	M-4SED6Y1X/350CG24N9Z5L/B20
R900035742	M-4SED6Y1X/350CG24N9Z5L1/PSO290
R901401762	M-4SED6Y1X/350CG24XNK4/B15
R901264484	M-4SED6Y1X/350CG48N9K4
R901237716	M-4SED6Y1X/350CG48N9K4/B08
R901022677	M-4SED6Y1X/350CG48N9K4/P
R900052269	M-4SED6Y1X/350CG48N9Z4
R900223000	M-4SED6Y1X/350CG96K4/P
R900058226	M-4SED6Y1X/350CG96N9K4
R900991356	M-4SED6Y1X/350CG96N9K4/B08
R901266511	M-4SED6Y1X/350CG96N9K4/B12
R901024474	M-4SED6Y1X/350CG96N9K4/B12V
R900986504	M-4SED6Y1X/350CG96N9K4/B15
R978918487	M-4SED6Y1X/350CG96N9K4/B15V
R978007046	M-4SED6Y1X/350CG96N9K4/P
R901077326	M-4SED6Y1X/350CG96N9K4/V
R900897868	M-4SED6Y1X/350CG96N9K4=CSA
R900078898	M-4SED6Y1X/350CW110RN9Z5
R900081591	M-4SED6Y1X/350CW110RZ55L
R900030951	M-4SED6Y1X/350CW220RN9Z5
R900223876	M-4SED6YK1X/350CG205N9K4
R900223877	M-4SED6YK1X/350CG96N9K4
