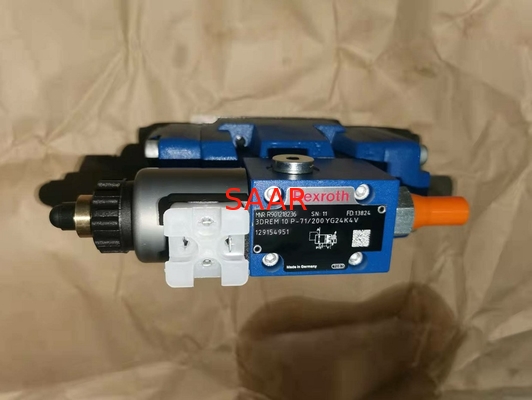

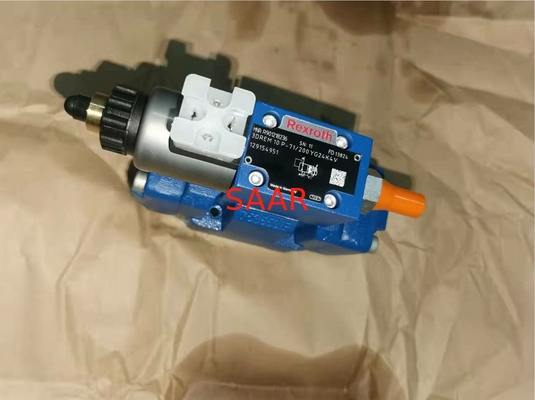

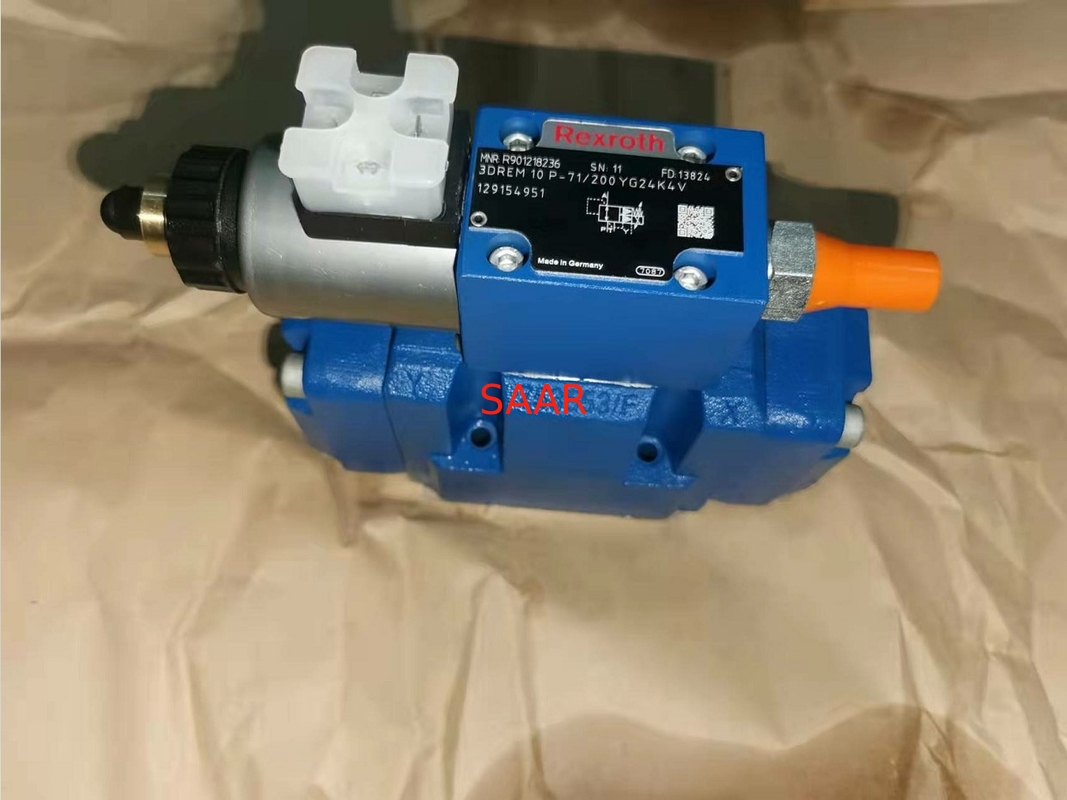

Name: Rexroth R901218236 3DREM10P-7X/200YG24K4V 3DREM10P-71/200YG24K4V Series Proportional Pressure Reducing Valve
Brand: Rexroth
SKU: R901218236 3DREM10P-7X/200YG24K4V 3DREM10P-71/200YG24K4V
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (129 reviews)

Home Products Rexroth Hydraulic Valves

Rexroth R901218236 3DREM10P-7X/200YG24K4V 3DREM10P-71/200YG24K4V Series Proportional Pressure Reducing Valve

Product Details:

Place of Origin:	Germany
Brand Name:	Rexroth
Model Number:	R901218236 3DREM10P-7X/200YG24K4V 3DREM10P-71/200YG24K4V
CertifiSAARion:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	On request
Packaging Details:	Standard paper box
Delivery Time:	7-10days
Payment Terms:	T/T, Western Union
Supply Ability:	100PCS per month

Contact Now

Detailed Product Description

MNR:

R901218236

Model No.:

3DREM10P-7X/200YG24K4V 3DREM10P-71/200YG24K4V

High Light:

Size 10 Proportional Pressure Reducing Valve

Rexroth Proportional Pressure Reducing Valve

300l/min Proportional Pressure Reducing Valve

3DREM Series Proportional pressure reducing valve, pilot-operated

Size 10, 16
Component series 7X
Maximum set pressure 315 bar
Maximum flow 300 l/min

Features

3-way version
Operation by means of proportional solenoid with rotatable coil
For subplate mounting
Porting pattern according to ISO 4401
Maximum pressure limitation, optional
Valve and control electronics from a single source
External control electronics
Linear command value pressure characteristic curve

Type Code:

01	02	03	04		05		06	07	08	09	10	11	12
3DRE			P	–	7X	/			G24		K4		*

01	Proportional pressure reducing valve in 3-way version, pilot-operated	3DRE
02	Without maximum pressure limitation	no code
02	With maximum pressure limitation	M
03	Size 10	10
03	Size 16	16
04	Subplate mounting	P
05	Component series 70 … 79 (70 … 79: unchanged installation and mounting dimensions)	7X
Pressure rating
06	Up to 50 bar	50
	Up to 100 bar	100
	Up to 200 bar	200
	Up to 250 bar (NG16 only)	250
	Up to 315 bar (NG10 only)	315
07	Internal pilot oil supply, external pilot oil return	Y
07	External pilot oil supply, external pilot oil return	XY
Power supply
08	Direct voltage 24 V	G24
Coil
09	1600 mA	no code
09	800 mA	-8
Electrical connection
10	Without mating connector; connector DIN EN 175301-803	K4
Seal material (observe compatibility of seals with hydraulic fluid used, see "Technical data")
11	NBR seals	M
11	FKM seals	V
12	Further details in the plain text	*

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

3DREM Series Proportional pressure reducing valve, pilot-operated part list:

R901354997	3DREM10P-7X/100XYG24K4V
R901359358	3DREM10P-7X/100YG24-8K4V
R901218884	3DREM10P-7X/100YG24K4V
R901359360	3DREM10P-7X/200YG24-8K4V
R901218236	3DREM10P-7X/200YG24K4V
R901411309	3DREM10P-7X/315XYG24K4V
R901359362	3DREM10P-7X/315YG24-8K4V
R901213615	3DREM10P-7X/315YG24K4V
R901359356	3DREM10P-7X/50YG24-8K4V
R901308770	3DREM10P-7X/50YG24K4V
R901291571	3DREM16P-7X/100XYG24K4V
R901359366	3DREM16P-7X/100YG24-8K4V
R901234516	3DREM16P-7X/100YG24K4V
R901213621	3DREM16P-7X/200XYG24K4V
R901359367	3DREM16P-7X/200YG24-8K4V
R901218887	3DREM16P-7X/200YG24K4V
R901372227	3DREM16P-7X/250XYG24K4V
R901359368	3DREM16P-7X/250YG24-8K4V
R901261666	3DREM16P-7X/250YG24K4V
R901349544	3DREM16P-7X/250YG24K4V-1
R901359363	3DREM16P-7X/50YG24-8K4V
R901286954	3DREM16P-7X/50YG24K4V
