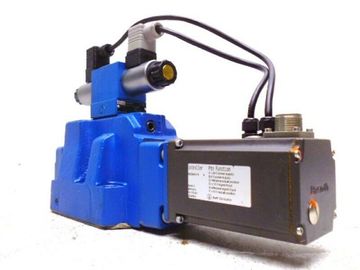

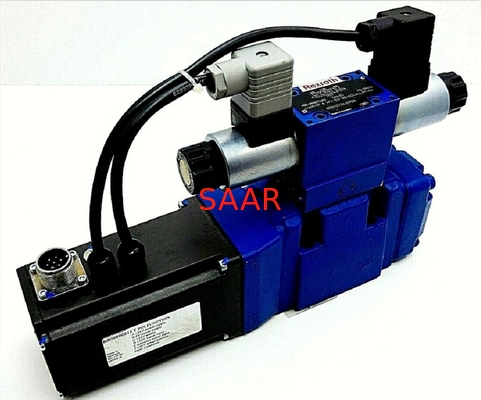

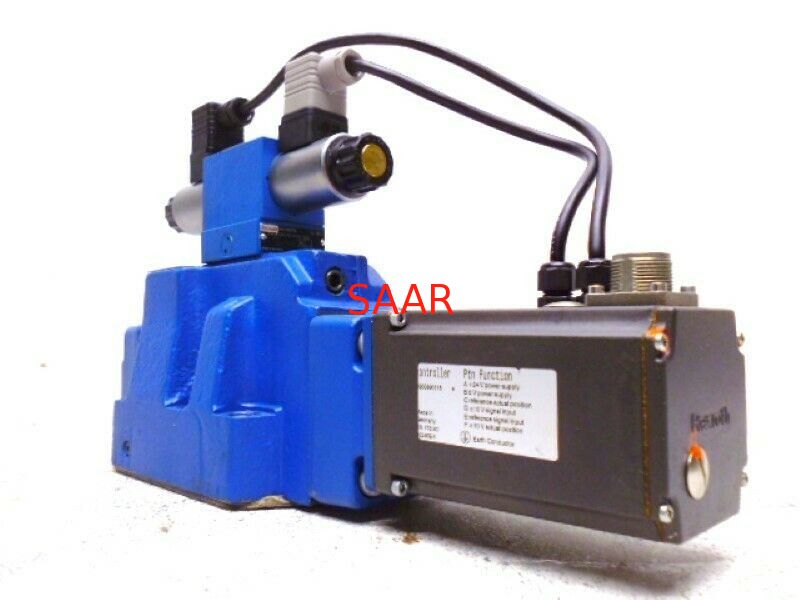

Rexroth Hydraulic R900782033 4WRKE32E000L-3X/6EG24K31/A5D3M-346 Proportional Directional Valve

Rexroth Hydraulic R900782033 4WRKE32E000L-3X/6EG24K31/A5D3M-346 Proportional Directional Valve

  • Rexroth Hydraulic R900782033 4WRKE32E000L-3X/6EG24K31/A5D3M-346 Proportional Directional Valve
  • Rexroth Hydraulic R900782033 4WRKE32E000L-3X/6EG24K31/A5D3M-346 Proportional Directional Valve
Rexroth Hydraulic R900782033 4WRKE32E000L-3X/6EG24K31/A5D3M-346 Proportional Directional Valve
Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Model Number: R900782033 4WRKE32E000L-3X/6EG24K31/A5D3M-346
CertifiSAARion: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: On request
Packaging Details: Standard paper box
Delivery Time: 7-10days
Payment Terms: T/T, Western Union
Supply Ability: 100PCS per month
Contact Now
Detailed Product Description
High Light:

Rexroth Hydraulic Proportional Directional Valve

,

3000l/min Proportional Directional Valve

,

Size 16 Proportional Directional Valve

Rexroth 4WRKE32 Series Proportional Directional Valve

Size 10, 16, 25, 27, 32, 35
Component series 3X
Maximum operating pressure 350 bar
Maximum flow 3000 l/min

Features
* Pilot-operated 2-stage proportional directional valves with electrical position feedbackof the main control spool and integrated electronics (OBE) Control of flow direction and size
* Proportional solenoid operation
For subplate mounting: Porting pattern according to ISO 4401 Electrical position feedback
* Spring-centered main control spool Pilot control valve: single-stage proportional directional valve
* Main stage with position control

Type Code:
01
02
03
04
05
06

07

08
09
10
11

12
13
14
15
4
WRKE




‒
3X
/
6E
G24

K31
/

D3

*

01
4 main ports
4
02
Proportional directional valve with electrical position feedback and integrated electronics (OBE)
WRKE
03
Size 10
10

Size 16
16

Size 25
25

Size 27
27

Size 32
32

Size 35
35
04
Symbols; for the possible version, see "Symbols/Circuit diagrams"
E; E1-; E3-; W6-; W8-; R; R3; EA; W6A; EB; W6B
Rated flow NG10
05
25 l/min
25 1)
50 l/min
502)
100 l/min
100
Rated flow NG16
05
125 l/min
1252)
150 l/min
1502)
200 l/min
200
220 l/min
220
Rated flow NG25
05
220 l/min
220
350 l/min
350
Rated flow NG27
05
500 l/min
500
Size 32
05
400 l/min
400
600 l/min
600
Size 35
05
1000 l/min
1000
Characteristic curve form
06
Linear
L
Linear with fine control range
P
07
Component series 30 ... 39 (30 ... 39: unchanged installation and connection dimensions)
3X
08
Pilot control valve NG6
Proportional solenoid with detachable coil
6E
09
Supply voltage 24 V
G24
Pilot oil supply and return
10
External pilot oil supply, external pilot oil return
no code
Internal pilot oil supply, external pilot oil return
E
Pilot oil supply internal, pilot oil return internal
ET
External pilot oil supply, internal pilot oil return
T
Electrical connection
11
Without mating connector, connector according to DIN EN 175201-804
K31
Electrical interface
12
Command value/actual value ±10 mA
C1
Command value/actual value ±10 V
A1 3)
Command value/actual value ±10 V
A5
Command value/actual value 4 ... 20 mA
F1
13
With pressure reducing valve ZDR 6 DP0-4X/40YM-W80 (fixedly set)
D3
14
NBR seals
M
FKM seals
V
15
Further details in the plain text
*
1)
Only E and W6- with characteristic curve form L (linear) available

2)
Only E1- and W8- with characteristic curve form L (linear) available

3)
When replacing the component series 2X by 3X, the electronics interface A5 is to be defined (enable signal at pin C

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth 4WRKE32E1 4WRKE32E600 W4RKE32W6 4WRKE32W8 Proportional Directional Valve​ on Sale, Short lead time, Best price!!!

R900782033
4WRKE32E000L-3X/6EG24K31/A5D3M-346
R901117336
4WRKE32E1-600L-3X/6EG24EK31/A1D3M
R901268348
4WRKE32E1-600L-3X/6EG24EK31/A1D3V
R901061842
4WRKE32E1-600L-3X/6EG24EK31/A5D3M
R900716436
4WRKE32E1-600L-3X/6EG24EK31/A5D3M-280
R901124444
4WRKE32E1-600L-3X/6EG24EK31/C1D3M
R901102982
4WRKE32E1-600L-3X/6EG24K31/A1D3M
R901089781
4WRKE32E1-600L-3X/6EG24K31/A1D3M-280
R900753006
4WRKE32E1-600L-3X/6EG24K31/A5D3M
R900711650
4WRKE32E1-600L-3X/6EG24K31/A5D3M-280
R901231200
4WRKE32E1-600L-3X/6EG24K31/C1D3M
R901141349
4WRKE32E1-600L-3X/6EG24K31/F1D3M
R901100916
4WRKE32E1-600P-3X/6EG24K31/A1D3M
R901224967
4WRKE32E3-400L-3X/6EG24K31/F1D3M
R900749131
4WRKE32E3-600L-3X/6EG24EK31/A5D3M-280
R900757166
4WRKE32E3-600L-3X/6EG24K31/A5D3M
R901213323
4WRKE32E3-600L-3X/6EG24K31/F1D3M
R901075896
4WRKE32E3-600P-3X/6EG24K31/A1D3M
R901125229
4WRKE32E400L-3X/6EG24EK31/A1D3M
R901056702
4WRKE32E400L-3X/6EG24ETK31/A1D3M
R901190018
4WRKE32E400L-3X/6EG24K31/A1D3M
R901119343
4WRKE32E400L-3X/6EG24K31/A5D3M-280
R900743960
4WRKE32E400S-3X/6EG24ETK31/A5D3M
R901033473
4WRKE32E600L-3X/6EG24EK31/A1D3M
R901018297
4WRKE32E600L-3X/6EG24EK31/A1D3M-280
R900717062
4WRKE32E600L-3X/6EG24EK31/A5D3M
R900762393
4WRKE32E600L-3X/6EG24EK31/A5D3M-280
R901093691
4WRKE32E600L-3X/6EG24EK31/C1D3M
R901076137
4WRKE32E600L-3X/6EG24EK31/F1D3M
R901016496
4WRKE32E600L-3X/6EG24ETK31/A1D3M
R901124438
4WRKE32E600L-3X/6EG24ETK31/A1D3V
R900712050
4WRKE32E600L-3X/6EG24ETK31/A5D3M
R901026586
4WRKE32E600L-3X/6EG24ETK31/A5D3M-560
R900734062
4WRKE32E600L-3X/6EG24K31/A1D3M
R900249917
4WRKE32E600L-3X/6EG24K31/A1D3M-280
R900739618
4WRKE32E600L-3X/6EG24K31/A1D3V
R900713637
4WRKE32E600L-3X/6EG24K31/A5D3M
R900713635
4WRKE32E600L-3X/6EG24K31/A5D3M-280
R900712759
4WRKE32E600L-3X/6EG24K31/C1D3M
R900245364
4WRKE32E600L-3X/6EG24K31/F1D3M
R901067075
4WRKE32E600L-3X/6EG24TK31/A5D3M
R900779949
4WRKE32E600S-3X/6EG24ETK31/A1D3M
R900742149
4WRKE32E600S-3X/6EG24ETK31/A5D3M
R901201718
4WRKE32R3-400L-3X/6EG24K31/A1D3M
R901183869
4WRKE32R3-400L-3X/6EG24K31/F1D3M
R901183870
4WRKE32R3-600L-3X/6EG24K31/F1D3M
R900714093
4WRKE32W000L-3X/6EG24EK31/A5D3M-714
R900718659
4WRKE32W000L-3X/6EG24EK31/A5D3M-715
R900766030
4WRKE32W000L-3X/6EG24EK31/A5D3M-730
R901040669
4WRKE32W000L-3X/6EG24EK31/A5D3M-809
R900718601
4WRKE32W000L-3X/6EG24EK31/A5D3WC15M-715
R901132750
4WRKE32W2-600L-3X/6EG24K31/A5D3M
R900773692
4WRKE32W6-400L-3X/6EG24EK31/A5D3M
R901122589
4WRKE32W6-400L-3X/6EG24EK31/F1D3M
R901124442
4WRKE32W6-400L-3X/6EG24ETK31/F1D3M
R901044433
4WRKE32W6-400L-3X/6EG24K31/A1D3M
R901117295
4WRKE32W6-400L-3X/6EG24K31/F1D3M
R901088904
4WRKE32W6-600L-3X/6EG24EK31/A1D3M
R900729161
4WRKE32W6-600L-3X/6EG24EK31/A5D3M
R900709015
4WRKE32W6-600L-3X/6EG24EK31/A5D3M-280
R900732239
4WRKE32W6-600L-3X/6EG24EK31/C5D3M-718
R901016317
4WRKE32W6-600L-3X/6EG24EK31/F1D3M
R900249276
4WRKE32W6-600L-3X/6EG24ETK31/A1D3M
R901153481
4WRKE32W6-600L-3X/6EG24ETK31/F1D3V
R900780615
4WRKE32W6-600L-3X/6EG24K31/A1D3M
R901238441
4WRKE32W6-600L-3X/6EG24K31/A1D3V
R900721875
4WRKE32W6-600L-3X/6EG24K31/A5D3M
R900762389
4WRKE32W6-600L-3X/6EG24K31/F1D3M
R900701446
4WRKE32W6-600L-3X/6EG24TK31/A1D3M
R901026641
4WRKE32W6-600P-3X/6EG24EK31/A1D3M
R900740749
4WRKE32W6-600P-3X/6EG24EK31/A5D3M
R901096192
4WRKE32W6-600P-3X/6EG24EK31/A5D3M-280
R901011230
4WRKE32W6-600P-3X/6EG24EK31/C1D3M
R901047149
4WRKE32W6-600P-3X/6EG24EK31/F1D3V
R901184378
4WRKE32W6-600P-3X/6EG24K31/A1D3M-280
R900706744
4WRKE32W8-000L-3X/6EG24EK31/A5D3M-704
R901107424
4WRKE32W8-400L-3X/6EG24EK31/A1D3M
R901121949
4WRKE32W8-400L-3X/6EG24EK31/F1D3M
R901090623
4WRKE32W8-600L-3X/6EG24EK31/A1D3M
R900747304
4WRKE32W8-600L-3X/6EG24EK31/A5D3M
R900731019
4WRKE32W8-600L-3X/6EG24EK31/A5D3M-280
R901093095
4WRKE32W8-600L-3X/6EG24EK31/F1D3M
R900718023
4WRKE32W8-600L-3X/6EG24ETK31/A1D3M
R901014199
4WRKE32W8-600L-3X/6EG24ETK31/A5D3M
R901055130
4WRKE32W8-600L-3X/6EG24ETK31/F1D3M
R901023120
4WRKE32W8-600L-3X/6EG24K31/A1D3M
R901056252
4WRKE32W8-600L-3X/6EG24K31/A1D3V
R900704403
4WRKE32W8-600L-3X/6EG24K31/A5D3M
R901299712
4WRKE32W8-600L-3X/6EG24K31/C1D3M
R900709134
4WRKE32W8-600L-3X/6EG24K31/F1D3M
R901048597
4WRKE32W8-600L-3X/6EG24TK31/A1D3M
R900724034
4WRKE32W8-600L-3X/6EG24TK31/A1D3V
R901060544
4WRKE32W8-600P-3X/6EG24K31/A1D3M
R900721885
4WRKE32W8-600P-3X/6EG24K31/A5D3M
R901167507
4WRKE32W8-600P-3X/6EG24K31/F1D3M
R900711743
4WRKE32W9-600L-3X/6EG24EK31/A5D3M
