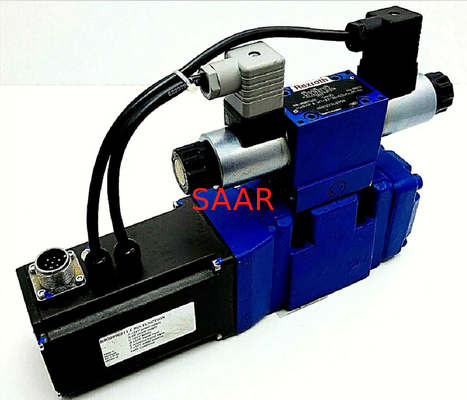

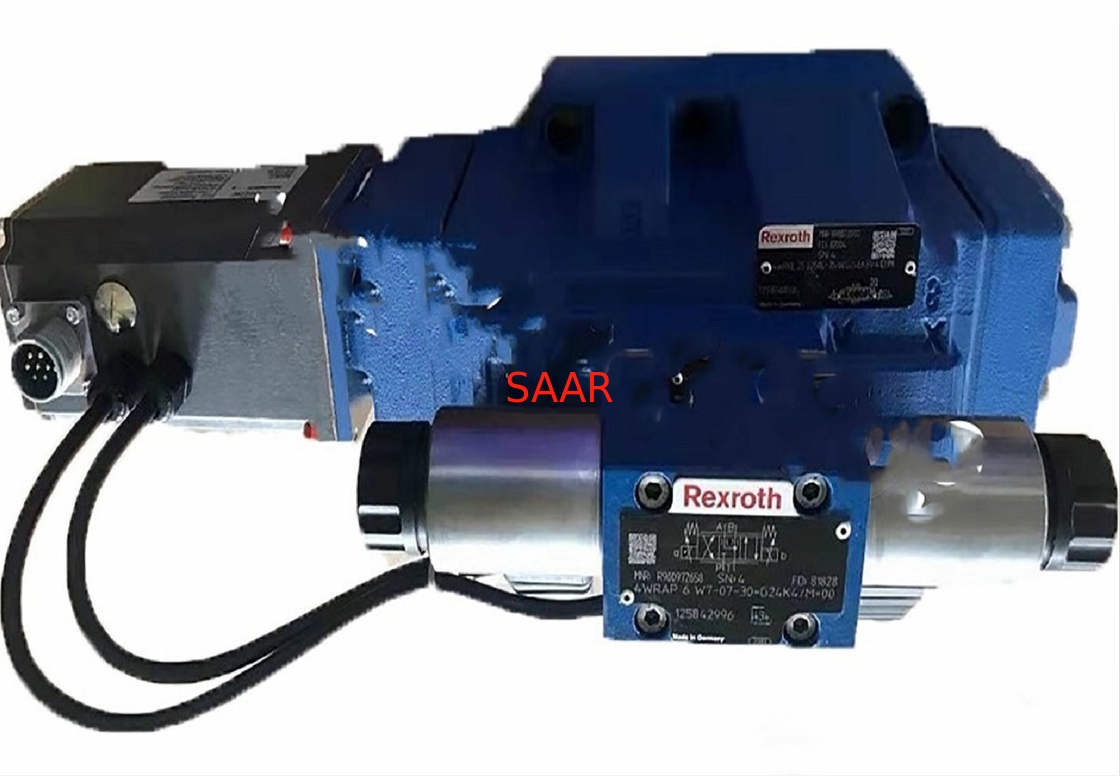

Rexroth Hydraulic R900711650 4WRKE32E1-600L-3X/6EG24K31/A5D3M-280 Proportional Directional Valve

Rexroth Hydraulic R900711650 4WRKE32E1-600L-3X/6EG24K31/A5D3M-280 Proportional Directional Valve

  • Rexroth Hydraulic R900711650 4WRKE32E1-600L-3X/6EG24K31/A5D3M-280 Proportional Directional Valve
  • Rexroth Hydraulic R900711650 4WRKE32E1-600L-3X/6EG24K31/A5D3M-280 Proportional Directional Valve
Rexroth Hydraulic R900711650 4WRKE32E1-600L-3X/6EG24K31/A5D3M-280 Proportional Directional Valve
Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Model Number: R900711650 4WRKE32E1-600L-3X/6EG24K31/A5D3M-280
CertifiSAARion: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: On request
Packaging Details: Standard paper box
Delivery Time: 7-10days
Payment Terms: T/T, Western Union
Supply Ability: 100PCS per month
Contact Now
Detailed Product Description
MATERIAL: 4WRKE32E1-600L-3X/6EG24K31/A5D3M-280 MNR: R900711650
High Light:

350bar Hydraulic Proportional Directional Valve

,

3000l/min Hydraulic Proportional Directional Valve

,

Position Control Hydraulic Proportional Directional Valve

Rexroth 4WRKE32 Series Proportional Directional Valve

Size 10, 16, 25, 27, 32, 35
Component series 3X
Maximum operating pressure 350 bar
Maximum flow 3000 l/min

Features
* Pilot-operated 2-stage proportional directional valves with electrical position feedbackof the main control spool and integrated electronics (OBE) Control of flow direction and size
* Proportional solenoid operation
For subplate mounting: Porting pattern according to ISO 4401 Electrical position feedback
* Spring-centered main control spool Pilot control valve: single-stage proportional directional valve
* Main stage with position control

Type Code:
01 02 03 04 05 06   07   08 09 10 11   12 13 14 15
4 WRKE         ‒ 3X / 6E G24   K31 /   D3   *
01 4 main ports 4
02 Proportional directional valve with electrical position feedback and integrated electronics (OBE) WRKE
03 Size 10 10
  Size 16 16
  Size 25 25
  Size 27 27
  Size 32 32
  Size 35 35
04 Symbols; for the possible version, see "Symbols/Circuit diagrams" E; E1-; E3-; W6-; W8-; R; R3; EA; W6A; EB; W6B
Rated flow NG10
05 25 l/min
251)
50 l/min
502)
100 l/min 100
Rated flow NG16
05 125 l/min
1252)
150 l/min
1502)
200 l/min 200
220 l/min 220
Rated flow NG25
05 220 l/min 220
350 l/min 350
Rated flow NG27
05 500 l/min 500
Size 32
05 400 l/min 400
600 l/min 600
Size 35
05 1000 l/min 1000
Characteristic curve form
06 Linear L
Linear with fine control range P
07 Component series 30 ... 39 (30 ... 39: unchanged installation and connection dimensions) 3X
08 Pilot control valve NG6
Proportional solenoid with detachable coil		 6E
09 Supply voltage 24 V G24
Pilot oil supply and return
10 External pilot oil supply, external pilot oil return no code
Internal pilot oil supply, external pilot oil return E
Pilot oil supply internal, pilot oil return internal ET
External pilot oil supply, internal pilot oil return T
Electrical connection
11 Without mating connector, connector according to DIN EN 175201-804 K31
Electrical interface
12 Command value/actual value ±10 mA C1
Command value/actual value ±10 V
A13)
Command value/actual value ±10 V A5
Command value/actual value 4 ... 20 mA F1
13 With pressure reducing valve ZDR 6 DP0-4X/40YM-W80 (fixedly set) D3
14 NBR seals M
FKM seals V
15 Further details in the plain text *
1) Only E and W6- with characteristic curve form L (linear) available
2) Only E1- and W8- with characteristic curve form L (linear) available
3) When replacing the component series 2X by 3X, the electronics interface A5 is to be defined (enable signal at pin C
SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth 4WRKE32E1 4WRKE32E600 W4RKE32W6 4WRKE32W8 Proportional Directional Valve​ on Sale, Short lead time, Best price!!!

R900782033 4WRKE32E000L-3X/6EG24K31/A5D3M-346
R901117336 4WRKE32E1-600L-3X/6EG24EK31/A1D3M
R901268348 4WRKE32E1-600L-3X/6EG24EK31/A1D3V
R901061842 4WRKE32E1-600L-3X/6EG24EK31/A5D3M
R900716436 4WRKE32E1-600L-3X/6EG24EK31/A5D3M-280
R901124444 4WRKE32E1-600L-3X/6EG24EK31/C1D3M
R901102982 4WRKE32E1-600L-3X/6EG24K31/A1D3M
R901089781 4WRKE32E1-600L-3X/6EG24K31/A1D3M-280
R900753006 4WRKE32E1-600L-3X/6EG24K31/A5D3M
R900711650 4WRKE32E1-600L-3X/6EG24K31/A5D3M-280
R901231200 4WRKE32E1-600L-3X/6EG24K31/C1D3M
R901141349 4WRKE32E1-600L-3X/6EG24K31/F1D3M
R901100916 4WRKE32E1-600P-3X/6EG24K31/A1D3M
R901224967 4WRKE32E3-400L-3X/6EG24K31/F1D3M
R900749131 4WRKE32E3-600L-3X/6EG24EK31/A5D3M-280
R900757166 4WRKE32E3-600L-3X/6EG24K31/A5D3M
R901213323 4WRKE32E3-600L-3X/6EG24K31/F1D3M
R901075896 4WRKE32E3-600P-3X/6EG24K31/A1D3M
R901125229 4WRKE32E400L-3X/6EG24EK31/A1D3M
R901056702 4WRKE32E400L-3X/6EG24ETK31/A1D3M
R901190018 4WRKE32E400L-3X/6EG24K31/A1D3M
R901119343 4WRKE32E400L-3X/6EG24K31/A5D3M-280
R900743960 4WRKE32E400S-3X/6EG24ETK31/A5D3M
R901033473 4WRKE32E600L-3X/6EG24EK31/A1D3M
R901018297 4WRKE32E600L-3X/6EG24EK31/A1D3M-280
R900717062 4WRKE32E600L-3X/6EG24EK31/A5D3M
R900762393 4WRKE32E600L-3X/6EG24EK31/A5D3M-280
R901093691 4WRKE32E600L-3X/6EG24EK31/C1D3M
R901076137 4WRKE32E600L-3X/6EG24EK31/F1D3M
R901016496 4WRKE32E600L-3X/6EG24ETK31/A1D3M
R901124438 4WRKE32E600L-3X/6EG24ETK31/A1D3V
R900712050 4WRKE32E600L-3X/6EG24ETK31/A5D3M
R901026586 4WRKE32E600L-3X/6EG24ETK31/A5D3M-560
R900734062 4WRKE32E600L-3X/6EG24K31/A1D3M
R900249917 4WRKE32E600L-3X/6EG24K31/A1D3M-280
R900739618 4WRKE32E600L-3X/6EG24K31/A1D3V
R900713637 4WRKE32E600L-3X/6EG24K31/A5D3M
R900713635 4WRKE32E600L-3X/6EG24K31/A5D3M-280
R900712759 4WRKE32E600L-3X/6EG24K31/C1D3M
R900245364 4WRKE32E600L-3X/6EG24K31/F1D3M
R901067075 4WRKE32E600L-3X/6EG24TK31/A5D3M
R900779949 4WRKE32E600S-3X/6EG24ETK31/A1D3M
R900742149 4WRKE32E600S-3X/6EG24ETK31/A5D3M
R901201718 4WRKE32R3-400L-3X/6EG24K31/A1D3M
R901183869 4WRKE32R3-400L-3X/6EG24K31/F1D3M
R901183870 4WRKE32R3-600L-3X/6EG24K31/F1D3M
R900714093 4WRKE32W000L-3X/6EG24EK31/A5D3M-714
R900718659 4WRKE32W000L-3X/6EG24EK31/A5D3M-715
R900766030 4WRKE32W000L-3X/6EG24EK31/A5D3M-730
R901040669 4WRKE32W000L-3X/6EG24EK31/A5D3M-809
R900718601 4WRKE32W000L-3X/6EG24EK31/A5D3WC15M-715
R901132750 4WRKE32W2-600L-3X/6EG24K31/A5D3M
R900773692 4WRKE32W6-400L-3X/6EG24EK31/A5D3M
R901122589 4WRKE32W6-400L-3X/6EG24EK31/F1D3M
R901124442 4WRKE32W6-400L-3X/6EG24ETK31/F1D3M
R901044433 4WRKE32W6-400L-3X/6EG24K31/A1D3M
R901117295 4WRKE32W6-400L-3X/6EG24K31/F1D3M
R901088904 4WRKE32W6-600L-3X/6EG24EK31/A1D3M
R900729161 4WRKE32W6-600L-3X/6EG24EK31/A5D3M
R900709015 4WRKE32W6-600L-3X/6EG24EK31/A5D3M-280
R900732239 4WRKE32W6-600L-3X/6EG24EK31/C5D3M-718
R901016317 4WRKE32W6-600L-3X/6EG24EK31/F1D3M
R900249276 4WRKE32W6-600L-3X/6EG24ETK31/A1D3M
R901153481 4WRKE32W6-600L-3X/6EG24ETK31/F1D3V
R900780615 4WRKE32W6-600L-3X/6EG24K31/A1D3M
R901238441 4WRKE32W6-600L-3X/6EG24K31/A1D3V
R900721875 4WRKE32W6-600L-3X/6EG24K31/A5D3M
R900762389 4WRKE32W6-600L-3X/6EG24K31/F1D3M
R900701446 4WRKE32W6-600L-3X/6EG24TK31/A1D3M
R901026641 4WRKE32W6-600P-3X/6EG24EK31/A1D3M
R900740749 4WRKE32W6-600P-3X/6EG24EK31/A5D3M
R901096192 4WRKE32W6-600P-3X/6EG24EK31/A5D3M-280
R901011230 4WRKE32W6-600P-3X/6EG24EK31/C1D3M
R901047149 4WRKE32W6-600P-3X/6EG24EK31/F1D3V
R901184378 4WRKE32W6-600P-3X/6EG24K31/A1D3M-280
R900706744 4WRKE32W8-000L-3X/6EG24EK31/A5D3M-704
R901107424 4WRKE32W8-400L-3X/6EG24EK31/A1D3M
R901121949 4WRKE32W8-400L-3X/6EG24EK31/F1D3M
R901090623 4WRKE32W8-600L-3X/6EG24EK31/A1D3M
R900747304 4WRKE32W8-600L-3X/6EG24EK31/A5D3M
R900731019 4WRKE32W8-600L-3X/6EG24EK31/A5D3M-280
R901093095 4WRKE32W8-600L-3X/6EG24EK31/F1D3M
R900718023 4WRKE32W8-600L-3X/6EG24ETK31/A1D3M
R901014199 4WRKE32W8-600L-3X/6EG24ETK31/A5D3M
R901055130 4WRKE32W8-600L-3X/6EG24ETK31/F1D3M
R901023120 4WRKE32W8-600L-3X/6EG24K31/A1D3M
R901056252 4WRKE32W8-600L-3X/6EG24K31/A1D3V
R900704403 4WRKE32W8-600L-3X/6EG24K31/A5D3M
R901299712 4WRKE32W8-600L-3X/6EG24K31/C1D3M
R900709134 4WRKE32W8-600L-3X/6EG24K31/F1D3M
R901048597 4WRKE32W8-600L-3X/6EG24TK31/A1D3M
R900724034 4WRKE32W8-600L-3X/6EG24TK31/A1D3V
R901060544 4WRKE32W8-600P-3X/6EG24K31/A1D3M
R900721885 4WRKE32W8-600P-3X/6EG24K31/A5D3M
R901167507 4WRKE32W8-600P-3X/6EG24K31/F1D3M
R900711743 4WRKE32W9-600L-3X/6EG24EK31/A5D3M
