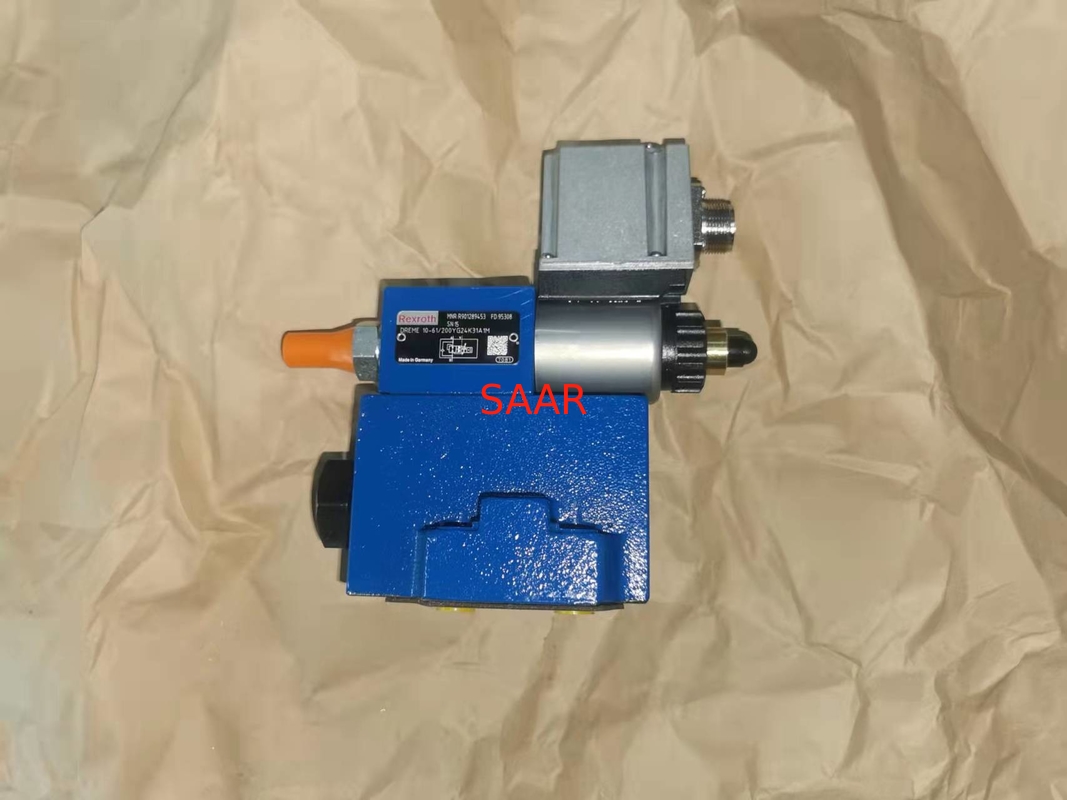

Name: R901289453 DREME10-61/200YG24K311M DREME10-6X/200YG24K311M Proportional Pressure Reducing Valve
Brand: Rexroth
SKU: R901289453 DREME10-61/200YG24K311M DREME10-6X/200YG24K311M
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (151 reviews)

Home Products Rexroth Hydraulic Valves

R901289453 DREME10-61/200YG24K311M DREME10-6X/200YG24K311M Proportional Pressure Reducing Valve

Product Details:

Place of Origin:	Germany
Brand Name:	Rexroth
Model Number:	R901289453 DREME10-61/200YG24K311M DREME10-6X/200YG24K311M
CertifiSAARion:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	On request
Packaging Details:	Standard paper box
Delivery Time:	7-10days
Payment Terms:	T/T, Western Union
Supply Ability:	100PCS per month

Contact Now

Detailed Product Description

MNR:

R901289453

Model No.:

DREME10-61/200YG24K311M DREME10-6X/200YG24K311M

High Light:

300l/min Proportional Pressure Reducing Valve

R901289453 Proportional Pressure Reducing Valve

Proportional Solenoid Rexroth Hydraulic Valves

Proportional pressure reducing valve, pilot-operated DRE(M)E 10, DRE(M)E 20

Size 10, 25
Component series 6X
Max. operating pressure 315 bar
Flow, max. 300 l/min

Features

Valve for reducing a system pressure
Operation by means of a proportional solenoid
Proportional solenoid with rotatable and detachable coil
For subplate mounting: porting pattern according to ISO 5781
Third way A to Y (Ø 7.5 mm)
Linearized pressure/command value characteristic curve
Good transient response
Optional check valve between A and B
Optional maximum pressure limitation
With integrated electronics (OBE)

Type Code:

01	02	03	04		05		06	07	08	09	10	11	12	13	14
DRE				‒	6X	/		Y		G24		K31			*

01	Proportional pressure reducing valve, pilot-operated	DRE
02	Without maximum pressure limitation	no code
	With maximum pressure limitation	M¹⁾
03	With integrated electronics (OBE)	E
04	Size 10	10
	Size 25	20
05	Component series 60 … 69 (60 … 69: unchanged installation and connection dimensions)	6X
Pressure rating
06	50 bar	50
	100 bar	100
	200 bar	200
	315 bar	315
07	Pilot oil return always external, separate and depressurized to the tank	Y
08	With check valve between A and B	no code
	Without check valve	M
Supply voltage of the control electronics
09	Direct voltage 24 V	G24
10	1600 mA version	no code
	800 mA version	-8²⁾
Electrical connection
11	Without mating connector, connector according to DIN EN 175201-804	K31
Electrical interface
12	Command value 0 … 10 V	A1
	Command value 4 to 20 mA	F1
Seal material
13	NBR seals	M
	FKM seals	V
14	Further details in the plain text	*
¹⁾	The maximum pressure limitation only serves as protection against overpressure in case of an error in the pilot valve (e. g. in case of contamination or over-current).
²⁾	Replacement for series 5X. (Attention! External amplifiers only suitable for G24 = 1.6 A solenoid),

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth DRE(M)E10, DRE(M)E20 Series Proportional pressure reducing valve on Sale, Short lead time, Best price!!!

R901214420	DRE 20-6X/50YG24K4V
R901387378	DRE20-6X/100YG24-8K4M
R901344914	DRE20-6X/100YG24K4M
R901214416	DRE20-6X/100YG24K4V
R901350327	DRE20-6X/100YMG24-8K4M
R901320625	DRE20-6X/100YMG24K4M
R901411633	DRE20-6X/100YMG24K4V
R901322765	DRE20-6X/200YG24-8K4M
R901240660	DRE20-6X/200YG24K4M
R901214411	DRE20-6X/200YG24K4V
R901325674	DRE20-6X/200YMG24-8K4M
R901295727	DRE20-6X/200YMG24K4M
R901321379	DRE20-6X/315YG24-8K4M
R901214407	DRE20-6X/315YG24K4V
R901354594	DRE20-6X/315YMG24-8K4M
R901330074	DRE20-6X/315YMG24K4M
R901381849	DRE20-6X/50YMG24K4M
R901326515	DREE 20-6X/200YMG24K31A1M-4
R901325699	DREE 20-6X/315YMG24K31A1M-4
R901326164	DREE 20-6X/315YMG24K31A1V-4
R901318859	DREE20-6X/100YG24K31A1M
R901299828	DREE20-6X/100YG24K31A1V
R901311818	DREE20-6X/100YG24K31F1M
R901298796	DREE20-6X/100YG24K31F1V
R901311901	DREE20-6X/100YMG24K31A1M
R901325833	DREE20-6X/100YMG24K31F1V
R901243781	DREE20-6X/200YG24K31A1M
R901240106	DREE20-6X/200YG24K31A1V
R901366305	DREE20-6X/200YG24K31F1M
R901272515	DREE20-6X/200YG24K31F1V
R901275714	DREE20-6X/200YMG24K31A1M
R901383694	DREE20-6X/200YMG24K31A1V
R901326890	DREE20-6X/200YMG24K31A1V-4
R901363842	DREE20-6X/200YMG24K31F1M
R901328236	DREE20-6X/200YMG24K31F1M-4
R901449268	DREE20-6X/200YMG24K31F1V
R901327460	DREE20-6X/200YMG24K31F1V-4
R901266392	DREE20-6X/315YG24K31A1M
R901305941	DREE20-6X/315YG24K31A1V
R901363873	DREE20-6X/315YG24K31F1M
R901278310	DREE20-6X/315YMG24K31A1M
R901325604	DREE20-6X/315YMG24K31A1V
R901408880	DREE20-6X/315YMG24K31F1M
R901328266	DREE20-6X/315YMG24K31F1V
R901377535	DREE20-6X/50YG24K31A1M
R901415664	DREE20-6X/50YG24K31A1V
R901298342	DREE20-6X/50YMG24K31A1M
R901390117	DREE20-6X/50YMG24K31A1V
R901340340	DREE20-6X/50YMG24K31F1V
R901279583	DREM20-6X/100YG24-8K4M
R901279585	DREM20-6X/100YG24-8K4V
R901277143	DREM20-6X/100YG24K4M
R901277144	DREM20-6X/100YG24K4V
R901325676	DREM20-6X/100YMG24-8K4M
R901358389	DREM20-6X/100YMG24-8K4V
R901279587	DREM20-6X/200YG24-8K4M
R901279589	DREM20-6X/200YG24-8K4V
R901277145	DREM20-6X/200YG24K4M
R901277146	DREM20-6X/200YG24K4V
R901412371	DREM20-6X/200YMG24-8K4M
R901321265	DREM20-6X/200YMG24-8K4V
R901358457	DREM20-6X/200YMG24K4M
R901332777	DREM20-6X/200YMG24K4V
R901279590	DREM20-6X/315YG24-8K4M
R901279591	DREM20-6X/315YG24-8K4V
R901277148	DREM20-6X/315YG24K4M
R901277150	DREM20-6X/315YG24K4V
R901298577	DREM20-6X/315YMG24-8K4M
R901308861	DREM20-6X/315YMG24-8K4V
R901335461	DREM20-6X/315YMG24K4M
R901309198	DREM20-6X/315YMG24K4V
R901279581	DREM20-6X/50YG24-8K4M
R901279582	DREM20-6X/50YG24-8K4V
R901277141	DREM20-6X/50YG24K4M
R901277142	DREM20-6X/50YG24K4V
R901418004	DREME 20-6X/100YG24K31A1M
R901428941	DREME 20-6X/315YMG24K31F1M
R901469223	DREME 20-6X/315YMG24K31F1M-4
R901418843	DREME 20-6X/50YMG24K31A1M
R901305420	DREME20-6X/100YG24K31A1V
R901354907	DREME20-6X/100YG24K31F1M
R901298574	DREME20-6X/100YMG24K31A1M
R901319549	DREME20-6X/100YMG24K31F1M
R901361876	DREME20-6X/100YMG24K31F1V
R901289458	DREME20-6X/200YG24K31A1M
R901188041	DREME20-6X/200YG24K31A1V
R901298572	DREME20-6X/200YG24K31F1M
R901341834	DREME20-6X/200YG24K31F1V
R901302633	DREME20-6X/200YMG24K31A1M
R901318454	DREME20-6X/200YMG24K31A1V
R901307880	DREME20-6X/200YMG24K31F1M
R901346399	DREME20-6X/200YMG24K31F1V
R901325506	DREME20-6X/315YG24K31A1M
R901377306	DREME20-6X/315YG24K31F1M
R901289460	DREME20-6X/315YMG24K31A1M
R901289459	DREME20-6X/315YMG24K31A1V
R901302643	DREME20-6X/315YMG24K31F1V
R901406177	DREME20-6X/50YG24K31A1M
R901289453	DREME10-6X/200YG24K311M
