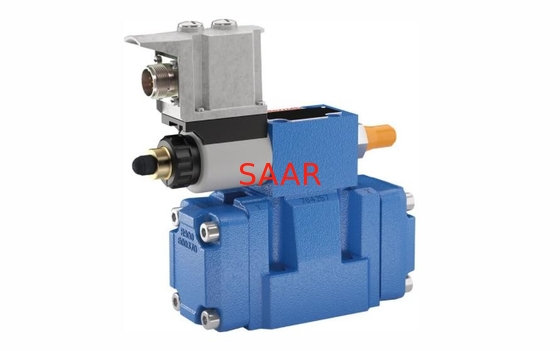

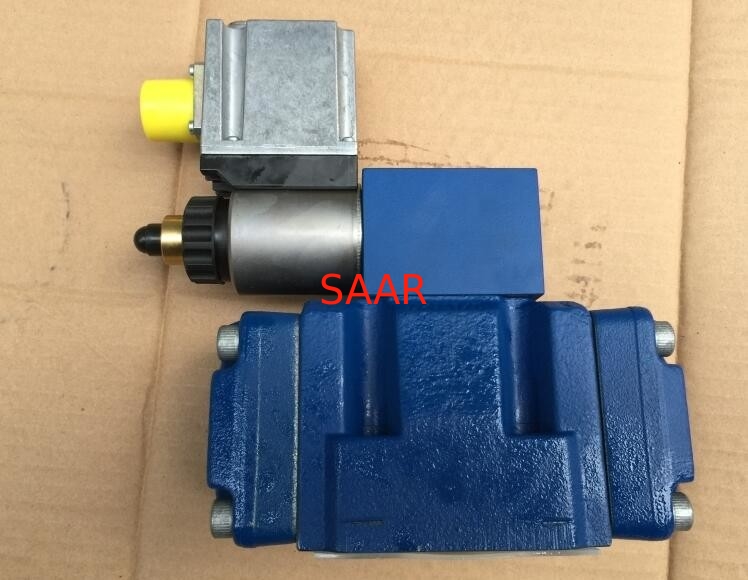

Name: R901342446 3DREE10P-7X/100XYG24K31A1V Proportional Pressure Reducing Valve
Brand: Rexroth
SKU: R901280845 3DREE10P-7X/200YG24K31F1V 3DREE10P-73/200YG24K31F1V
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (170 reviews)

Home Products Rexroth Hydraulic Valves

R901342446 3DREE10P-7X/100XYG24K31A1V Proportional Pressure Reducing Valve

Product Details:

Place of Origin:	Germany
Brand Name:	Rexroth
Model Number:	R901280845 3DREE10P-7X/200YG24K31F1V 3DREE10P-73/200YG24K31F1V
CertifiSAARion:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	On request
Packaging Details:	Standard paper box
Delivery Time:	7-10days
Payment Terms:	T/T, Western Union
Supply Ability:	100PCS per month

Contact Now

Detailed Product Description

MNR:

R901280845

MODEL:

3DREE10P-7X/200YG24K31F1V 3DREE10P-73/200YG24K31F1V

High Light:

Solenoid Proportional Reducing Valve

100XYG24K31A1V Solenoid Operated Directional Valve

Proportional Solenoid Directional Valves

Proportional pressure reducing valve, pilot-operated 3DREE Series

Size 10, 16
Component series 7X
Maximum set pressure 315 bar
Maximum flow 300 l/min

Features
3-way version
Operation by means of proportional solenoid with rotatable coil
For subplate mounting
Porting pattern according to ISO 4401
Maximum pressure limitation, optional
Valve and control electronics from a single source
Integrated electronics (OBE) with little manufacturing tolerance of the command value pressure characteristic curve
Linear command value pressure characteristic curve

3DREE Type Code:

01	02	03	04	05		06		07	08	09	10	11	12	13
3DRE		E		P	-	7X	/			G24	K31			*

01	Proportional pressure reducing valve in 3-way version, pilot-operated	3DRE
02	Without maximum pressure limitation	no code
02	With maximum pressure limitation	M
03	With integrated electronics (OBE)	E
04	Size 10	10
04	Size 16	16
05	Subplate mounting	P
06	Component series 70 … 79 (70 … 79: unchanged installation and mounting dimensions)	7X
Pressure rating
07	Up to 50 bar	50
	Up to 100 bar	100
	Up to 200 bar	200
	Up to 250 bar (NG16 only)	250
	Up to 315 bar (NG10 only)	315
08	Internal pilot oil supply, external pilot oil return	Y
08	External pilot oil supply, external pilot oil return	XY
Power supply
09	Direct voltage 24 V	G24
Electrical connection
10	Without mating connector; connector DIN EN 175201-804	K31
Interfaces of the control electronics
11	Command value input 0 ... +10 V	A1
11	Command value input 4 ... 20 mA	F1
Seal material (observe compatibility of seals with hydraulic fluid used, see "Technical data")
12	NBR seals	M
12	FKM seals	V
13	Further details in the plain text	*

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth 3DREE Series High-response Directional Valves on Sale, Short lead time, Best price!!!

R900774488	3DREE10P-6X/100XYG24K31V
R900954517	3DREE10P-6X/100YG24K31V
R901120162	3DREE10P-6X/100YG24K31V-10
R900954518	3DREE10P-6X/200XYG24K31V
R900948621	3DREE10P-6X/200YG24K31V
R900709931	3DREE10P-6X/200YG24K31V-1
R900739328	3DREE10P-6X/200YG24K31V-10
R900954520	3DREE10P-6X/315XYG24K31V
R900952587	3DREE10P-6X/315YG24K31V
R900954521	3DREE10P-6X/50YG24K31V
R900701611	3DREE16P-6X/100YG24K31V-9
R901342446	3DREE10P-7X/100XYG24K31A1V
R901239015	3DREE10P-7X/100YG24K31A1V
R901246371	3DREE10P-7X/100YG24K31F1V
R901301677	3DREE10P-7X/200XYG24K31A1V
R901237705	3DREE10P-7X/200YG24K31A1V
R901280845	3DREE10P-7X/200YG24K31F1V
R901242312	3DREE10P-7X/315XYG24K31A1V
R901236898	3DREE10P-7X/315YG24K31A1V
R901226056	3DREE10P-7X/315YG24K31F1V
R901356464	3DREE10P-7X/50XYG24K31A1V
R901211171	3DREE10P-7X/50YG24K31A1V
R901316387	3DREE10P-7X/50YG24K31F1V
R900971828	3DREE16P-6X/100XYG24K31V
R900771391	3DREE16P-6X/100XYG24K31V=PL
R900954522	3DREE16P-6X/100YG24K31V
R900976048	3DREE16P-6X/200XYG24K31V
R900954523	3DREE16P-6X/200YG24K31V
R900954524	3DREE16P-6X/50YG24K31V
R901254146	3DREE16P-7X/100XYG24K31A1V
R901257331	3DREE16P-7X/100XYG24K31A1V=PL
R901346665	3DREE16P-7X/100XYG24K31F1V
R901263447	3DREE16P-7X/100YG24K31A1V
R901325504	3DREE16P-7X/100YG24K31F1V
R901226262	3DREE16P-7X/200XYG24K31A1V
R901453388	3DREE16P-7X/200XYG24K31F1V
R901213583	3DREE16P-7X/200YG24K31A1V
R901406795	3DREE16P-7X/200YG24K31F1M
R901226627	3DREE16P-7X/200YG24K31F1V
R901392496	3DREE16P-7X/250XYG24K31F1V
R901240222	3DREE16P-7X/250YG24K31A1V
R901305422	3DREE16P-7X/250YG24K31F1V
R901363067	3DREE16P-7X/50XYG24K31A1V
R901271814	3DREE16P-7X/50YG24K31A1V
R901246373	3DREE16P-7X/50YG24K31F1V
