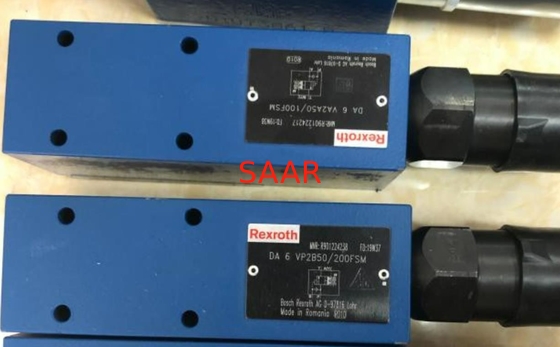

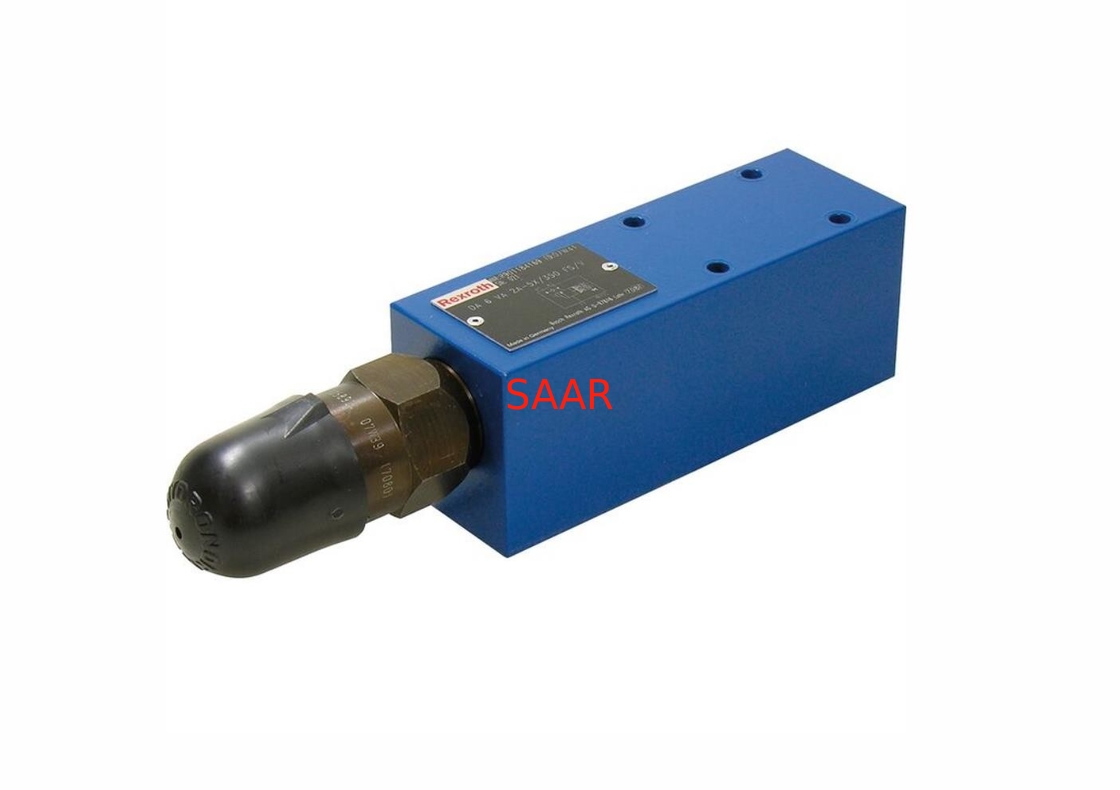

Name: R901224238 DA6VP2B50/200FSM DA6VP2B5X/200FSM Rexrtoh DAV6 Series Pressure Cut-Off Valve
Brand: Rexroth
SKU: R901224238 DA6VP2B50/200FSM DA6VP2B5X/200FSM
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (111 reviews)

Home Products Rexroth Hydraulic Valves

R901224238 DA6VP2B50/200FSM DA6VP2B5X/200FSM Rexrtoh DAV6 Series Pressure Cut-Off Valve

Product Details:

Place of Origin:	Germany
Brand Name:	Rexroth
Model Number:	R901224238 DA6VP2B50/200FSM DA6VP2B5X/200FSM
CertifiSAARion:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	On request
Packaging Details:	Standard paper box
Delivery Time:	7-10days
Payment Terms:	T/T, Western Union
Supply Ability:	100PCS per month

Contact Now

Detailed Product Description

MNR:

R901224238

Model No.:

DA6VP2B50/200FSM DA6VP2B5X/200FSM

High Light:

Cartridge Hydraulic Pilot Check Valve

DA6VP2B5X Hydraulic Pressure Relief Valve

350 Bar Hydraulic Cylinder Valve

Pressure cut-off valve, pilot-operated DA6V Series

Size 6
Component series 5X
Maximum operating pressure 350 bar
Maximum flow 40 l/min

Features
For subplate mounting
Porting pattern according to ISO 5781-03-04-0-00 (not in compliance with the standard, also without loSAARing hole)
Subplates (separate order)
As cartridge valve
Adjustment type: Sleeve with hexagon and protective cap
4 pressure ratings
Switching pressure differential adjustable (10 % to 50 % of the nominal value)

Type Code:

01	02	03	04	05	06	07		08	09	10	11	12
DA	6	V		2		5X	/		FS			*

01	Pressure cut-off valve	DA
02	Size 6	6
03	pilot operated	V

04	Pump connection in channel P (standard)	P
04	Pump connection in channel A	A
Adjustment type
05	Sleeve with hexagon and protective cap	2
06	Adjustment on side A	A
06	Adjustment on side B	B
07	Component series 50 … 59 (50 … 59: unchanged installation and connection dimensions)	5X
Pressure range
08	25 to 50 bar	50
	50 to 100 bar	100
	100 to 200 bar	200
	150 to 350 bar	350
09	freely adjustable switching pressure differential	FS
Seal material
10	NBR seals	M
	FKM seals (other seals upon request)	V
	Observe compatibility of seals with hydraulic fluid used.
11	Without loSAARing hole	no code
	With loSAARing hole	/60 ¹⁾
	With loSAARing hole and locking pin ISO 8752-3x8-St	/62
12	Further details in the plain text	*

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth Type DA6V SeriesPressure Cut-off Valves on Sale, Short lead time, Best price!!!

R901224217	DA6VA2A5X/100FSM
R901184163	DA6VA2A5X/100FSV
R901224218	DA6VA2A5X/200FSM
R901184165	DA6VA2A5X/200FSV
R901224223	DA6VA2A5X/350FSM
R901184169	DA6VA2A5X/350FSV
R901224225	DA6VA2A5X/50FSM
R901184162	DA6VA2A5X/50FSV
R901224226	DA6VA2B5X/100FSM
R901184669	DA6VA2B5X/100FSV
R901224246	DA6VA2B5X/200FSM
R901184173	DA6VA2B5X/200FSV
R901224228	DA6VA2B5X/350FSM
R901184176	DA6VA2B5X/350FSV
R901224230	DA6VA2B5X/50FSM
R901184170	DA6VA2B5X/50FSV
R901224232	DA6VP2A5X/100FSM
R901184158	DA6VP2A5X/100FSV
R901224233	DA6VP2A5X/200FSM
R901184160	DA6VP2A5X/200FSV
R901224247	DA6VP2A5X/350FSM
R901184161	DA6VP2A5X/350FSV
R901224234	DA6VP2A5X/50FSM
R901184151	DA6VP2A5X/50FSV
R901224235	DA6VP2B5X/100FSM
R901184179	DA6VP2B5X/100FSV
R901224238	DA6VP2B5X/200FSM
R901184183	DA6VP2B5X/200FSV
R901224242	DA6VP2B5X/350FSM
R901184186	DA6VP2B5X/350FSV
R901224244	DA6VP2B5X/50FSM
R901184177	DA6VP2B5X/50FSV
