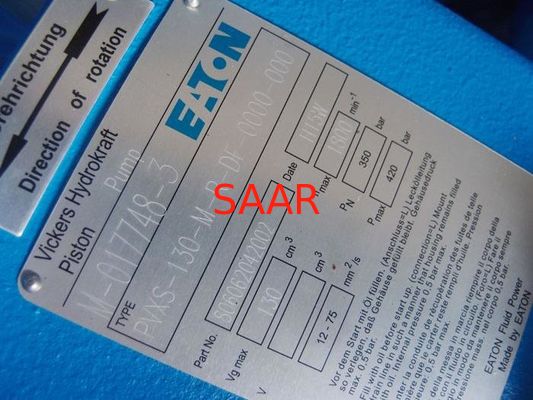

Eaton Vickers PVXS Series Open Loop Piston Pumps
Pump Dimensions
PVXS 066 - 250 DF, Two Stage Pilot Valve
PVXS 066 - 250 DF, with Load Sensing Valve
PVXS 066 - 250 LR, with Pressure Limiter
PVXS 066 - 250 ES
PVXS 066 - 250 DP, with Prop. Pilot Valve
PVXS 066 - 250 SP, with Prop. Pilot Valve
Thru - drives
Splined Shaft
SAE4 - Bolt Mounting, Installation Data
Eaton Vickers Hydrokraft Open Loop Piston Pump
Displacement: 66 cc (4.0 in3)–250 cc (15/2 in3).
Rated Pressure: 350 bar (5,000 psi)
The Vickers Hydrokraft PVXS piston pump is high pressure (350 bar) axial piston pumps designed for industrial markets. The PVXS pumps are widely used where their range of specialized pump controls can optimize circuits. AppliSAARions: Metal forming, tube bending, press, marine and offshore winches, chemical mixing grinding/shredding and hydraulic power supplies.
– Axial piston pumps with swash plate design for reliable operation and long life.
– Oversize shafts and bearings.
– Rotating and pressure loaded parts are pressure balanced.
– Integrated pilot pump, filter and pressure relief valves available.
– “Building block” design gives these pumps a wide range of appliSAARion.
Technical Data
Table of values (theoretical values, without efficiency and tolerances; values rounded)
Vickers pump PVXS | 66 | 90 | 130 | 180 | 250 | ||
Pipe connection SAE/Flange | B | psi | 1 1/2″ = 3000 | 2″ = 3000 | 2 1/2″ = 3000 | 2 1/2″ = 3000 | 3 1/2″ = 500 |
A | 1″ = 6000 | 1″ = 6000 | 1″ = 6000 | 1 1/4″ = 6000 | 1 1/4″ = 6000 | ||
Direction of rotation | Clockwise when viewing shaft end of pump | ||||||
Counterclockwise available on request | |||||||
Speed range | nmin | min-1 | 150 | ||||
nmax | 1800 | ||||||
Maximum geometric n= 1500 min-1 displacement n= 1800 min-1 | Vg | cm3 | 66 | 90 | 130 | 180 | 250 |
Maximum geom. n= 1500 min-1
pump flow n= 1800 min-1 |
Qg | L/min | 99 | 135 | 195 | 270 | 375 |
118 | 162 | 234 | 324 | 450 | |||
Mass of inertia | J | kg m2 | 0.016 | 0.016 | 0.045 | 0.045 | 0.146 |
Weight | m | kg | 55 | 75 | 106 | 114 | 212 |
Displacement controls:
ES – Electric motor displacement control
HG – Hand wheel displacement control
FE – Screw adjustment control (Special feature)
DF – Pressure compensator controlled
DQ – Mooring control
LR – Power control with pressure limiter
SP, SM – Displacement proportional to electric signal
DP – Displacement proportional to pressure signal
HC806052039501 | PVXS-066M02R0001A01SV0ADF000A0F00000000000000010 |
HC806052040000 | PVXS-066M02R0001A01SV0ADF000A0000000000000000010 |
HC806052041700 | PVXS-066M02R0001R01SV0ADF000A0000000000000000010 |
HC806052041701 | PVXS-066M02R0001R01SVVADF000A0000000000000000010 |
HC806052042302 | PVXS-066M02R0001A01SVVADF000A0000000000000000010 |
HC806052042309 | PVXS-066M02R0001A01SVVADF000A0F00000000000000010 |
HC806052042316 | PVXS-066M02R0001R01SV0ADF000A0F00000000000000010 |
HC806052042322 | PVXS-066M02R0001R01SVVADF000A0F00000000000000010 |
HC806052042333 | PVXS-066M02R0001A01SV00DF000A0000000000020800010 |
HC806052042336 | PVXS-066M02R0001A01SV0ADF000A0000000000028700010 |
HC806052051804 | PVXS-090M02R0001R01SVVADF000A0000000000000000010 |
HC806052051806 | PVXS-090M02R0001R01SV0ADF000A0000000000000000010 |
HC806052051808 | PVXS-090M02R0001R01SV0ADF000A0F00000000000000010 |
HC806062041400 | PVXS-130M04R0001A01SV0ADF000A0000000000000000010 |
HC806062042002 | PVXS-130M04R0001R01SVVADF000A0000000000000000010 |
HC806062042003 | PVXS-130M04R0001R01SV0ADF000A0000000000000000010 |
HC806062042011 | PVXS-130M04R0001R01SVVADF000A0000000000024200010 |
HC806062042110 | PVXS-130M04R0001R01SVVADF000A0F00000000000000010 |
HC806062043703 | PVXS-130M04R0001R01SV0ALR000A2F03000000000000010 |
HC806062052119 | PVXS-180M04R0001R01SV0ALR000A2F03700000000000010 |
HC806062058000 | PVXS-180M04R0001R01SV0ADF000A0000000000000000010 |
HC806062058002 | PVXS-180M04R0001R01SVVADF000A0000000000000000010 |
HC806062058005 | PVXS-180M04R0001R01SV0ADF000A0F00000000000000010 |
HC806062058019 | PVXS-180M04R0001R01SVVADF000A0F00000000000000010 |
HC806062058042 | PVXS-180M04R0001R01SVVADF000A0F00000000025200010 |
HC806062059005 | PVXS-180M04R0001R01SV0ALR000A2008300000000000010 |
HC806062059007 | PVXS-180M04R0001R01SV0ALR000A2002900000000000010 |
HC806062059010 | PVXS-180M04R0001R01SVVALR000A2005500000000000010 |
HC806072033600 | PVXS-250M06R0001A01SV0ADF000A0F00000000000000010 |
HC806072036500 | PVXS-250M06R0001R01SV00DF000A0000000000002200010 |
HC806072036502 | PVXS-250M06R0001R01SV0ADF000A0000000000000000010 |
HC806072036503 | PVXS-250M06R0001R01SVVADF000A0000000000000000010 |
HC806072036509 | PVXS-250M06R0001R01SV0ADF000A0F00000000000000010 |
HC806072036514 | PVXS-250M06R0001R01SVVADF000A0F00000000000000010 |
HC806072038626 | PVXS-250M06R0001R01SV0ALR000A2018000000000000010 |
HC806072038700 | PVXS-250M06R0001A01SV0ADF000A0000000000000000010 |
HC806072038709 | PVXS-250M06R0001A01SVVADF000A0F00000000000000010 |
HC806072038900 | PVXS-250M06R0001A01SVVADF000A0000000000000000010 |
HC806072040000 | PVXS-250M06R0001A01SV0ADF000A000000100H000000010 |
HC806072041100 | PVXS-250M06R0001R01SVVADF000A000000100H000000010 |
HC806072041300 | PVXS-250M06R0001R01SC0ADF000A0000000000000000010 |
HC806072041301 | PVXS-250M06R0001R01SCVADF000A0000000000000000010 |
HC806072041302 | PVXS-250M06R0001R01SCVADF000A0F00000000000000010 |
HC806072041305 | PVXS-250M06R0001R01SCVADF000A000000100H000000010 |
