Product Details:
Payment & Shipping Terms:
|
| Type: | M-3SEW10C1X/420MG110N9K4/B12 | Material No.: | R901028569 |
|---|---|---|---|
| Origin: | Germany | ||
| High Light: | rexroth proportional valve,hydraulic pressure relief valve |
||

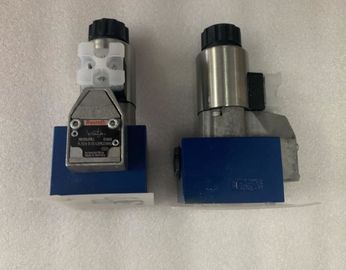

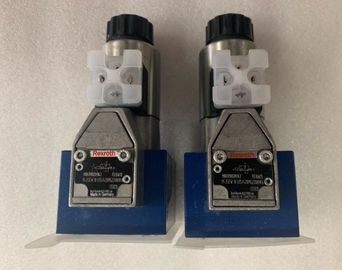

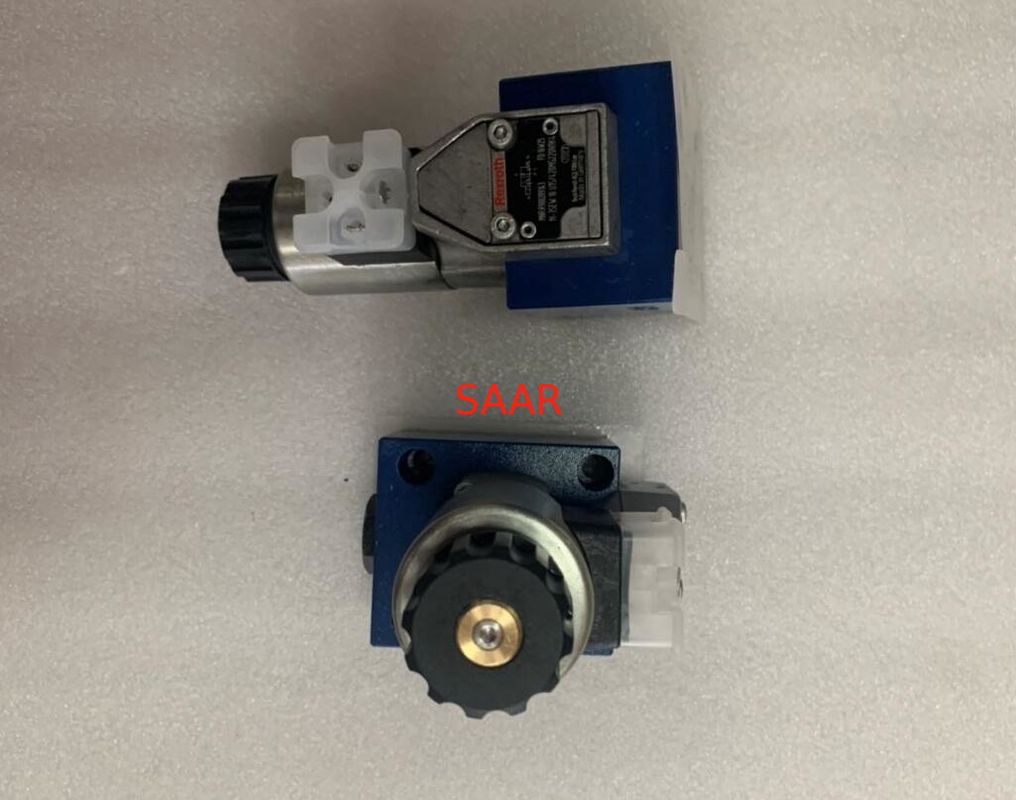

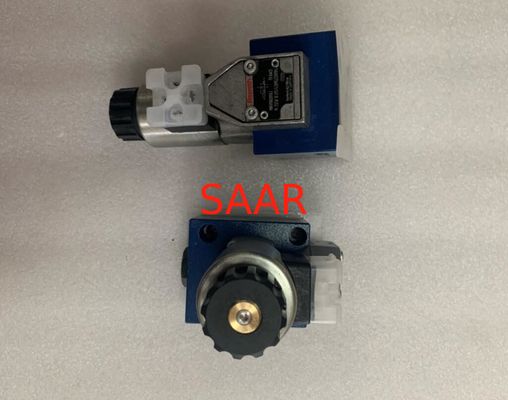

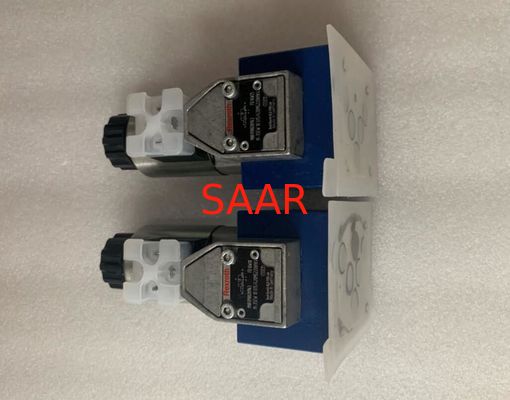

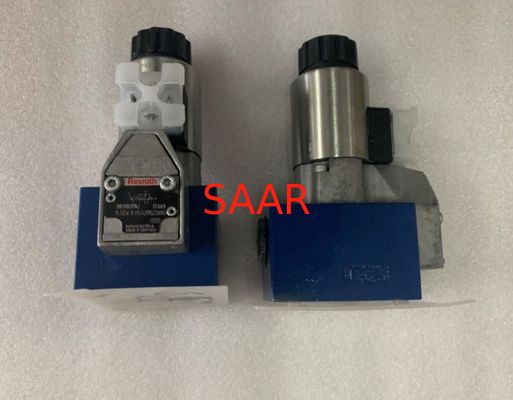

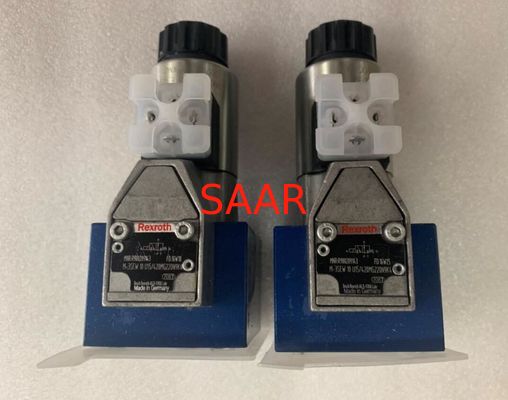

3/2 and 4/2 Directional Seat Valve with Solenoid Actuation
M-3SEW10 Type
Size 10
Component series 1X
Maximum operating pressure 420 / 630 bar
Maximum flow 40 l/min
| 01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | 10 | 11 | 12 | 13 | 14 | |||
| M | – | SEW | 10 | 1X | / | M | K4 | / |
| 01 | Mineral oil | M | |||
| 02 | 3 main ports | 3 | |||
| 4 main ports | 4 | ||||
| 03 | Seat valve | SEW | |||
| 04 | Size 10 | 10 | |||
| 05 | Main ports | 3 | 4 | ||
| Symbol |
|
● | – | U | |
|
|
● | – | C | ||
|
|
– | ● | D | ||
|
|
– | ● | Y | ||
| ● = available | |||||
| 06 | Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions) | 1X | |||
| 07 | Operating pressure 420 bar | 420 bar | |||
| Operating pressure 630 bar | 630 bar | ||||
| 08 | Solenoid (air-gap) with detachable coil | M | |||
| 09 | Direct voltage 24 V | G24 | |||
| Nominal voltage 96 V at DC solenoid in operation with alternating voltage (AC voltage mains 110/120 V - 50/60 Hz with an admissible voltage tolerance of +/- 10 %) | G96 | ||||
| Nominal voltage 110 V at DC solenoid with operation with AC voltage mains (AC voltage mains 110 V/120 V – 50/60 Hz with an admissible voltage tolerance of +/-10 %) | G110 | ||||
| Nominal voltage 205 V at DC solenoid with operation with AC voltage mains (AC voltage mains 230 V – 50/60 Hz with an admissible voltage tolerance of +/- 10 %) | G205 2) | ||||
| 10 | With concealed manual override | N9 | |||
| Without manual override | no code | ||||
| Electrical connection | |||||
| 11 | Individual connection | ||||
| Without mating connector, with connector DIN EN 175301-803 | K41;2) | ||||
| With M12x1 plug-in connection, high-performance version 5-pole, integrated interference protection circuit, operating display with LED | K72L3) | ||||
| Spool position monitoring | |||||
| 12 | Without position switch | no code | |||
| Monitored spool position "a" | QMAG24 | ||||
| Monitored spool position "b" | QMBG24 | ||||
| 13 | Without check valve insert, without throttle insert | no code | |||
| With check valve insert | P | ||||
| Throttle Ø 1.2 mm | B12 | ||||
| Throttle Ø 1.5 mm | B15 | ||||
| Throttle Ø 1.8 mm | B18 | ||||
| Throttle Ø 2.0 mm | B20 | ||||
| Throttle Ø 2.2 mm | B22 | ||||
| Seal material | |||||
| 14 | NBR seals | no code | |||
| FKM seals (other seals upon request) | V | ||||
| Observe compatibility of seals with hydraulic fluid used. | |||||
| 15 | Further details in the plain text | * | |||
SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.
Rexroth M-3SEW10 Series Directional Seat Valve with Solenoid Actuation Valves on Sale, Short lead time, Best price!!!
| R900049640 | M-3SEW10C1X/420MG110N9K4 |
| R900207805 | M-3SEW10C1X/420MG110N9K4/B08 |
| R901028569 | M-3SEW10C1X/420MG110N9K4/B12 |
| R901420579 | M-3SEW10C1X/420MG110N9K4/B12V |
| R900619574 | M-3SEW10C1X/420MG110N9K4/B15 |
| R901183109 | M-3SEW10C1X/420MG110N9K4/B15=CSA |
| R900987937 | M-3SEW10C1X/420MG110N9K4/B15V |
| R900712481 | M-3SEW10C1X/420MG110N9K4/B20 |
| R901074435 | M-3SEW10C1X/420MG110N9K4/B40 |
| R900226187 | M-3SEW10C1X/420MG110N9K4/P |
| R901304694 | M-3SEW10C1X/420MG110N9K4/P=CSA |
| R900745170 | M-3SEW10C1X/420MG110N9K4/V |
| R901205178 | M-3SEW10C1X/420MG110N9XEZ2 |
| R900087670 | M-3SEW10C1X/420MG110N9Z4 |
| R900051909 | M-3SEW10C1X/420MG125N9K4 |
| R900985872 | M-3SEW10C1X/420MG125N9K4/B08 |
| R900206981 | M-3SEW10C1X/420MG125N9K4/B10 |
| R901374752 | M-3SEW10C1X/420MG125N9K4/B12V=CSA |
| R978012340 | M-3SEW10C1X/420MG125N9K4/B14 |
| R901301776 | M-3SEW10C1X/420MG125N9K4/B20 |
| R900208033 | M-3SEW10C1X/420MG125N9K4/P |
| R900718852 | M-3SEW10C1X/420MG125N9K4/V |
| R901367229 | M-3SEW10C1X/420MG125N9K4/V=CSA |
| R900216415 | M-3SEW10C1X/420MG12N9K4 |
| R901199628 | M-3SEW10C1X/420MG12N9K4/B08 |
| R978009951 | M-3SEW10C1X/420MG12N9K4/V |
| R900081957 | M-3SEW10C1X/420MG12N9Z4 |
| R900204081 | M-3SEW10C1X/420MG12N9Z5L |
| R901051292 | M-3SEW10C1X/420MG140N9K4 |
| R900052241 | M-3SEW10C1X/420MG196N9K4/B12 |
| R901004583 | M-3SEW10C1X/420MG205N4K4 |
| R900083422 | M-3SEW10C1X/420MG205N9K4 |
| R900785809 | M-3SEW10C1X/420MG205N9K4/B08 |
| R900206116 | M-3SEW10C1X/420MG205N9K4/B10 |
| R901093284 | M-3SEW10C1X/420MG205N9K4/B10V |
| R900989534 | M-3SEW10C1X/420MG205N9K4/B12 |
| R900216478 | M-3SEW10C1X/420MG205N9K4/B15 |
| R900243507 | M-3SEW10C1X/420MG205N9K4/B18 |
| R901032220 | M-3SEW10C1X/420MG205N9K4/B18=CSA |
| R900216904 | M-3SEW10C1X/420MG205N9K4/B20 |
| R900210569 | M-3SEW10C1X/420MG205N9K4/B22 |
| R900616295 | M-3SEW10C1X/420MG205N9K4/B25 |
| R901269893 | M-3SEW10C1X/420MG205N9K4/B40 |
| R900215233 | M-3SEW10C1X/420MG205N9K4/P |
| R900225156 | M-3SEW10C1X/420MG205N9K4/PV |
| R900227605 | M-3SEW10C1X/420MG205N9K4/V |
| R900053725 | M-3SEW10C1X/420MG205N9Z5/B12 |
| R900051411 | M-3SEW10C1X/420MG205N9Z5/B22 |
| R901232079 | M-3SEW10C1X/420MG220N4K4/P |
| R900213918 | M-3SEW10C1X/420MG220N4K4/V |
| R900734797 | M-3SEW10C1X/420MG220N9EXZ2 |
| R900209099 | M-3SEW10C1X/420MG220N9K4 |
| R901437551 | M-3SEW10C1X/420MG220N9K4/B12V |
| R901283783 | M-3SEW10C1X/420MG220N9K4/B20 |
| R900207336 | M-3SEW10C1X/420MG220N9K4/P |
| R900724164 | M-3SEW10C1X/420MG220N9K4/PV |
| R900213754 | M-3SEW10C1X/420MG220N9K4/V |
| R900054869 | M-3SEW10C1X/420MG240N9K4 |
| R901172519 | M-3SEW10C1X/420MG240N9K4/B10 |
| R900247220 | M-3SEW10C1X/420MG240N9K4/B15 |
| R901034069 | M-3SEW10C1X/420MG240N9K4/B22 |
| R901338219 | M-3SEW10C1X/420MG240N9K4/V |
| R900058050 | M-3SEW10C1X/420MG240N9Z4/B15 |
| R900086661 | M-3SEW10C1X/420MG240N9Z5L |
| R900052316 | M-3SEW10C1X/420MG24K4 |
| R901210536 | M-3SEW10C1X/420MG24K4/B12V |
| R901064652 | M-3SEW10C1X/420MG24K4/B20 |
| R900229417 | M-3SEW10C1X/420MG24K4QMAG24 |
| R901279432 | M-3SEW10C1X/420MG24K4QMBG24/V |
| R900214208 | M-3SEW10C1X/420MG24K4YAW |
| R900212068 | M-3SEW10C1X/420MG24N4K4 |
| R901068066 | M-3SEW10C1X/420MG24N4K4/B22 |
| R901030900 | M-3SEW10C1X/420MG24N4K4/V |
| R900778898 | M-3SEW10C1X/420MG24N9EXZ2/P |
| R900075565 | M-3SEW10C1X/420MG24N9K4 |
| R901241943 | M-3SEW10C1X/420MG24N9K4SO026-730 |
| R900053132 | M-3SEW10C1X/420MG24N9K4/B08 |
| R901275603 | M-3SEW10C1X/420MG24N9K4/B08SO219 |
| R900218254 | M-3SEW10C1X/420MG24N9K4/B08V |
| R900203834 | M-3SEW10C1X/420MG24N9K4/B10 |
| R900221901 | M-3SEW10C1X/420MG24N9K4/B10V |
| R900056443 | M-3SEW10C1X/420MG24N9K4/B12 |
| R900218255 | M-3SEW10C1X/420MG24N9K4/B12V |
| R978012405 | M-3SEW10C1X/420MG24N9K4/B14 |
| R900054659 | M-3SEW10C1X/420MG24N9K4/B15 |
| R901187966 | M-3SEW10C1X/420MG24N9K4/B15SO219 |
| R900059158 | M-3SEW10C1X/420MG24N9K4/B15=CSA |
| R900220815 | M-3SEW10C1X/420MG24N9K4/B15V |
| R900240514 | M-3SEW10C1X/420MG24N9K4/B18 |
| R900203903 | M-3SEW10C1X/420MG24N9K4/B20 |
| R900215490 | M-3SEW10C1X/420MG24N9K4/B20V |
| R900050196 | M-3SEW10C1X/420MG24N9K4/B22 |
| R901107174 | M-3SEW10C1X/420MG24N9K4/B22V |
| R978015048 | M-3SEW10C1X/420MG24N9K4/B25V |
| R900054399 | M-3SEW10C1X/420MG24N9K4/P |
| R900775343 | M-3SEW10C1X/420MG24N9K4/P=CSA |
| R900205143 | M-3SEW10C1X/420MG24N9K4/PV |
| R900208649 | M-3SEW10C1X/420MG24N9K4/V |
| R901302509 | M-3SEW10C1X/420MG24N9K4/V=CSA |
| R900059157 | M-3SEW10C1X/420MG24N9K4=CSA |
| R900212468 | M-3SEW10C1X/420MG24N9K4YAW |
| R900781140 | M-3SEW10C1X/420MG24N9K4YAW/B18 |
| R901028010 | M-3SEW10C1X/420MG24N9XEZ2 |
| R901085257 | M-3SEW10C1X/420MG24N9XEZ2/V |
| R900079669 | M-3SEW10C1X/420MG24N9Z4 |
| R900057359 | M-3SEW10C1X/420MG24N9Z4/B15 |
| R900049832 | M-3SEW10C1X/420MG24N9Z4/B15V |
| R900049768 | M-3SEW10C1X/420MG24N9Z4/B20 |
| R900084117 | M-3SEW10C1X/420MG24N9Z4/P |
| R900084952 | M-3SEW10C1X/420MG24N9Z4/V |
| R900058997 | M-3SEW10C1X/420MG24N9Z45 |
| R900051901 | M-3SEW10C1X/420MG24N9Z5/V |
| R900050131 | M-3SEW10C1X/420MG24N9Z5L |
| R900053413 | M-3SEW10C1X/420MG24N9Z5L/B10 |
| R900054832 | M-3SEW10C1X/420MG24N9Z5L/B12 |
| R900050058 | M-3SEW10C1X/420MG24N9Z5L/B15 |
| R900050136 | M-3SEW10C1X/420MG24N9Z5L/B18 |
| R900052886 | M-3SEW10C1X/420MG24N9Z5L/B20 |
| R900051497 | M-3SEW10C1X/420MG24N9Z5L/P |
| R900049859 | M-3SEW10C1X/420MG24N9Z5L/V |
| R900050706 | M-3SEW10C1X/420MG24N9Z5L1 |
| R900088612 | M-3SEW10C1X/420MG24N9Z5L1/B08 |
| R900053366 | M-3SEW10C1X/420MG24N9Z5L1/B08V |
| R900084666 | M-3SEW10C1X/420MG24N9Z5L1/B20 |
| R900051255 | M-3SEW10C1X/420MG24N9Z5L1/PV |
| R900203597 | M-3SEW10C1X/420MG24N9Z5L=CSA |
| R901432823 | M-3SEW10C1X/420MG24XEZ2 |
| R900053250 | M-3SEW10C1X/420MG42N9K4 |
| R900089265 | M-3SEW10C1X/420MG42N9Z4 |
| R900052792 | M-3SEW10C1X/420MG48N9K4 |
| R900225653 | M-3SEW10C1X/420MG48N9K4/B08 |
| R900704022 | M-3SEW10C1X/420MG48N9K4/B10 |
| R900227099 | M-3SEW10C1X/420MG48N9K4/B15 |
| R900707088 | M-3SEW10C1X/420MG48N9K4/B20 |
| R900050141 | M-3SEW10C1X/420MG48N9Z5L/B18 |
| R901106944 | M-3SEW10C1X/420MG60N9K4 |
| R900058046 | M-3SEW10C1X/420MG60N9Z4 |
| R901136984 | M-3SEW10C1X/420MG96N4K4/V |
| R900082238 | M-3SEW10C1X/420MG96N9K4 |
| R901043331 | M-3SEW10C1X/420MG96N9K4/B08 |
| R901015456 | M-3SEW10C1X/420MG96N9K4/B08=CSA |
| R900991859 | M-3SEW10C1X/420MG96N9K4/B08V |
| R900207722 | M-3SEW10C1X/420MG96N9K4/B10 |
| R900247518 | M-3SEW10C1X/420MG96N9K4/B10=CSA |
| R978911966 | M-3SEW10C1X/420MG96N9K4/B10V |
| R901042311 | M-3SEW10C1X/420MG96N9K4/B12 |
| R900991981 | M-3SEW10C1X/420MG96N9K4/B12V |
| R900994704 | M-3SEW10C1X/420MG96N9K4/B15 |
| R901176863 | M-3SEW10C1X/420MG96N9K4/B15SO219 |
| R900210454 | M-3SEW10C1X/420MG96N9K4/B15=CSA |
| R900209005 | M-3SEW10C1X/420MG96N9K4/B15V |
| R900229242 | M-3SEW10C1X/420MG96N9K4/B18 |
| R978911795 | M-3SEW10C1X/420MG96N9K4/B18V |
| R900222148 | M-3SEW10C1X/420MG96N9K4/B20 |
| R978919624 | M-3SEW10C1X/420MG96N9K4/B20V |
| R901041644 | M-3SEW10C1X/420MG96N9K4/B20V=CSA |
| R900212587 | M-3SEW10C1X/420MG96N9K4/B22 |
| R901061235 | M-3SEW10C1X/420MG96N9K4/B25 |
| R900212612 | M-3SEW10C1X/420MG96N9K4/P |
| R901048764 | M-3SEW10C1X/420MG96N9K4/P=CSA |
| R901227029 | M-3SEW10C1X/420MG96N9K4/PV |
| R900051908 | M-3SEW10C1X/420MG96N9K4/V |
| R900207359 | M-3SEW10C1X/420MG96N9K4/V=CSA |
| R900210479 | M-3SEW10C1X/420MG96N9K4=CSA |
| R900052101 | M-3SEW10C1X/420MG96N9Z5/V |
| R900731332 | M-3SEW10C1X/420MW110RN9EXZ2 |
| R900081956 | M-3SEW10C1X/420MW110RN9Z5 |
| R900051382 | M-3SEW10C1X/420MW110RN9Z5/B22 |
| R900051906 | M-3SEW10C1X/420MW110RN9Z55L/V |
| R900084593 | M-3SEW10C1X/420MW110RN9Z5L |
| R900083126 | M-3SEW10C1X/420MW220RN9Z5 |
| R900058221 | M-3SEW10C1X/420MW220RN9Z5/B12 |
| R900058229 | M-3SEW10C1X/420MW220RN9Z5/P |
| R900052631 | M-3SEW10C1X/420MW220RN9Z5/V |
| R900083321 | M-3SEW10C1X/420MW220RN9Z5L |
| R900085597 | M-3SEW10C1X/420MW220RN9Z5L/B20 |
| R900051543 | M-3SEW10C1X/420MW230RN9Z5/P |
| R901443939 | M-3SEW10C1X/450MG24N9K4 |
| R900993635 | M-3SEW10C1X/630MG110N9K4 |
| R900706876 | M-3SEW10C1X/630MG110N9K4/V |
| R900221557 | M-3SEW10C1X/630MG125N9K4 |
| R900208548 | M-3SEW10C1X/630MG12N9K4 |
| R900994155 | M-3SEW10C1X/630MG12N9K4/B12 |
| R900051279 | M-3SEW10C1X/630MG196N9K4 |
| R900058771 | M-3SEW10C1X/630MG205N9K4 |
| R900207154 | M-3SEW10C1X/630MG205N9K4/B15 |
| R901139109 | M-3SEW10C1X/630MG205N9K4/B22 |
| R900220538 | M-3SEW10C1X/630MG205N9K4/P |
| R900242330 | M-3SEW10C1X/630MG205N9K4/V |
| R900216555 | M-3SEW10C1X/630MG205N9K4YAW |
| R900211312 | M-3SEW10C1X/630MG220N9K4 |
| R901347795 | M-3SEW10C1X/630MG220N9K4/B15 |
| R900226255 | M-3SEW10C1X/630MG240N9K4 |
| R900210573 | M-3SEW10C1X/630MG24K4 |
| R901280783 | M-3SEW10C1X/630MG24K4/B20 |
| R900777121 | M-3SEW10C1X/630MG24K4/V |
| R900759681 | M-3SEW10C1X/630MG24N4K4 |
| R900217275 | M-3SEW10C1X/630MG24N4K4/V |
| R900240462 | M-3SEW10C1X/630MG24N9EXZ2 |
| R900049870 | M-3SEW10C1X/630MG24N9K4 |
| R900985555 | M-3SEW10C1X/630MG24N9K4SO233 |
| R900703108 | M-3SEW10C1X/630MG24N9K4/B08 |
| R900218256 | M-3SEW10C1X/630MG24N9K4/B10 |
| R900244629 | M-3SEW10C1X/630MG24N9K4/B12 |
| R901115877 | M-3SEW10C1X/630MG24N9K4/B12V |
| R900208643 | M-3SEW10C1X/630MG24N9K4/B15 |
| R901185595 | M-3SEW10C1X/630MG24N9K4/B15SO219 |
| R901150726 | M-3SEW10C1X/630MG24N9K4/B15V |
| R900217761 | M-3SEW10C1X/630MG24N9K4/B18 |
| R901244692 | M-3SEW10C1X/630MG24N9K4/B18SO219 |
| R900211766 | M-3SEW10C1X/630MG24N9K4/B20 |
| R900240370 | M-3SEW10C1X/630MG24N9K4/B20V |
| R901112520 | M-3SEW10C1X/630MG24N9K4/B22 |
| R900059840 | M-3SEW10C1X/630MG24N9K4/P |
| R901024590 | M-3SEW10C1X/630MG24N9K4/PV |
| R900222370 | M-3SEW10C1X/630MG24N9K4/V |
| R900224091 | M-3SEW10C1X/630MG24N9K4=CSA |
| R901231088 | M-3SEW10C1X/630MG24N9K4YAW |
| R900049750 | M-3SEW10C1X/630MG24N9Z4 |
| R900050197 | M-3SEW10C1X/630MG24N9Z4/B08 |
| R900056214 | M-3SEW10C1X/630MG24N9Z4/B08 |
| R900057654 | M-3SEW10C1X/630MG24N9Z4/B10 |
| R900057364 | M-3SEW10C1X/630MG24N9Z4/B12 |
| R900050500 | M-3SEW10C1X/630MG24N9Z4/B15 |
| R900051538 | M-3SEW10C1X/630MG24N9Z4/V |
| R900051381 | M-3SEW10C1X/630MG24N9Z45 |
| R900050445 | M-3SEW10C1X/630MG24N9Z5L |
| R900058453 | M-3SEW10C1X/630MG24N9Z5L/B08 |
| R900705312 | M-3SEW10C1X/630MG48N9K4 |
| R900214675 | M-3SEW10C1X/630MG48N9K4/B08 |
| R901055670 | M-3SEW10C1X/630MG48N9K4/P |
| R901200790 | M-3SEW10C1X/630MG60N9K4 |
| R900747279 | M-3SEW10C1X/630MG60N9K4/B20 |
| R900057726 | M-3SEW10C1X/630MG60N9Z4 |
| R900735047 | M-3SEW10C1X/630MG96K4/B10 |
| R900051542 | M-3SEW10C1X/630MG96N9K4 |
| R978912131 | M-3SEW10C1X/630MG96N9K4/B08 |
| R978916995 | M-3SEW10C1X/630MG96N9K4/B08V |
| R900734263 | M-3SEW10C1X/630MG96N9K4/B10 |
| R901416583 | M-3SEW10C1X/630MG96N9K4/B12 |
| R901148976 | M-3SEW10C1X/630MG96N9K4/B15 |
| R900241141 | M-3SEW10C1X/630MG96N9K4/B18 |
| R901410859 | M-3SEW10C1X/630MG96N9K4/B30 |
| R900988869 | M-3SEW10C1X/630MG96N9K4/P |
| R901056315 | M-3SEW10C1X/630MG96N9K4/PV |
| R900989714 | M-3SEW10C1X/630MG96N9K4/V |
| R900221758 | M-3SEW10C1X/630MG96N9K4=CSA |
| R900987543 | M-3SEW10C1X/630MG96N9K4YAW |
| R900052346 | M-3SEW10C1X/630MW110RN9Z5 |
| R900050277 | M-3SEW10C1X/630MW110RN9Z55 |
| R900051095 | M-3SEW10C1X/630MW120RN9Z55 |
| R900054114 | M-3SEW10C1X/630MW120RN9Z55L |
| R900050859 | M-3SEW10C1X/630MW220RN9Z5 |
| R901289123 | M-3SEW10C1X=420MG24N9K4 |
| R900214054 | M-3SEW10U1X/420MG110K4 |
| R901013262 | M-3SEW10U1X/420MG110N9EXZ2 |
| R900059350 | M-3SEW10U1X/420MG110N9K4 |
| R901150107 | M-3SEW10U1X/420MG110N9K4/B10 |
| R901343080 | M-3SEW10U1X/420MG110N9K4/B10V |
| R901045093 | M-3SEW10U1X/420MG110N9K4/B12 |
| R901276516 | M-3SEW10U1X/420MG110N9K4/B12V |
| R901018523 | M-3SEW10U1X/420MG110N9K4/B15 |
| R900775539 | M-3SEW10U1X/420MG110N9K4/B18 |
| R900247420 | M-3SEW10U1X/420MG110N9K4/B20 |
| R900208674 | M-3SEW10U1X/420MG110N9K4/B22 |
| R900986015 | M-3SEW10U1X/420MG110N9K4/V |
| R901144672 | M-3SEW10U1X/420MG110N9XEZ2 |
| R900051910 | M-3SEW10U1X/420MG125N9K4 |
| R900206348 | M-3SEW10U1X/420MG125N9K4/V |
| R901367432 | M-3SEW10U1X/420MG125N9K4/V=CSA |
| R900205862 | M-3SEW10U1X/420MG12N9K4 |
| R900051044 | M-3SEW10U1X/420MG205N9K4 |
| R901333078 | M-3SEW10U1X/420MG205N9K4/B08 |
| R900201439 | M-3SEW10U1X/420MG205N9K4/B10 |
| R901067350 | M-3SEW10U1X/420MG205N9K4/B12 |
| R901032221 | M-3SEW10U1X/420MG205N9K4/B12=CSA |
| R900051642 | M-3SEW10U1X/420MG205N9K4/B15 |
| R901098311 | M-3SEW10U1X/420MG205N9K4/B18 |
| R900056440 | M-3SEW10U1X/420MG205N9K4/B20 |
| R900208034 | M-3SEW10U1X/420MG205N9K4/P |
| R900227606 | M-3SEW10U1X/420MG205N9K4/V |
| R900209143 | M-3SEW10U1X/420MG220N9K4 |
| R900985585 | M-3SEW10U1X/420MG220N9K4/B15 |
| R901283781 | M-3SEW10U1X/420MG220N9K4/B20 |
| R901123302 | M-3SEW10U1X/420MG220N9K4/V |
| R900058058 | M-3SEW10U1X/420MG240N9K4 |
| R901026403 | M-3SEW10U1X/420MG240N9K4/B15 |
| R901034067 | M-3SEW10U1X/420MG240N9K4/B22 |
| R900058049 | M-3SEW10U1X/420MG240N9Z4/B15 |
| R900082344 | M-3SEW10U1X/420MG24K4 |
| R901210535 | M-3SEW10U1X/420MG24K4/B12V |
| R900987157 | M-3SEW10U1X/420MG24K4/P |
| R901198281 | M-3SEW10U1X/420MG24K4/V |
| R900222372 | M-3SEW10U1X/420MG24K4QMAG24 |
| R901186471 | M-3SEW10U1X/420MG24K4QMBG24 |
| R901337223 | M-3SEW10U1X/420MG24N4K4 |
| R901159667 | M-3SEW10U1X/420MG24N4K4QMAG24 |
| R900226567 | M-3SEW10U1X/420MG24N9EXZ2 |
| R900075563 | M-3SEW10U1X/420MG24N9K4 |
| R900204109 | M-3SEW10U1X/420MG24N9K4/B08 |
| R900051181 | M-3SEW10U1X/420MG24N9K4/B10 |
| R900212532 | M-3SEW10U1X/420MG24N9K4/B12 |
| R900227902 | M-3SEW10U1X/420MG24N9K4/B12V |
| R900086375 | M-3SEW10U1X/420MG24N9K4/B15 |
| R900059159 | M-3SEW10U1X/420MG24N9K4/B15=CSA |
| R900215084 | M-3SEW10U1X/420MG24N9K4/B15V |
| R900227367 | M-3SEW10U1X/420MG24N9K4/B18 |
| R900730287 | M-3SEW10U1X/420MG24N9K4/B18V |
| R900058626 | M-3SEW10U1X/420MG24N9K4/B20 |
| R900054561 | M-3SEW10U1X/420MG24N9K4/B20V |
| R900086769 | M-3SEW10U1X/420MG24N9K4/B22 |
| R901351308 | M-3SEW10U1X/420MG24N9K4/B22V |
| R978916711 | M-3SEW10U1X/420MG24N9K4/B25V |
| R900088708 | M-3SEW10U1X/420MG24N9K4/P |
| R901190324 | M-3SEW10U1X/420MG24N9K4/P=CSA |
| R900089334 | M-3SEW10U1X/420MG24N9K4/PV |
| R900052729 | M-3SEW10U1X/420MG24N9K4/V |
| R901361329 | M-3SEW10U1X/420MG24N9K4/VSO219 |
| R901313261 | M-3SEW10U1X/420MG24N9K4/V=CSA |
| R900204496 | M-3SEW10U1X/420MG24N9K4=CSA |
| R900212469 | M-3SEW10U1X/420MG24N9K4YAW |
| R900781141 | M-3SEW10U1X/420MG24N9K4YAW/B18 |
| R901057923 | M-3SEW10U1X/420MG24N9K4YAW/V |
| R901132784 | M-3SEW10U1X/420MG24N9XEZ2 |
| R901339727 | M-3SEW10U1X/420MG24N9XEZ2/B15 |
| R901115471 | M-3SEW10U1X/420MG24N9XEZ2/V |
| R901291916 | M-3SEW10U1X/420MG24N9Z2/B15VSO864 |
| R900079704 | M-3SEW10U1X/420MG24N9Z4 |
| R900050067 | M-3SEW10U1X/420MG24N9Z4/B20 |
| R900085402 | M-3SEW10U1X/420MG24N9Z4/B20ML |
| R900057825 | M-3SEW10U1X/420MG24N9Z4/P |
| R900084953 | M-3SEW10U1X/420MG24N9Z4/V |
| R900051083 | M-3SEW10U1X/420MG24N9Z45 |
| R900050134 | M-3SEW10U1X/420MG24N9Z5L |
| R900052897 | M-3SEW10U1X/420MG24N9Z5L/B10 |
| R900054073 | M-3SEW10U1X/420MG24N9Z5L/B12 |
| R900057477 | M-3SEW10U1X/420MG24N9Z5L/B12V |
| R900050068 | M-3SEW10U1X/420MG24N9Z5L/B15 |
| R900050135 | M-3SEW10U1X/420MG24N9Z5L/B18 |
| R900052885 | M-3SEW10U1X/420MG24N9Z5L/B20 |
| R900050704 | M-3SEW10U1X/420MG24N9Z5L1 |
| R900993952 | M-3SEW10U1X/420MG42N9K4 |
| R900089264 | M-3SEW10U1X/420MG42N9Z4 |
| R900052788 | M-3SEW10U1X/420MG48N9K4 |
| R901376616 | M-3SEW10U1X/420MG48N9K4/B25V |
| R901321018 | M-3SEW10U1X/420MG60N9K4 |
| R900246081 | M-3SEW10U1X/420MG96K4/B12V |
| R900086818 | M-3SEW10U1X/420MG96N9K4 |
| R901176862 | M-3SEW10U1X/420MG96N9K4SO219 |
| R978911020 | M-3SEW10U1X/420MG96N9K4/B08 |
| R900220911 | M-3SEW10U1X/420MG96N9K4/B10 |
| R900053551 | M-3SEW10U1X/420MG96N9K4/B12 |
| R978910405 | M-3SEW10U1X/420MG96N9K4/B12V |
| R900247519 | M-3SEW10U1X/420MG96N9K4/B12V=CSA |
| R900224892 | M-3SEW10U1X/420MG96N9K4/B15 |
| R901175567 | M-3SEW10U1X/420MG96N9K4/B15SO219 |
| R900210570 | M-3SEW10U1X/420MG96N9K4/B15=CSA |
| R978914241 | M-3SEW10U1X/420MG96N9K4/B15V |
| R978019212 | M-3SEW10U1X/420MG96N9K4/B18 |
| R978917914 | M-3SEW10U1X/420MG96N9K4/B18V |
| R900229400 | M-3SEW10U1X/420MG96N9K4/B20 |
| R900745556 | M-3SEW10U1X/420MG96N9K4/B20V |
| R901028575 | M-3SEW10U1X/420MG96N9K4/B20V=CSA |
| R900053481 | M-3SEW10U1X/420MG96N9K4/B22 |
| R901010943 | M-3SEW10U1X/420MG96N9K4/B25 |
| R900209229 | M-3SEW10U1X/420MG96N9K4/P |
| R900051907 | M-3SEW10U1X/420MG96N9K4/V |
| R900208257 | M-3SEW10U1X/420MG96N9K4=CSA |
| R900052100 | M-3SEW10U1X/420MG96N9Z5/V |
| R900081958 | M-3SEW10U1X/420MW110RN9Z5 |
| R900052884 | M-3SEW10U1X/420MW110RN9Z5/B12 |
| R900051085 | M-3SEW10U1X/420MW110RN9Z5/B15 |
| R900051826 | M-3SEW10U1X/420MW110RN9Z5/B22 |
| R900059507 | M-3SEW10U1X/420MW110RN9Z5L |
| R900052620 | M-3SEW10U1X/420MW110RN9Z5L/V |
| R900083169 | M-3SEW10U1X/420MW220RN9Z5 |
| R900052173 | M-3SEW10U1X/420MW220RN9Z5/P |
| R900050334 | M-3SEW10U1X/420MW220RN9Z5/V |
| R900086724 | M-3SEW10U1X/420MW220RN9Z5L |
| R900050292 | M-3SEW10U1X/420MW220RN9Z5L/B20 |
| R900054355 | M-3SEW10U1X/420MW220RN9Z5L/P |
| R900051990 | M-3SEW10U1X/420MW220RN9Z5L1 |
| R900214573 | M-3SEW10U1X/420MW230RN9Z5L |
| R900215156 | M-3SEW10U1X/420MW230RN9Z5L/P |
| R901443938 | M-3SEW10U1X/450MG24N9K4 |
| R900219965 | M-3SEW10U1X/630MG110N9K4 |
| R900991986 | M-3SEW10U1X/630MG110N9K4/B08 |
| R900739141 | M-3SEW10U1X/630MG110N9K4/B18 |
| R901172225 | M-3SEW10U1X/630MG110N9K4/P |
| R901088249 | M-3SEW10U1X/630MG110N9K4/V |
| R901034386 | M-3SEW10U1X/630MG125N9K4 |
| R900989517 | M-3SEW10U1X/630MG196N9K4 |
| R900201150 | M-3SEW10U1X/630MG205N9K4 |
| R900987332 | M-3SEW10U1X/630MG205N9K4/B15 |
| R900744936 | M-3SEW10U1X/630MG205N9K4/B20 |
| R900734135 | M-3SEW10U1X/630MG205N9K4/P |
| R900242332 | M-3SEW10U1X/630MG205N9K4/V |
| R900216554 | M-3SEW10U1X/630MG205N9K4YAW |
| R900057741 | M-3SEW10U1X/630MG205N9Z4 |
| R901198955 | M-3SEW10U1X/630MG220N9K4 |
| R900717173 | M-3SEW10U1X/630MG24K4 |
| R901287300 | M-3SEW10U1X/630MG24K4/P |
| R900777122 | M-3SEW10U1X/630MG24K4/V |
| R901186646 | M-3SEW10U1X/630MG24K4YAW |
| R900051544 | M-3SEW10U1X/630MG24N9K4 |
| R900228322 | M-3SEW10U1X/630MG24N9K4/B10 |
| R900708130 | M-3SEW10U1X/630MG24N9K4/B10V |
| R900205863 | M-3SEW10U1X/630MG24N9K4/B12 |
| R900051904 | M-3SEW10U1X/630MG24N9K4/B15 |
| R901187969 | M-3SEW10U1X/630MG24N9K4/B15SO219 |
| R900986503 | M-3SEW10U1X/630MG24N9K4/B18 |
| R901042670 | M-3SEW10U1X/630MG24N9K4/B18V |
| R900213105 | M-3SEW10U1X/630MG24N9K4/B20 |
| R901431356 | M-3SEW10U1X/630MG24N9K4/B20SO219 |
| R900240369 | M-3SEW10U1X/630MG24N9K4/B20V |
| R900212054 | M-3SEW10U1X/630MG24N9K4/P |
| R900747376 | M-3SEW10U1X/630MG24N9K4/PV |
| R900218367 | M-3SEW10U1X/630MG24N9K4/V |
| R900224422 | M-3SEW10U1X/630MG24N9K4=CSA |
| R900740282 | M-3SEW10U1X/630MG24N9K4YAW |
| R900994398 | M-3SEW10U1X/630MG24N9K4YAW |
| R900049749 | M-3SEW10U1X/630MG24N9Z4 |
| R900057360 | M-3SEW10U1X/630MG24N9Z4/B12 |
| R900049979 | M-3SEW10U1X/630MG24N9Z4/B20 |
| R900051541 | M-3SEW10U1X/630MG24N9Z4/V |
| R900050444 | M-3SEW10U1X/630MG24N9Z5L |
| R900705311 | M-3SEW10U1X/630MG48N9K4 |
| R900224709 | M-3SEW10U1X/630MG48N9K4/P |
| R900213062 | M-3SEW10U1X/630MG96N9K4 |
| R978919168 | M-3SEW10U1X/630MG96N9K4/B08 |
| R978901025 | M-3SEW10U1X/630MG96N9K4/B12 |
| R900987548 | M-3SEW10U1X/630MG96N9K4/B15 |
| R900227460 | M-3SEW10U1X/630MG96N9K4/B20 |
| R978916082 | M-3SEW10U1X/630MG96N9K4/B20V |
| R978916081 | M-3SEW10U1X/630MG96N9K4/B25V |
| R900988990 | M-3SEW10U1X/630MG96N9K4/P |
| R900775665 | M-3SEW10U1X/630MG96N9K4/V |
| R900058425 | M-3SEW10U1X/630MW110RN9Z5 |
| R900051042 | M-3SEW10U1X/630MW110RN9Z5/B15 |
| R900051903 | M-3SEW10U1X/630MW220RN9Z5L/P |
| R900049836 | M-3SEW10U1X/630MW230RN9Z5 |
| R900053296 | M-3SEW10U1X/630MW230RN9Z5L |
| R900052395 | M-3SEW10U1X/630MW230RN9Z5L/B10 |
| R900058893 | M-3SEW10U1X=630MG24N9Z4=LB |
| R901149543 | M-3SEW10Y1X/630MG24N9K4 |
| R901000495 | M-3SEW10C1X/420MG24N9EXZ2 |
| R978933716 | M-3SEW10C1X/420MG196N9K4 |
| R978910378 | M-3SEW10C1X/630MG96N9K4/B20 |
| R901357156 | M-3SEW10U1X/420MG220N9K4/B25V |
A10VSO18 Series Rexroth Hydraulic Pump , Variable Axial Piston Pump
Variable High Pressure Hydraulic Pump A10VSO45 Series With Long Service Life
Quick Speed Rexroth Hydraulic Pump , A10VSO71 Series Variable Piston Hydraulic Pump
Hydac Pressure Filter Element Replacement 0240D 0260D 0280D Series ISO Approved
Pressure Replacement Filter Element Hydac 0800D 0900D 1320D 1500D Series
Hydac 0240R Series Return Line Elements For Hydraulic Return Line Filter
Parker Denison Hydraulic Piston Pumps Variable Volume PVP16 Series
PVP41 Series Parker Denison Hydraulic Pumps Variable Volume Piston Pumps
PV140 PV180 Series Parker Hydraulic Pumps Axial Piston Pump On Hand
