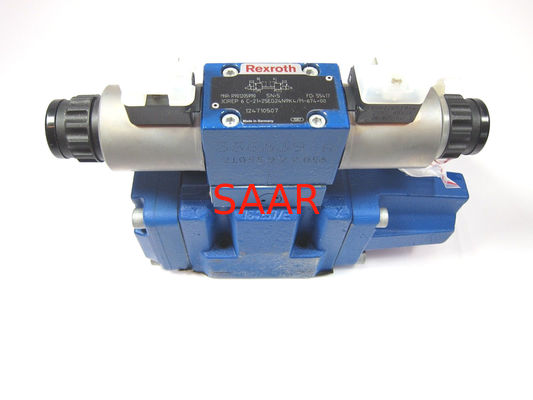

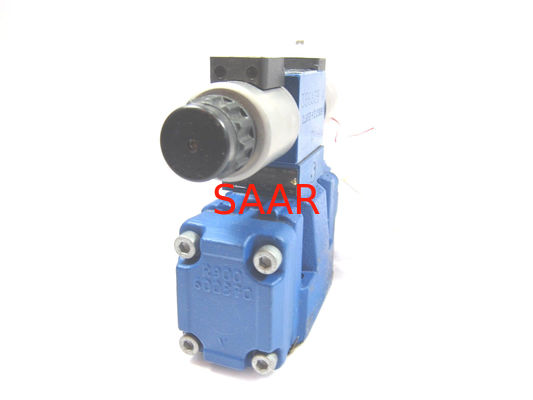

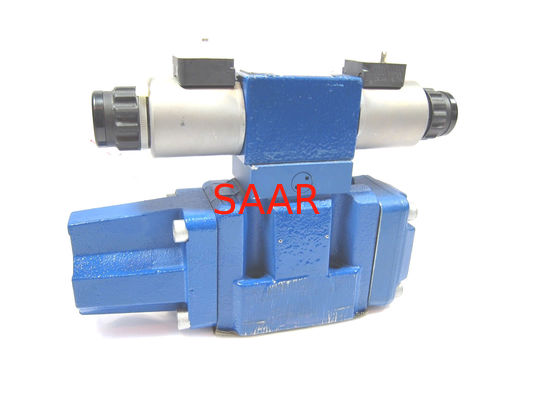

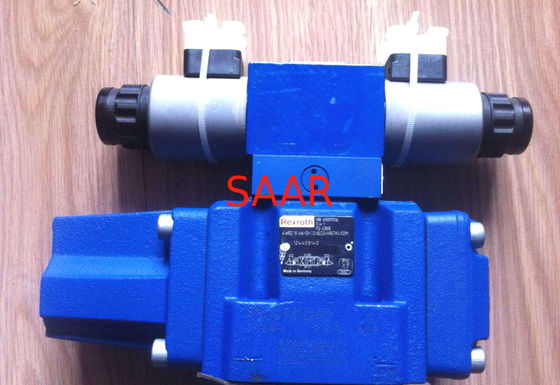

Rexroth Hydraulic Valves / Proportional Directional Valves 4WRZ10 Series
Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Model Number: Rexroth 4WRZ10E1 4WRZ10E25 4WRZ10E50 4WRZ10E85 4WRZ10M 4WRZ10W6 4WRZ10W8 4WRZ10W9 Proportional Directional Valves
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: On request
Packaging Details: Standard paper box
Delivery Time: 7-10days
Payment Terms: T/T, Western Union
Supply Ability: 100PCS per month
Contact Now
Detailed Product Description
Maximum Flow: 2800 L/min Maximum Operating Pressure: 350 Bar
Size: 10, 16, 25, 32, 52
High Light:

rexroth proportional valve

,

hydraulic solenoid valve

Rexroth Hydraulic Valves / Proportional Directional Valves 4WRZ10 Series 0

Rexroth 4WRZ Series Proportional directional valves, pilot operated, without electrical position feedback, without integrated electronics (OBE)

Size 10, 16, 25, 32, 52
Component series 7X
Maximum operating pressure 350 bar
Maximum flow 2800 l/min



Features
Pilot-operated, 2-stage proportional directional valves with integrated electronics (OBE)
Control of the direction and magnitude of a flow
Operation by means of proportional solenoids with central thread and detachable coil
For subplate mounting: Porting pattern according to ISO 4401
Optional auxiliary operating device
Spring-centered control spool

For appliSAARions outside these parameters, please consult us!

Technical data

General

Type 4WRZ
Size 10 16 25 32 52
Installation position   any, preferably horizontal
Ambient temperature range °C -20 … +70
Storage temperature range °C -20 … +80
Weight For subplate mounting kg 7.8 11.9 18.2 42.2 79.5
for flange connection kg   77.5
with "D3" kg 8.3 12.4 18.7 42.7 80
Sine test according to DIN EN 60068-2-6   10 cycles, 10…2000.. 10 Hz with logarithmic frequency changing speed of 1 octave/min, 5 to 57 Hz, amplitude 1.5 mm (p-p), 57 to 2000 Hz, amplitude 10g, 3 axes
Noise test according to DIN EN 60068-2-64   20…2000 Hz, amplitude 0.05g2/Hz (10gRMS) 3 axes, testing time 30 min per axis
Shock test according to DIN EN 60068-2-27   Half-sine 15g / 11 ms, 3 times in positive and 3 times in negative direction per axis, 3 axes
Damp heat according to DIN EN 60068-2-30   Variant 2: +25 °C … +55 °C, 90 % … 97 % relative humidity, 2 cycles á 24 hours

Hydraulic

Size 10 16 25 32 52
Maximum operating pressure   bar 315 350
Operating pressure range External pilot oil supply bar 30 … 100 20 … 100
Pilot control valve without "D3", internal pilot oil return bar 30 … 100
Internal pilot oil supply bar 100 … 315 100 … 350
Maximum return flow pressure Port T and R, external pilot oil return bar 315 250 150 250
Port T, internal pilot oil return bar 30
Port Y bar 30
Maximum flow   l/min 170 460 870 1600 2800
Nominal flow   l/min 25
50
85
100
125
150
180
220
325
360
520
1000
Pilot flow input signal 0 → 100% Port X and Y l/min 3.5 5.5 7 15.9 7
Pilot volume switching process 0 → 100% cm³ 1.7 4.6 10 26.5 54.3
Hydraulic fluid temperature range   °C -20 … +80
preferably °C -40 … +50
Viscosity range   mm²/s 20 … 380
preferably mm²/s 30 … 46
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 1) Pilot control valve   Class 18/16/13 according to ISO 4406 (c)
Main valve   Class 20/18/15 according to ISO 4406 (c)
Hysteresis   % ≤ 6
1) The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

Electrical

Size 10 16 25 32 52
Voltage type   Direct voltage
Command value overlap   % 15
Maximum solenoid current   A 1.5
Solenoid coil resistance Cold value at 20 °C Ω 4.8
Maximum hot value Ω 7.2
Actuated time   % 100
Maximum coil temperature 1)   °C + 150
Protection class according to DIN EN 60529   IP65 (with mating connector mounted and locked)
Power supply   V 24
Supply voltage range   V 19.4 … 35
1) Due to the surface temperatures occurring at the solenoid coils, the European standards ISO 13732-1 and EN 982 need to be adhered to.
Hydraulic fluid ClassifiSAARion Suitable sealing materials Standards
Mineral oils and related hydrocarbons HL, HLP NBR / FKM DIN 51524
Flame-resistant - containing water HFC (Fuchs HYDROTHERM 46M, Petrofer Ultra Safe 620) NBR ISO 12922

Important information on hydraulic fluids:

For more information and data on the use of other hydraulic fluids please contact us.

There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.).

The flash point of the process and operating medium used must be 40 K over the maximum solenoid surface temperature.

Flame-resistant - containing water:
Maximum pressure differential per control edge 175 bar
Pressure pre-loading at the tank port > 20 % of the pressure differential, otherwise increased cavitation
Life cycle as compared to operation with mineral oil HL, HLP 50 % to 100 %


SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth 4WRZ10E1 4WRZ10E25 4WRZ10E50 4WRZ10E85 4WRZ10M 4WRZ10W6 4WRZ10W8 4WRZ10W9 Proportional Directional Valves on Sale, Short lead time, Best price!!!

R901158929 4WRZ10E1-25-7X/6EG24K4/D3M
R901113552 4WRZ10E1-25-7X/6EG24N6ETK10/V-899
R901226730 4WRZ10E1-25-7X/6EG24N9EK4/D3M
R900976118 4WRZ10E1-25-7X/6EG24N9ETK4/D3M
R900959729 4WRZ10E1-25-7X/6EG24N9ETK4/D3V
R900963347 4WRZ10E1-25-7X/6EG24N9K4/V
R901322981 4WRZ10E1-25-7X/6EG24N9TK4/D3M
R978918424 4WRZ10E1-50-7X/6EG24ETK4/D3V
R900784961 4WRZ10E1-50-7X/6EG24N9EK4/D3M
R900961664 4WRZ10E1-50-7X/6EG24N9EK4/D3V
R901260990 4WRZ10E1-50-7X/6EG24N9EK4/V
R900725356 4WRZ10E1-50-7X/6EG24N9ETK4/D3M
R900944102 4WRZ10E1-50-7X/6EG24N9ETK4/D3V
R900737684 4WRZ10E1-50-7X/6EG24N9ETK4/M
R900978825 4WRZ10E1-50-7X/6EG24N9K4/D3M
R900949267 4WRZ10E1-50-7X/6EG24N9K4/D3V
R900955310 4WRZ10E1-50-7X/6EG24N9K4/M
R900752029 4WRZ10E1-50-7X/6EG24N9K4/V
R901051866 4WRZ10E1-50-7X/6EG24N9TK4/M
R900970660 4WRZ10E1-50-7X/ET/M
R900970362 4WRZ10E1-50-7X/ET/V
R901021450 4WRZ10E1-85-7X/6EG24ETK4/D3M
R978909358 4WRZ10E1-85-7X/6EG24ETK4/D3V
R900736895 4WRZ10E1-85-7X/6EG24ETK4/M
R901278973 4WRZ10E1-85-7X/6EG24K4/D3M
R900706740 4WRZ10E1-85-7X/6EG24N9EK4/D3M
R978912888 4WRZ10E1-85-7X/6EG24N9EK4/D3V
R900977454 4WRZ10E1-85-7X/6EG24N9EK4/M
R900976481 4WRZ10E1-85-7X/6EG24N9ETK4/D3M
R901376175 4WRZ10E1-85-7X/6EG24N9ETK4/D3M-674
R900943060 4WRZ10E1-85-7X/6EG24N9ETK4/D3V
R900977990 4WRZ10E1-85-7X/6EG24N9ETK4/M
R900974051 4WRZ10E1-85-7X/6EG24N9ETK4/V
R900968393 4WRZ10E1-85-7X/6EG24N9K4/D3M
R901302368 4WRZ10E1-85-7X/6EG24N9K4/D3M-674
R901279259 4WRZ10E1-85-7X/6EG24N9K4/D3V
R900740469 4WRZ10E1-85-7X/6EG24N9K4/M
R901328639 4WRZ10E1-85-7X/6EG24N9TK4/D3M
R901060198 4WRZ10E1-85-7X/6EG24N9TK4/D3M
R901335747 4WRZ10E1-85-7X/6EG24N9TK4/D3V
R901032858 4WRZ10E1-85-7X/6EG24N9TK4/M
R900964244 4WRZ10E1-85-7X/6EG24N9TK4/V
R901254498 4WRZ10E1-85-7X/6EG24XEJE/D3V
R900960944 4WRZ10E1-85-7X/E/M
R900964743 4WRZ10E1-85-7X/E/V
R987141059 4WRZ10E1-85-7X/ET/M
R900971379 4WRZ10E25-7X//M
R900977756 4WRZ10E25-7X/6EG24ETK4/D3M
R901386405 4WRZ10E25-7X/6EG24ETK4/D3V
R900759583 4WRZ10E25-7X/6EG24K4/D3M
R900705139 4WRZ10E25-7X/6EG24N9EK4/D3M
R900973229 4WRZ10E25-7X/6EG24N9EK4/D3V
R901046289 4WRZ10E25-7X/6EG24N9EK4/M
R900972406 4WRZ10E25-7X/6EG24N9ETK4/D3M
R900949182 4WRZ10E25-7X/6EG24N9ETK4/D3V
R900977994 4WRZ10E25-7X/6EG24N9ETK4/M
R900962455 4WRZ10E25-7X/6EG24N9ETK4/V
R901334221 4WRZ10E25-7X/6EG24N9ETK4/V-674
R901057740 4WRZ10E25-7X/6EG24N9K4/D3M
R900962252 4WRZ10E25-7X/6EG24N9K4/D3V
R900973404 4WRZ10E25-7X/6EG24N9K4/M
R900953216 4WRZ10E25-7X/6EG24N9K4/V
R901003734 4WRZ10E25-7X/6EG24N9TK4/D3M
R901177110 4WRZ10E25-7X/6EG24N9TK4/D3V
R901037623 4WRZ10E25-7X/6EG24N9TK4/M
R901287684 4WRZ10E25-7X/6EG24NETK4/D3M-674
R900246435 4WRZ10E25-7X/E/M
R901167110 4WRZ10E25-7X/ET/M
R978916343 4WRZ10E25-7X/ET/V
R901089483 4WRZ10E3-50-7X/6EG24ETK4/D3M
R901129278 4WRZ10E3-50-7X/6EG24N9ETK4/D3M
R901064467 4WRZ10E3-50-7X/6EG24N9K4/V
R901121213 4WRZ10E3-85-7X/6EG24ETK4/D3M
R900950871 4WRZ10E3-85-7X/6EG24ETK4/V-589
R900756113 4WRZ10E3-85-7X/6EG24N9EK4/M
R900976132 4WRZ10E3-85-7X/6EG24N9ETK4/D3M
R900945856 4WRZ10E3-85-7X/6EG24N9ETK4/D3V
R987151337 4WRZ10E3-85-7X/6EG24N9ETK4/M
R901314358 4WRZ10E3-85-7X/6EG24N9ETK4/M-674
R901426628 4WRZ10E3-85-7X/6EG24N9K4/D3M
R901055603 4WRZ10E3-85-7X/6EG24N9K4/M
R900964796 4WRZ10E5-85-7X/6EG24N9ETK4/M
R900965980 4WRZ10E50-7X//M
R901024417 4WRZ10E50-7X/6EG24ETK4/D3M
R901385169 4WRZ10E50-7X/6EG24ETK4/D3V
R901104568 4WRZ10E50-7X/6EG24K4/M
R901250767 4WRZ10E50-7X/6EG24N6ETK4/D3M
R901211638 4WRZ10E50-7X/6EG24N6K4/D3M
R900244330 4WRZ10E50-7X/6EG24N9EK4/D3M
R900702064 4WRZ10E50-7X/6EG24N9EK4/D3V
R900756711 4WRZ10E50-7X/6EG24N9EK4/M
R978916341 4WRZ10E50-7X/6EG24N9EK4/V
R900974408 4WRZ10E50-7X/6EG24N9ETK4/D3M
R901346363 4WRZ10E50-7X/6EG24N9ETK4/D3M-674
R900948242 4WRZ10E50-7X/6EG24N9ETK4/D3V
R900959030 4WRZ10E50-7X/6EG24N9ETK4/M
R900953361 4WRZ10E50-7X/6EG24N9ETK4/V
R901387325 4WRZ10E50-7X/6EG24N9ETK4/V-674
R900775144 4WRZ10E50-7X/6EG24N9K4/D3M
R900951806 4WRZ10E50-7X/6EG24N9K4/D3V
R900967208 4WRZ10E50-7X/6EG24N9K4/M
R900972867 4WRZ10E50-7X/6EG24N9K4/V
R900781668 4WRZ10E50-7X/6EG24N9TK4/D3M
R900753904 4WRZ10E50-7X/6EG24N9TK4/D3M=PL
R901013828 4WRZ10E50-7X/6EG24N9TK4/D3WG152M
R900707965 4WRZ10E50-7X/6EG24N9TK4/M
R900964408 4WRZ10E50-7X/6EG24N9TK4/V
R901359837 4WRZ10E50-7X/6EG24NJK31/D3M
R901008958 4WRZ10E50-7X/6EG24NK4/D3M-20=PL
R900745624 4WRZ10E50-7X/6EG24TK4/M
R901130443 4WRZ10E50-7X/6EG24XEJET/D3V
R901110133 4WRZ10E50-7X/ET/M
R901167974 4WRZ10E50-7X/JET/M
R900962460 4WRZ10E85-7X//M
R900970991 4WRZ10E85-7X//M-402
R900247438 4WRZ10E85-7X/6EG24EK4/V
R901121111 4WRZ10E85-7X/6EG24ETK4/D3M
R978911895 4WRZ10E85-7X/6EG24ETK4/D3M
R901012355 4WRZ10E85-7X/6EG24ETK4/M
R978914378 4WRZ10E85-7X/6EG24ETK4/V
R900711153 4WRZ10E85-7X/6EG24K4/M
R900751049 4WRZ10E85-7X/6EG24N9EK4/D3M
R900960129 4WRZ10E85-7X/6EG24N9EK4/D3V
R901274149 4WRZ10E85-7X/6EG24N9EK4/D3WG152M
R900732237 4WRZ10E85-7X/6EG24N9EK4/M
R900963717 4WRZ10E85-7X/6EG24N9EK4/V
R900972444 4WRZ10E85-7X/6EG24N9ETK4/D3M
R900944558 4WRZ10E85-7X/6EG24N9ETK4/D3V
R900977989 4WRZ10E85-7X/6EG24N9ETK4/M
R900937767 4WRZ10E85-7X/6EG24N9ETK4/V
R900950969 4WRZ10E85-7X/6EG24N9ETK4/V-589
R900762068 4WRZ10E85-7X/6EG24N9K4/D3M
R901445382 4WRZ10E85-7X/6EG24N9K4/D3M-674
R900960176 4WRZ10E85-7X/6EG24N9K4/D3V
R900969686 4WRZ10E85-7X/6EG24N9K4/M
R900948691 4WRZ10E85-7X/6EG24N9K4/V
R900757031 4WRZ10E85-7X/6EG24N9TK4/D3M
R900951447 4WRZ10E85-7X/6EG24N9TK4/D3V
R901125161 4WRZ10E85-7X/6EG24N9TK4/D3WG152M
R978919859 4WRZ10E85-7X/6EG24N9TK4/M
R901444770 4WRZ10E85-7X/6EG24N9TK4/M-674
R900964409 4WRZ10E85-7X/6EG24N9TK4/V
R901344697 4WRZ10E85-7X/6EG24NK4/D3M-20=PL
R901037491 4WRZ10E85-7X/6EG24TK4/M
R901369071 4WRZ10E85-7X/6EG24XEJ/D3V
R901178090 4WRZ10E85-7X/6EG24XEJET/D3V
R901174467 4WRZ10E85-7X/E/M
R901022027 4WRZ10E85-7X/ET/M
R901403837 4WRZ10E85-7X/T/M
R901086721 4WRZ10EA25-7X/6EG24N9EK4/D3M
R901208006 4WRZ10EA25-7X/6EG24N9ETK4/M
R901081171 4WRZ10EA25-7X/6EG24N9K4/M
R901076001 4WRZ10EA25-7X/6EG24N9TK4/D3M
R901284389 4WRZ10EA25-7X/6EG24XEJET/D3V
R900780946 4WRZ10EA50-7X/6EG24N9EK4/D3M
R900748144 4WRZ10EA50-7X/6EG24N9EK4/V
R900249750 4WRZ10EA50-7X/6EG24N9K4/D3M
R901383514 4WRZ10EA50-7X/6EG24N9K4/M
R901359718 4WRZ10EA50-7X/6EG24N9TK4/D3M
R901265878 4WRZ10EA50-7X/6EG24XEJET/D3V
R900970365 4WRZ10EA50-7X/E/V
R901415231 4WRZ10EA85-7X/6EG24EK4/D3M
R901149897 4WRZ10EA85-7X/6EG24ETK4/D3M
R900975683 4WRZ10EA85-7X/6EG24N9EK4/D3M
R900774341 4WRZ10EA85-7X/6EG24N9EK4/M
R900703371 4WRZ10EA85-7X/6EG24N9EK4/V
R900756411 4WRZ10EA85-7X/6EG24N9ETK4/D3M
R978917455 4WRZ10EA85-7X/6EG24N9ETK4/M
R900962422 4WRZ10EA85-7X/6EG24N9K4/D3M
R900741668 4WRZ10EA85-7X/6EG24N9K4/M
R901232693 4WRZ10EA85-7X/6EG24N9K4/V
R901266535 4WRZ10EA85-7X/6EG24N9TK4/M
R901245068 4WRZ10EA85-7X/6EG24XEJE/D3V-954
R901041051 4WRZ10EA85-7X/6EG24XEJET/D3V
R900970364 4WRZ10EA85-7X/E/V
R900968814 4WRZ10EB25-7X/6EG24N9EK4/D3V
R978915232 4WRZ10EB25-7X/6EG24N9K4/M
R901382098 4WRZ10EB25-7X/6EG24XEJE/D3V
R978917189 4WRZ10EB50-7X/6EG24N9EK4/D3M
R900703859 4WRZ10EB50-7X/6EG24N9ETK4/M
R901119601 4WRZ10EB50-7X/6EG24N9K4/M
R987108236 4WRZ10EB50-7X/6EG24N9K4/M
R978917778 4WRZ10EB85-7X/6EG24ETK4/M
R900248643 4WRZ10EB85-7X/6EG24N9EK4/D3M
R900963740 4WRZ10EB85-7X/6EG24N9EK4/D3V
R901268126 4WRZ10EB85-7X/6EG24N9EK4/M
R900963832 4WRZ10EB85-7X/6EG24N9ETK4/D3M
R901033026 4WRZ10EB85-7X/6EG24N9ETK4/D3V
R900248482 4WRZ10EB85-7X/6EG24N9K4/D3M
R900960298 4WRZ10EB85-7X/6EG24N9K4/D3V
R900771000 4WRZ10EB85-7X/6EG24N9K4/M
R901176927 4WRZ10EB85-7X/6EG24N9TK4/D3M
R901239825 4WRZ10M25-7X/6EG24N9ETK4/M
R901214600 4WRZ10M50-7X/6EG24N9EK4/M
R901293856 4WRZ10M50-7X/6EG24N9ETK4/D3M
R901220835 4WRZ10M50-7X/6EG24N9ETK4/M
R901213660 4WRZ10M85-7X/6EG24N9EK4/M
R901416923 4WRZ10M85-7X/6EG24N9ETK4/M
R901277123 4WRZ10M85-7X/6EG24N9K4/M
R900963576 4WRZ10R3-50-7X/6EG24N9EK4/D3V
R900969478 4WRZ10R3-50-7X/6EG24N9ETK4/D3V
R900724398 4WRZ10R3-85-7X/6EG24N9ETK4/D3M
R901088124 4WRZ10R85-7X/6EG24N9ETK4/M
R901267664 4WRZ10W5-85-7X/6EG24N9ETK4/D3M
R901393702 4WRZ10W50-7X/6EG24ETK4/D3M-963=NE
R901052173 4WRZ10W50-7X/6EG24ETK4/M
R900701641 4WRZ10W50-7X/6EG24N9EK4/M
R900971174 4WRZ10W50-7X/6EG24N9ETK4/D3M
R900765488 4WRZ10W50-7X/6EG24N9ETK4/M
R978919059 4WRZ10W50-7X/6EG24N9ETK4/MSO43A-1577
R900741767 4WRZ10W50-7X/6EG24N9K4/D3M
R900760050 4WRZ10W50-7X/6EG24N9K4/M
R901017672 4WRZ10W50-7X/6EG24N9K4/V
R900979099 4WRZ10W50-7X/6EG24N9TK4/D3M
R901008738 4WRZ10W50-7X/6EG24N9TK4/M
R901080019 4WRZ10W50-7X/6EG24XEJET/D3V
R901113665 4WRZ10W50-7X/6EG24XEJT/D3V
R901169365 4WRZ10W6-25-7X//M
R901113553 4WRZ10W6-25-7X/6EG24N6ETK10/V-899
R900248811 4WRZ10W6-25-7X/6EG24N9EK4/D3M
R901366262 4WRZ10W6-25-7X/6EG24N9EK4/D3M-674
R900960228 4WRZ10W6-25-7X/6EG24N9EK4/D3V
R900965695 4WRZ10W6-25-7X/6EG24N9EK4/M
R900766289 4WRZ10W6-25-7X/6EG24N9ETK4/D3M
R900960150 4WRZ10W6-25-7X/6EG24N9ETK4/D3V
R900977525 4WRZ10W6-25-7X/6EG24N9ETK4/M
R901173744 4WRZ10W6-25-7X/6EG24N9ETK4/V
R901120237 4WRZ10W6-25-7X/6EG24N9K4/D3M
R900962261 4WRZ10W6-25-7X/6EG24N9K4/D3V
R901067262 4WRZ10W6-25-7X/6EG24N9K4/M
R900964992 4WRZ10W6-25-7X/6EG24N9K4/V
R901077267 4WRZ10W6-25-7X/6EG24N9TK4/D3M
R900977871 4WRZ10W6-25-7X/6EG24N9TK4/M
R901126398 4WRZ10W6-25-7X/6EG24XEJET/D3V
R901052571 4WRZ10W6-50-7X/6EG24ETK4/V
R978917220 4WRZ10W6-50-7X/6EG24ETK4/V
R900974902 4WRZ10W6-50-7X/6EG24JTK31/D3M
R901012394 4WRZ10W6-50-7X/6EG24K4/M
R901166677 4WRZ10W6-50-7X/6EG24N6K4/D3M
R900737931 4WRZ10W6-50-7X/6EG24N9EK4/D3M
R901364729 4WRZ10W6-50-7X/6EG24N9EK4/D3M-674
R900977347 4WRZ10W6-50-7X/6EG24N9EK4/D3V
R900727798 4WRZ10W6-50-7X/6EG24N9EK4/M
R900963348 4WRZ10W6-50-7X/6EG24N9EK4/V
R900970766 4WRZ10W6-50-7X/6EG24N9ETK4/D3M
R901404515 4WRZ10W6-50-7X/6EG24N9ETK4/D3M-68
R900946490 4WRZ10W6-50-7X/6EG24N9ETK4/D3V
R900712035 4WRZ10W6-50-7X/6EG24N9ETK4/M
R900949781 4WRZ10W6-50-7X/6EG24N9ETK4/V
R900748063 4WRZ10W6-50-7X/6EG24N9K4/D3M
R900957902 4WRZ10W6-50-7X/6EG24N9K4/D3V
R900975572 4WRZ10W6-50-7X/6EG24N9K4/M
R900960227 4WRZ10W6-50-7X/6EG24N9K4/V
R901004402 4WRZ10W6-50-7X/6EG24N9TK4/D3M
R900967654 4WRZ10W6-50-7X/6EG24N9TK4/D3V
R900744288 4WRZ10W6-50-7X/6EG24N9TK4/M
R901178030 4WRZ10W6-50-7X/6EG24N9TK4/V
R901082746 4WRZ10W6-50-7X/6EG24NJEK31/D3M
R901039469 4WRZ10W6-50-7X/6EG24NJETK31/D3M
R901362855 4WRZ10W6-50-7X/6EG24NJETK31/D3V
R901030220 4WRZ10W6-50-7X/6EG24NJETK31/M
R901369067 4WRZ10W6-50-7X/6EG24XEJ/D3V
R901138756 4WRZ10W6-50-7X/6EG24XEJET/D3V
R901187247 4WRZ10W6-50-7X/6EG24XEJT/D3V
R901322701 4WRZ10W6-50-7X=6EG24N9ETK4/D3M
R978913027 4WRZ10W6-85-7X/6EG24ETK4/D3M
R978909359 4WRZ10W6-85-7X/6EG24ETK4/D3V
R901387764 4WRZ10W6-85-7X/6EG24ETK4/M
R978910146 4WRZ10W6-85-7X/6EG24ETK4/V
R900771949 4WRZ10W6-85-7X/6EG24K4/D3M
R901044005 4WRZ10W6-85-7X/6EG24K4/M
R901186191 4WRZ10W6-85-7X/6EG24N5ETK4/D3M
R901376850 4WRZ10W6-85-7X/6EG24N5TK4/D3M
R901047720 4WRZ10W6-85-7X/6EG24N6JETK31/D3M
R900737932 4WRZ10W6-85-7X/6EG24N9EK4/D3M
R901327803 4WRZ10W6-85-7X/6EG24N9EK4/D3M-674
R900947002 4WRZ10W6-85-7X/6EG24N9EK4/D3V
R900709133 4WRZ10W6-85-7X/6EG24N9EK4/M
R900962044 4WRZ10W6-85-7X/6EG24N9EK4/V
R900704206 4WRZ10W6-85-7X/6EG24N9ETK4/D3M
R900949710 4WRZ10W6-85-7X/6EG24N9ETK4/D3V
R901056826 4WRZ10W6-85-7X/6EG24N9ETK4/D3V=MG
R900970193 4WRZ10W6-85-7X/6EG24N9ETK4/M
R900947283 4WRZ10W6-85-7X/6EG24N9ETK4/V
R900950970 4WRZ10W6-85-7X/6EG24N9ETK4/V-589
R901307934 4WRZ10W6-85-7X/6EG24N9ETK4/V-674
R900750795 4WRZ10W6-85-7X/6EG24N9K4/D3M
R900960336 4WRZ10W6-85-7X/6EG24N9K4/D3V
R901055031 4WRZ10W6-85-7X/6EG24N9K4/D3WG152M
R900963835 4WRZ10W6-85-7X/6EG24N9K4/M
R900946716 4WRZ10W6-85-7X/6EG24N9K4/V
R901062025 4WRZ10W6-85-7X/6EG24N9TK4/D3M
R901293747 4WRZ10W6-85-7X/6EG24N9TK4/D3M-674
R900947402 4WRZ10W6-85-7X/6EG24N9TK4/D3V
R901051524 4WRZ10W6-85-7X/6EG24N9TK4/D3WG152M
R900971474 4WRZ10W6-85-7X/6EG24N9TK4/M
R901355940 4WRZ10W6-85-7X/6EG24N9TK4/M-674
R901403213 4WRZ10W6-85-7X/6EG24NETK4/D3M
R901258053 4WRZ10W6-85-7X/6EG24NJEK31/D3M
R901041821 4WRZ10W6-85-7X/6EG24NJETK31/D3M
R900712125 4WRZ10W6-85-7X/6EG24NJETK31/D3V
R900970567 4WRZ10W6-85-7X/6EG24NJETK31/M
R900735025 4WRZ10W6-85-7X/6EG24TK4/M
R901298856 4WRZ10W6-85-7X/6EG24XEJ/D3V
R901185955 4WRZ10W6-85-7X/6EG24XEJE/D3V
R901169570 4WRZ10W6-85-7X/6EG24XEJET/D3V
R901332770 4WRZ10W6-85-7X/6EG24XEJT/D3V
R901159518 4WRZ10W6-85-7X/ET/M
R901349427 4WRZ10W6-85-7X=6EG24N6JETK31/D3M
R901046296 4WRZ10W6A25-7X/6EG24N9ETK4/M
R901046330 4WRZ10W6A50-7X/6EG24N9EK4/D3M
R900709613 4WRZ10W6A50-7X/6EG24N9ETK4/D3M
R901046329 4WRZ10W6A85-7X/6EG24N9EK4/D3M
R901359348 4WRZ10W6A85-7X/6EG24N9ETK4/D3M
R901035612 4WRZ10W6A85-7X/6EG24N9ETK4/M
R901204071 4WRZ10W6A85-7X/6EG24N9K4/D3M
R901207279 4WRZ10W6A85-7X/6EG24XEJ/D3V
R900945523 4WRZ10W6B50-7X/6EG24ETK4/D3V
R901026390 4WRZ10W6B85-7X/6EG24ETK4/D3M
R900977757 4WRZ10W8-25-7X/6EG24ETK4/M
R901113554 4WRZ10W8-25-7X/6EG24N6ETK10/V-899
R901285480 4WRZ10W8-25-7X/6EG24N6ETK4/D3M
R900244328 4WRZ10W8-25-7X/6EG24N9EK4/D3M
R901422299 4WRZ10W8-25-7X/6EG24N9EK4/V
R900973088 4WRZ10W8-25-7X/6EG24N9ETK4/D3M
R900705637 4WRZ10W8-25-7X/6EG24N9ETK4/D3V
R901071883 4WRZ10W8-25-7X/6EG24N9ETK4/M
R900956998 4WRZ10W8-25-7X/6EG24N9ETK4/V
R901000863 4WRZ10W8-25-7X/6EG24N9K4/D3M
R900945617 4WRZ10W8-25-7X/6EG24N9K4/D3V-589
R900717638 4WRZ10W8-25-7X/6EG24N9K4/M
R900972871 4WRZ10W8-25-7X/6EG24N9K4/V
R900758315 4WRZ10W8-25-7X/6EG24N9TK4/D3M
R900717636 4WRZ10W8-25-7X/6EG24NJETK31/D3M
R901387842 4WRZ10W8-25-7X/6EG24XEJET/D3V
R901347522 4WRZ10W8-50-7X/6EG24ETK4/D3M
R978000097 4WRZ10W8-50-7X/6EG24JETK31/V
R901015786 4WRZ10W8-50-7X/6EG24JK31/V
R901217850 4WRZ10W8-50-7X/6EG24N5ETK4/D3M
R901170830 4WRZ10W8-50-7X/6EG24N5TK4/D3M
R900244329 4WRZ10W8-50-7X/6EG24N9EK4/D3M
R901364041 4WRZ10W8-50-7X/6EG24N9EK4/D3M-674
R900945218 4WRZ10W8-50-7X/6EG24N9EK4/D3V
R900972500 4WRZ10W8-50-7X/6EG24N9EK4/M
R900943862 4WRZ10W8-50-7X/6EG24N9EK4/V
R900958780 4WRZ10W8-50-7X/6EG24N9ETK4/D3M
R901366416 4WRZ10W8-50-7X/6EG24N9ETK4/D3M-674
R900968657 4WRZ10W8-50-7X/6EG24N9ETK4/D3V
R900975790 4WRZ10W8-50-7X/6EG24N9ETK4/M
R900956997 4WRZ10W8-50-7X/6EG24N9ETK4/V
R900732469 4WRZ10W8-50-7X/6EG24N9K4/D3M
R978911535 4WRZ10W8-50-7X/6EG24N9K4/D3V
R901308907 4WRZ10W8-50-7X/6EG24N9K4/D3V-674
R900616671 4WRZ10W8-50-7X/6EG24N9K4/M
R900951701 4WRZ10W8-50-7X/6EG24N9K4/V
R900976869 4WRZ10W8-50-7X/6EG24N9TK4/D3M
R901069038 4WRZ10W8-50-7X/6EG24N9TK4/M
R900958945 4WRZ10W8-50-7X/6EG24N9TK4/V
R901082754 4WRZ10W8-50-7X/6EG24NJEK31/D3M
R901369065 4WRZ10W8-50-7X/6EG24XEJ/D3V
R900725322 4WRZ10W8-85-7X/6EG24EK4/M
R900246100 4WRZ10W8-85-7X/6EG24ETK4/D3M
R900974123 4WRZ10W8-85-7X/6EG24ETK4/D3V
R900963716 4WRZ10W8-85-7X/6EG24ETK4/V
R901091380 4WRZ10W8-85-7X/6EG24K4/M
R901039740 4WRZ10W8-85-7X/6EG24K4/V
R900976333 4WRZ10W8-85-7X/6EG24N9EK4/D3M
R900945492 4WRZ10W8-85-7X/6EG24N9EK4/D3V
R900732455 4WRZ10W8-85-7X/6EG24N9EK4/M
R900963068 4WRZ10W8-85-7X/6EG24N9EK4/V
R900962711 4WRZ10W8-85-7X/6EG24N9ETK4/D3M
R901279427 4WRZ10W8-85-7X/6EG24N9ETK4/D3M-674
R900950983 4WRZ10W8-85-7X/6EG24N9ETK4/D3V
R900948408 4WRZ10W8-85-7X/6EG24N9ETK4/D3V-589
R900978919 4WRZ10W8-85-7X/6EG24N9ETK4/M
R901350623 4WRZ10W8-85-7X/6EG24N9ETK4/M-674
R900949315 4WRZ10W8-85-7X/6EG24N9ETK4/V
R900246980 4WRZ10W8-85-7X/6EG24N9K4/D3M
R900953884 4WRZ10W8-85-7X/6EG24N9K4/D3V
R900965493 4WRZ10W8-85-7X/6EG24N9K4/M
R901216110 4WRZ10W8-85-7X/6EG24N9K4/V
R901024337 4WRZ10W8-85-7X/6EG24N9TK4/D3M
R900741669 4WRZ10W8-85-7X/6EG24N9TK4/M
R901075506 4WRZ10W8-85-7X/6EG24NJETK31/M
R901334442 4WRZ10W8-85-7X/6EG24NJK31/M
R901119152 4WRZ10W8-85-7X/6EG24TK4/D3M
R900246434 4WRZ10W8-85-7X/E/M
R900970363 4WRZ10W8-85-7X/ET/V
R900732012 4WRZ10W85-7X/6EG24ETK4/V
R978916003 4WRZ10W85-7X/6EG24N9EK4/D3M
R901035415 4WRZ10W85-7X/6EG24N9EK4/D3M
R900701589 4WRZ10W85-7X/6EG24N9EK4/M
R900972923 4WRZ10W85-7X/6EG24N9ETK4/D3M
R901036438 4WRZ10W85-7X/6EG24N9ETK4/D3V
R900245786 4WRZ10W85-7X/6EG24N9ETK4/M
R901138393 4WRZ10W85-7X/6EG24N9K4/D3M
R900244278 4WRZ10W85-7X/6EG24N9K4/M
R900978974 4WRZ10W85-7X/6EG24N9TK4/D3M
R978012519 4WRZ10W85-7X/6EG24N9TK4/M
R900754756 4WRZ10W85-7X/6EG24N9TK4/M
R900967926 4WRZ10W85-7X/6EG24N9TK4/V
R900752656 4WRZ10W85-7X/6EG24NJETK31/D3M
R900752655 4WRZ10W85-7X/6EG24NJETK31/D3V
R901025338 4WRZ10W85-7X/6EG24XEJET/D3V
R901013335 4WRZ10W8A85-7X/6EG24N9TK4/M
R900782797 4WRZ10W9-25-7X/6EG24N9ETK4/D3M
R901184544 4WRZ10W9-25-7X/6EG24N9K4/M
R901117268 4WRZ10W9-50-7X/6EG24N9EK4/D3M
R900619389 4WRZ10W9-50-7X/6EG24N9EK4/M
R900722239 4WRZ10W9-50-7X/6EG24N9ETK4/D3M
R900249195 4WRZ10W9-50-7X/6EG24N9ETK4/M
R901088128 4WRZ10W9-50-7X/6EG24N9K4/M
R900741478 4WRZ10W9-85-7X/6EG24ETK4/D3M
R901088667 4WRZ10W9-85-7X/6EG24K4/D3M
R901046029 4WRZ10W9-85-7X/6EG24N9EK4/D3M
R901027743 4WRZ10W9-85-7X/6EG24N9ETK4/D3M
R901308541 4WRZ10W9-85-7X/6EG24N9ETK4/D3M-674
R978917803 4WRZ10W9-85-7X/6EG24N9ETK4/D3V
R900775138 4WRZ10W9-85-7X/6EG24N9ETK4/M
R900970192 4WRZ10W9-85-7X/6EG24N9ETK4/V
R901225764 4WRZ10W9-85-7X/6EG24N9K4/D3M
R901325816 4WRZ10W9-85-7X/6EG24N9K4/M
R901093628 4WRZ10W9-85-7X/6EG24N9TK4/M
R900775592 4WRZ10WA85-7X/6EG24N9EK4/D3M
R901078686 4WRZ10WA85-7X/6EG24N9ETK4/D3M

Contact Details
Saar HK Electronic Limited

Contact Person: Mr. Jason

Send your inquiry directly to us (0 / 3000)

Other Products
