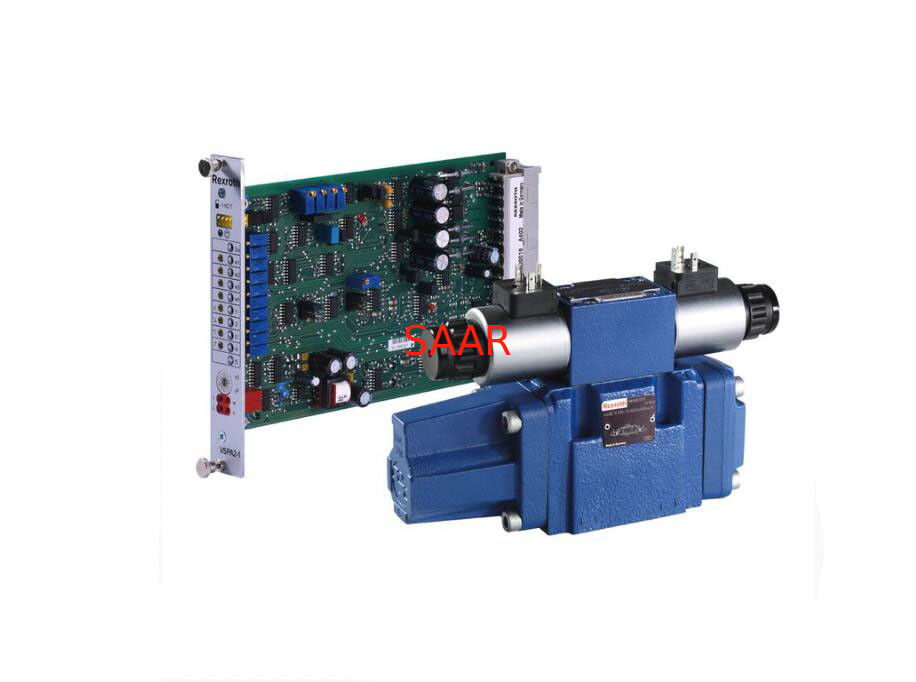

4WRZ32 Rexroth Hydraulic Valves / Rexroth Proportional Directional Control Valve

4WRZ32 Rexroth Hydraulic Valves / Rexroth Proportional Directional Control Valve

  • 4WRZ32 Rexroth Hydraulic Valves / Rexroth Proportional Directional Control Valve
  • 4WRZ32 Rexroth Hydraulic Valves / Rexroth Proportional Directional Control Valve
  • 4WRZ32 Rexroth Hydraulic Valves / Rexroth Proportional Directional Control Valve
  • 4WRZ32 Rexroth Hydraulic Valves / Rexroth Proportional Directional Control Valve
4WRZ32 Rexroth Hydraulic Valves / Rexroth Proportional Directional Control Valve
Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Model Number: Rexroth 4WRZ32E1 4WRZ32E360 4WRZ32EA520 4WRZ32W520 4WRZ32W6 4WRZ32W8 4WRZ32W9 Proportional Directional Valves
CertifiSAARion: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: On request
Packaging Details: Standard paper box
Delivery Time: 7-10days
Payment Terms: T/T, Western Union
Supply Ability: 100PCS per month
Contact Now
Detailed Product Description
High Light:

hydraulic pressure relief valve


hydraulic solenoid valve

4WRZ32 Rexroth Hydraulic Valves / Rexroth Proportional Directional Control Valve 0

Rexroth 4WRZ Series Proportional directional valves, pilot operated, without electrical position feedback, without integrated electronics (OBE)

Size 10, 16, 25, 32, 52
Component series 7X
Maximum operating pressure 350 bar
Maximum flow 2800 l/min


Pilot-operated, 2-stage proportional directional valves with integrated electronics (OBE)
Control of the direction and magnitude of a flow
Operation by means of proportional solenoids with central thread and detachable coil
For subplate mounting: Porting pattern according to ISO 4401
Optional auxiliary operating device
Spring-centered control spool

For appliSAARions outside these parameters, please consult us!

Technical data


Type 4WRZ
Size 10 16 25 32 52
Installation position   any, preferably horizontal
Ambient temperature range °C -20 … +70
Storage temperature range °C -20 … +80
Weight For subplate mounting kg 7.8 11.9 18.2 42.2 79.5
for flange connection kg   77.5
with "D3" kg 8.3 12.4 18.7 42.7 80
Sine test according to DIN EN 60068-2-6   10 cycles, 10…2000.. 10 Hz with logarithmic frequency changing speed of 1 octave/min, 5 to 57 Hz, amplitude 1.5 mm (p-p), 57 to 2000 Hz, amplitude 10g, 3 axes
Noise test according to DIN EN 60068-2-64   20…2000 Hz, amplitude 0.05g2/Hz (10gRMS) 3 axes, testing time 30 min per axis
Shock test according to DIN EN 60068-2-27   Half-sine 15g / 11 ms, 3 times in positive and 3 times in negative direction per axis, 3 axes
Damp heat according to DIN EN 60068-2-30   Variant 2: +25 °C … +55 °C, 90 % … 97 % relative humidity, 2 cycles á 24 hours


Size 10 16 25 32 52
Maximum operating pressure   bar 315 350
Operating pressure range External pilot oil supply bar 30 … 100 20 … 100
Pilot control valve without "D3", internal pilot oil return bar 30 … 100
Internal pilot oil supply bar 100 … 315 100 … 350
Maximum return flow pressure Port T and R, external pilot oil return bar 315 250 150 250
Port T, internal pilot oil return bar 30
Port Y bar 30
Maximum flow   l/min 170 460 870 1600 2800
Nominal flow   l/min 25
Pilot flow input signal 0 → 100% Port X and Y l/min 3.5 5.5 7 15.9 7
Pilot volume switching process 0 → 100% cm³ 1.7 4.6 10 26.5 54.3
Hydraulic fluid temperature range   °C -20 … +80
preferably °C -40 … +50
Viscosity range   mm²/s 20 … 380
preferably mm²/s 30 … 46
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 1) Pilot control valve   Class 18/16/13 according to ISO 4406 (c)
Main valve   Class 20/18/15 according to ISO 4406 (c)
Hysteresis   % ≤ 6
1) The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see


Size 10 16 25 32 52
Voltage type   Direct voltage
Command value overlap   % 15
Maximum solenoid current   A 1.5
Solenoid coil resistance Cold value at 20 °C Ω 4.8
Maximum hot value Ω 7.2
Actuated time   % 100
Maximum coil temperature 1)   °C + 150
Protection class according to DIN EN 60529   IP65 (with mating connector mounted and locked)
Power supply   V 24
Supply voltage range   V 19.4 … 35
1) Due to the surface temperatures occurring at the solenoid coils, the European standards ISO 13732-1 and EN 982 need to be adhered to.
Hydraulic fluid ClassifiSAARion Suitable sealing materials Standards
Mineral oils and related hydrocarbons HL, HLP NBR / FKM DIN 51524
Flame-resistant - containing water HFC (Fuchs HYDROTHERM 46M, Petrofer Ultra Safe 620) NBR ISO 12922

Important information on hydraulic fluids:

For more information and data on the use of other hydraulic fluids please contact us.

There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.).

The flash point of the process and operating medium used must be 40 K over the maximum solenoid surface temperature.

Flame-resistant - containing water:
Maximum pressure differential per control edge 175 bar
Pressure pre-loading at the tank port > 20 % of the pressure differential, otherwise increased cavitation
Life cycle as compared to operation with mineral oil HL, HLP 50 % to 100 %

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.
Rexroth 4WRZ32E1 4WRZ32E360 4WRZ32EA520 4WRZ32W520 4WRZ32W6 4WRZ32W8 4WRZ32W9 Proportional Directional Valves​ on Sale, Short lead time, Best price!!!
R901376478 4WRZ32E1-520-7X/6EG24K4/D3M-402
R901044135 4WRZ32E1-360-7X/6EG24N9EK4/D3M
R978916612 4WRZ32E1-360-7X/6EG24N9EK4/D3V
R901018543 4WRZ32E1-360-7X/6EG24N9EK4/D3V
R900763988 4WRZ32E1-360-7X/6EG24N9EK4/M
R901046286 4WRZ32E1-360-7X/6EG24N9EK4/V
R901051817 4WRZ32E1-360-7X/6EG24N9ETK4/D3M
R901038780 4WRZ32E1-360-7X/6EG24N9K4/D3M
R900970400 4WRZ32E1-360-7X/6EG24N9K4/D3V
R900707465 4WRZ32E1-360-7X/6EG24N9K4/M
R900618472 4WRZ32E1-360-7X/6EG24N9TK4/D3M
R901254499 4WRZ32E1-360-7X/6EG24XEJE/D3V
R900721876 4WRZ32E1-520-7X/6EG24N9EK4/D3M
R900977346 4WRZ32E1-520-7X/6EG24N9EK4/D3V
R901036763 4WRZ32E1-520-7X/6EG24N9EK4/M
R901174915 4WRZ32E1-520-7X/6EG24N9EK4/V
R900760544 4WRZ32E1-520-7X/6EG24N9ETK4/D3M
R900953854 4WRZ32E1-520-7X/6EG24N9ETK4/D3V
R901039681 4WRZ32E1-520-7X/6EG24N9ETK4/M
R900724397 4WRZ32E1-520-7X/6EG24N9K4/D3M
R900950968 4WRZ32E1-520-7X/6EG24N9K4/D3V
R900244192 4WRZ32E1-520-7X/6EG24N9K4/M
R900960705 4WRZ32E1-520-7X/6EG24N9K4/V
R900740262 4WRZ32E1-520-7X/6EG24N9TK4/D3M
R900733995 4WRZ32E1-520-7X/6EG24N9TK4/D3V
R901019949 4WRZ32E1-520-7X/6EG24N9TK4/M
R901368954 4WRZ32E1-520-7X/6EG24NJETK31/D3V
R901049656 4WRZ32E3-520-7X/6EG24N9EK4/D3M
R900708546 4WRZ32E3-520-7X/6EG24N9EK4/M
R900968697 4WRZ32E3-520-7X/6EG24N9EK4/V
R900779512 4WRZ32E3-520-7X/6EG24N9ETK4/D3M
R900949888 4WRZ32E3-520-7X/6EG24N9ETK4/V
R901096987 4WRZ32E3-520-7X/6EG24N9K4/D3M
R900964126 4WRZ32E3-520-7X/6EG24N9K4/D3V
R901063863 4WRZ32E3-520-7X/6EG24N9K4/M
R901028204 4WRZ32E360-7X/6EG24N9EK4/D3M
R900964017 4WRZ32E360-7X/6EG24N9EK4/D3V
R901346721 4WRZ32E360-7X/6EG24N9EK4/M
R901031457 4WRZ32E360-7X/6EG24N9ETK4/D3M
R978914136 4WRZ32E360-7X/6EG24N9ETK4/D3V
R901054440 4WRZ32E360-7X/6EG24N9K4/D3M
R901023669 4WRZ32E360-7X/6EG24N9K4/D3V
R901110847 4WRZ32E360-7X/6EG24N9K4/M
R978015591 4WRZ32E360-7X/6EG24N9K4/M
R900978436 4WRZ32E360-7X/6EG24N9K4/V
R901208346 4WRZ32E360-7X/6EG24N9TK4/D3M
R901348878 4WRZ32E360-7X/6EG24N9TK4/D3M-674
R900750624 4WRZ32E360-7X/6EG24N9TK4/D3V
R901269369 4WRZ32E360-7X/6EG24NJETK31/D3M
R900716549 4WRZ32E520-7X/6EG24K4/D3M
R900970570 4WRZ32E520-7X/6EG24N9EK4/D3M
R901283791 4WRZ32E520-7X/6EG24N9EK4/D3M-674
R900948082 4WRZ32E520-7X/6EG24N9EK4/D3V
R901002963 4WRZ32E520-7X/6EG24N9EK4/M
R900953350 4WRZ32E520-7X/6EG24N9EK4/V
R900758751 4WRZ32E520-7X/6EG24N9ETK4/D3M
R900948250 4WRZ32E520-7X/6EG24N9ETK4/D3V
R900766029 4WRZ32E520-7X/6EG24N9ETK4/M
R900961973 4WRZ32E520-7X/6EG24N9ETK4/V
R900971344 4WRZ32E520-7X/6EG24N9K4/D3M
R900971343 4WRZ32E520-7X/6EG24N9K4/D3M
R901283087 4WRZ32E520-7X/6EG24N9K4/D3M-674
R900958942 4WRZ32E520-7X/6EG24N9K4/D3V
R900719696 4WRZ32E520-7X/6EG24N9K4/M
R900970738 4WRZ32E520-7X/6EG24N9K4/V
R900772200 4WRZ32E520-7X/6EG24N9TK4/D3M
R901060155 4WRZ32E520-7X/6EG24N9TK4/M
R900702607 4WRZ32E520-7X/6EG24NJETK31/D3M
R900616865 4WRZ32E520-7X/6EG24NJTK31/D3V
R900958013 4WRZ32E520-7X/6EG24TK4/V
R901234241 4WRZ32E520-7X/6EG24XEJET/D3V
R901019630 4WRZ32E520-7X/E/M
R901283837 4WRZ32EA360-7X/6EG24N9EK4/M
R901173496 4WRZ32EA360-7X/6EG24N9ETK4/D3M
R901010687 4WRZ32EA520-7X/6EG24N9EK4/M
R901059810 4WRZ32EA520-7X/6EG24N9EK4/V
R901173492 4WRZ32EA520-7X/6EG24N9ETK4/D3M
R901070969 4WRZ32EA520-7X/6EG24N9ETK4/M
R900619538 4WRZ32EA520-7X/6EG24N9K4/D3M
R901139001 4WRZ32EA520-7X/6EG24N9K4/M
R901215054 4WRZ32EA520-7X/6EG24N9TK4/M
R901199462 4WRZ32EB520-7X/6EG24N9K4/D3M
R900970748 4WRZ32EB520-7X/6EG24N9K4/V
R901015433 4WRZ32EB520-7X/ET/M
R900946596 4WRZ32R1-520-7X/6EG24N9K4/D3V
R900976695 4WRZ32R520-7X/6EG24N9EK4/D3V
R901070986 4WRZ32R520-7X/6EG24N9ETK4/M
R901347677 4WRZ32R520-7X/6EG24N9K4/D3M
R900960175 4WRZ32R520-7X/6EG24N9K4/D3V
R900741765 4WRZ32R520-7X/6EG24N9K4/M
R978916729 4WRZ32W5-520-7X/6EG24N9EK4/D3M
R901267550 4WRZ32W5-520-7X/6EG24N9ETK4/D3M
R978918876 4WRZ32W5-520-7X/6EG24N9K4/V
R901049421 4WRZ32W520-7X/6EG24N9EK4/D3M
R900616468 4WRZ32W520-7X/6EG24N9EK4/D3V
R900617302 4WRZ32W520-7X/6EG24N9EK4/M
R900618926 4WRZ32W520-7X/6EG24N9ETK4/D3M
R901071145 4WRZ32W520-7X/6EG24N9ETK4/M
R901085949 4WRZ32W520-7X/6EG24N9K4/D3M
R901054612 4WRZ32W520-7X/6EG24N9K4/M
R901158876 4WRZ32W520-7X/6EG24N9TK4/D3M
R901068095 4WRZ32W520-7X/6EG24N9TK4/M
R987138795 4WRZ32W520-7X/6EG24N9TK4/M
R901394883 4WRZ32W6-360-7X/6EG24JK31/D3V
R900616528 4WRZ32W6-360-7X/6EG24N9EK4/D3M
R900965645 4WRZ32W6-360-7X/6EG24N9EK4/D3V
R901026391 4WRZ32W6-360-7X/6EG24N9EK4/M
R901393124 4WRZ32W6-360-7X/6EG24N9EK4/M-674
R901359782 4WRZ32W6-360-7X/6EG24N9EK4/V
R900705152 4WRZ32W6-360-7X/6EG24N9ETK4/D3M
R900948665 4WRZ32W6-360-7X/6EG24N9ETK4/D3V
R901295609 4WRZ32W6-360-7X/6EG24N9ETK4/D3V-674
R900731615 4WRZ32W6-360-7X/6EG24N9ETK4/M
R900741609 4WRZ32W6-360-7X/6EG24N9ETK4/V
R901015694 4WRZ32W6-360-7X/6EG24N9K4/D3M
R900777264 4WRZ32W6-360-7X/6EG24N9K4/D3V
R900945928 4WRZ32W6-360-7X/6EG24N9K4/D3V-589
R900727224 4WRZ32W6-360-7X/6EG24N9K4/M
R900745118 4WRZ32W6-360-7X/6EG24N9K4/V
R901171991 4WRZ32W6-360-7X/6EG24N9TK4/D3M
R901230217 4WRZ32W6-360-7X/6EG24N9TK4/D3V
R901242052 4WRZ32W6-360-7X/6EG24N9TK4/M
R901280357 4WRZ32W6-360-7X/6EG24XEJE/D3V
R900962420 4WRZ32W6-520-7X/6EG24K4/D3V
R901407644 4WRZ32W6-520-7X/6EG24K4/M
R900246879 4WRZ32W6-520-7X/6EG24N9EK4/D3M
R900959517 4WRZ32W6-520-7X/6EG24N9EK4/D3V
R900249353 4WRZ32W6-520-7X/6EG24N9EK4/M
R900708220 4WRZ32W6-520-7X/6EG24N9ETK4/D3M
R901297346 4WRZ32W6-520-7X/6EG24N9ETK4/D3M-674
R900973424 4WRZ32W6-520-7X/6EG24N9ETK4/D3V
R901016415 4WRZ32W6-520-7X/6EG24N9ETK4/M
R901105055 4WRZ32W6-520-7X/6EG24N9ETK4/V
R978910268 4WRZ32W6-520-7X/6EG24N9ETK4/V
R901242497 4WRZ32W6-520-7X/6EG24N9ETK4/V-674
R900958569 4WRZ32W6-520-7X/6EG24N9K4/D3M
R900942516 4WRZ32W6-520-7X/6EG24N9K4/D3V
R900945927 4WRZ32W6-520-7X/6EG24N9K4/D3V-589
R900957303 4WRZ32W6-520-7X/6EG24N9K4/M
R900942048 4WRZ32W6-520-7X/6EG24N9K4/V
R978914402 4WRZ32W6-520-7X/6EG24N9K4/VSO43A-1660
R901026579 4WRZ32W6-520-7X/6EG24N9TK4/D3M
R900249813 4WRZ32W6-520-7X/6EG24N9TK4/M
R900954548 4WRZ32W6-520-7X/6EG24N9TK4/V
R900970568 4WRZ32W6-520-7X/6EG24NJETK31/D3M
R901179535 4WRZ32W6-520-7X/6EG24NJK31/M
R900961666 4WRZ32W6-520-7X/6EG24NJK31/V
R901149529 4WRZ32W6-520-7X/6EG24XEJ/D3V
R901123949 4WRZ32W6-520-7X/6EG24XEJE/D3V
R901321489 4WRZ32W6-520-7X/6EG24XEJET/D3V
R901368608 4WRZ32W6-520-7X=6EG24N9ETK4/D3M
R901294632 4WRZ32W6A520-7X/6EG24N9ETK4/D3M
R901274585 4WRZ32W6A520-7X/6EG24N9ETK4/M
R901295651 4WRZ32W6A520-7X/6EG24N9TK4/D3M
R901261096 4WRZ32W6B-520-7X/6EG24XEJE/D3V
R901184415 4WRZ32W8-360-7X/6EG24EK4/D3M
R900703652 4WRZ32W8-360-7X/6EG24N9EK4/D3M
R901067989 4WRZ32W8-360-7X/6EG24N9EK4/D3V
R900729111 4WRZ32W8-360-7X/6EG24N9EK4/M
R900733047 4WRZ32W8-360-7X/6EG24N9ETK4/D3M
R901025720 4WRZ32W8-360-7X/6EG24N9K4/D3M
R900969320 4WRZ32W8-360-7X/6EG24N9K4/D3V
R900948566 4WRZ32W8-360-7X/6EG24N9K4/D3V-589
R900746688 4WRZ32W8-360-7X/6EG24N9K4/M
R900958404 4WRZ32W8-360-7X/6EG24N9K4/V
R900779472 4WRZ32W8-360-7X/6EG24N9TK4/D3M
R987051258 4WRZ32W8-360-7X/6EG24N9TK4/M
R901355229 4WRZ32W8-520-7X/6EG24EK4/M
R901354494 4WRZ32W8-520-7X/6EG24K4/M
R900747493 4WRZ32W8-520-7X/6EG24N9EK4/D3M
R901278971 4WRZ32W8-520-7X/6EG24N9EK4/D3M-674
R900948013 4WRZ32W8-520-7X/6EG24N9EK4/D3V
R901031137 4WRZ32W8-520-7X/6EG24N9EK4/M
R978916541 4WRZ32W8-520-7X/6EG24N9EK4/M
R900970410 4WRZ32W8-520-7X/6EG24N9EK4/V
R900761494 4WRZ32W8-520-7X/6EG24N9ETK4/D3M
R900948282 4WRZ32W8-520-7X/6EG24N9ETK4/D3V
R901039680 4WRZ32W8-520-7X/6EG24N9ETK4/M
R900741610 4WRZ32W8-520-7X/6EG24N9ETK4/V
R900704608 4WRZ32W8-520-7X/6EG24N9K4/D3M
R900958445 4WRZ32W8-520-7X/6EG24N9K4/D3V
R900945618 4WRZ32W8-520-7X/6EG24N9K4/D3V-589
R900723645 4WRZ32W8-520-7X/6EG24N9K4/M
R900953094 4WRZ32W8-520-7X/6EG24N9K4/V
R900763679 4WRZ32W8-520-7X/6EG24N9TK4/D3M
R901262745 4WRZ32W8-520-7X/6EG24N9TK4/D3V
R900744289 4WRZ32W8-520-7X/6EG24N9TK4/M
R901224358 4WRZ32W8-520-7X/6EG24N9TK4/V
R901342226 4WRZ32W8-520-7X/6EG24NJETK31/D3V
R900969274 4WRZ32W9-360-7X/6EG24N9EK4/D3M
R901375686 4WRZ32W9-360-7X/6EG24N9EK4/D3M-674
R900967671 4WRZ32W9-360-7X/6EG24N9EK4/M
R901069463 4WRZ32W9-360-7X/6EG24N9ETK4/D3M
R901030594 4WRZ32W9-360-7X/6EG24N9K4/D3M
R900778517 4WRZ32W9-520-7X/6EG24K4/D3M
R900979880 4WRZ32W9-520-7X/6EG24N9EK4/D3M
R901263893 4WRZ32W9-520-7X/6EG24N9EK4/D3M-674
R900953672 4WRZ32W9-520-7X/6EG24N9EK4/D3V
R901054882 4WRZ32W9-520-7X/6EG24N9EK4/M
R900963070 4WRZ32W9-520-7X/6EG24N9EK4/V
R901027110 4WRZ32W9-520-7X/6EG24N9ETK4/D3M
R901050898 4WRZ32W9-520-7X/6EG24N9ETK4/M
R901376111 4WRZ32W9-520-7X/6EG24N9K4/D3M
R901265194 4WRZ32W9-520-7X/6EG24N9K4/D3M-674
R901135026 4WRZ32W9-520-7X/6EG24N9K4/D3V
R900719890 4WRZ32W9-520-7X/6EG24N9K4/M
R901154794 4WRZ32W9-520-7X/6EG24N9TK4/D3M
R901319668 4WRZ32W9-520-7X/6EG24TK4/D3M-674

Contact Details
Saar HK Electronic Limited

Contact Person: Mr. Jason

Send your inquiry directly to us (0 / 3000)

Other Products
