Product Details:
Payment & Shipping Terms:
|
| Model: | Rexroth Type 3DR16P4/3DR16P5/3DR16P6/3DR16P7 Piloted Pressure Reducing Valve | CertifiSAARion: | ISO9001 |
|---|---|---|---|
| Origin: | Germany | ||
| High Light: | rexroth proportional valve,hydraulic solenoid valve |
||

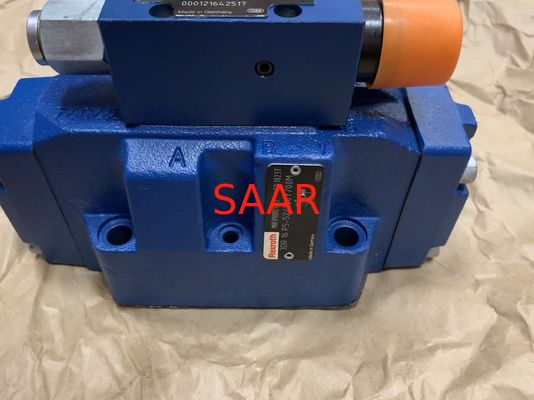

Rexroth Type 3DR16P Pressure Reducing Valve, Pilot-operated
Size 16
Component series 5X
Maximum operating pressure 250 bar
Maximum flow 220 l/min
Features
Valve for reduction (P to A) and limitation (A to T) of a system pressure
For subplate mounting
Porting pattern according to ISO 4401-07-07-0-05
Subplates (separate order)
4 pressure ratings
4 optional adjustment types:
• Rotary knob
• Sleeve with hexagon and protective cap
• Lockable rotary knob with scale
• Rotary knob with scale
| Size | 16 | |
| Weight | kg | 8 |
| Installation position | any | |
| Ambient temperature range | °C | -30 … +50 |
| Size | 16 | ||
| Nominal pressure | bar | 315 | |
| Maximum operating pressure | Port P | bar | 315 |
| Port A | bar | 250 | |
| Port Y | separate and depressurized to the tank | ||
| Set pressure | Minimum | flow-dependent, see characteristic curves | |
| Maximum | bar | 50 100 200 315 |
|
| Maximum flow | l/min | 220 | |
| Hydraulic fluid | see table | ||
| Hydraulic fluid temperature range | NBR seals | °C | -30 … +80 |
| FKM seals | °C | -20 … +80 | |
| Viscosity range | mm²/s | 10 … 800 | |
| Maximum admissible degree of contamination of the hydraulic fluid | Class 9 according to NAS 1638. For this, we recommend using a filter with a minimum retention rate of β10 ≥ 75. | ||
| Hydraulic fluid | ClassifiSAARion | Suitable sealing materials | Standards | |
| Mineral oil | HL, HLP | FKM, NBR | DIN 51524 | |
| Bio-degradable | Insoluble in water | HEES (synthetic esters) | FKM | VDMA 24568 |
| HETG (rape seed oil) | FKM, NBR | |||
| Soluble in water | HEPG (polyglycols) | FKM | VDMA 24568 | |
| Other hydraulic fluids on request | ||||
| R900917782 | 3DR16P4-5X/100Y/00M |
| R900917780 | 3DR16P4-5X/100Y/00V |
| R900916667 | 3DR16P4-5X/200Y/00M |
| R900917772 | 3DR16P4-5X/200Y/00V |
| R900976027 | 3DR16P4-5X/50Y/00M |
| R900916666 | 3DR16P5-5X/100Y/00M |
| R900953202 | 3DR16P5-5X/100Y/00M=PL |
| R901192250 | 3DR16P5-5X/100Y/00MSO63 |
| R900917774 | 3DR16P5-5X/100Y/00V |
| R900916668 | 3DR16P5-5X/200Y/00M |
| R901048366 | 3DR16P5-5X/200Y/00MSO63 |
| R900917773 | 3DR16P5-5X/200Y/00V |
| R901194020 | 3DR16P5-5X/200Y/00VSO63 |
| R900917775 | 3DR16P5-5X/250Y/00M |
| R901120594 | 3DR16P5-5X/250Y/00MSO63 |
| R900916670 | 3DR16P5-5X/250Y/00V |
| R900919718 | 3DR16P5-5X/315Y/00MSO43 |
| R900972553 | 3DR16P5-5X/315Y/00VSO43 |
| R901357541 | 3DR16P5-5X/50-15Y/00M |
| R900919502 | 3DR16P5-5X/50Y/00M |
| R900942090 | 3DR16P5-5X/50Y/00V |
| R900917777 | 3DR16P6-5X/100Y/00M |
| R900917779 | 3DR16P6-5X/100Y/00V |
| R900916669 | 3DR16P6-5X/200Y/00M |
| R900917783 | 3DR16P6-5X/200Y/00V |
| R901238595 | 3DR16P6-5X/200Y/00VSO63 |
| R900917778 | 3DR16P6-5X/250Y/00M |
| R900768698 | 3DR16P6-5X/315Y/00MSO43 |
| R900950574 | 3DR16P7-5X/200Y/00M |
| R901244523 | 3DR16P7-5X/250Y/00M |
