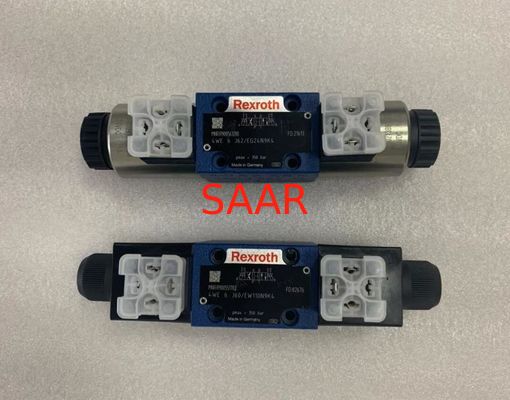

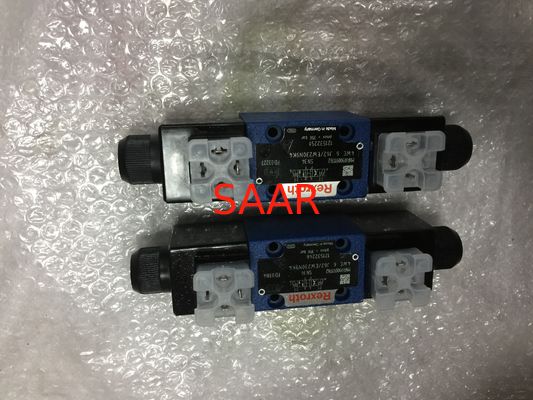

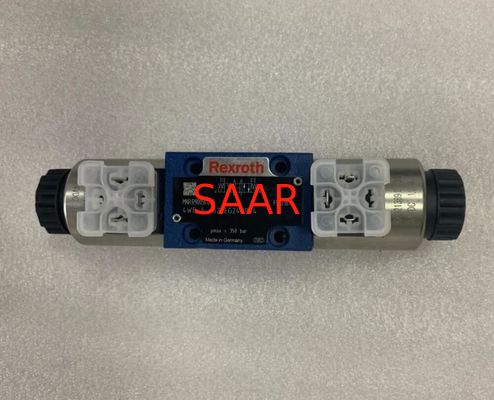

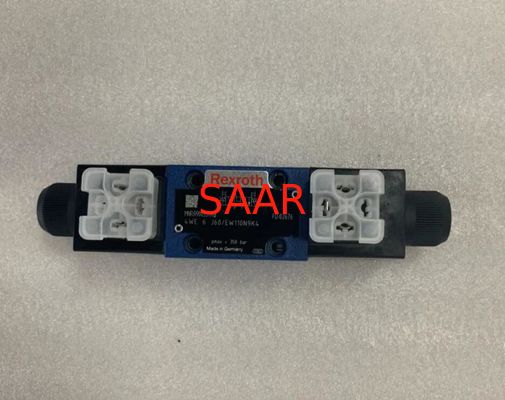

Professional Rexroth Solenoid Valve 4WE6J 4WE6JA 4WE6JB Series

Professional Rexroth Solenoid Valve 4WE6J 4WE6JA 4WE6JB Series

  • Professional Rexroth Solenoid Valve 4WE6J 4WE6JA 4WE6JB Series
  • Professional Rexroth Solenoid Valve 4WE6J 4WE6JA 4WE6JB Series
  • Professional Rexroth Solenoid Valve 4WE6J 4WE6JA 4WE6JB Series
  • Professional Rexroth Solenoid Valve 4WE6J 4WE6JA 4WE6JB Series
Professional Rexroth Solenoid Valve 4WE6J 4WE6JA 4WE6JB Series
Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Model Number: Rexroth 4WE6J6X/EG220N9K4 4WE6J6X/EG24N9DL 4WE6J6X/EG24N9K4/B12 4WE6J6X/EW110N9K4 4WE6J6X/EW230N9K4 4WE6JA6X/EG24N9K4 4WE6JA6X/EW230N9K4 4WE6JB6X/EG220N4K4 4WE6JB6X/EW110N9K4
CertifiSAARion: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: On request
Packaging Details: Standard paper box
Delivery Time: 7-10days
Payment Terms: T/T, Western Union
Supply Ability: 100PCS per month
Contact Now
Detailed Product Description
Model: 4WE6J62/EG24N9K4 CertifiSAARion: ISO9001
Origin: Germany
High Light:

rexroth proportional valve


hydraulic pressure relief valve

Professional Rexroth Solenoid Valve 4WE6J 4WE6JA 4WE6JB Series 0Rexroth 4WE6 Series Solenoid Directional Valves


Directional spool valves, direct operated, with solenoid actuation
WE 6...E
Size 6
Component series 6X
Maximum operating pressure 350 bar
Maximum flow (DC) 80 l/min
Maximum flow (AC) 60 l/min



4/3-, 4/2- or 3/2-way version
High-power solenoid
Porting pattern according to DIN 24340 form A
Porting pattern according to ISO 4401-03-02-0-05
Wet-pin DC or AC solenoids with detachable coil
Solenoid coil is rotatable by 90°
The coil can be changed without having to open the pressure-tight chamber
Electrical connection as individual or central connection
Optional auxiliary operating device
Spool position monitoring, optional


Type Code Ordering:

Type code

01 02 03 04 05   06 07 08 09 10 11   12 13 14 15 16
  WE 6   6X /   E         /         *


01 3 main ports 3
4 main ports 4
02 Directional valve WE
03 Size 6 6
04 Symbols e. g. C, E, EA, EB, etc.; for the possible version, see Symbols
05 Component series 60 … 69 (60 … 69: unchanged installation and connection dimensions) 6X
06 With spring return no code
Without spring return O
Without spring return with detent OF
07 High-power solenoid, wet-pin, with detachable coil E​
08 Direct voltage 24 V G24
Alternating voltage 230 V, 50/60 Hz W230
AC voltage 110 V or 120 V, 50/60 Hz W110
W + voltage
Direct voltage 205 V G205
DC solenoid with rectifier for AC voltage (not frequency-related; only available with plug-in connection with cover, see central connection dimensions) W110R
Nominal voltage 96 V at DC solenoid in case of operation with AC voltage mains (AC voltage mains 110 V - 50/60 Hz with an admissible voltage tolerance of +/- 10 %) G96
Nominal voltage 205 V at DC solenoid with operation with AC voltage mains (AC voltage mains 230 V – 50/60 Hz with an admissible voltage tolerance of +/- 10 %) G205

Connection to AC voltage mains via control with rectifier


09 Without manual override no code
With concealed manual override (standard) N9 2)
With manual override N 2)
With lockable manual override "mushroom button" (small) N4 2)
With lockable manual override "mushroom button" (large) N5 2); 3)
With manual override "mushroom button" (large), not lockable N6 2)
With lockable manual override "nut" N7 2)
Electrical connection
10 Individual connection
Without mating connector, with connector DIN EN 175301-803 K4 4)
Without mating connector, with connector AMP Junior-Timer C44)
Without mating connector, with connector DT 04 - 2PA (Deutsch plug) K404); 7)
Without mating connector, 4-pole with connector M12 x 1 according to IEC 60947-5-2, integrated interference protection circuit and status LED K72L5)
Without mating connector, 4-pole with connector M12 x 1 according to IEC 60947-5-2, integrated interference protection circuit and status LED (no connection pin 1 to pin 2) K73L5)
Central connection
Cable entry at the cover, with indiSAARor light DL
Central plug-in connection at the cover, with indiSAARor light (without mating connector); connector according to DIN EN 175201-804 DK6L6)
With M12x1 plug-in connection, high-performance version: 4-pole DK24L 5)
With M12x1 plug-in connection, high-performance version: 4-pole, integrated interference protection circuit, operating display with LED DK35L 5)
Spool position monitoring
11 Without position switch no code
Inductive position switch type QM
Monitored spool position “a” QMAG24
Monitored spool position “b” QMBG24
Monitored rest position QM0G24
Inductive position switch type QR
Monitored rest position QR0G24S
Monitored spool position "a" and "b" QRABG24E
Inductive position switch type QL
Monitored spool position “a” QLAG24
Monitored spool position “b” QLBG24
Inductive proximity sensor type QS
Monitored spool position “a” QSAG24W
Monitored spool position “b” QSBG24W
Monitored spool position "0" QS0G24W
Monitored spool position "0" and "a" QS0AG24W
Monitored spool position "0" and "b" QS0BG24W
Monitored spool position "a" and "b" QSABG24W
For further details, see data sheet 24830
12 Without throttle insert no code
With throttle insert
Connection Throttle Ø in mm
0,8 mm 1,0 mm 1,2 mm
P = B08 = B10 = B12
A = H08 = H10 = H12
B = R08 = R10 = R12
A and B = N08 = N10 = N12
T = X08 = X10 = X12
Use with flows which exceed the performance limit of the valve (see Product description)
Clamping length
13 42 mm (standard) no code
22 mm Z
Seal material
14 NBR seals no code
FKM seals V
Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)
15 Without loSAARing hole no code
With loSAARing hole /60 8)
With loSAARing hole and locking pin ISO 8752-3x8-St /62
16 Further details in the plain text *


SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.
Rexroth 4WE6J 4WE6JA 4WE6JB Series Solenoid Directional Valves on Sale, Short lead time, Best price!!!
R901049224 4WE6J6X/BG24NXDZ2/V
R900913271 4WE6J6X/E
R900956877 4WE6J6X/EG110N4K4
R901018518 4WE6J6X/EG110N9DJL1
R900934397 4WE6J6X/EG110N9DKL
R900900939 4WE6J6X/EG110N9DL
R900908878 4WE6J6X/EG110N9K4
R900942806 4WE6J6X/EG110N9K4/B10
R900926656 4WE6J6X/EG110N9K4/V
R900944083 4WE6J6X/EG110NK4
R900919168 4WE6J6X/EG125N9K4
R900926775 4WE6J6X/EG125N9K4/V
R900765512 4WE6J6X/EG12N2K4K
R900939408 4WE6J6X/EG12N4K4
R900248103 4WE6J6X/EG12N9C4
R901111960 4WE6J6X/EG12N9C4SO797
R900567496 4WE6J6X/EG12N9K4
R900619550 4WE6J6X/EG12N9K4/V
R901068640 4WE6J6X/EG12N9K4/ZV
R901052266 4WE6J6X/EG12NC4
R900921108 4WE6J6X/EG12NK4
R901087809 4WE6J6X/EG12NK4K
R901084706 4WE6J6X/EG205N5K4
R900904408 4WE6J6X/EG205N9K4
R901020598 4WE6J6X/EG205N9K4/A12
R900920207 4WE6J6X/EG205N9K4/B10
R900919920 4WE6J6X/EG205N9K4/V
R901068581 4WE6J6X/EG205N9K4/ZV
R900556678 4WE6J6X/EG220N9DL
R900922207 4WE6J6X/EG220N9K4
R900947926 4WE6J6X/EG220N9K4/V
R901106009 4WE6J6X/EG240NK4
R900919009 4WE6J6X/EG24DAL
R900906271 4WE6J6X/EG24DL
R900553928 4WE6J6X/EG24DL/N18
R900925442 4WE6J6X/EG24DL/N28
R900245148 4WE6J6X/EG24K33L
R900904828 4WE6J6X/EG24K4
R900908787 4WE6J6X/EG24K4/V
R900978538 4WE6J6X/EG24K4QR0G24S
R900979895 4WE6J6X/EG24K4QRABG24E
R901132421 4WE6J6X/EG24K4QS0G24S
R900738493 4WE6J6X/EG24K4SO293
R901003516 4WE6J6X/EG24K4SO582
R900936829 4WE6J6X/EG24N2K4
R900729336 4WE6J6X/EG24N2K4/V
R900909837 4WE6J6X/EG24N4K4
R900921485 4WE6J6X/EG24N4K4/V
R901102050 4WE6J6X/EG24N4K4SO407
R900940126 4WE6J6X/EG24N5DLSO321
R900962718 4WE6J6X/EG24N5K4
R900780126 4WE6J6X/EG24N6K4/B10
R900574335 4WE6J6X/EG24N9C4
R901075494 4WE6J6X/EG24N9C4/ZSO907
R900248559 4WE6J6X/EG24N9CK03
R900920381 4WE6J6X/EG24N9DAL
R900722575 4WE6J6X/EG24N9DJL
R900724195 4WE6J6X/EG24N9DJL1
R900911238 4WE6J6X/EG24N9DK24L
R900738883 4WE6J6X/EG24N9DK24L=AN
R901058014 4WE6J6X/EG24N9DK24L1SO407
R900956745 4WE6J6X/EG24N9DK24LSO482
R900574468 4WE6J6X/EG24N9DK25L
R900941443 4WE6J6X/EG24N9DK35L
R900720227 4WE6J6X/EG24N9DK35L=AN
R900921729 4WE6J6X/EG24N9DKL
R900920482 4WE6J6X/EG24N9DKL/B10
R900928788 4WE6J6X/EG24N9DKL/V
R900546816 4WE6J6X/EG24N9DL
R900575498 4WE6J6X/EG24N9DL/B10
R900764274 4WE6J6X/EG24N9DL1
R900247566 4WE6J6X/EG24N9K33L
R901106946 4WE6J6X/EG24N9K33L/62SO407=AN
R901025227 4WE6J6X/EG24N9K33L/B08
R900758479 4WE6J6X/EG24N9K33L/B10
R900743336 4WE6J6X/EG24N9K33L/B10SO407
R901056321 4WE6J6X/EG24N9K33L/B12
R900776188 4WE6J6X/EG24N9K33L/V=AN
R901083022 4WE6J6X/EG24N9K33L/X12=AN
R900972986 4WE6J6X/EG24N9K33LSO407
R900978758 4WE6J6X/EG24N9K33LSO407=AN
R900245631 4WE6J6X/EG24N9K4
R900550312 4WE6J6X/EG24N9K4
R900561288 4WE6J6X/EG24N9K4
R900701221 4WE6J6X/EG24N9K4
R900567271 4WE6J6X/EG24N9K4/A12
R900926062 4WE6J6X/EG24N9K4/B05
R900553273 4WE6J6X/EG24N9K4/B06
R900901045 4WE6J6X/EG24N9K4/B08
R900913306 4WE6J6X/EG24N9K4/B08SO525
R900910845 4WE6J6X/EG24N9K4/B08V
R900548271 4WE6J6X/EG24N9K4/B10
R900966531 4WE6J6X/EG24N9K4/B10SO524
R900926027 4WE6J6X/EG24N9K4/B10V
R900910299 4WE6J6X/EG24N9K4/B12
R900953437 4WE6J6X/EG24N9K4/B12SO256
R900954908 4WE6J6X/EG24N9K4/B12V
R900916942 4WE6J6X/EG24N9K4/B15
R900972692 4WE6J6X/EG24N9K4/B18
R900922535 4WE6J6X/EG24N9K4/B20
R900786421 4WE6J6X/EG24N9K4/B20SO523
R900914546 4WE6J6X/EG24N9K4/B25
R900926646 4WE6J6X/EG24N9K4/B30
R900927601 4WE6J6X/EG24N9K4/H15
R900934047 4WE6J6X/EG24N9K4/N08
R900928656 4WE6J6X/EG24N9K4/N10
R900969092 4WE6J6X/EG24N9K4/N12
R900934468 4WE6J6X/EG24N9K4/T06
R900766433 4WE6J6X/EG24N9K4/T06SO407
R900935635 4WE6J6X/EG24N9K4/T06V
R900548772 4WE6J6X/EG24N9K4/V
R901035811 4WE6J6X/EG24N9K4/V/60SO407
R900907063 4WE6J6X/EG24N9K4/VSO407
R900933747 4WE6J6X/EG24N9K4/X10
R900964856 4WE6J6X/EG24N9K4/X12
R901127938 4WE6J6X/EG24N9K4/Z
R901068579 4WE6J6X/EG24N9K4/ZV
R900247402 4WE6J6X/EG24N9K4=AN
R900979696 4WE6J6X/EG24N9K4=AN
R901020819 4WE6J6X/EG24N9K4003
R901002644 4WE6J6X/EG24N9K45L
R900783678 4WE6J6X/EG24N9K45LSO407
R901105543 4WE6J6X/EG24N9K45LSO407=AN
R900705990 4WE6J6X/EG24N9K4K
R901133581 4WE6J6X/EG24N9K4KSO21
R901096760 4WE6J6X/EG24N9K4QS0G24E
R900745884 4WE6J6X/EG24N9K4QS0G24S
R901164539 4WE6J6X/EG24N9K4QS0G24W
R900753456 4WE6J6X/EG24N9K4QSABG24E
R900608694 4WE6J6X/EG24N9K4QSABG24S
R901134364 4WE6J6X/EG24N9K4QSAG24E
R901053433 4WE6J6X/EG24N9K4QSAG24S
R900565479 4WE6J6X/EG24N9K4SO407
R900936205 4WE6J6X/EG24N9K4SO530
R900943048 4WE6J6X/EG24N9K4SO694
R900574017 4WE6J6X/EG24N9K4SO9
R901038591 4WE6J6X/EG24N9XNZ4
R900571391 4WE6J6X/EG24N9Z5L1
R901108650 4WE6J6X/EG24NC4
R901075489 4WE6J6X/EG24NC4/ZSO907
R900900512 4WE6J6X/EG24NDL
R900558519 4WE6J6X/EG24NDL/B10
R900920806 4WE6J6X/EG24NDLSO321
R900924597 4WE6J6X/EG24NK4/B10
R900708537 4WE6J6X/EG24NK4/B10SO702
R900961899 4WE6J6X/EG24NK4/B10V
R900962148 4WE6J6X/EG24NK4/B12
R900911848 4WE6J6X/EG24NK4/B15
R900908790 4WE6J6X/EG24NK4/V
R900935196 4WE6J6X/EG24NK4/X08
R901050676 4WE6J6X/EG24NK4K
R900966689 4WE6J6X/EG24NK4SO9
R901021653 4WE6J6X/EG24NXEZ2
R901057943 4WE6J6X/EG24NXEZ2/B08
R901029609 4WE6J6X/EG24NXEZ2/B10
R901110757 4WE6J6X/EG24NXEZ2/B10V
R901047365 4WE6J6X/EG24NXEZ2/B12
R901009185 4WE6J6X/EG24NXEZ2/V
R901053587 4WE6J6X/EG24NXEZ2SO329
R901043021 4WE6J6X/EG24SO667
R900915182 4WE6J6X/EG26N2K4
R900249557 4WE6J6X/EG26N2K4/B12SO9
R900765511 4WE6J6X/EG26N2K4K
R900928678 4WE6J6X/EG26N4K4
R900938799 4WE6J6X/EG28N9K4
R900940268 4WE6J6X/EG42N9K4
R900773710 4WE6J6X/EG48N4K4
R901049016 4WE6J6X/EG48N4K4/V
R900578449 4WE6J6X/EG48N9DKL
R900906525 4WE6J6X/EG48N9K4
R900938349 4WE6J6X/EG48N9K4/B10
R900921727 4WE6J6X/EG48N9K4/V
R900943587 4WE6J6X/EG48NK4
R900953946 4WE6J6X/EG60K4
R900930762 4WE6J6X/EG60N9K4
R900967450 4WE6J6X/EG96N4K4
R901115885 4WE6J6X/EG96N5K4/T06
R900909593 4WE6J6X/EG96N9K4
R900942100 4WE6J6X/EG96N9K4/B10
R901084937 4WE6J6X/EG96N9K4/B15
R901084939 4WE6J6X/EG96N9K4/B20
R901058106 4WE6J6X/EG96N9K4/B25
R901086138 4WE6J6X/EG96N9K4/T06
R900949273 4WE6J6X/EG96N9K4/V
R900916741 4WE6J6X/EG96NK4
R900920995 4WE6J6X/EW100N9DL
R900902835 4WE6J6X/EW100N9K4
R900553481 4WE6J6X/EW110N9DAL
R900904406 4WE6J6X/EW110N9DK25L
R900923349 4WE6J6X/EW110N9DKL
R901028597 4WE6J6X/EW110N9DKL/B08
R900552690 4WE6J6X/EW110N9DL
R900905998 4WE6J6X/EW110N9DL/V
R900551703 4WE6J6X/EW110N9K4
R900908786 4WE6J6X/EW110N9K4/B08
R900922537 4WE6J6X/EW110N9K4/B08V
R900912188 4WE6J6X/EW110N9K4/B10
R900938098 4WE6J6X/EW110N9K4/B12
R900920552 4WE6J6X/EW110N9K4/T06
R900910785 4WE6J6X/EW110N9K4/V
R900927093 4WE6J6X/EW110N9K4SO789
R900928957 4WE6J6X/EW110NK4
R900969034 4WE6J6X/EW110NK4/B10
R901083197 4WE6J6X/EW110RNXEZ2
R901127947 4WE6J6X/EW110RNXEZ2/V
R901026720 4WE6J6X/EW115N9K4
R900959086 4WE6J6X/EW127N9K4/V
R900927247 4WE6J6X/EW230K4
R900951943 4WE6J6X/EW230N9DAL
R900616857 4WE6J6X/EW230N9DAL/B10
R900902216 4WE6J6X/EW230N9DAL/V
R901019994 4WE6J6X/EW230N9DK25L
R900922055 4WE6J6X/EW230N9DKL
R900558439 4WE6J6X/EW230N9DL
R900911762 4WE6J6X/EW230N9K4
R901037043 4WE6J6X/EW230N9K4/B05
R900908589 4WE6J6X/EW230N9K4/B08
R900912079 4WE6J6X/EW230N9K4/B10
R900247700 4WE6J6X/EW230N9K4/B10V
R900935797 4WE6J6X/EW230N9K4/T06
R900914052 4WE6J6X/EW230N9K4/V
R901004765 4WE6J6X/EW230NDLSO321
R900579590 4WE6J6X/EW230NK4
R901063712 4WE6J6X/EW230RN5DLSO321
R901026864 4WE6J6X/EW230RNXEZ2
R901029612 4WE6J6X/EW230RNXEZ2/B10
R900939061 4WE6J6X/EW240N9K4
R900906461 4WE6J6X/EW24N9K4
R900936353 4WE6J6X/EW24N9K4/V
R900915572 4WE6J6X/EW42N9K4
R900934916 4WE6J6X/EW48N9K4
R900970743 4WE6JA6X/EG110N9K4
R900972616 4WE6JA6X/EG110N9K4/B10
R900944286 4WE6JA6X/EG125N9K4
R900734828 4WE6JA6X/EG125N9K4/B10
R900923495 4WE6JA6X/EG12N9K4
R901119602 4WE6JA6X/EG12N9K4/A12
R900968265 4WE6JA6X/EG205N9K4
R900922316 4WE6JA6X/EG220N9K4
R901040575 4WE6JA6X/EG240N9K4/B10
R901120666 4WE6JA6X/EG240N9K4/B10V
R900914872 4WE6JA6X/EG24K4
R900940309 4WE6JA6X/EG24N9DK24L
R900777967 4WE6JA6X/EG24N9K33L
R900561290 4WE6JA6X/EG24N9K4
R900750791 4WE6JA6X/EG24N9K4
R901028757 4WE6JA6X/EG24N9K4
R900931967 4WE6JA6X/EG24N9K4/B08
R900977922 4WE6JA6X/EG24N9K4/B08V
R900949065 4WE6JA6X/EG24N9K4/B10
R900932618 4WE6JA6X/EG24N9K4/B12
R901133585 4WE6JA6X/EG24N9K4/B20
R900917419 4WE6JA6X/EG24N9K4/N10
R900554557 4WE6JA6X/EG24N9K4/V
R901068641 4WE6JA6X/EG24N9K4/ZV
R900779127 4WE6JA6X/EG24N9K4=AN
R901085090 4WE6JA6X/EG24N9K45L
R900731409 4WE6JA6X/EG24N9K4K
R900617768 4WE6JA6X/EG24N9K4SO407
R900924595 4WE6JA6X/EG24NK4
R901071960 4WE6JA6X/EG24NXEZ2
R900905452 4WE6JA6X/EW110N9K4
R900913925 4WE6JA6X/EW230N9K4
R900953707 4WE6JA6X/EW24N9K4
R900949542 4WE6JA6X/OFEG24N9K4
R901108702 4WE6JA7X/HG24N9K4
R901137806 4WE6JA7X/HG24N9K4/V
R901132592 4WE6JB6X/BG110NXDZ2/V
R900942220 4WE6JB6X/EG110N9K4
R901079398 4WE6JB6X/EG12N4K4
R901086316 4WE6JB6X/EG12N9C4
R900930476 4WE6JB6X/EG12N9K4
R901122857 4WE6JB6X/EG12NK4K
R900937351 4WE6JB6X/EG205N9K4/B10
R900765531 4WE6JB6X/EG205N9K4/V
R900957121 4WE6JB6X/EG220N4K4
R900955470 4WE6JB6X/EG220N9K4
R900904829 4WE6JB6X/EG24K4
R900617886 4WE6JB6X/EG24K4SO9
R900955966 4WE6JB6X/EG24N4K4
R901015680 4WE6JB6X/EG24N9K33L
R900561291 4WE6JB6X/EG24N9K4
R900927259 4WE6JB6X/EG24N9K4/B08
R900923037 4WE6JB6X/EG24N9K4/B10
R900951144 4WE6JB6X/EG24N9K4/B12
R900932917 4WE6JB6X/EG24N9K4/V
R900729866 4WE6JB6X/EG24N9K4/VSO407
R901068634 4WE6JB6X/EG24N9K4/ZV
R900707267 4WE6JB6X/EG24N9K4K
R900907856 4WE6JB6X/EG24N9K4QM0G24
R900917455 4WE6JB6X/EG24N9K4QMBG24
R900924393 4WE6JB6X/EG24NK4
R901042817 4WE6JB6X/EG24NXEZ2
R901072890 4WE6JB6X/EG24NXEZ2/V
R900913741 4WE6JB6X/EG96N9K4
R901084938 4WE6JB6X/EG96N9K4/B25
R900906202 4WE6JB6X/EW110N9K4
R900930103 4WE6JB6X/EW110N9K4/V
R901026714 4WE6JB6X/EW115N9K4
R900923742 4WE6JB6X/EW230N9K4
R901081103 4WE6JB6X/EW230N9K4/V
R900784028 4WE6JB6X/EW230N9K4QM0G24
R900915907 4WE6JB6X/EW24NK4
R900758806 4WE6JB6X/OFEG24N9K4
R900979903 4WE6JB6X/SG24N9K4/B10V

Contact Details
Saar HK Electronic Limited

Contact Person: Mr. Jason

Send your inquiry directly to us (0 / 3000)

Other Products
