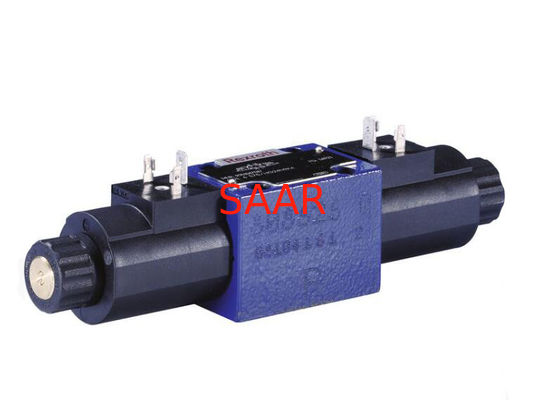

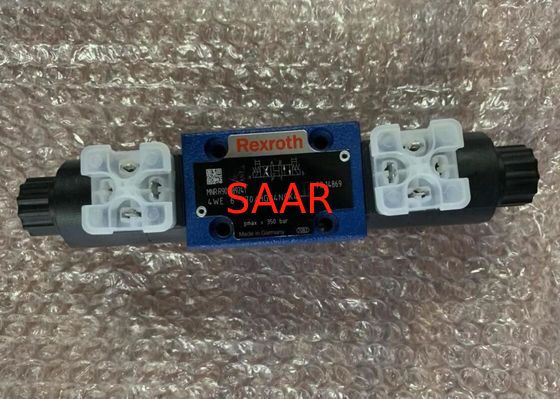

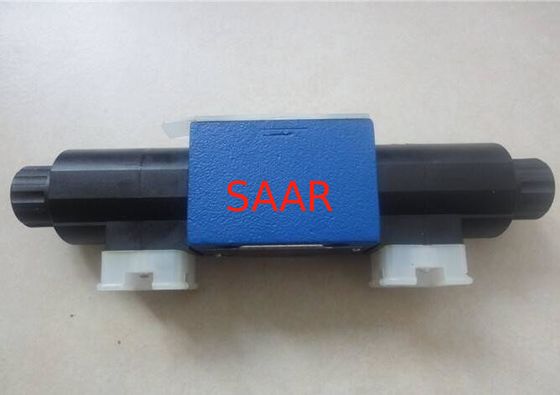

ISO Rexroth Hydraulic Valves 4WE6D7X 4WE6E7X 4WE6H7X 4WE6J7X Series Solenoid Directional Valves

ISO Rexroth Hydraulic Valves 4WE6D7X 4WE6E7X 4WE6H7X 4WE6J7X Series Solenoid Directional Valves

  • ISO Rexroth Hydraulic Valves 4WE6D7X 4WE6E7X 4WE6H7X 4WE6J7X Series Solenoid Directional Valves
  • ISO Rexroth Hydraulic Valves 4WE6D7X 4WE6E7X 4WE6H7X 4WE6J7X Series Solenoid Directional Valves
  • ISO Rexroth Hydraulic Valves 4WE6D7X 4WE6E7X 4WE6H7X 4WE6J7X Series Solenoid Directional Valves
  • ISO Rexroth Hydraulic Valves 4WE6D7X 4WE6E7X 4WE6H7X 4WE6J7X Series Solenoid Directional Valves
ISO Rexroth Hydraulic Valves 4WE6D7X 4WE6E7X 4WE6H7X 4WE6J7X Series Solenoid Directional Valves
Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Model Number: Rexroth 4WE6C7X/HG24N9K4 4WE6D7X/HG24N9K4 4WE6E7X/HG24N9K4 4WE6H7X/HG24N9K4 4WE6J7X/HG24N9K4
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: On request
Packaging Details: Standard paper box
Delivery Time: 7-10days
Payment Terms: T/T, Western Union
Supply Ability: 100PCS per month
Contact Now
Detailed Product Description
Model: 4WE6J70/HG24N9K4 CertifiSAARion: ISO9001
Origin: Germany
High Light:

rexroth proportional valve

,

hydraulic pressure relief valve

ISO Rexroth Hydraulic Valves 4WE6D7X 4WE6E7X 4WE6H7X 4WE6J7X Series Solenoid Directional Valves 0Rexroth 4WE6 Series Solenoid Directional Valves



Directional spool valves, direct operated, with solenoid actuation
WE 6...E
Size 6
Component series 7X
Maximum operating pressure 315 bar
Maximum flow 60 l/min





Features

4/3-, 4/2- or 3/2-way version
Standard version
Porting pattern according to DIN 24340, form A
Wet-pin DC solenoids
Solenoid coil can be rotated
The coil can be changed without having to open the pressure-tight chamber
Electrical connection as individual connection
Concealed manual override



Type Code Ordering:

Type code

01 02 03 04 05   06 07 08 09 10   11 12
  WE 6   7X /   H   N9   /   *




01 3 main ports 3
4 main ports 4
02 Directional valve WE
03 Size 6 6
04 Symbols e. g. D, E etc.; possible design see Symbols
05 Component series 70 … 79 (70 … 79: unchanged installation and mounting dimensions) 7X
06 With spring return no code
Without spring return with detent OF1)
07 Standard solenoid wet (wet-pin) H
08 Direct voltage 12 V G12
Direct voltage 24 V G24
09 With concealed manual override N9
Electrical connection
10 Individual connection
Without mating connector, with connector DIN EN 175301-803 K42)
Without mating connector, with connector AMP Junior-Timer C4Z 2)
Seal material
11 NBR seals no code
Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)
12 Further details in the plain text *
  1) Only symbol D
  2) Mating connectors, separate order, see data sheet 08006.

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth 4WE6C7X 4WE6D7X 4WE6E7X 4WE6G7X 4WE6H7X 4WE6J7X 4WE6Y7X Series Solenoid Directional Valves on Sale, Short lead time, Best price!!!

R901089277 4WE6C7X/HG12N9K4
R901089245 4WE6C7X/HG24N9K4
R983056012 4WE6C7X/HG24N9K4IN010
R901443773 4WE6D7X/HG12N9C4Z
R901089273 4WE6D7X/HG12N9K4
R901443277 4WE6D7X/HG24N9C4Z

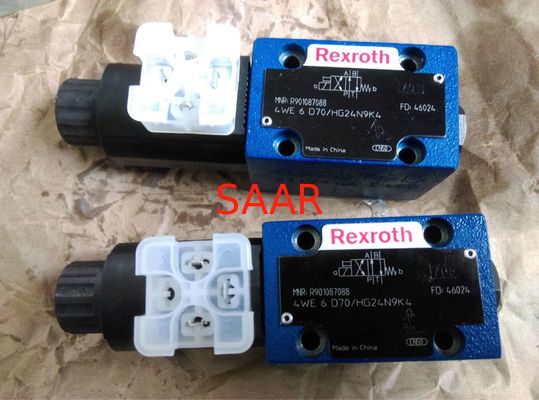

R901087088 4WE6D7X/HG24N9K4
R901108991 4WE6D7X/HG24N9K4/B10
R901488308 4WE6D7X/HG24N9K4/B12V
R901164608 4WE6D7X/HG24N9K4/V
R988003538 4WE6D7X/HG24N9K4/V
R901479463 4WE6D7X/HG24N9K4=00
R983031265 4WE6D7X/HG24N9K4IN010
R901203457 4WE6D7X/OFHG12N9K4
R901130746 4WE6D7X/OFHG24N9K4
R901488310 4WE6D7X/OFHG24N9K4/B20V
R901204583 4WE6D7X/OFHG24N9K4/V
R901237221 4WE6D7X/OFHG24N9K4/V/62
R901445803 4WE6E42-7X/HG24N9K4
R901443778 4WE6E7X/HG12N9C4Z
R901089278 4WE6E7X/HG12N9K4
R901166788 4WE6E7X/HG12N9K4/V=HY
R983056009 4WE6E7X/HG12N9K4IN010
R901382564 4WE6E7X/HG24N9C4Z
R901087087 4WE6E7X/HG24N9K4
R901172487 4WE6E7X/HG24N9K4/B10V
R901286312 4WE6E7X/HG24N9K4/B16V
R901178717 4WE6E7X/HG24N9K4/V
R901166789 4WE6E7X/HG24N9K4/V=HY
R983041733 4WE6E7X/HG24N9K4IN010
R901150490 4WE6EA7X/HG12N9K4
R901166792 4WE6EA7X/HG12N9K4/V=HY
R901108712 4WE6EA7X/HG24N9K4
R901166794 4WE6EA7X/HG24N9K4/V=HY
R901280195 4WE6EB7X/HG12N9K4
R901108713 4WE6EB7X/HG24N9K4
R901443777 4WE6G7X/HG12N9C4Z
R901135149 4WE6G7X/HG12N9K4
R901166796 4WE6G7X/HG12N9K4/V=HY
R901443280 4WE6G7X/HG24N9C4Z
R901130747 4WE6G7X/HG24N9K4
R901236165 4WE6G7X/HG24N9K4/V/62
R901166797 4WE6G7X/HG24N9K4/V=HY
R901227943 4WE6GA7X/HG24N9K4/V
R901443775 4WE6H7X/HG12N9C4Z
R901152101 4WE6H7X/HG12N9K4
R901443279 4WE6H7X/HG24N9C4Z
R901130745 4WE6H7X/HG24N9K4
R901428495 4WE6H7X/HG24N9K4/H10V
R901197623 4WE6H7X/HG24N9K4/V
R901418899 4WE6H7X/HG24N9K4/V/62
R901166800 4WE6H7X/HG24N9K4/V=HY
R901155936 4WE6HA7X/HG12N9K4
R901133322 4WE6HA7X/HG24N9K4
R901308496 4WE6HA7X/HG24N9K4/62
R901333545 4WE6HA7X/HG24N9K4/B12
R901259693 4WE6HA7X/HG24N9K4/V
R901418897 4WE6HA7X/HG24N9K4/V/62
R983057288 4WE6HA7X/HG24N9K4IN010
R901252374 4WE6HB7X/HG24N9K4
R901266568 4WE6J7X/HG12N9C4Z
R901089280 4WE6J7X/HG12N9K4
R901208865 4WE6J7X/HG12N9K4/V
R901200504 4WE6J7X/HG12N9K4/V/62
R901166802 4WE6J7X/HG12N9K4/V=HY
R983056008 4WE6J7X/HG12N9K4IN010
R901382566 4WE6J7X/HG24N9C4Z
R901089241 4WE6J7X/HG24N9K4
R901127593 4WE6J7X/HG24N9K4/B08
R901108990 4WE6J7X/HG24N9K4/B10
R901479465 4WE6J7X/HG24N9K4/B10=00
R901135571 4WE6J7X/HG24N9K4/B10V
R901127595 4WE6J7X/HG24N9K4/B12
R901425751 4WE6J7X/HG24N9K4/B12V
R901109131 4WE6J7X/HG24N9K4/B15
R901479470 4WE6J7X/HG24N9K4/B15=00
R901128201 4WE6J7X/HG24N9K4/V
R901200506 4WE6J7X/HG24N9K4/V/62
R901166803 4WE6J7X/HG24N9K4/V=HY
R901479459 4WE6J7X/HG24N9K4=00
R901162606 4WE6J7X/HG24N9K4=HY
R983049774 4WE6J7X/HG24N9K4IN010
R983031264 4WE6J7X/HG24N9K4IN010
R901266564 4WE6JA7X/HG12N9C4Z
R901234031 4WE6JA7X/HG12N9K4
R901108702 4WE6JA7X/HG24N9K4
R901108988 4WE6JA7X/HG24N9K4/B10
R901479466 4WE6JA7X/HG24N9K4/B10=00
R901479471 4WE6JA7X/HG24N9K4/B15=00
R901137806 4WE6JA7X/HG24N9K4/V
R901479461 4WE6JA7X/HG24N9K4=00
R901108705 4WE6JB7X/HG24N9K4
R901108989 4WE6JB7X/HG24N9K4/B10
R901479467 4WE6JB7X/HG24N9K4/B10=00
R901479472 4WE6JB7X/HG24N9K4/B15=00
R901289035 4WE6JB7X/HG24N9K4/V
R901479462 4WE6JB7X/HG24N9K4=00
R901421645 4WE6U7X/HG24N9K4
R901421646 4WE6UA7X/HG24N9K4
R901266566 4WE6Y7X/HG12N9C4Z
R901089274 4WE6Y7X/HG12N9K4
R983056010 4WE6Y7X/HG12N9K4IN010
R901432620 4WE6Y7X/HG24N9C4Z
R901089243 4WE6Y7X/HG24N9K4
R901121906 4WE6Y7X/HG24N9K4/B10
R901479469 4WE6Y7X/HG24N9K4/B10=00
R901479474 4WE6Y7X/HG24N9K4/B15=00
R901183677 4WE6Y7X/HG24N9K4/V
R901479464 4WE6Y7X/HG24N9K4=00
